Index: Qt/Components/CMakeLists.txt
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Qt/Components/CMakeLists.txt,v
retrieving revision 1.178
diff -u -r1.178 CMakeLists.txt
--- Qt/Components/CMakeLists.txt	22 Jan 2010 16:14:58 -0000	1.178
+++ Qt/Components/CMakeLists.txt	24 Jan 2010 20:42:08 -0000
@@ -94,6 +94,7 @@
   pqCustomFilterDefinitionWizard.h
   pqCustomFilterManager.h
   pqCustomFilterManagerModel.h
+  pqCustomViewButtonDialog.h
   pqCutPanel.h
   pqDataInformationModel.h
   pqDataInformationModelSelectionAdaptor.h
@@ -233,6 +234,7 @@
   Resources/UI/pqCreateServerStartupDialog.ui
   Resources/UI/pqCustomFilterDefinitionWizard.ui
   Resources/UI/pqCustomFilterManager.ui
+  Resources/UI/pqCustomViewButtonDialog.ui
   Resources/UI/pqCubeAxesEditorDialog.ui
   Resources/UI/pqDisplayProxyEditor.ui
   Resources/UI/pqDisplayProxyEditorWidget.ui
@@ -442,6 +444,8 @@
   pqCustomFilterManager.h
   pqCustomFilterManagerModel.cxx
   pqCustomFilterManagerModel.h
+  pqCustomViewButtonDialog.h
+  pqCustomViewButtonDialog.cxx
   pqCutPanel.cxx
   pqCutPanel.h
   pqDataInformationModel.cxx

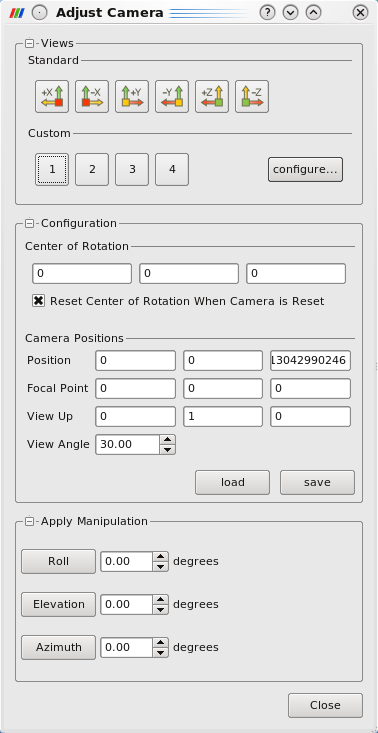

Index: Qt/Components/pqCameraDialog.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Qt/Components/pqCameraDialog.cxx,v
retrieving revision 1.5
diff -u -r1.5 pqCameraDialog.cxx
--- Qt/Components/pqCameraDialog.cxx	23 Jun 2008 14:27:17 -0000	1.5
+++ Qt/Components/pqCameraDialog.cxx	24 Jan 2010 20:42:08 -0000
@@ -33,20 +33,43 @@
 #include "ui_pqCameraDialog.h"

 // ParaView Server Manager includes.
+#include "vtkSmartPointer.h"
 #include "vtkCamera.h"
 #include "vtkProcessModule.h"
 #include "vtkSMProxy.h"
 #include "vtkSMRenderViewProxy.h"
+#include "vtkSMProperty.h"
+#include "vtkSMCameraConfigurationReader.h"
+#include "vtkSMCameraConfigurationWriter.h"
+
+#include "vtkPVXMLElement.h"
+#include "vtkPVXMLParser.h"
+

 // Qt includes.
 #include <QPointer>
+#include <QString>
+#include <QDebug>

 // ParaView Client includes.
 #include "pqApplicationCore.h"
 #include "pqRenderView.h"
 #include "pqPropertyLinks.h"
+#include "pqSettings.h"
+#include "pqFileDialog.h"
+#include "pqCustomViewButtonDialog.h"
+
+// STL
+#include <vtkstd/string>
+#include <vtksys/ios/sstream>
+
+#define pqErrorMacro(estr)\
+  qDebug()\
+      << "Error in:" << endl\
+      << __FILE__ << ", line " << __LINE__ << endl\
+      << "" estr << endl;

-//-----------------------------------------------------------------------------
+//=============================================================================
 class pqCameraDialogInternal : public Ui::pqCameraDialog
 {
 public:
@@ -103,6 +126,47 @@
   QObject::connect(
     this->Internal->azimuthButton, SIGNAL(clicked()),
     this, SLOT(applyCameraAzimuth()));
+
+  QObject::connect(
+    this->Internal->saveCameraConfiguration, SIGNAL(clicked()),
+    this, SLOT(saveCameraConfiguration()));
+
+  QObject::connect(
+    this->Internal->loadCameraConfiguration, SIGNAL(clicked()),
+    this, SLOT(loadCameraConfiguration()));
+
+  QObject::connect(
+    this->Internal->customView0, SIGNAL(clicked()),
+    this, SLOT(applyCustomView0()));
+
+  QObject::connect(
+    this->Internal->customView1, SIGNAL(clicked()),
+    this, SLOT(applyCustomView1()));
+
+  QObject::connect(
+    this->Internal->customView2, SIGNAL(clicked()),
+    this, SLOT(applyCustomView2()));
+
+  QObject::connect(
+    this->Internal->customView3, SIGNAL(clicked()),
+    this, SLOT(applyCustomView3()));
+
+  QObject::connect(
+    this->Internal->configureCustomViews, SIGNAL(clicked()),
+    this, SLOT(configureCustomViews()));
+
+  // load custom view buttons with any tool tips set by the user in a previous
+  // session.
+  pqCameraDialogInternal *w=this->Internal;
+  pqSettings *settings=pqApplicationCore::instance()->settings();
+  settings->beginGroup("CustomViewButtons");
+  settings->beginGroup("ToolTips");
+  w->customView0->setToolTip(settings->value("0","not configured.").toString());
+  w->customView1->setToolTip(settings->value("1","not configured.").toString());
+  w->customView2->setToolTip(settings->value("2","not configured.").toString());
+  w->customView3->setToolTip(settings->value("3","not configured.").toString());
+  settings->endGroup();
+  settings->endGroup();
 }

 //-----------------------------------------------------------------------------
@@ -326,3 +390,178 @@
     }
 }

+//-----------------------------------------------------------------------------
+void pqCameraDialog::configureCustomViews()
+{
+  pqCameraDialogInternal *ui=this->Internal;
+
+  // load the existing button configurations from the app wide settings.
+  QStringList toolTips;
+  QStringList configs;
+
+  pqSettings *settings;
+  settings=pqApplicationCore::instance()->settings();
+  settings->beginGroup("CustomViewButtons");
+
+  settings->beginGroup("Configurations");
+  configs << settings->value("0","").toString();
+  configs << settings->value("1","").toString();
+  configs << settings->value("2","").toString();
+  configs << settings->value("3","").toString();
+  settings->endGroup();
+
+  settings->beginGroup("ToolTips");
+  toolTips << settings->value("0",ui->customView0->toolTip()).toString();
+  toolTips << settings->value("1",ui->customView1->toolTip()).toString();
+  toolTips << settings->value("2",ui->customView2->toolTip()).toString();
+  toolTips << settings->value("3",ui->customView3->toolTip()).toString();
+  settings->endGroup();
+  settings->endGroup();
+
+  // grab the current camera configuration.
+  vtkPVXMLElement *xmlStream=vtkPVXMLElement::New();
+
+  vtkSMRenderViewProxy *rvProxy=ui->RenderModule->getRenderViewProxy();
+
+  vtkSMCameraConfigurationWriter *writer=vtkSMCameraConfigurationWriter::New();
+  writer->SetManagedProxy(rvProxy);
+  writer->WriteConfiguration(xmlStream);
+
+  vtksys_ios::ostringstream os;
+  xmlStream->PrintXML(os,vtkIndent());
+  xmlStream->Delete();
+
+  QString currentConfig(os.str().c_str());
+
+  vtkSMCameraConfigurationReader *reader=vtkSMCameraConfigurationReader::New();
+  reader->SetManagedProxy(rvProxy);
+
+  // user modifies the configuration
+  pqCustomViewButtonDialog dialog(this,0,toolTips,configs,currentConfig,reader);
+  if (dialog.exec()==QDialog::Accepted)
+    {
+    // save the new configuration into the app wide settings.
+    configs=dialog.getConfigurations();
+    settings->beginGroup("CustomViewButtons");
+    settings->beginGroup("Configurations");
+    settings->setValue("0",configs[0]);
+    settings->setValue("1",configs[1]);
+    settings->setValue("2",configs[2]);
+    settings->setValue("3",configs[3]);
+    settings->endGroup();
+
+    toolTips=dialog.getToolTips();
+    settings->beginGroup("ToolTips");
+    settings->setValue("0",toolTips[0]);
+    settings->setValue("1",toolTips[1]);
+    settings->setValue("2",toolTips[2]);
+    settings->setValue("3",toolTips[3]);
+    settings->endGroup();
+    settings->endGroup();
+
+    ui->customView0->setToolTip(toolTips[0]);
+    ui->customView1->setToolTip(toolTips[1]);
+    ui->customView2->setToolTip(toolTips[2]);
+    ui->customView3->setToolTip(toolTips[3]);
+    }
+  reader->Delete();
+  writer->Delete();
+}
+
+//-----------------------------------------------------------------------------
+void pqCameraDialog::applyCustomView(int buttonId)
+{
+  pqCameraDialogInternal *ui=this->Internal;
+
+  pqSettings *settings=pqApplicationCore::instance()->settings();
+  settings->beginGroup("CustomViewButtons");
+  settings->beginGroup("Configurations");
+  QString config=settings->value(QString::number(buttonId),"").toString();
+  settings->endGroup();
+  settings->endGroup();
+
+  if (!config.isEmpty())
+    {
+    vtkSmartPointer<vtkPVXMLParser> parser=vtkSmartPointer<vtkPVXMLParser>::New();
+    parser->InitializeParser();
+    parser->ParseChunk(config.toAscii().data(),static_cast<unsigned int>(config.size()));
+    parser->CleanupParser();
+
+    vtkPVXMLElement *xmlStream=parser->GetRootElement();
+    if (!xmlStream)
+      {
+      pqErrorMacro("Invalid XML in custom view button configuration.");
+      return;
+      }
+
+    vtkSmartPointer<vtkSMCameraConfigurationReader> reader
+      = vtkSmartPointer<vtkSMCameraConfigurationReader>::New();
+
+    reader->SetManagedProxy(ui->RenderModule->getRenderViewProxy());
+    int ok=reader->ReadConfiguration(xmlStream);
+    if (!ok)
+      {
+      pqErrorMacro(
+          << "Invalid XML in custom view button "
+          << buttonId << " configuration.");
+      return;
+      }
+
+    // camera has been successfully changed now update the scene.
+    ui->RenderModule->render();
+    }
+}
+
+//-----------------------------------------------------------------------------
+void pqCameraDialog::saveCameraConfiguration()
+{
+  vtkSMCameraConfigurationWriter *writer=vtkSMCameraConfigurationWriter::New();
+  writer->SetManagedProxy(this->Internal->RenderModule->getRenderViewProxy());
+
+  QString filters
+    = QString("%1 (*%2);;All Files (*.*)")
+        .arg(writer->GetFileDescription()).arg(writer->GetFileExtension());
+
+  pqFileDialog dialog(0,this,"Save Camera Configuration","",filters);
+  dialog.setFileMode(pqFileDialog::AnyFile);
+
+  if (dialog.exec()==QDialog::Accepted)
+    {
+    QString filename(dialog.getSelectedFiles()[0]);
+
+    int ok=writer->WriteConfiguration(filename.toStdString().c_str());
+    if (!ok)
+      {
+      pqErrorMacro("Failed to save the camera configuration.");
+      }
+    }
+  writer->Delete();
+}
+
+//-----------------------------------------------------------------------------
+void pqCameraDialog::loadCameraConfiguration()
+{
+  vtkSMCameraConfigurationReader *reader=vtkSMCameraConfigurationReader::New();
+  reader->SetManagedProxy(this->Internal->RenderModule->getRenderViewProxy());
+
+  QString filters
+    = QString("%1 (*%2);;All Files (*.*)")
+        .arg(reader->GetFileDescription()).arg(reader->GetFileExtension());
+
+  pqFileDialog dialog(0,this,"Load Camera Configuration","",filters);
+  dialog.setFileMode(pqFileDialog::ExistingFile);
+
+  if (dialog.exec()==QDialog::Accepted)
+    {
+    QString filename;
+    filename=dialog.getSelectedFiles()[0];
+
+    int ok=reader->ReadConfiguration(filename.toStdString().c_str());
+    if (!ok)
+      {
+      pqErrorMacro("Failed to load the camera configuration.");
+      }
+    this->Internal->RenderModule->render();
+    }
+  reader->Delete();
+}
Index: Qt/Components/pqCameraDialog.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Qt/Components/pqCameraDialog.h,v
retrieving revision 1.4
diff -u -r1.4 pqCameraDialog.h
--- Qt/Components/pqCameraDialog.h	9 May 2008 18:14:30 -0000	1.4
+++ Qt/Components/pqCameraDialog.h	24 Jan 2010 20:42:08 -0000
@@ -45,11 +45,26 @@
   virtual ~pqCameraDialog();

   void SetCameraGroupsEnabled(bool enabled);
-
+
 public slots:
   void setRenderModule(pqRenderView*);

 private slots:
+  // Description:
+  // Choose a file and load/save camera properties.
+  void saveCameraConfiguration();
+  void loadCameraConfiguration();
+
+  // Description:
+  // Assign/restore the current camera properties to
+  // a custom view button.
+  void configureCustomViews();
+  void applyCustomView(int buttonId);
+  void applyCustomView0(){ this->applyCustomView(0); }
+  void applyCustomView1(){ this->applyCustomView(1); }
+  void applyCustomView2(){ this->applyCustomView(2); }
+  void applyCustomView3(){ this->applyCustomView(3); }
+
   void resetViewDirectionPosX();
   void resetViewDirectionNegX();
   void resetViewDirectionPosY();
@@ -79,8 +94,7 @@
     Elevation,
     Azimuth
     };
-  void adjustCamera(CameraAdjustmentType enType,
-    double angle);
+  void adjustCamera(CameraAdjustmentType enType, double angle);
 };

 #endif

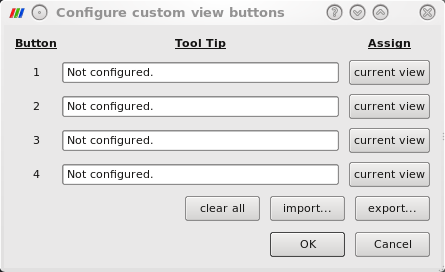

Index: Qt/Components/pqCustomViewButtonDialog.cxx
===================================================================
RCS file: Qt/Components/pqCustomViewButtonDialog.cxx
diff -N Qt/Components/pqCustomViewButtonDialog.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Qt/Components/pqCustomViewButtonDialog.cxx	24 Jan 2010 20:42:09 -0000
@@ -0,0 +1,443 @@
+#include "pqCustomViewButtonDialog.h"
+
+#include "ui_pqCustomViewButtonDialog.h"
+
+#include <QDebug>
+
+#include "vtkIndent.h"
+#include "vtkSmartPointer.h"
+#include "vtkPVXMLElement.h"
+#include "vtkPVXMLParser.h"
+#include "vtkSMCameraConfigurationReader.h"
+
+#include "pqFileDialog.h"
+
+#include <vtkstd/string>
+#include <vtksys/ios/sstream>
+
+#define pqErrorMacro(estr)\
+  qDebug()\
+      << "Error in:" << endl\
+      << __FILE__ << ", line " << __LINE__ << endl\
+      << "" estr << endl;
+
+// User interface
+//=============================================================================
+class pqCustomViewButtonDialogUI
+    :
+  public Ui::pqCustomViewButtonDialog
+    {};
+
+// Organizes button config file info in a single location.
+//=============================================================================
+class pqCustomViewButtonFileInfo
+{
+public:
+  pqCustomViewButtonFileInfo()
+        :
+    FileIdentifier("CustomViewButtonConfiguration"),
+    FileDescription("Custom View Button Configuration"),
+    FileExtension(".pvcvbc"),
+    WriterVersion("1.0")
+      {}
+
+  void Print(ostream &os, vtkIndent indent)
+    {
+    os
+      << indent << "FileIdentifier: " << this->FileIdentifier << endl
+      << indent << "FileDescription: " << this->FileDescription << endl
+      << indent << "FileExtension: " << this->FileExtension << endl;
+    }
+
+  const char *FileIdentifier;
+  const char *FileDescription;
+  const char *FileExtension;
+  const char *WriterVersion;
+};
+
+//------------------------------------------------------------------------------
+pqCustomViewButtonDialog::pqCustomViewButtonDialog(
+    QWidget *parent,
+    Qt::WindowFlags flags,
+    QStringList &toolTips,
+    QStringList &configs,
+    QString &curConfig,
+    vtkSMCameraConfigurationReader *reader)
+            :
+    QDialog(parent,flags),
+    NButtons(0),
+    Reader(0),
+    ui(0)
+{
+  this->ui = new pqCustomViewButtonDialogUI;
+  this->ui->setupUi(this);
+
+  this->ToolTips
+      << this->ui->toolTip0
+      << this->ui->toolTip1
+      << this->ui->toolTip2
+      << this->ui->toolTip3;
+  this->NButtons=4;
+
+  this->setToolTips(toolTips);
+  this->setConfigurations(configs);
+  this->setCurrentConfiguration(curConfig);
+  this->setReader(reader);
+
+  QObject::connect(
+    this->ui->clearAll, SIGNAL(clicked()),
+    this, SLOT(clearAll()));
+
+  QObject::connect(
+    this->ui->importAll, SIGNAL(clicked()),
+    this, SLOT(importConfigurations()));
+
+  QObject::connect(
+    this->ui->exportAll, SIGNAL(clicked()),
+    this, SLOT(exportConfigurations()));
+
+  QObject::connect(
+    this->ui->assignCurrentView0, SIGNAL(clicked()),
+    this, SLOT(assignCurrentView0()));
+
+  QObject::connect(
+    this->ui->assignCurrentView1, SIGNAL(clicked()),
+    this, SLOT(assignCurrentView1()));
+
+  QObject::connect(
+    this->ui->assignCurrentView2, SIGNAL(clicked()),
+    this, SLOT(assignCurrentView2()));
+
+  QObject::connect(
+    this->ui->assignCurrentView3, SIGNAL(clicked()),
+    this, SLOT(assignCurrentView3()));
+}
+
+//------------------------------------------------------------------------------
+pqCustomViewButtonDialog::~pqCustomViewButtonDialog()
+{
+  this->setReader(0);
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::setToolTips(QStringList &toolTips)
+{
+  if (toolTips.length()!=this->NButtons)
+    {
+    pqErrorMacro("Error: Wrong number of tool tips.");
+    return;
+    }
+
+  for (int i=0; i<this->NButtons; ++i)
+    {
+    this->ToolTips[i]->setText(toolTips[i]);
+    }
+}
+
+//------------------------------------------------------------------------------
+QStringList pqCustomViewButtonDialog::getToolTips()
+{
+  QStringList toolTips;
+  for (int i=0; i<this->NButtons; ++i)
+    {
+    toolTips << this->ToolTips[i]->text();
+    }
+  return toolTips;
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::setConfigurations(QStringList &configs)
+{
+  if (configs.length()!=this->NButtons)
+    {
+    pqErrorMacro("Error: Wrong number of configurations.");
+    return;
+    }
+
+  this->Configurations=configs;
+}
+
+//------------------------------------------------------------------------------
+QStringList pqCustomViewButtonDialog::getConfigurations()
+{
+  return this->Configurations;
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::setReader(vtkSMCameraConfigurationReader *reader)
+{
+  if (this->Reader)
+    {
+    this->Reader->Delete();
+    this->Reader=0;
+    }
+  if (reader)
+    {
+    this->Reader=reader;
+    this->Reader->Register(0);
+    }
+}
+
+//------------------------------------------------------------------------------
+vtkSMCameraConfigurationReader *pqCustomViewButtonDialog::getReader()
+{
+  return this->Reader;
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::setCurrentConfiguration(QString &config)
+{
+  this->CurrentConfiguration=config;
+}
+
+//------------------------------------------------------------------------------
+QString pqCustomViewButtonDialog::getCurrentConfiguration()
+{
+  return this->CurrentConfiguration;
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::importConfigurations()
+{
+pqCustomViewButtonFileInfo fileInfo;
+
+  QString filters
+    = QString("%1 (*%2);;All Files (*.*)")
+        .arg(fileInfo.FileDescription).arg(fileInfo.FileExtension);
+
+  pqFileDialog dialog(0,this,"Load Custom View Button Configuration","",filters);
+  dialog.setFileMode(pqFileDialog::ExistingFile);
+
+  if (dialog.exec()==QDialog::Accepted)
+    {
+    QString filename;
+    filename=dialog.getSelectedFiles()[0];
+
+    vtkSmartPointer<vtkPVXMLParser> parser=vtkSmartPointer<vtkPVXMLParser>::New();
+    parser->SetFileName(filename.toStdString().c_str());
+    if (parser->Parse()==0)
+      {
+      pqErrorMacro("Invalid XML in file: " << filename << ".");
+      return;
+      }
+
+    vtkPVXMLElement *root=parser->GetRootElement();
+    if (root==0)
+      {
+      pqErrorMacro("Invalid XML in file: " << filename << ".");
+      return;
+      }
+
+    // check type
+    vtkstd::string requiredType(fileInfo.FileIdentifier);
+    const char *foundType=root->GetName();
+    if (foundType==0 || foundType!=requiredType)
+      {
+      pqErrorMacro(
+          << "This is not a valid " << fileInfo.FileDescription
+          << " XML hierarchy.");
+      return;
+      }
+
+    // check version
+    const char *foundVersion=root->GetAttribute("version");
+    if (foundVersion==0)
+      {
+      pqErrorMacro("No version attribute was found.");
+      return;
+      }
+    vtkstd::string requiredVersion(fileInfo.WriterVersion);
+    if (foundVersion!=requiredVersion)
+      {
+      pqErrorMacro("Unsupported version " << foundVersion << ".");
+      return;
+      }
+
+    // read buttons, their toolTips, and configurations.
+    QStringList toolTips;
+    QStringList configs;
+    for (int i=0; i<this->NButtons; ++i)
+      {
+      // button
+      QString buttonTagId=QString("CustomViewButton%1").arg(i);
+      vtkPVXMLElement *button=root->FindNestedElementByName(buttonTagId.toStdString().c_str());
+      if (button==0)
+        {
+        pqErrorMacro("Missing " << buttonTagId << " representation.");
+        return;
+        }
+
+      // tool tip
+      vtkPVXMLElement *toolTip=button->FindNestedElementByName("ToolTip");
+      if (toolTip==0)
+        {
+        pqErrorMacro(<< buttonTagId << " is missing ToolTip.");
+        return;
+        }
+      const char *toolTipValue=toolTip->GetAttribute("value");
+      if (toolTipValue==0)
+        {
+        pqErrorMacro("In " << buttonTagId
+            << " ToolTip is missing value attribute.");
+        return;
+        }
+
+      toolTips << toolTipValue;
+
+      // configuration
+      vtkPVXMLElement *config=button->FindNestedElementByName("Configuration");
+      if (config==0)
+        {
+        pqErrorMacro(<< buttonTagId << " is missing Configuration.");
+        return;
+        }
+      const char *isEmptyValue=config->GetAttribute("is_empty");
+      if (isEmptyValue==0)
+        {
+        pqErrorMacro("In " << buttonTagId
+            << " Configuration is missing is_empty attribute.");
+        return;
+        }
+      int isEmpty;
+      vtksys_ios::istringstream is(isEmptyValue);
+      is >> isEmpty;
+      if (isEmpty)
+        {
+        configs << "";
+        }
+      else
+        {
+        vtkPVXMLElement *cameraConfig
+            = config->FindNestedElementByName(this->Reader->GetFileIdentifier());
+        if (cameraConfig==0)
+          {
+          pqErrorMacro(
+            << "In " << buttonTagId << " invalid "
+            << this->Reader->GetFileDescription() << ".");
+          return;
+          }
+
+        int ok=this->Reader->ValidateConfiguration(cameraConfig);
+        if (!ok)
+          {
+          pqErrorMacro(
+            << "In " << buttonTagId << " invalid "
+            << this->Reader->GetFileDescription() << ".");
+          return;
+          }
+
+        vtksys_ios::ostringstream os;
+        cameraConfig->PrintXML(os,vtkIndent());
+
+        configs << os.str().c_str();
+        }
+      }
+
+    // It's now certain that this configuration file was valid, so we can
+    // pass the values on safely.
+    this->setToolTips(toolTips);
+    this->setConfigurations(configs);
+    //this->accept();
+    }
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::exportConfigurations()
+{
+  pqCustomViewButtonFileInfo fileInfo;
+
+  QString filters
+    = QString("%1 (*%2);;All Files (*.*)")
+        .arg(fileInfo.FileDescription).arg(fileInfo.FileExtension);
+
+  pqFileDialog dialog(0,this,"Save Custom View Button Configuration","",filters);
+  dialog.setFileMode(pqFileDialog::AnyFile);
+
+  if (dialog.exec()==QDialog::Accepted)
+    {
+    QString filename;
+    filename=dialog.getSelectedFiles()[0];
+
+    vtkPVXMLElement *xmlStream=vtkPVXMLElement::New();
+    xmlStream->SetName(fileInfo.FileIdentifier);
+    xmlStream->SetAttribute("version",fileInfo.WriterVersion);
+
+    for (int i=0; i<this->NButtons; ++i)
+      {
+      // tool tip
+      vtkPVXMLElement *toolTip=vtkPVXMLElement::New();
+      toolTip->SetName("ToolTip");
+      toolTip->SetAttribute("value",this->ToolTips[i]->text().toStdString().c_str());
+
+      // camera configuration
+      vtksys_ios::ostringstream os;
+      os << (this->Configurations[i].isEmpty()?1:0);
+
+      vtkPVXMLElement *config=vtkPVXMLElement::New();
+      config->SetName("Configuration");
+      config->AddAttribute("is_empty",os.str().c_str());
+
+      if (!this->Configurations[i].isEmpty())
+        {
+        vtkstd::string camConfig(this->Configurations[i].toStdString());
+
+        vtkPVXMLParser *parser=vtkPVXMLParser::New();
+        parser->InitializeParser();
+        parser->ParseChunk(camConfig.c_str(),static_cast<unsigned int>(camConfig.size()));
+        parser->CleanupParser();
+
+        vtkPVXMLElement *camConfigXml=parser->GetRootElement();
+
+        // no validation is needed here, because all of the methods for
+        // setting the configuration are validated. If it's here it's valid.
+
+        config->AddNestedElement(camConfigXml);
+        parser->Delete();
+        }
+
+      vtkPVXMLElement *button=vtkPVXMLElement::New();
+      button->SetName(QString("CustomViewButton%1").arg(i).toStdString().c_str());
+      button->AddNestedElement(toolTip);
+      button->AddNestedElement(config);
+
+      xmlStream->AddNestedElement(button);
+
+      toolTip->Delete();
+      config->Delete();
+      button->Delete();
+      }
+
+    ofstream os(filename.toStdString().c_str(),ios::out);
+    xmlStream->PrintXML(os,vtkIndent());
+    os << endl;
+    os.flush();
+    os.close();
+
+    xmlStream->Delete();
+    }
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::clearAll()
+{
+  QStringList toolTips;
+  toolTips
+      << "Not configured."
+      << "Not configured."
+      << "Not configured."
+      << "Not configured.";
+  this->setToolTips(toolTips);
+
+  QStringList configs;
+  configs << "" << "" << "" << "";
+  this->setConfigurations(configs);
+}
+
+//------------------------------------------------------------------------------
+void pqCustomViewButtonDialog::assignCurrentView(int id)
+{
+  this->Configurations[id]=this->CurrentConfiguration;
+
+  this->ToolTips[id]->selectAll();
+  this->ToolTips[id]->setFocus();
+}
Index: Qt/Components/pqCustomViewButtonDialog.h
===================================================================
RCS file: Qt/Components/pqCustomViewButtonDialog.h
diff -N Qt/Components/pqCustomViewButtonDialog.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Qt/Components/pqCustomViewButtonDialog.h	24 Jan 2010 20:42:09 -0000
@@ -0,0 +1,111 @@
+/*=========================================================================
+
+   Program: ParaView
+   Module:    $RCSfile: pqCameraDialog.h,v $
+
+   Copyright (c) 2005-2008 Sandia Corporation, Kitware Inc.
+   All rights reserved.
+
+   ParaView is a free software; you can redistribute it and/or modify it
+   under the terms of the ParaView license version 1.2.
+
+   See License_v1.2.txt for the full ParaView license.
+   A copy of this license can be obtained by contacting
+   Kitware Inc.
+   28 Corporate Drive
+   Clifton Park, NY 12065
+   USA
+
+THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
+``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
+LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
+A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR
+CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
+EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
+PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF
+LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
+NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
+SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
+
+=========================================================================*/
+#ifndef pqCustomViewDialog_h
+#define pqCustomViewDialog_h
+
+#include <QDialog>
+#include <QLineEdit>
+#include <QList>
+#include <QStringList>
+#include <QString>
+
+class pqCustomViewButtonDialogUI;
+class vtkSMCameraConfigurationReader;
+
+// dialog allows the user to select the button id and enter a tool tip
+// that will be used in assigning the current camera settings to a custom
+// view button.
+class pqCustomViewButtonDialog : public QDialog
+{
+Q_OBJECT
+
+public:
+  // Description:
+  // Create and initialize the dialog.
+  pqCustomViewButtonDialog(
+      QWidget *parent,
+      Qt::WindowFlags f,
+      QStringList &toolTips,
+      QStringList &configurations,
+      QString &currentConfig,
+      vtkSMCameraConfigurationReader*);
+
+  ~pqCustomViewButtonDialog();
+
+  // Description:
+  // Set/get a list of tool tips, one for each button.
+  void setToolTips(QStringList &toolTips);
+  QStringList getToolTips();
+
+  // Description:
+  // Set/get a list of camera configurations, one for each buttton.
+  void setConfigurations(QStringList &configs);
+  QStringList getConfigurations();
+
+  // Descrition:
+  // Set/get the current camera configuration.
+  void setCurrentConfiguration(QString &config);
+  QString getCurrentConfiguration();
+
+  // Description:
+  // Set/get configuration reader, required for loading a button
+  // configuration file.
+  void setReader(vtkSMCameraConfigurationReader *reader);
+  vtkSMCameraConfigurationReader *getReader();
+
+private slots:
+  void importConfigurations();
+  void exportConfigurations();
+  void clearAll();
+
+  void assignCurrentView(int id);
+  void assignCurrentView0(){ this->assignCurrentView(0); }
+  void assignCurrentView1(){ this->assignCurrentView(1); }
+  void assignCurrentView2(){ this->assignCurrentView(2); }
+  void assignCurrentView3(){ this->assignCurrentView(3); }
+
+private:
+  pqCustomViewButtonDialog(){}
+
+  int NButtons;
+
+  QList<QLineEdit *> ToolTips;
+  QStringList Configurations;
+  QString CurrentConfiguration;
+
+  vtkSMCameraConfigurationReader *Reader;
+
+  pqCustomViewButtonDialogUI *ui;
+};
+
+#endif
+
Index: Qt/Components/Resources/UI/pqCameraDialog.ui
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Qt/Components/Resources/UI/pqCameraDialog.ui,v
retrieving revision 1.4
diff -u -r1.4 pqCameraDialog.ui
--- Qt/Components/Resources/UI/pqCameraDialog.ui	23 Jun 2008 14:27:18 -0000	1.4
+++ Qt/Components/Resources/UI/pqCameraDialog.ui	24 Jan 2010 20:42:09 -0000
@@ -1,353 +1,525 @@
-<ui version="4.0" >
+<?xml version="1.0" encoding="UTF-8"?>
+<ui version="4.0">
  <class>pqCameraDialog</class>
- <widget class="QDialog" name="pqCameraDialog" >
-  <property name="windowModality" >
+ <widget class="QDialog" name="pqCameraDialog">
+  <property name="windowModality">
    <enum>Qt::NonModal</enum>
   </property>
-  <property name="geometry" >
+  <property name="geometry">
    <rect>
     <x>0</x>
     <y>0</y>
-    <width>315</width>
-    <height>473</height>
+    <width>349</width>
+    <height>704</height>
    </rect>
   </property>
-  <property name="windowTitle" >
+  <property name="sizePolicy">
+   <sizepolicy hsizetype="Preferred" vsizetype="MinimumExpanding">
+    <horstretch>0</horstretch>
+    <verstretch>0</verstretch>
+   </sizepolicy>
+  </property>
+  <property name="windowTitle">
    <string>Adjusting Camera</string>
   </property>
-  <layout class="QVBoxLayout" >
-   <property name="spacing" >
-    <number>6</number>
-   </property>
-   <property name="leftMargin" >
-    <number>9</number>
-   </property>
-   <property name="topMargin" >
-    <number>9</number>
-   </property>
-   <property name="rightMargin" >
-    <number>9</number>
-   </property>
-   <property name="bottomMargin" >
-    <number>9</number>
-   </property>
+  <layout class="QVBoxLayout" name="verticalLayout_3">
    <item>
-    <widget class="pqCollapsedGroup" name="viewsGroup" >
-     <property name="title" >
-      <string>Standard Views</string>
+    <widget class="pqCollapsedGroup" name="groupBox_2">
+     <property name="toolTip">
+      <string>Apply a preset camera configuration.</string>
      </property>
-     <layout class="QHBoxLayout" >
-      <property name="spacing" >
-       <number>6</number>
-      </property>
-      <property name="leftMargin" >
-       <number>6</number>
-      </property>
-      <property name="topMargin" >
-       <number>6</number>
+     <property name="statusTip">
+      <string/>
+     </property>
+     <property name="title">
+      <string>Views</string>
+     </property>
+     <layout class="QVBoxLayout" name="verticalLayout_2">
+      <property name="spacing">
+       <number>0</number>
       </property>
-      <property name="rightMargin" >
-       <number>6</number>
+      <property name="topMargin">
+       <number>0</number>
       </property>
-      <property name="bottomMargin" >
-       <number>6</number>
+      <property name="bottomMargin">
+       <number>4</number>
       </property>
       <item>
-       <widget class="QToolButton" name="viewXPlus" >
-        <property name="toolTip" >
-         <string>Looking down X axis from (1, 0, 0)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqXPlus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
+       <widget class="QGroupBox" name="viewsGroup">
+        <property name="title">
+         <string>Standard</string>
+        </property>
+        <property name="flat">
+         <bool>true</bool>
+        </property>
+        <layout class="QHBoxLayout" name="horizontalLayout_3">
+         <item>
+          <widget class="QToolButton" name="viewXPlus">
+           <property name="toolTip">
+            <string>Looking down X axis from (1, 0, 0)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqXPlus24.png</normaloff>:/pqWidgets/Icons/pqXPlus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="viewXMinus">
+           <property name="toolTip">
+            <string>Looking down X axis from (-1, 0, 0)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqXMinus24.png</normaloff>:/pqWidgets/Icons/pqXMinus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="viewYPlus">
+           <property name="toolTip">
+            <string>Looking down Y axis from (0, 1, 0)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqYPlus24.png</normaloff>:/pqWidgets/Icons/pqYPlus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="viewYMinus">
+           <property name="toolTip">
+            <string>Looking down Y axis from (0, -1, 0)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqYMinus24.png</normaloff>:/pqWidgets/Icons/pqYMinus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="viewZPlus">
+           <property name="toolTip">
+            <string>Looking down X axis from (0, 0, 1)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqZPlus24.png</normaloff>:/pqWidgets/Icons/pqZPlus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="viewZMinus">
+           <property name="toolTip">
+            <string>Looking down Z axis from (0, 0, -1)</string>
+           </property>
+           <property name="text">
+            <string/>
+           </property>
+           <property name="icon">
+            <iconset resource="../pqComponents.qrc">
+             <normaloff>:/pqWidgets/Icons/pqZMinus24.png</normaloff>:/pqWidgets/Icons/pqZMinus24.png</iconset>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <spacer>
+           <property name="orientation">
+            <enum>Qt::Horizontal</enum>
+           </property>
+           <property name="sizeHint" stdset="0">
+            <size>
+             <width>0</width>
+             <height>20</height>
+            </size>
+           </property>
+          </spacer>
+         </item>
+        </layout>
        </widget>
       </item>
       <item>
-       <widget class="QToolButton" name="viewXMinus" >
-        <property name="toolTip" >
-         <string>Looking down X axis from (-1, 0, 0)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqXMinus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
+       <widget class="QGroupBox" name="customViewsGroup">
+        <property name="title">
+         <string>Custom</string>
+        </property>
+        <property name="flat">
+         <bool>true</bool>
+        </property>
+        <layout class="QHBoxLayout" name="horizontalLayout_4">
+         <item>
+          <widget class="QToolButton" name="customView0">
+           <property name="minimumSize">
+            <size>
+             <width>34</width>
+             <height>33</height>
+            </size>
+           </property>
+           <property name="toolTip">
+            <string>not configured</string>
+           </property>
+           <property name="text">
+            <string>1</string>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="customView1">
+           <property name="minimumSize">
+            <size>
+             <width>34</width>
+             <height>33</height>
+            </size>
+           </property>
+           <property name="toolTip">
+            <string>not configured</string>
+           </property>
+           <property name="text">
+            <string>2</string>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="customView2">
+           <property name="minimumSize">
+            <size>
+             <width>34</width>
+             <height>33</height>
+            </size>
+           </property>
+           <property name="toolTip">
+            <string>not configured</string>
+           </property>
+           <property name="text">
+            <string>3</string>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <widget class="QToolButton" name="customView3">
+           <property name="minimumSize">
+            <size>
+             <width>34</width>
+             <height>33</height>
+            </size>
+           </property>
+           <property name="toolTip">
+            <string>not configured</string>
+           </property>
+           <property name="text">
+            <string>4</string>
+           </property>
+           <property name="iconSize">
+            <size>
+             <width>24</width>
+             <height>24</height>
+            </size>
+           </property>
+          </widget>
+         </item>
+         <item>
+          <spacer name="horizontalSpacer_2">
+           <property name="orientation">
+            <enum>Qt::Horizontal</enum>
+           </property>
+           <property name="sizeHint" stdset="0">
+            <size>
+             <width>49</width>
+             <height>20</height>
+            </size>
+           </property>
+          </spacer>
+         </item>
+         <item>
+          <widget class="QPushButton" name="configureCustomViews">
+           <property name="toolTip">
+            <string>Configure custom view buttons.</string>
+           </property>
+           <property name="text">
+            <string>configure...</string>
+           </property>
+          </widget>
+         </item>
+        </layout>
        </widget>
       </item>
-      <item>
-       <widget class="QToolButton" name="viewYPlus" >
-        <property name="toolTip" >
-         <string>Looking down Y axis from (0, 1, 0)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqYPlus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
-       </widget>
-      </item>
-      <item>
-       <widget class="QToolButton" name="viewYMinus" >
-        <property name="toolTip" >
-         <string>Looking down Y axis from (0, -1, 0)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqYMinus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
-       </widget>
-      </item>
-      <item>
-       <widget class="QToolButton" name="viewZPlus" >
-        <property name="toolTip" >
-         <string>Looking down X axis from (0, 0, 1)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqZPlus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
-       </widget>
-      </item>
-      <item>
-       <widget class="QToolButton" name="viewZMinus" >
-        <property name="toolTip" >
-         <string>Looking down Z axis from (0, 0, -1)</string>
-        </property>
-        <property name="text" >
-         <string/>
-        </property>
-        <property name="icon" >
-         <iconset resource="../pqComponents.qrc" >:/pqWidgets/Icons/pqZMinus24.png</iconset>
-        </property>
-        <property name="iconSize" >
-         <size>
-          <width>24</width>
-          <height>24</height>
-         </size>
-        </property>
-       </widget>
-      </item>
-      <item>
-       <spacer>
-        <property name="orientation" >
-         <enum>Qt::Horizontal</enum>
-        </property>
-        <property name="sizeHint" >
-         <size>
-          <width>0</width>
-          <height>20</height>
-         </size>
-        </property>
-       </spacer>
-      </item>
      </layout>
     </widget>
    </item>
    <item>
-    <widget class="QGroupBox" name="centerGroup" >
-     <property name="title" >
-      <string>Center of Rotation</string>
+    <widget class="pqCollapsedGroup" name="groupBox">
+     <property name="toolTip">
+      <string>View, and edit the current camera configuration.</string>
      </property>
-     <layout class="QGridLayout" >
-      <item row="0" column="0" >
-       <widget class="QLineEdit" name="CenterX" />
-      </item>
-      <item row="0" column="1" >
-       <widget class="QLineEdit" name="CenterY" />
-      </item>
-      <item row="0" column="2" >
-       <widget class="QLineEdit" name="CenterZ" />
-      </item>
-      <item row="1" column="0" colspan="3" >
-       <widget class="QCheckBox" name="AutoResetCenterOfRotation" >
-        <property name="toolTip" >
-         <string>Reset center of rotation when camera is reset.</string>
-        </property>
-        <property name="text" >
-         <string>Reset Center of Rotation When Camera is Reset</string>
-        </property>
-       </widget>
-      </item>
-     </layout>
-    </widget>
-   </item>
-   <item>
-    <widget class="pqCollapsedGroup" name="positionsGroup" >
-     <property name="title" >
-      <string>Camera Positions</string>
+     <property name="title">
+      <string>Configuration</string>
      </property>
-     <layout class="QGridLayout" >
-      <property name="leftMargin" >
-       <number>6</number>
-      </property>
-      <property name="topMargin" >
+     <layout class="QVBoxLayout" name="verticalLayout">
+      <property name="margin">
        <number>6</number>
       </property>
-      <property name="rightMargin" >
-       <number>6</number>
-      </property>
-      <property name="bottomMargin" >
-       <number>6</number>
-      </property>
-      <property name="horizontalSpacing" >
-       <number>6</number>
-      </property>
-      <property name="verticalSpacing" >
-       <number>6</number>
-      </property>
-      <item row="0" column="0" >
-       <widget class="QLabel" name="label_22" >
-        <property name="text" >
-         <string>Position</string>
-        </property>
-       </widget>
-      </item>
-      <item row="1" column="0" >
-       <widget class="QLabel" name="label_17" >
-        <property name="text" >
-         <string>Focal Point</string>
-        </property>
-       </widget>
-      </item>
-      <item row="2" column="0" >
-       <widget class="QLabel" name="label_14" >
-        <property name="text" >
-         <string>View Up</string>
-        </property>
-       </widget>
-      </item>
-      <item row="3" column="0" >
-       <widget class="QLabel" name="label_23" >
-        <property name="text" >
-         <string>View Angle</string>
-        </property>
+      <item>
+       <widget class="QGroupBox" name="centerGroup">
+        <property name="title">
+         <string>Center of Rotation</string>
+        </property>
+        <property name="flat">
+         <bool>true</bool>
+        </property>
+        <layout class="QGridLayout">
+         <item row="0" column="0">
+          <widget class="QLineEdit" name="CenterX"/>
+         </item>
+         <item row="0" column="1">
+          <widget class="QLineEdit" name="CenterY"/>
+         </item>
+         <item row="0" column="2">
+          <widget class="QLineEdit" name="CenterZ"/>
+         </item>
+         <item row="1" column="0" colspan="3">
+          <widget class="QCheckBox" name="AutoResetCenterOfRotation">
+           <property name="toolTip">
+            <string>Reset center of rotation when camera is reset.</string>
+           </property>
+           <property name="text">
+            <string>Reset Center of Rotation When Camera is Reset</string>
+           </property>
+          </widget>
+         </item>
+        </layout>
        </widget>
       </item>
-      <item row="3" column="1" >
-       <widget class="QDoubleSpinBox" name="viewAngle" >
-        <property name="minimum" >
-         <double>-360.000000000000000</double>
-        </property>
-        <property name="maximum" >
-         <double>360.000000000000000</double>
-        </property>
+      <item>
+       <widget class="QGroupBox" name="positionsGroup">
+        <property name="title">
+         <string>Camera Positions</string>
+        </property>
+        <property name="flat">
+         <bool>true</bool>
+        </property>
+        <layout class="QGridLayout">
+         <property name="margin">
+          <number>4</number>
+         </property>
+         <property name="spacing">
+          <number>-1</number>
+         </property>
+         <item row="0" column="0">
+          <widget class="QLabel" name="label_22">
+           <property name="text">
+            <string>Position</string>
+           </property>
+          </widget>
+         </item>
+         <item row="1" column="0">
+          <widget class="QLabel" name="label_17">
+           <property name="text">
+            <string>Focal Point</string>
+           </property>
+          </widget>
+         </item>
+         <item row="2" column="0">
+          <widget class="QLabel" name="label_14">
+           <property name="text">
+            <string>View Up</string>
+           </property>
+          </widget>
+         </item>
+         <item row="3" column="0">
+          <widget class="QLabel" name="label_23">
+           <property name="text">
+            <string>View Angle</string>
+           </property>
+          </widget>
+         </item>
+         <item row="3" column="1">
+          <widget class="QDoubleSpinBox" name="viewAngle">
+           <property name="minimum">
+            <double>-360.000000000000000</double>
+           </property>
+           <property name="maximum">
+            <double>360.000000000000000</double>
+           </property>
+          </widget>
+         </item>
+         <item row="0" column="1">
+          <widget class="QLineEdit" name="position0"/>
+         </item>
+         <item row="0" column="2">
+          <widget class="QLineEdit" name="position1"/>
+         </item>
+         <item row="0" column="3">
+          <widget class="QLineEdit" name="position2"/>
+         </item>
+         <item row="1" column="1">
+          <widget class="QLineEdit" name="focalPoint0"/>
+         </item>
+         <item row="1" column="2">
+          <widget class="QLineEdit" name="focalPoint1"/>
+         </item>
+         <item row="1" column="3">
+          <widget class="QLineEdit" name="focalPoint2"/>
+         </item>
+         <item row="2" column="1">
+          <widget class="QLineEdit" name="viewUp0"/>
+         </item>
+         <item row="2" column="2">
+          <widget class="QLineEdit" name="viewUp1"/>
+         </item>
+         <item row="2" column="3">
+          <widget class="QLineEdit" name="viewUp2"/>
+         </item>
+        </layout>
        </widget>
       </item>
-      <item row="0" column="1" >
-       <widget class="QLineEdit" name="position0" />
-      </item>
-      <item row="0" column="2" >
-       <widget class="QLineEdit" name="position1" />
-      </item>
-      <item row="0" column="3" >
-       <widget class="QLineEdit" name="position2" />
-      </item>
-      <item row="1" column="1" >
-       <widget class="QLineEdit" name="focalPoint0" />
-      </item>
-      <item row="1" column="2" >
-       <widget class="QLineEdit" name="focalPoint1" />
-      </item>
-      <item row="1" column="3" >
-       <widget class="QLineEdit" name="focalPoint2" />
-      </item>
-      <item row="2" column="1" >
-       <widget class="QLineEdit" name="viewUp0" />
-      </item>
-      <item row="2" column="2" >
-       <widget class="QLineEdit" name="viewUp1" />
-      </item>
-      <item row="2" column="3" >
-       <widget class="QLineEdit" name="viewUp2" />
+      <item>
+       <layout class="QHBoxLayout" name="horizontalLayout">
+        <item>
+         <spacer name="horizontalSpacer">
+          <property name="orientation">
+           <enum>Qt::Horizontal</enum>
+          </property>
+          <property name="sizeHint" stdset="0">
+           <size>
+            <width>40</width>
+            <height>20</height>
+           </size>
+          </property>
+         </spacer>
+        </item>
+        <item>
+         <widget class="QPushButton" name="loadCameraConfiguration">
+          <property name="toolTip">
+           <string>Load camera properties.</string>
+          </property>
+          <property name="text">
+           <string>load</string>
+          </property>
+         </widget>
+        </item>
+        <item>
+         <widget class="QPushButton" name="saveCameraConfiguration">
+          <property name="toolTip">
+           <string>Save camera properties.</string>
+          </property>
+          <property name="text">
+           <string>save</string>
+          </property>
+         </widget>
+        </item>
+       </layout>
       </item>
      </layout>
     </widget>
    </item>
    <item>
-    <widget class="QGroupBox" name="orientationsGroup" >
-     <property name="title" >
-      <string>Camera Orientation</string>
+    <widget class="pqCollapsedGroup" name="orientationsGroup">
+     <property name="title">
+      <string>Apply Manipulation</string>
      </property>
-     <layout class="QGridLayout" >
-      <property name="leftMargin" >
-       <number>6</number>
-      </property>
-      <property name="topMargin" >
-       <number>6</number>
-      </property>
-      <property name="rightMargin" >
-       <number>6</number>
-      </property>
-      <property name="bottomMargin" >
-       <number>6</number>
-      </property>
-      <property name="horizontalSpacing" >
-       <number>6</number>
-      </property>
-      <property name="verticalSpacing" >
-       <number>6</number>
-      </property>
-      <item row="0" column="2" >
-       <widget class="QLabel" name="label_20" >
-        <property name="sizePolicy" >
-         <sizepolicy vsizetype="Preferred" hsizetype="MinimumExpanding" >
+     <layout class="QGridLayout">
+      <property name="margin">
+       <number>4</number>
+      </property>
+      <property name="spacing">
+       <number>4</number>
+      </property>
+      <item row="0" column="2">
+       <widget class="QLabel" name="label_20">
+        <property name="sizePolicy">
+         <sizepolicy hsizetype="MinimumExpanding" vsizetype="Preferred">
           <horstretch>0</horstretch>
           <verstretch>0</verstretch>
          </sizepolicy>
         </property>
-        <property name="text" >
+        <property name="toolTip">
+         <string>Apply a manipulation to the current camera using the buttons on the left.</string>
+        </property>
+        <property name="text">
          <string>degrees</string>
         </property>
        </widget>
       </item>
-      <item row="2" column="0" >
-       <widget class="QPushButton" name="azimuthButton" >
-        <property name="text" >
+      <item row="2" column="0">
+       <widget class="QPushButton" name="azimuthButton">
+        <property name="text">
          <string>Azimuth</string>
         </property>
-        <property name="icon" >
-         <iconset/>
+        <property name="icon">
+         <iconset>
+          <normaloff/>
+         </iconset>
         </property>
-        <property name="iconSize" >
+        <property name="iconSize">
          <size>
           <width>24</width>
           <height>24</height>
@@ -355,15 +527,17 @@
         </property>
        </widget>
       </item>
-      <item row="1" column="0" >
-       <widget class="QPushButton" name="elevationButton" >
-        <property name="text" >
+      <item row="1" column="0">
+       <widget class="QPushButton" name="elevationButton">
+        <property name="text">
          <string>Elevation</string>
         </property>
-        <property name="icon" >
-         <iconset/>
+        <property name="icon">
+         <iconset>
+          <normaloff/>
+         </iconset>
         </property>
-        <property name="iconSize" >
+        <property name="iconSize">
          <size>
           <width>24</width>
           <height>24</height>
@@ -371,15 +545,17 @@
         </property>
        </widget>
       </item>
-      <item row="0" column="0" >
-       <widget class="QPushButton" name="rollButton" >
-        <property name="text" >
+      <item row="0" column="0">
+       <widget class="QPushButton" name="rollButton">
+        <property name="text">
          <string>Roll</string>
         </property>
-        <property name="icon" >
-         <iconset/>
+        <property name="icon">
+         <iconset>
+          <normaloff/>
+         </iconset>
         </property>
-        <property name="iconSize" >
+        <property name="iconSize">
          <size>
           <width>24</width>
           <height>24</height>
@@ -387,58 +563,58 @@
         </property>
        </widget>
       </item>
-      <item row="2" column="1" >
-       <widget class="QDoubleSpinBox" name="azimuthAngle" >
-        <property name="minimum" >
+      <item row="2" column="1">
+       <widget class="QDoubleSpinBox" name="azimuthAngle">
+        <property name="minimum">
          <double>-360.000000000000000</double>
         </property>
-        <property name="maximum" >
+        <property name="maximum">
          <double>360.000000000000000</double>
         </property>
        </widget>
       </item>
-      <item row="1" column="1" >
-       <widget class="QDoubleSpinBox" name="elevationAngle" >
-        <property name="minimum" >
+      <item row="1" column="1">
+       <widget class="QDoubleSpinBox" name="elevationAngle">
+        <property name="minimum">
          <double>-360.000000000000000</double>
         </property>
-        <property name="maximum" >
+        <property name="maximum">
          <double>360.000000000000000</double>
         </property>
        </widget>
       </item>
-      <item row="0" column="1" >
-       <widget class="QDoubleSpinBox" name="rollAngle" >
-        <property name="minimum" >
+      <item row="0" column="1">
+       <widget class="QDoubleSpinBox" name="rollAngle">
+        <property name="minimum">
          <double>-360.000000000000000</double>
         </property>
-        <property name="maximum" >
+        <property name="maximum">
          <double>360.000000000000000</double>
         </property>
        </widget>
       </item>
-      <item row="1" column="2" >
-       <widget class="QLabel" name="label_21" >
-        <property name="sizePolicy" >
-         <sizepolicy vsizetype="Preferred" hsizetype="MinimumExpanding" >
+      <item row="1" column="2">
+       <widget class="QLabel" name="label_21">
+        <property name="sizePolicy">
+         <sizepolicy hsizetype="MinimumExpanding" vsizetype="Preferred">
           <horstretch>0</horstretch>
           <verstretch>0</verstretch>
          </sizepolicy>
         </property>
-        <property name="text" >
+        <property name="text">
          <string>degrees</string>
         </property>
        </widget>
       </item>
-      <item row="2" column="2" >
-       <widget class="QLabel" name="label_16" >
-        <property name="sizePolicy" >
-         <sizepolicy vsizetype="Preferred" hsizetype="MinimumExpanding" >
+      <item row="2" column="2">
+       <widget class="QLabel" name="label_16">
+        <property name="sizePolicy">
+         <sizepolicy hsizetype="MinimumExpanding" vsizetype="Preferred">
           <horstretch>0</horstretch>
           <verstretch>0</verstretch>
          </sizepolicy>
         </property>
-        <property name="text" >
+        <property name="text">
          <string>degrees</string>
         </property>
        </widget>
@@ -447,44 +623,29 @@
     </widget>
    </item>
    <item>
-    <layout class="QHBoxLayout" >
-     <property name="spacing" >
-      <number>6</number>
-     </property>
-     <property name="leftMargin" >
-      <number>0</number>
-     </property>
-     <property name="topMargin" >
-      <number>0</number>
-     </property>
-     <property name="rightMargin" >
-      <number>0</number>
-     </property>
-     <property name="bottomMargin" >
-      <number>0</number>
-     </property>
+    <layout class="QHBoxLayout" name="horizontalLayout_2">
      <item>
       <spacer>
-       <property name="orientation" >
+       <property name="orientation">
         <enum>Qt::Horizontal</enum>
        </property>
-       <property name="sizeHint" >
+       <property name="sizeHint" stdset="0">
         <size>
-         <width>0</width>
+         <width>13</width>
          <height>24</height>
         </size>
        </property>
       </spacer>
      </item>
      <item>
-      <widget class="QPushButton" name="closeButton" >
-       <property name="sizePolicy" >
-        <sizepolicy vsizetype="Fixed" hsizetype="Fixed" >
+      <widget class="QPushButton" name="closeButton">
+       <property name="sizePolicy">
+        <sizepolicy hsizetype="Fixed" vsizetype="Fixed">
          <horstretch>0</horstretch>
          <verstretch>0</verstretch>
         </sizepolicy>
        </property>
-       <property name="text" >
+       <property name="text">
         <string>Close</string>
        </property>
       </widget>
@@ -530,7 +691,9 @@
   <tabstop>azimuthAngle</tabstop>
   <tabstop>azimuthButton</tabstop>
  </tabstops>
- <resources/>
+ <resources>
+  <include location="../pqComponents.qrc"/>
+ </resources>
  <connections>
   <connection>
    <sender>closeButton</sender>
@@ -538,11 +701,11 @@
    <receiver>pqCameraDialog</receiver>
    <slot>close()</slot>
    <hints>
-    <hint type="sourcelabel" >
+    <hint type="sourcelabel">
      <x>280</x>
      <y>566</y>
     </hint>
-    <hint type="destinationlabel" >
+    <hint type="destinationlabel">
      <x>185</x>
      <y>443</y>
     </hint>
Index: Qt/Components/Resources/UI/pqCustomViewButtonDialog.ui
===================================================================
RCS file: Qt/Components/Resources/UI/pqCustomViewButtonDialog.ui
diff -N Qt/Components/Resources/UI/pqCustomViewButtonDialog.ui
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Qt/Components/Resources/UI/pqCustomViewButtonDialog.ui	24 Jan 2010 20:42:09 -0000
@@ -0,0 +1,269 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<ui version="4.0">
+ <class>pqCustomViewButtonDialog</class>
+ <widget class="QDialog" name="pqCustomViewButtonDialog">
+  <property name="geometry">
+   <rect>
+    <x>0</x>
+    <y>0</y>
+    <width>437</width>
+    <height>221</height>
+   </rect>
+  </property>
+  <property name="sizePolicy">
+   <sizepolicy hsizetype="Preferred" vsizetype="Fixed">
+    <horstretch>0</horstretch>
+    <verstretch>0</verstretch>
+   </sizepolicy>
+  </property>
+  <property name="windowTitle">
+   <string>Configure custom view buttons</string>
+  </property>
+  <layout class="QVBoxLayout" name="verticalLayout">
+   <item>
+    <layout class="QGridLayout" name="gridLayout">
+     <item row="0" column="0">
+      <widget class="QLabel" name="label_7">
+       <property name="font">
+        <font>
+         <weight>75</weight>
+         <bold>true</bold>
+         <underline>true</underline>
+        </font>
+       </property>
+       <property name="text">
+        <string>Button</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="0" column="1">
+      <widget class="QLabel" name="label_8">
+       <property name="font">
+        <font>
+         <weight>75</weight>
+         <bold>true</bold>
+         <underline>true</underline>
+        </font>
+       </property>
+       <property name="text">
+        <string>Tool Tip</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="0" column="2">
+      <widget class="QLabel" name="label_9">
+       <property name="font">
+        <font>
+         <weight>75</weight>
+         <bold>true</bold>
+         <underline>true</underline>
+        </font>
+       </property>
+       <property name="text">
+        <string>Assign</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="1" column="0">
+      <widget class="QLabel" name="label_3">
+       <property name="text">
+        <string>1</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="1" column="1">
+      <widget class="QLineEdit" name="toolTip0">
+       <property name="toolTip">
+        <string>This text will be set to the buttons tool tip.</string>
+       </property>
+      </widget>
+     </item>
+     <item row="1" column="2">
+      <widget class="QPushButton" name="assignCurrentView0">
+       <property name="text">
+        <string>current view</string>
+       </property>
+      </widget>
+     </item>
+     <item row="2" column="0">
+      <widget class="QLabel" name="label_4">
+       <property name="text">
+        <string>2</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="2" column="1">
+      <widget class="QLineEdit" name="toolTip1">
+       <property name="toolTip">
+        <string>This text will be set to the buttons tool tip.</string>
+       </property>
+      </widget>
+     </item>
+     <item row="2" column="2">
+      <widget class="QPushButton" name="assignCurrentView1">
+       <property name="text">
+        <string>current view</string>
+       </property>
+      </widget>
+     </item>
+     <item row="3" column="0">
+      <widget class="QLabel" name="label_5">
+       <property name="text">
+        <string>3</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="3" column="1">
+      <widget class="QLineEdit" name="toolTip2">
+       <property name="toolTip">
+        <string>This text will be set to the buttons tool tip.</string>
+       </property>
+      </widget>
+     </item>
+     <item row="3" column="2">
+      <widget class="QPushButton" name="assignCurrentView2">
+       <property name="text">
+        <string>current view</string>
+       </property>
+      </widget>
+     </item>
+     <item row="4" column="0">
+      <widget class="QLabel" name="label_6">
+       <property name="text">
+        <string>4</string>
+       </property>
+       <property name="alignment">
+        <set>Qt::AlignCenter</set>
+       </property>
+      </widget>
+     </item>
+     <item row="4" column="1">
+      <widget class="QLineEdit" name="toolTip3">
+       <property name="toolTip">
+        <string>This text will be set to the buttons tool tip.</string>
+       </property>
+      </widget>
+     </item>
+     <item row="4" column="2">
+      <widget class="QPushButton" name="assignCurrentView3">
+       <property name="text">
+        <string>current view</string>
+       </property>
+      </widget>
+     </item>
+    </layout>
+   </item>
+   <item>
+    <layout class="QHBoxLayout" name="horizontalLayout">
+     <item>
+      <spacer name="horizontalSpacer">
+       <property name="orientation">
+        <enum>Qt::Horizontal</enum>
+       </property>
+       <property name="sizeHint" stdset="0">
+        <size>
+         <width>40</width>
+         <height>20</height>
+        </size>
+       </property>
+      </spacer>
+     </item>
+     <item>
+      <widget class="QPushButton" name="clearAll">
+       <property name="text">
+        <string>clear all</string>
+       </property>
+      </widget>
+     </item>
+     <item>
+      <widget class="QPushButton" name="importAll">
+       <property name="text">
+        <string>import...</string>
+       </property>
+      </widget>
+     </item>
+     <item>
+      <widget class="QPushButton" name="exportAll">
+       <property name="text">
+        <string>export...</string>
+       </property>
+      </widget>
+     </item>
+    </layout>
+   </item>
+   <item>
+    <spacer name="verticalSpacer">
+     <property name="orientation">
+      <enum>Qt::Vertical</enum>
+     </property>
+     <property name="sizeHint" stdset="0">
+      <size>
+       <width>20</width>
+       <height>17</height>
+      </size>
+     </property>
+    </spacer>
+   </item>
+   <item>
+    <widget class="QDialogButtonBox" name="buttonBox">
+     <property name="standardButtons">
+      <set>QDialogButtonBox::Cancel|QDialogButtonBox::Ok</set>
+     </property>
+    </widget>
+   </item>
+  </layout>
+ </widget>
+ <resources/>
+ <connections>
+  <connection>
+   <sender>buttonBox</sender>
+   <signal>accepted()</signal>
+   <receiver>pqCustomViewButtonDialog</receiver>
+   <slot>accept()</slot>
+   <hints>
+    <hint type="sourcelabel">
+     <x>218</x>
+     <y>211</y>
+    </hint>
+    <hint type="destinationlabel">
+     <x>218</x>
+     <y>113</y>
+    </hint>
+   </hints>
+  </connection>
+  <connection>
+   <sender>buttonBox</sender>
+   <signal>rejected()</signal>
+   <receiver>pqCustomViewButtonDialog</receiver>
+   <slot>reject()</slot>
+   <hints>
+    <hint type="sourcelabel">
+     <x>218</x>
+     <y>211</y>
+    </hint>
+    <hint type="destinationlabel">
+     <x>218</x>
+     <y>113</y>
+    </hint>
+   </hints>
+  </connection>
+ </connections>
+</ui>
Index: Servers/ServerManager/CMakeLists.txt
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/CMakeLists.txt,v
retrieving revision 1.261
diff -u -r1.261 CMakeLists.txt
--- Servers/ServerManager/CMakeLists.txt	13 Jan 2010 18:56:10 -0000	1.261
+++ Servers/ServerManager/CMakeLists.txt	24 Jan 2010 20:42:10 -0000
@@ -42,6 +42,8 @@
   vtkSMBoundsDomain.cxx
   vtkSMBoxProxy.cxx
   vtkSMBoxRepresentationProxy.cxx
+  vtkSMCameraConfigurationReader.cxx
+  vtkSMCameraConfigurationWriter.cxx
   vtkSMCameraKeyFrameProxy.cxx
   vtkSMCameraLink.cxx
   vtkSMCameraManipulatorProxy.cxx
@@ -128,6 +130,9 @@
   vtkSMPropertyModificationUndoElement.cxx
   vtkSMPropRepresentationProxy.cxx
   vtkSMProxy.cxx
+  vtkSMProxyConfigurationManager.cxx
+  vtkSMProxyConfigurationReader.cxx
+  vtkSMProxyConfigurationWriter.cxx
   vtkSMProxyDefinitionIterator.cxx
   vtkSMProxyGroupDomain.cxx
   vtkSMProxyIterator.cxx
@@ -274,6 +279,8 @@
   vtkSMMultiProcessRenderView.cxx
   vtkSMMultiProcessRenderView.cxx
   vtkSMProxyManagerReviver.cxx
+  vtkSMProxyConfigurationReader.cxx
+  vtkSMProxyConfigurationWriter.cxx
   vtkSMRepresentationProxy.cxx
   vtkSMRepresentationStrategy.cxx
   vtkSMStateVersionControllerBase.cxx
Index: Servers/ServerManager/vtkSMCameraConfigurationFileInfo.h
===================================================================
RCS file: Servers/ServerManager/vtkSMCameraConfigurationFileInfo.h
diff -N Servers/ServerManager/vtkSMCameraConfigurationFileInfo.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMCameraConfigurationFileInfo.h	24 Jan 2010 20:42:10 -0000
@@ -0,0 +1,54 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMCameraConfigurationReader - an XML reader for camera configuration.
+// .SECTION Description
+// Reads camera configuration files written by vtkSMCameraConfigurationWriter
+// and manages the underlying camera properties.
+//
+// .NAME vtkSMCameraConfigurationReader - an XML writer for camera configuration.
+// .SECTION Description
+// Writes camera configuration files from the underlying managed proxy. written by vtkSMCameraConfigurationWriter
+// and manages the underlying camera properties.
+#ifndef vtkSMCameraConfigurationFileInfo_h
+#define vtkSMCameraConfigurationFileInfo_h
+
+#include "vtkObject.h"
+
+// Organizes property file info in a single location.
+//=============================================================================
+class vtkSMCameraConfigurationFileInfo
+{
+public:
+  vtkSMCameraConfigurationFileInfo()
+        :
+    FileIdentifier("ParaViewCameraConfiguration"),
+    FileDescription("Camera Configuration"),
+    FileExtension(".pvcc")
+      {}
+
+  void Print(ostream &os, vtkIndent indent)
+    {
+    os
+      << indent << "FileIdentifier: " << this->FileIdentifier << endl
+      << indent << "FileDescription: " << this->FileDescription << endl
+      << indent << "FileExtension: " << this->FileExtension << endl;
+    }
+
+  const char *FileIdentifier;
+  const char *FileDescription;
+  const char *FileExtension;
+};
+
+#endif
Index: Servers/ServerManager/vtkSMCameraConfigurationReader.cxx
===================================================================
RCS file: Servers/ServerManager/vtkSMCameraConfigurationReader.cxx
diff -N Servers/ServerManager/vtkSMCameraConfigurationReader.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMCameraConfigurationReader.cxx	24 Jan 2010 20:42:10 -0000
@@ -0,0 +1,81 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkSMProxyConfigurationManager.cxx,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+#include "vtkSMCameraConfigurationReader.h"
+#include "vtkSMCameraConfigurationFileInfo.h"
+
+#include "vtkObjectFactory.h"
+#include "vtkSMProxy.h"
+
+
+vtkCxxRevisionMacro(vtkSMCameraConfigurationReader,"$Revision: 1.0$");
+vtkStandardNewMacro(vtkSMCameraConfigurationReader);
+
+//-----------------------------------------------------------------------------
+vtkSMCameraConfigurationReader::vtkSMCameraConfigurationReader()
+{
+  this->FileInfo=new vtkSMCameraConfigurationFileInfo;
+
+  this->AddManagedProperty("CameraPosition");
+  this->AddManagedProperty("CameraFocalPoint");
+  this->AddManagedProperty("CameraViewUp");
+  this->AddManagedProperty("CenterOfRotation");
+  this->AddManagedProperty("CameraViewAngle");
+}
+
+//-----------------------------------------------------------------------------
+vtkSMCameraConfigurationReader::~vtkSMCameraConfigurationReader()
+{
+  delete this->FileInfo;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationReader::GetFileExtension()
+{
+  return this->FileInfo->FileExtension;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationReader::GetFileIdentifier()
+{
+  return this->FileInfo->FileIdentifier;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationReader::GetFileDescription()
+{
+  return this->FileInfo->FileDescription;
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMCameraConfigurationReader::ReadConfiguration(const char *filename)
+{
+  int ok=this->Superclass::ReadConfiguration(filename);
+  if (!ok)
+    {
+    return 0;
+    }
+
+  this->ManagedProxy->UpdateVTKObjects();
+
+  return 1;
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMCameraConfigurationReader::PrintSelf(ostream& os, vtkIndent indent)
+{
+  this->Superclass::PrintSelf(os,indent.GetNextIndent());
+
+  this->FileInfo->Print(os,indent);
+}
Index: Servers/ServerManager/vtkSMCameraConfigurationReader.h
===================================================================
RCS file: Servers/ServerManager/vtkSMCameraConfigurationReader.h
diff -N Servers/ServerManager/vtkSMCameraConfigurationReader.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMCameraConfigurationReader.h	24 Jan 2010 20:42:10 -0000
@@ -0,0 +1,69 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMCameraConfigurationReader - an XML reader for camera configuration.
+// .SECTION Description
+// Reads camera configuration files written by vtkSMCameraConfigurationWriter
+// and manages the underlying camera properties.
+//
+#ifndef vtkSMCameraConfigurationReader_h
+#define vtkSMCameraConfigurationReader_h
+
+#include "vtkSMProxyConfigurationReader.h"
+
+class vtkSMCameraConfigurationFileInfo;
+
+//=============================================================================
+class VTK_EXPORT vtkSMCameraConfigurationReader : public vtkSMProxyConfigurationReader
+{
+public:
+  vtkTypeRevisionMacro(vtkSMCameraConfigurationReader,vtkSMProxyConfigurationReader);
+  void PrintSelf(ostream& os, vtkIndent indent);
+  static vtkSMCameraConfigurationReader *New();
+
+  // Description:
+  // Access to file format information.
+  virtual const char *GetFileExtension();
+  virtual const char *GetFileIdentifier();
+  virtual const char *GetFileDescription();
+
+  // Description:
+  // Read the named file, and push the properties into the underying
+  // managed render view proxy. This will make sure the renderview is
+  // updated after the read.
+  virtual int ReadConfiguration(const char *filename);
+  // unhide
+  virtual int ReadConfiguration()
+    {
+    return this->Superclass::ReadConfiguration();
+    }
+  virtual int ReadConfiguration(vtkPVXMLElement *x)
+    {
+    return this->Superclass::ReadConfiguration(x);
+    }
+
+
+protected:
+  vtkSMCameraConfigurationReader();
+  virtual ~vtkSMCameraConfigurationReader();
+
+private:
+  vtkSMCameraConfigurationFileInfo *FileInfo;
+
+private:
+  vtkSMCameraConfigurationReader(const vtkSMCameraConfigurationReader&);  // Not implemented.
+  void operator=(const vtkSMCameraConfigurationReader&);  // Not implemented.
+};
+
+#endif
Index: Servers/ServerManager/vtkSMCameraConfigurationWriter.cxx
===================================================================
RCS file: Servers/ServerManager/vtkSMCameraConfigurationWriter.cxx
diff -N Servers/ServerManager/vtkSMCameraConfigurationWriter.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMCameraConfigurationWriter.cxx	24 Jan 2010 20:42:10 -0000
@@ -0,0 +1,66 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkSMProxyConfigurationManager.cxx,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+#include "vtkSMCameraConfigurationWriter.h"
+#include "vtkSMCameraConfigurationFileInfo.h"
+
+#include "vtkObjectFactory.h"
+#include "vtkSMRenderViewProxy.h"
+
+vtkCxxRevisionMacro(vtkSMCameraConfigurationWriter,"$Revision: 1.0$");
+vtkStandardNewMacro(vtkSMCameraConfigurationWriter);
+
+//-----------------------------------------------------------------------------
+vtkSMCameraConfigurationWriter::vtkSMCameraConfigurationWriter()
+{
+  this->FileInfo=new vtkSMCameraConfigurationFileInfo;
+
+  this->AddManagedProperty("CameraPosition");
+  this->AddManagedProperty("CameraFocalPoint");
+  this->AddManagedProperty("CameraViewUp");
+  this->AddManagedProperty("CenterOfRotation");
+  this->AddManagedProperty("CameraViewAngle");
+}
+
+//-----------------------------------------------------------------------------
+vtkSMCameraConfigurationWriter::~vtkSMCameraConfigurationWriter()
+{
+  delete this->FileInfo;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationWriter::GetFileExtension()
+{
+  return this->FileInfo->FileExtension;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationWriter::GetFileIdentifier()
+{
+  return this->FileInfo->FileIdentifier;
+}
+
+//-----------------------------------------------------------------------------
+const char *vtkSMCameraConfigurationWriter::GetFileDescription()
+{
+  return this->FileInfo->FileDescription;
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMCameraConfigurationWriter::PrintSelf(ostream& os, vtkIndent indent)
+{
+  this->Superclass::PrintSelf(os,indent.GetNextIndent());
+
+  this->FileInfo->Print(os,indent);
+}
Index: Servers/ServerManager/vtkSMCameraConfigurationWriter.h
===================================================================
RCS file: Servers/ServerManager/vtkSMCameraConfigurationWriter.h
diff -N Servers/ServerManager/vtkSMCameraConfigurationWriter.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMCameraConfigurationWriter.h	24 Jan 2010 20:42:10 -0000
@@ -0,0 +1,51 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMCameraConfigurationWriter - an XML writer for camera configuration.
+// .SECTION Description
+// Writes camera configuration files from the underlying managed render proxy.
+#ifndef vtkSMCameraConfigurationWriter_h
+#define vtkSMCameraConfigurationWriter_h
+
+#include "vtkSMProxyConfigurationWriter.h"
+
+class vtkSMCameraConfigurationFileInfo;
+
+//=============================================================================
+class VTK_EXPORT vtkSMCameraConfigurationWriter : public vtkSMProxyConfigurationWriter
+{
+public:
+  vtkTypeRevisionMacro(vtkSMCameraConfigurationWriter,vtkSMProxyConfigurationWriter);
+  void PrintSelf(ostream& os, vtkIndent indent);
+  static vtkSMCameraConfigurationWriter *New();
+
+  // Description:
+  // Access to file format information.
+  virtual const char *GetFileExtension();
+  virtual const char *GetFileIdentifier();
+  virtual const char *GetFileDescription();
+
+protected:
+  vtkSMCameraConfigurationWriter();
+  virtual ~vtkSMCameraConfigurationWriter();
+
+private:
+  vtkSMCameraConfigurationFileInfo *FileInfo;
+
+private:
+  vtkSMCameraConfigurationWriter(const vtkSMCameraConfigurationWriter&);  // Not implemented.
+  void operator=(const vtkSMCameraConfigurationWriter&);  // Not implemented.
+};
+
+#endif
Index: Servers/ServerManager/vtkSMDoubleVectorProperty.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMDoubleVectorProperty.cxx,v
retrieving revision 1.47
diff -u -r1.47 vtkSMDoubleVectorProperty.cxx
--- Servers/ServerManager/vtkSMDoubleVectorProperty.cxx	6 Feb 2009 16:03:24 -0000	1.47
+++ Servers/ServerManager/vtkSMDoubleVectorProperty.cxx	24 Jan 2010 20:42:10 -0000
@@ -20,6 +20,9 @@
 #include "vtkProcessModule.h"

 #include <vtkstd/vector>
+#include <vtksys/ios/sstream>
+
+

 vtkStandardNewMacro(vtkSMDoubleVectorProperty);
 vtkCxxRevisionMacro(vtkSMDoubleVectorProperty, "$Revision: 1.47 $");
@@ -572,6 +575,129 @@
 }

 //---------------------------------------------------------------------------
+int vtkSMDoubleVectorProperty::ValidateConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkWarningMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<double> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    double tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMDoubleVectorProperty::LoadConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkErrorMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<double> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    double tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  this->SetElements(&propVals[0],nPropVals);
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMDoubleVectorProperty::SaveConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkPVXMLElement* element=vtkPVXMLElement::New();
+  element->SetName(this->GetXMLName());
+
+  double *propVals=this->GetElements();
+  size_t nVals=this->GetNumberOfElements();
+
+  vtksys_ios::ostringstream os;
+  os.precision(15);
+  os.setf(ios::scientific,ios::floatfield);
+
+  os << propVals[0];
+  for (size_t i=1; i<nVals; ++i)
+    {
+    os << " " << propVals[i];
+    }
+
+  element->AddAttribute("values",os.str().c_str());
+
+  xmlStream->AddNestedElement(element);
+  element->Delete();
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
 void vtkSMDoubleVectorProperty::ResetToDefaultInternal()
 {
   if (this->Internals->DefaultValues != this->Internals->Values &&
Index: Servers/ServerManager/vtkSMDoubleVectorProperty.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMDoubleVectorProperty.h,v
retrieving revision 1.32
diff -u -r1.32 vtkSMDoubleVectorProperty.h
--- Servers/ServerManager/vtkSMDoubleVectorProperty.h	6 Feb 2009 16:03:24 -0000	1.32
+++ Servers/ServerManager/vtkSMDoubleVectorProperty.h	24 Jan 2010 20:42:10 -0000
@@ -138,6 +138,24 @@
   // Copy all property values.
   virtual void Copy(vtkSMProperty* src);

+  // Description:
+  // Load/Save property values from/to an xml hierarchy. The property will
+  // extract/insert an xml element with its name and values. NOTE  unlike
+  // ParaView's state loading/saving mechansim we won't ever have to *create*
+  // the property or its domains and hence do not have to worry about details
+  // such which server it resides on etc. These methods are suitable for
+  // saving/restoring a single property's configuration.
+  // A non-zero value is returned if the call is successful.
+  virtual int LoadConfiguration(vtkPVXMLElement *xmlStream);
+  virtual int SaveConfiguration(vtkPVXMLElement *xmlStream);
+  // Description:
+  // This will validate that the XML hierarchy conatins a valid representation
+  // of the property. No changes are made on the underlying object. This should
+  // be used prior to a LoadConfiguration.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
+
+
 protected:
   vtkSMDoubleVectorProperty();
   ~vtkSMDoubleVectorProperty();
Index: Servers/ServerManager/vtkSMIdTypeVectorProperty.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMIdTypeVectorProperty.cxx,v
retrieving revision 1.23
diff -u -r1.23 vtkSMIdTypeVectorProperty.cxx
--- Servers/ServerManager/vtkSMIdTypeVectorProperty.cxx	6 Feb 2009 16:03:24 -0000	1.23
+++ Servers/ServerManager/vtkSMIdTypeVectorProperty.cxx	24 Jan 2010 20:42:10 -0000
@@ -19,6 +19,9 @@
 #include "vtkPVXMLElement.h"

 #include <vtkstd/vector>
+#include <vtksys/ios/sstream>
+
+

 vtkStandardNewMacro(vtkSMIdTypeVectorProperty);
 vtkCxxRevisionMacro(vtkSMIdTypeVectorProperty, "$Revision: 1.23 $");
@@ -188,6 +191,14 @@
 }

 //---------------------------------------------------------------------------
+vtkIdType *vtkSMIdTypeVectorProperty::GetElements()
+{
+  return (this->Internals->Values.size() > 0)?
+    &this->Internals->Values[0] : NULL;
+}
+
+
+//---------------------------------------------------------------------------
 vtkIdType vtkSMIdTypeVectorProperty::GetUncheckedElement(unsigned int idx)
 {
   return this->Internals->UncheckedValues[idx];
@@ -269,7 +280,16 @@
 //---------------------------------------------------------------------------
 int vtkSMIdTypeVectorProperty::SetElements(const vtkIdType* values)
 {
-  unsigned int numArgs = this->GetNumberOfElements();
+  unsigned int numArgs=this->GetNumberOfElements();
+  return this->SetElements(values,numArgs);
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIdTypeVectorProperty::SetElements(const vtkIdType* values,unsigned int numArgs)
+{
+  unsigned int numArgsMax=this->GetNumberOfElements();
+
+  numArgs=(numArgs<=numArgsMax?numArgs:numArgsMax);

   int modified = 0;
   for (unsigned int i=0; i<numArgs; i++)
@@ -472,6 +492,126 @@
 }

 //---------------------------------------------------------------------------
+int vtkSMIdTypeVectorProperty::ValidateConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkWarningMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<vtkIdType> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    vtkIdType tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIdTypeVectorProperty::LoadConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkErrorMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<vtkIdType> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    vtkIdType tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  this->SetElements(&propVals[0],nPropVals);
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIdTypeVectorProperty::SaveConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkPVXMLElement* element=vtkPVXMLElement::New();
+  element->SetName(this->GetXMLName());
+
+  vtkIdType *propVals=this->GetElements();
+  size_t nVals=this->GetNumberOfElements();
+
+  vtksys_ios::ostringstream os;
+  os << propVals[0];
+  for (size_t i=1; i<nVals; ++i)
+    {
+    os << " " << propVals[i];
+    }
+
+  element->AddAttribute("values",os.str().c_str());
+
+  xmlStream->AddNestedElement(element);
+  element->Delete();
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
 void vtkSMIdTypeVectorProperty::Copy(vtkSMProperty* src)
 {
   this->Superclass::Copy(src);
Index: Servers/ServerManager/vtkSMIdTypeVectorProperty.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMIdTypeVectorProperty.h,v
retrieving revision 1.12
diff -u -r1.12 vtkSMIdTypeVectorProperty.h
--- Servers/ServerManager/vtkSMIdTypeVectorProperty.h	5 Dec 2008 18:03:03 -0000	1.12
+++ Servers/ServerManager/vtkSMIdTypeVectorProperty.h	24 Jan 2010 20:42:10 -0000
@@ -45,18 +45,20 @@
   virtual void SetNumberOfElements(unsigned int num);

   // Description:
-  // Set the value of 1 element. The vector is resized as necessary.
-  // Returns 0 if Set fails either because the property is read only
-  // or the value is not in all domains. Returns 1 otherwise.
-  int SetElement(unsigned int idx, vtkIdType value);
-
-  // Description:
   // Set the values of all elements. The size of the values array
   // has to be equal or larger to the size of the vector.
   // Returns 0 if Set fails either because the property is read only
   // or one or more of the values is not in all domains.
   // Returns 1 otherwise.
   int SetElements(const vtkIdType* values);
+  int SetElements(const vtkIdType* values, unsigned int nVals);
+  vtkIdType *GetElements();
+
+  // Description:
+  // Set the value of 1 element. The vector is resized as necessary.
+  // Returns 0 if Set fails either because the property is read only
+  // or the value is not in all domains. Returns 1 otherwise.
+  int SetElement(unsigned int idx, vtkIdType value);

   // Description:
   // Set the value of 1st element. The vector is resized as necessary.
@@ -121,6 +123,22 @@
   // Copy all property values.
   virtual void Copy(vtkSMProperty* src);

+  // Description:
+  // Load/Save property values from/to an xml hierarchy. The property will
+  // extract/insert an xml element with its name and values. NOTE  unlike
+  // ParaView's state loading/saving mechansim we won't ever have to *create*
+  // the property or its domains and hence do not have to worry about details
+  // such which server it resides on etc. These methods are suitable for
+  // saving/restoring a single property's configuration.
+  // A non-zero value is returned if the call is successful.
+  virtual int LoadConfiguration(vtkPVXMLElement *xmlStream);
+  virtual int SaveConfiguration(vtkPVXMLElement *xmlStream);
+  // Description:
+  // This will validate that the XML hierarchy conatins a valid representation
+  // of the property. No changes are made on the underlying object. This should
+  // be used prior to a LoadConfiguration.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
 protected:
   vtkSMIdTypeVectorProperty();
   ~vtkSMIdTypeVectorProperty();
Index: Servers/ServerManager/vtkSMIntVectorProperty.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMIntVectorProperty.cxx,v
retrieving revision 1.41
diff -u -r1.41 vtkSMIntVectorProperty.cxx
--- Servers/ServerManager/vtkSMIntVectorProperty.cxx	6 Feb 2009 16:03:24 -0000	1.41
+++ Servers/ServerManager/vtkSMIntVectorProperty.cxx	24 Jan 2010 20:42:10 -0000
@@ -20,6 +20,9 @@
 #include "vtkProcessModule.h"

 #include <vtkstd/vector>
+#include <vtksys/ios/sstream>
+
+

 vtkStandardNewMacro(vtkSMIntVectorProperty);
 vtkCxxRevisionMacro(vtkSMIntVectorProperty, "$Revision: 1.41 $");
@@ -288,7 +291,16 @@
 //---------------------------------------------------------------------------
 int vtkSMIntVectorProperty::SetElements(const int* values)
 {
-  unsigned int numArgs = this->GetNumberOfElements();
+  unsigned int numArgs=this->GetNumberOfElements();
+  return this->SetElements(values,numArgs);
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIntVectorProperty::SetElements(const int* values, unsigned int numArgs)
+{
+  unsigned int numArgsMax=this->GetNumberOfElements();
+
+  numArgs=(numArgs<=numArgsMax?numArgs:numArgsMax);

   int modified = 0;
   for (unsigned int i=0; i<numArgs; i++)
@@ -491,6 +503,126 @@
 }

 //---------------------------------------------------------------------------
+int vtkSMIntVectorProperty::ValidateConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkWarningMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<int> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    int tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIntVectorProperty::LoadConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkErrorMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  const char *attribute=element->GetAttribute("values");
+  if (attribute==0)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ": No attribute \"values\" was found.");
+    return 0;
+    }
+
+  vtksys_ios::istringstream is(attribute);
+
+  vtkstd::vector<int> propVals;
+  propVals.reserve(3);
+
+  while (is.good())
+    {
+    int tmp;
+    is >> tmp;
+    propVals.push_back(tmp);
+    }
+
+  size_t nPropVals=propVals.size();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  this->SetElements(&propVals[0],nPropVals);
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMIntVectorProperty::SaveConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkPVXMLElement* element=vtkPVXMLElement::New();
+  element->SetName(this->GetXMLName());
+
+  int *propVals=this->GetElements();
+  size_t nVals=this->GetNumberOfElements();
+
+  vtksys_ios::ostringstream os;
+  os << propVals[0];
+  for (size_t i=1; i<nVals; ++i)
+    {
+    os << " " << propVals[i];
+    }
+
+  element->AddAttribute("values",os.str().c_str());
+
+  xmlStream->AddNestedElement(element);
+  element->Delete();
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
 void vtkSMIntVectorProperty::Copy(vtkSMProperty* src)
 {
   this->Superclass::Copy(src);
Index: Servers/ServerManager/vtkSMIntVectorProperty.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMIntVectorProperty.h,v
retrieving revision 1.24
diff -u -r1.24 vtkSMIntVectorProperty.h
--- Servers/ServerManager/vtkSMIntVectorProperty.h	5 Dec 2008 18:03:03 -0000	1.24
+++ Servers/ServerManager/vtkSMIntVectorProperty.h	24 Jan 2010 20:42:10 -0000
@@ -57,6 +57,7 @@
   // or one or more of the values is not in all domains.
   // Returns 1 otherwise.
   int SetElements(const int* values);
+  int SetElements(const int* values, unsigned int nVals);
   int *GetElements();

   // Description:
@@ -126,6 +127,22 @@
   // Returns the default value, if any, specified in the XML.
   int GetDefaultValue(int idx);

+  // Description:
+  // Load/Save property values from/to an xml hierarchy. The property will
+  // extract/insert an xml element with its name and values. NOTE  unlike
+  // ParaView's state loading/saving mechansim we won't ever have to *create*
+  // the property or its domains and hence do not have to worry about details
+  // such which server it resides on etc. These methods are suitable for
+  // saving/restoring a single property's configuration.
+  // A non-zero value is returned if the call is successful.
+  virtual int LoadConfiguration(vtkPVXMLElement *xmlStream);
+  virtual int SaveConfiguration(vtkPVXMLElement *xmlStream);
+  // Description:
+  // This will validate that the XML hierarchy conatins a valid representation
+  // of the property. No changes are made on the underlying object. This should
+  // be used prior to a LoadConfiguration.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
 protected:
   vtkSMIntVectorProperty();
   ~vtkSMIntVectorProperty();
Index: Servers/ServerManager/vtkSMProperty.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMProperty.cxx,v
retrieving revision 1.63
diff -u -r1.63 vtkSMProperty.cxx
--- Servers/ServerManager/vtkSMProperty.cxx	31 Mar 2009 16:43:16 -0000	1.63
+++ Servers/ServerManager/vtkSMProperty.cxx	24 Jan 2010 20:42:11 -0000
@@ -542,6 +542,34 @@
     this->DomainIterator->Next();
     }
 }
+
+//---------------------------------------------------------------------------
+int vtkSMProperty::LoadConfiguration(vtkPVXMLElement *root)
+{
+  vtkWarningMacro(
+    "\"LoadConfiguration\" was not implementeed by "
+    << this->GetClassName() << ". Load failed.");
+  return 0;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMProperty::SaveConfiguration(vtkPVXMLElement *root)
+{
+  vtkWarningMacro(
+    "\"SaveConfiguration\" was not implementeed by "
+    << this->GetClassName() << ". Save failed.");
+  return 0;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMProperty::ValidateConfiguration(vtkPVXMLElement *root)
+{
+  vtkWarningMacro(
+    "\"ValidateConfiguration\" was not implementeed by "
+    << this->GetClassName() << ". Validation failed.");
+  return 0;
+}
+
 //---------------------------------------------------------------------------
 void vtkSMProperty::SetCheckDomains(int check)
 {
Index: Servers/ServerManager/vtkSMProperty.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMProperty.h,v
retrieving revision 1.50
diff -u -r1.50 vtkSMProperty.h
--- Servers/ServerManager/vtkSMProperty.h	31 Mar 2009 15:22:15 -0000	1.50
+++ Servers/ServerManager/vtkSMProperty.h	24 Jan 2010 20:42:11 -0000
@@ -257,6 +257,24 @@
   vtkSMProxy* GetParent()
     { return this->Proxy; }

+  // Description:
+  // Load/Save property values from/to an xml hierarchy. The property will
+  // extract/insert an xml element with its name and values. NOTE  unlike
+  // ParaView's state loading/saving mechansim we won't ever have to *create*
+  // the property or its domains and hence do not have to worry about details
+  // such which server it resides on etc. These methods are suitable for
+  // saving/restoring a single property's configuration.
+  // A non-zero value is returned if the call is successful.
+  // Derived classes should override. This implementation prints an error message
+  // and return 0 indicating failure.
+  virtual int LoadConfiguration(vtkPVXMLElement *xmlStream);
+  virtual int SaveConfiguration(vtkPVXMLElement *xmlStream);
+  // Description:
+  // This will validate that the XML hierarchy conatins a valid representation
+  // of the property. No changes are made on the underlying object. This should
+  // be used prior to a LoadConfiguration.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
 protected:
   vtkSMProperty();
   ~vtkSMProperty();
@@ -426,3 +444,4 @@
 };

 #endif
+
Index: Servers/ServerManager/vtkSMProxyConfigurationManager.cxx
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationManager.cxx
diff -N Servers/ServerManager/vtkSMProxyConfigurationManager.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationManager.cxx	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,179 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkSMProxyConfigurationManager.cxx,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+#include "vtkSMProxyConfigurationManager.h"
+
+#include "vtkObjectFactory.h"
+
+#include "vtkPVXMLElement.h"
+#include "vtkSMProperty.h"
+#include "vtkSMProxy.h"
+
+#include <vtkstd/vector>
+#include <vtkstd/string>
+class PropertyList : public vtkstd::vector<vtkstd::string> {};
+
+
+vtkCxxRevisionMacro(vtkSMProxyConfigurationManager,"$Revision: 1.0$");
+vtkStandardNewMacro(vtkSMProxyConfigurationManager);
+
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationManager::vtkSMProxyConfigurationManager()
+      :
+  ManagedProxy(0),
+  ManagedProperties(0)
+{
+  this->ManagedProperties=new PropertyList;
+}
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationManager::~vtkSMProxyConfigurationManager()
+{
+  delete this->ManagedProperties;
+  this->SetManagedProxy(0);
+}
+
+//-----------------------------------------------------------------------------
+vtkCxxSetObjectMacro(vtkSMProxyConfigurationManager,ManagedProxy,vtkSMProxy);
+
+//-----------------------------------------------------------------------------
+void vtkSMProxyConfigurationManager::AddManagedProperty(const char *property)
+{
+  this->ManagedProperties->push_back(property);
+}
+
+//-----------------------------------------------------------------------------
+size_t vtkSMProxyConfigurationManager::GetNumberOfManagedProperties()
+{
+  return this->ManagedProperties->size();
+}
+
+//-----------------------------------------------------------------------------
+const char * vtkSMProxyConfigurationManager::GetManagedProperty(size_t id)
+{
+  return this->ManagedProperties->at(id).c_str();
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMProxyConfigurationManager::ClearManagedProperties()
+{
+  this->ManagedProperties->clear();
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationManager::ValidateManagedProperties(
+      vtkPVXMLElement *xmlStream)
+{
+  if (this->ManagedProxy==0)
+    {
+    vtkErrorMacro("Cannot update NULL proxy.");
+    return 0;
+    }
+
+  size_t nManaged=this->ManagedProperties->size();
+  for (size_t i=0; i<nManaged; ++i)
+    {
+    const char *propName=this->ManagedProperties->at(i).c_str();
+    int ok
+    =this->ManagedProxy->GetProperty(propName)->ValidateConfiguration(xmlStream);
+    if (!ok)
+      {
+      vtkErrorMacro(
+          << "Invalid configuration for " << propName << ".");
+      return 0;
+      }
+    }
+
+  return 1;
+}
+
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationManager::PushManagedProperties(
+      vtkPVXMLElement *xmlStream)
+{
+  if (this->ManagedProxy==0)
+    {
+    vtkErrorMacro("Cannot update NULL proxy.");
+    return 0;
+    }
+
+  // validate all managed proxies, this way we won't have
+  // to worry about, in the case of a flaw in the xml file,
+  // partially pushing a configuration, and leaving the proxy
+  // in an indeterminate state.
+  int ok;
+  ok=this->ValidateManagedProperties(xmlStream);
+  if (!ok)
+    {
+    vtkErrorMacro("Failed to push properties.");
+    return 0;
+    }
+
+  //  now that we know that ALL of the managed props have a valid XML
+  //  representation, we can safely do the laod.
+  size_t nManaged=this->ManagedProperties->size();
+  for (size_t i=0; i<nManaged; ++i)
+    {
+    const char *propName=this->ManagedProperties->at(i).c_str();
+    this->ManagedProxy->GetProperty(propName)->LoadConfiguration(xmlStream);
+    }
+
+  return 1;
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationManager::PullManagedProperties(
+      vtkPVXMLElement *xmlStream)
+{
+  if (this->ManagedProxy==0)
+    {
+    vtkErrorMacro("Cannot update NULL proxy.");
+    return 0;
+    }
+
+  size_t nManaged=this->ManagedProperties->size();
+  for (size_t i=0; i<nManaged; ++i)
+    {
+    const char *propName=this->ManagedProperties->at(i).c_str();
+    int ok=this->ManagedProxy->GetProperty(propName)->SaveConfiguration(xmlStream);
+    if (!ok)
+      {
+      vtkErrorMacro("Failed to pull values from  " << propName << ".");
+      return 0;
+      }
+    }
+  return 1;
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMProxyConfigurationManager::PrintSelf(ostream& os, vtkIndent indent)
+{
+  vtkIndent nextIndent=indent.GetNextIndent();
+
+  this->Superclass::PrintSelf(os,nextIndent);
+
+  os << indent << "ManagedProxy: " << this->ManagedProxy << endl
+     << indent << "ManagedProperties: " << this->ManagedProperties << endl;
+
+  size_t nManaged=this->ManagedProperties->size();
+  for (size_t i=0; i<nManaged; ++i)
+    {
+    os << nextIndent << this->ManagedProperties->at(i).c_str() << endl;
+    }
+}
+
+
+
Index: Servers/ServerManager/vtkSMProxyConfigurationManager.h
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationManager.h
diff -N Servers/ServerManager/vtkSMProxyConfigurationManager.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationManager.h	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,102 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMProxyConfigurationManager - base class for configuration readers and writers.
+// .SECTION Description
+// vtkSMProxyConfigurationManger is an object that manages a set of
+// properties belonging to a specific proxy. The manager keeps a list of
+// properties which can be loaded/saved from/to an XML hierarchy.
+//
+// The notion of proxy configuration is similar to state but much lighter
+// as the proxies and their server side objects are assumed to already
+// exist and we needn't worry about recreating them. The motivation for
+// such a light weight state is so that users may save configuration of
+// a signle proxy (or a small group of proxies),and  a subset of their
+// properties. The subset of properties to manage mmust be specified
+// explcitly.
+//
+// .Section See also
+// vtkSMProxyConfigurationReader, vtkSMProxyConfigurationWriter
+
+#ifndef vtkSMProxyConfigurationManager_h
+#define vtkSMProxyConfigurationManager_h
+
+#include "vtkObject.h"
+
+//BTX
+class vtkPVXMLElement;
+class vtkSMProxy;
+class PropertyList;// hiding STL vector
+//ETX
+
+class VTK_EXPORT vtkSMProxyConfigurationManager : public vtkObject
+{
+public:
+  vtkTypeRevisionMacro(vtkSMProxyConfigurationManager,vtkObject);
+  void PrintSelf(ostream& os, vtkIndent indent);
+  static vtkSMProxyConfigurationManager *New();
+
+  // Description:
+  // Set/Get the proxy that will be initialized from the file.
+  void SetManagedProxy(vtkSMProxy *proxy);
+  vtkGetObjectMacro(ManagedProxy,vtkSMProxy);
+
+  // Description:
+  // Add a property to the list of managed properties. Managed properties
+  // are read and values are passed to the instance of vtkSMProperty in
+  // the managed proxy. See also SetManagedProxy.
+  void AddManagedProperty(const char *property);
+  size_t GetNumberOfManagedProperties();
+  const char *GetManagedProperty(size_t id);
+  void ClearManagedProperties();
+
+  // Description:
+  // Validate an XML representation of the managed properties. Returns a non-zero
+  // value if successfull, in that case a future call to PushManagedProperties
+  // with same representation will succeed.
+  int ValidateManagedProperties(vtkPVXMLElement *xmlStream);
+
+  // Description:
+  // Push property values from an XML representation of the managed properties
+  // into the managed proxy. The XML representation is validated across *all* of
+  // the managed properties before making any changes on the underlying objects.
+  // In the case of an error no change is made to *any* of the managed properties.
+  // A value of 0 is returned to indicate that the XML was invalid. UpdateVTKObjects
+  // will not be called on the managed proxy, it is up to the caller to do so.
+  // A managed proxy and a list of managed properties must have previously been
+  // set.
+  // See also: PullManagedProperties, SetManagedProxy, AddManagedProperty.
+  virtual int PushManagedProperties(vtkPVXMLElement *root);
+
+  // Description:
+  // Pull property values from all managed properties in the managed proxy
+  // and build an XML representation from them. Returns 0 if an error occured.
+  // A managed proxy and a list of managed properties must have previously been
+  // set.
+  // See also: PushManagedProperties, SetManagedProxy, AddManagedProperty.
+  virtual int PullManagedProperties(vtkPVXMLElement *root);
+
+protected:
+  vtkSMProxyConfigurationManager();
+  virtual ~vtkSMProxyConfigurationManager();
+
+  vtkSMProxy *ManagedProxy;
+  PropertyList *ManagedProperties;
+
+private:
+  vtkSMProxyConfigurationManager(const vtkSMProxyConfigurationManager&);  // Not implemented.
+  void operator=(const vtkSMProxyConfigurationManager&);  // Not implemented.
+};
+
+#endif
Index: Servers/ServerManager/vtkSMProxyConfigurationReader.cxx
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationReader.cxx
diff -N Servers/ServerManager/vtkSMProxyConfigurationReader.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationReader.cxx	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,146 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkSMProxyConfigurationReader.cxx,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+#include "vtkSMProxyConfigurationReader.h"
+
+#include "vtkObjectFactory.h"
+#include "vtkSmartPointer.h"
+#include "vtkPVXMLElement.h"
+#include "vtkPVXMLParser.h"
+#include "vtkSMProxy.h"
+
+#include <vtkstd/string>
+
+#define safeio(a) ((a)?(a):"NULL")
+
+vtkCxxRevisionMacro(vtkSMProxyConfigurationReader,"$Revision: 1.0$");
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationReader::vtkSMProxyConfigurationReader()
+      :
+  FileName(0)
+{
+}
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationReader::~vtkSMProxyConfigurationReader()
+{
+}
+
+//-----------------------------------------------------------------------------
+bool vtkSMProxyConfigurationReader::CanReadVersion(const char *version)
+{
+  return vtkstd::string(version)==this->GetReaderVersion();
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationReader::ReadConfiguration()
+{
+  return this->ReadConfiguration(this->FileName);
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationReader::ReadConfiguration(const char *filename)
+{
+  if (filename==0)
+    {
+    vtkErrorMacro("Cannot read from filename NULL.");
+    return 0;
+    }
+
+  vtkSmartPointer<vtkPVXMLParser> parser=vtkSmartPointer<vtkPVXMLParser>::New();
+  parser->SetFileName(filename);
+  if (parser->Parse()==0)
+    {
+    vtkErrorMacro("Invalid XML in file: " << filename << ".");
+    return 0;
+    }
+
+  vtkPVXMLElement *xmlStream=parser->GetRootElement();
+  if (xmlStream==0)
+    {
+    vtkErrorMacro("Invalid XML in file: " << filename << ".");
+    return 0;
+    }
+
+  return this->ReadConfiguration(xmlStream);
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationReader::ReadConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkstd::string requiredType(this->GetFileIdentifier());
+  const char *foundType=xmlStream->GetName();
+  if (foundType==0 || foundType!=requiredType)
+    {
+    vtkErrorMacro(
+        << "This is not a valid " << this->GetFileDescription()
+        << " XML hierarchy.");
+    return 0;
+    }
+
+  const char *foundVersion=xmlStream->GetAttribute("version");
+  if (foundVersion==0)
+    {
+    vtkErrorMacro("No \"version\" attribute was found.");
+    return 0;
+    }
+  if (!this->CanReadVersion(foundVersion))
+    {
+    vtkErrorMacro("Unsupported version " << foundVersion << ".");
+    return 0;
+    }
+
+  // Load values read into the managed properties.
+  return this->PushManagedProperties(xmlStream);
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationReader::ValidateConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkstd::string requiredType(this->GetFileIdentifier());
+  const char *foundType=xmlStream->GetName();
+  if (foundType==0 || foundType!=requiredType)
+    {
+    vtkErrorMacro(
+        << "This is not a valid " << this->GetFileDescription()
+        << " XML hierarchy.");
+    return 0;
+    }
+
+  const char *foundVersion=xmlStream->GetAttribute("version");
+  if (foundVersion==0)
+    {
+    vtkErrorMacro("No \"version\" attribute was found.");
+    return 0;
+    }
+  if (!this->CanReadVersion(foundVersion))
+    {
+    vtkErrorMacro("Unsupported version " << foundVersion << ".");
+    return 0;
+    }
+
+  // Load values read into the managed properties.
+  return this->ValidateManagedProperties(xmlStream);
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMProxyConfigurationReader::PrintSelf(ostream& os, vtkIndent indent)
+{
+  this->Superclass::PrintSelf(os,indent.GetNextIndent());
+
+  os << indent << "FileName: " << safeio(this->FileName) << endl
+     << indent << "ReaderVersion: " << safeio(this->GetReaderVersion()) << endl
+     << indent << endl;
+}
Index: Servers/ServerManager/vtkSMProxyConfigurationReader.h
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationReader.h
diff -N Servers/ServerManager/vtkSMProxyConfigurationReader.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationReader.h	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,92 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMProxyConfigurationReader - Base class for XML readers of a vtkSMProxy's vtkSMProperty's.
+//
+// .SECTION Description
+// vtkSMProxyConfigurationReader manages properties for a signle proxy
+// and  will validate and read from an XML file and push the read values
+// into the managed properties.
+//
+// The notion of proxy configuration is similar to state but much lighter
+// as the proxy its domains and and its server side objects are assumed to
+// already exist. The motivation for such a light weight state is so that
+// users may save/restore configuration of a single proxy. For instance an
+// individual view, filter, or source configurations may be saved by setting
+// the proxy and providing a list of properties.
+//
+// .SECTION See also
+// vtkSMProxyConfigurationManager, vtkSMProxyConfigurationWriter
+//
+#ifndef vtkSMProxyConfigurationReader_h
+#define vtkSMProxyConfigurationReader_h
+
+#include "vtkSMProxyConfigurationManager.h"
+
+class vtkPVXMLElement;
+
+class VTK_EXPORT vtkSMProxyConfigurationReader : public vtkSMProxyConfigurationManager
+{
+public:
+  vtkTypeRevisionMacro(vtkSMProxyConfigurationReader,vtkSMProxyConfigurationManager);
+  void PrintSelf(ostream& os, vtkIndent indent);
+
+  // Description:
+  // The following file format information must be provided by implementors.
+  // Description => Human readable description of the file type.
+  // Identifier => File type string, will be used as the root tag name.
+  // Extension => File extension of the form ".ext"
+  virtual const char *GetFileExtension()=0;
+  virtual const char *GetFileIdentifier()=0;
+  virtual const char *GetFileDescription()=0;
+
+  // Description:
+  // Return the reader version. Implementors should overide this if they
+  // override any of the Read methods.
+  virtual const char *GetReaderVersion(){ return "1.0"; }
+  virtual bool CanReadVersion(const char *version);
+
+  // Description:
+  // Set/Get the file name.
+  vtkSetStringMacro(FileName);
+  vtkGetStringMacro(FileName);
+
+  // Description:
+  // Read the file, 0 is retruned if an error occured. As values are read
+  // they are pushed into the managed properties. Note that UpdateVTKObjects
+  // will not be called on the proxy, so these values will not be pushed to
+  // the server. A file name , managed proxy and a list of managed properties
+  // must have previously been set.
+  // See also: SetFileName, SetManagedProxy, AddManagedProperty.
+  virtual int ReadConfiguration();
+  virtual int ReadConfiguration(const char *filename);
+  virtual int ReadConfiguration(vtkPVXMLElement *xmlStream);
+
+  // Description:
+  // Validate the given stream, return non-zero if valid.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
+protected:
+  vtkSMProxyConfigurationReader();
+  virtual ~vtkSMProxyConfigurationReader();
+
+private:
+  char *FileName;
+
+private:
+  vtkSMProxyConfigurationReader(const vtkSMProxyConfigurationReader&);  // Not implemented.
+  void operator=(const vtkSMProxyConfigurationReader&);  // Not implemented.
+};
+
+#endif
Index: Servers/ServerManager/vtkSMProxyConfigurationWriter.cxx
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationWriter.cxx
diff -N Servers/ServerManager/vtkSMProxyConfigurationWriter.cxx
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationWriter.cxx	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,100 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkSMProxyConfigurationWriter.cxx,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+#include "vtkSMProxyConfigurationWriter.h"
+
+#include "vtkObjectFactory.h"
+#include "vtkSmartPointer.h"
+#include "vtkPVXMLElement.h"
+#include "vtkPVXMLParser.h"
+#include "vtkSMProxy.h"
+
+#include <vtkstd/string>
+
+#define safeio(a) ((a)?(a):"NULL")
+
+vtkCxxRevisionMacro(vtkSMProxyConfigurationWriter,"$Revision: 1.0$");
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationWriter::vtkSMProxyConfigurationWriter()
+      :
+  FileName(0)
+{
+}
+
+//-----------------------------------------------------------------------------
+vtkSMProxyConfigurationWriter::~vtkSMProxyConfigurationWriter()
+{
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationWriter::WriteConfiguration(vtkPVXMLElement *xmlStream)
+{
+  xmlStream->SetName(this->GetFileIdentifier());
+  xmlStream->SetAttribute("version",this->GetWriterVersion());
+  xmlStream->SetAttribute("description",this->GetFileDescription());
+
+  return this->PullManagedProperties(xmlStream);
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationWriter::WriteConfiguration()
+{
+  return this->WriteConfiguration(this->FileName);
+}
+
+//-----------------------------------------------------------------------------
+int vtkSMProxyConfigurationWriter::WriteConfiguration(const char *cFilename)
+{
+  if (cFilename==0)
+    {
+    vtkWarningMacro("Cannot write to filename NULL.");
+    return 0;
+    }
+
+  vtkstd::string filename(cFilename);
+  vtkstd::string ext(this->GetFileExtension());
+  if (filename.size()<=ext.size()
+    || filename.find(ext,filename.size()-ext.size())==vtkstd::string::npos)
+    {
+    filename+=ext;
+    }
+
+  vtkSmartPointer<vtkPVXMLElement> xmlStream=vtkSmartPointer<vtkPVXMLElement>::New();
+
+  int ok=this->WriteConfiguration(xmlStream);
+  if (!ok)
+    {
+    vtkErrorMacro("Failed to create an XML represnetation of the managed properties.");
+    return 0;
+    }
+
+  ofstream os(filename.c_str(),ios::out);
+  xmlStream->PrintXML(os,vtkIndent());
+  os << endl;
+  os.flush();
+  os.close();
+
+  return 1;
+}
+
+//-----------------------------------------------------------------------------
+void vtkSMProxyConfigurationWriter::PrintSelf(ostream& os, vtkIndent indent)
+{
+  this->Superclass::PrintSelf(os,indent.GetNextIndent());
+
+  os << indent << "FileName: " << safeio(this->FileName) << endl
+     << indent << "WriterVersion: " << this->GetWriterVersion() << endl
+     << indent << endl;
+}
Index: Servers/ServerManager/vtkSMProxyConfigurationWriter.h
===================================================================
RCS file: Servers/ServerManager/vtkSMProxyConfigurationWriter.h
diff -N Servers/ServerManager/vtkSMProxyConfigurationWriter.h
--- /dev/null	1 Jan 1970 00:00:00 -0000
+++ Servers/ServerManager/vtkSMProxyConfigurationWriter.h	24 Jan 2010 20:42:11 -0000
@@ -0,0 +1,88 @@
+/*=========================================================================
+
+  Program:   Visualization Toolkit
+  Module:    $RCSfile: vtkLight.h,v $
+
+  Copyright (c) Ken Martin, Will Schroeder, Bill Lorensen
+  All rights reserved.
+  See Copyright.txt or http://www.kitware.com/Copyright.htm for details.
+
+     This software is distributed WITHOUT ANY WARRANTY; without even
+     the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
+     PURPOSE.  See the above copyright notice for more information.
+
+=========================================================================*/
+// .NAME vtkSMProxyConfigurationWriter - Base class for XML writers of a vtkSMProxy's vtkSMProperty's.
+//
+// .SECTION Description
+// vtkSMProxyConfigurationWriter manages properties for a signle proxy
+// and will pull the explicitly named managed properties from the proxy
+// and write to an XML file.
+//
+// The notion of proxy configuration is similar to state but much lighter
+// as the proxy its domains and and its server side objects are assumed to
+// already exist. The motivation for such a light weight state is so that
+// users may save/restore configuration of a single proxy. For instance an
+// individual view, filter, or source configurations may be saved by setting
+// the proxy and providing a list of properties.
+//
+// .SECTION See also
+// vtkSMProxyConfigurationManager, vtkSMProxyConfigurationWriter, vtkSMProxyConfigurationWriter
+//
+#ifndef vtkSMProxyConfigurationWriter_h
+#define vtkSMProxyConfigurationWriter_h
+
+#include "vtkSMProxyConfigurationManager.h"
+
+class vtkPVXMLElement;
+
+class VTK_EXPORT vtkSMProxyConfigurationWriter : public vtkSMProxyConfigurationManager
+{
+public:
+  vtkTypeRevisionMacro(vtkSMProxyConfigurationWriter,vtkSMProxyConfigurationManager);
+  void PrintSelf(ostream& os, vtkIndent indent);
+
+  // Description:
+  // The following file format information must be provided by implementors.
+  // Description => Human readable description of the file type.
+  // Identifier => File type string, will be used as the root tag name.
+  // Extension => File extension of the form ".ext"
+  virtual const char *GetFileExtension()=0;
+  virtual const char *GetFileIdentifier()=0;
+  virtual const char *GetFileDescription()=0;
+
+  // Description:
+  // Return the writer version. Implementors should overide this if they
+  // override any of the Write methods.
+  virtual const char *GetWriterVersion(){ return "1.0"; }
+
+  // Description:
+  // Set/Get the file name.
+  vtkSetStringMacro(FileName);
+  vtkGetStringMacro(FileName);
+
+  // Description:
+  // Write the file, 0 is retruned if an error occured. Managed properties'
+  // values are pulled from the managed proxy, put into an XML stream and
+  // written to disk. A file name , managed proxy and a list of managed
+  // properties must have previously been set.
+  // See also: SetFileName, SetManagedProxy, AddManagedProperty.
+  virtual int WriteConfiguration();
+  virtual int WriteConfiguration(const char *filename);
+  virtual int WriteConfiguration(vtkPVXMLElement *xmlStream);
+
+protected:
+  vtkSMProxyConfigurationWriter();
+  virtual ~vtkSMProxyConfigurationWriter();
+
+private:
+
+private:
+  char *FileName;
+
+private:
+  vtkSMProxyConfigurationWriter(const vtkSMProxyConfigurationWriter&);  // Not implemented.
+  void operator=(const vtkSMProxyConfigurationWriter&);  // Not implemented.
+};
+
+#endif
Index: Servers/ServerManager/vtkSMStringVectorProperty.cxx
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMStringVectorProperty.cxx,v
retrieving revision 1.46
diff -u -r1.46 vtkSMStringVectorProperty.cxx
--- Servers/ServerManager/vtkSMStringVectorProperty.cxx	31 Mar 2009 15:10:34 -0000	1.46
+++ Servers/ServerManager/vtkSMStringVectorProperty.cxx	24 Jan 2010 20:42:11 -0000
@@ -17,12 +17,18 @@
 #include "vtkClientServerStream.h"
 #include "vtkObjectFactory.h"
 #include "vtkPVXMLElement.h"
+#include "vtkPVXMLParser.h"
 #include "vtkProcessModule.h"
 #include "vtkStringList.h"
+#include "vtkSmartPointer.h"

 #include <vtkstd/vector>
+#include <vtkstd/string>
+
 #include "vtkStdString.h"

+
+
 vtkStandardNewMacro(vtkSMStringVectorProperty);
 vtkCxxRevisionMacro(vtkSMStringVectorProperty, "$Revision: 1.46 $");

@@ -565,7 +571,7 @@
   if (saveLastPushedValues)
     {
     size = this->Internals->LastPushedValues.size();
-
+
     vtkPVXMLElement* element = vtkPVXMLElement::New();
     element->SetName("LastPushedValues");
     element->AddAttribute("number_of_elements", size);
@@ -585,6 +591,129 @@
 }

 //---------------------------------------------------------------------------
+int vtkSMStringVectorProperty::ValidateConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkWarningMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  vtkSmartPointer<vtkStringList> propVals=vtkSmartPointer<vtkStringList>::New();
+
+  vtkPVXMLElement *nestedElement;
+  size_t nNested=element->GetNumberOfNestedElements();
+  for (size_t i=0; i<nNested; ++i)
+    {
+    nestedElement=element->GetNestedElement(i);
+    if (nestedElement->GetName()!=vtkstd::string("string"))
+      {
+      continue;
+      }
+    const char *value=nestedElement->GetAttribute("value");
+    if (value==0)
+      {
+      vtkWarningMacro(
+          << "Invalid configuration for " << propName
+          << ": Nested element \"string\" does not have a value.");
+      continue;
+      }
+    propVals->AddString(value);
+    }
+
+  size_t nPropVals=propVals->GetNumberOfStrings();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkWarningMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  this->SetElements(propVals);
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMStringVectorProperty::LoadConfiguration(vtkPVXMLElement *xmlStream)
+{
+  const char *propName=this->GetXMLName();
+
+  vtkPVXMLElement *element=xmlStream->FindNestedElementByName(propName);
+  if (element==0)
+    {
+    vtkErrorMacro("Required element " << propName << " was not found.");
+    return 0;
+    }
+
+  vtkSmartPointer<vtkStringList> propVals=vtkSmartPointer<vtkStringList>::New();
+
+  vtkPVXMLElement *nestedElement;
+  size_t nNested=element->GetNumberOfNestedElements();
+  for (size_t i=0; i<nNested; ++i)
+    {
+    nestedElement=element->GetNestedElement(i);
+    if (nestedElement->GetName()!=vtkstd::string("string"))
+      {
+      continue;
+      }
+    const char *value=nestedElement->GetAttribute("value");
+    if (value==0)
+      {
+      vtkErrorMacro(
+          << "Invalid configuration for " << propName
+          << ": Nested element \"string\" does not have a value.");
+      continue;
+      }
+    propVals->AddString(value);
+    }
+
+  size_t nPropVals=propVals->GetNumberOfStrings();
+  size_t nRequired=this->GetNumberOfElements();
+  if (nPropVals!=nRequired)
+    {
+    vtkErrorMacro(
+        << "Invalid configuration for " << propName
+        << ". Found " << nPropVals << " values but "
+        << nRequired << " are required.");
+    return 0;
+    }
+
+  this->SetElements(propVals);
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
+int vtkSMStringVectorProperty::SaveConfiguration(vtkPVXMLElement *xmlStream)
+{
+  vtkPVXMLElement* elem=vtkPVXMLElement::New();
+  elem->SetName(this->GetXMLName());
+
+  size_t nNested=this->GetNumberOfElements();
+  vtkPVXMLElement *nestedElem;
+  for (size_t i=0; i<nNested; ++i)
+    {
+    nestedElem=vtkPVXMLElement::New();
+    nestedElem->SetName("string");
+    nestedElem->AddAttribute("value",this->GetElement(i));
+    elem->AddNestedElement(nestedElem);
+    nestedElem->Delete();
+    }
+
+  xmlStream->AddNestedElement(elem);
+  elem->Delete();
+
+  return 1;
+}
+
+//---------------------------------------------------------------------------
 void vtkSMStringVectorProperty::Copy(vtkSMProperty* src)
 {
   this->Superclass::Copy(src);
Index: Servers/ServerManager/vtkSMStringVectorProperty.h
===================================================================
RCS file: /cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMStringVectorProperty.h,v
retrieving revision 1.26
diff -u -r1.26 vtkSMStringVectorProperty.h
--- Servers/ServerManager/vtkSMStringVectorProperty.h	31 Mar 2009 15:10:33 -0000	1.26
+++ Servers/ServerManager/vtkSMStringVectorProperty.h	24 Jan 2010 20:42:11 -0000
@@ -118,6 +118,22 @@
   // Returns the default value, if any, specified in the XML.
   const char* GetDefaultValue(int idx);

+  // Description:
+  // Load/Save property values from/to an xml hierarchy. The property will
+  // extract/insert an xml element with its name and values. NOTE  unlike
+  // ParaView's state loading/saving mechansim we won't ever have to *create*
+  // the property or its domains and hence do not have to worry about details
+  // such which server it resides on etc. These methods are suitable for
+  // saving/restoring a single property's configuration.
+  // A non-zero value is returned if the call is successful.
+  virtual int LoadConfiguration(vtkPVXMLElement *xmlStream);
+  virtual int SaveConfiguration(vtkPVXMLElement *xmlStream);
+  // Description:
+  // This will validate that the XML hierarchy conatins a valid representation
+  // of the property. No changes are made on the underlying object. This should
+  // be used prior to a LoadConfiguration.
+  virtual int ValidateConfiguration(vtkPVXMLElement *xmlStream);
+
 protected:
   vtkSMStringVectorProperty();
   ~vtkSMStringVectorProperty();
