VTK
Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions
vtkAssemblyPaths Class Reference

a list of lists of props representing an assembly hierarchy More...

#include <vtkAssemblyPaths.h>

Inheritance diagram for vtkAssemblyPaths:
Inheritance graph
[legend]

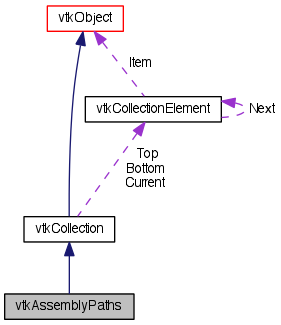

Collaboration diagram for vtkAssemblyPaths:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkCollection Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void AddItem (vtkAssemblyPath *p)
void RemoveItem (vtkAssemblyPath *p)
int IsItemPresent (vtkAssemblyPath *p)
vtkAssemblyPathGetNextItem ()
virtual unsigned long GetMTime ()
vtkAssemblyPathGetNextPath (vtkCollectionSimpleIterator &cookie)

Static Public Member Functions

static vtkAssemblyPathsNew ()
static int IsTypeOf (const char *type)
static vtkAssemblyPathsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkAssemblyPaths ()
 ~vtkAssemblyPaths ()

Detailed Description

a list of lists of props representing an assembly hierarchy

vtkAssemblyPaths represents an assembly hierarchy as a list of vtkAssemblyPath. Each path represents the complete path from the top level assembly (if any) down to the leaf prop.

See also:
vtkAssemblyPath vtkAssemblyNode vtkPicker vtkAssembly vtkProp

Definition at line 35 of file vtkAssemblyPaths.h.


Member Typedef Documentation

Reimplemented from vtkCollection.

Definition at line 39 of file vtkAssemblyPaths.h.


Constructor & Destructor Documentation

vtkAssemblyPaths::vtkAssemblyPaths ( ) [inline, protected]

Definition at line 68 of file vtkAssemblyPaths.h.

vtkAssemblyPaths::~vtkAssemblyPaths ( ) [inline, protected]

Definition at line 69 of file vtkAssemblyPaths.h.


Member Function Documentation

static vtkAssemblyPaths* vtkAssemblyPaths::New ( ) [static]

Construct with empty list.

Reimplemented from vtkCollection.

virtual const char* vtkAssemblyPaths::GetClassName ( ) [virtual]

Reimplemented from vtkCollection.

static int vtkAssemblyPaths::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCollection.

virtual int vtkAssemblyPaths::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCollection.

static vtkAssemblyPaths* vtkAssemblyPaths::SafeDownCast ( vtkObject o) [static]

Reimplemented from vtkCollection.

void vtkAssemblyPaths::AddItem ( vtkAssemblyPath p) [inline]

Add a path to the list.

Definition at line 83 of file vtkAssemblyPaths.h.

void vtkAssemblyPaths::RemoveItem ( vtkAssemblyPath p) [inline]

Remove a path from the list.

Definition at line 88 of file vtkAssemblyPaths.h.

int vtkAssemblyPaths::IsItemPresent ( vtkAssemblyPath p) [inline]

Determine whether a particular path is present. Returns its position in the list.

Definition at line 93 of file vtkAssemblyPaths.h.

vtkAssemblyPath * vtkAssemblyPaths::GetNextItem ( ) [inline]

Get the next path in the list.

Definition at line 98 of file vtkAssemblyPaths.h.

virtual unsigned long vtkAssemblyPaths::GetMTime ( ) [virtual]

Override the standard GetMTime() to check for the modified times of the paths.

Reimplemented from vtkObject.

vtkAssemblyPath* vtkAssemblyPaths::GetNextPath ( vtkCollectionSimpleIterator cookie) [inline]

Reentrant safe way to get an object in a collection. Just pass the same cookie back and forth.

Definition at line 62 of file vtkAssemblyPaths.h.


The documentation for this class was generated from the following file:
