Flood fill an image region. More...

#include <vtkImageThresholdConnectivity.h>

Inheritance diagram for vtkImageThresholdConnectivity:

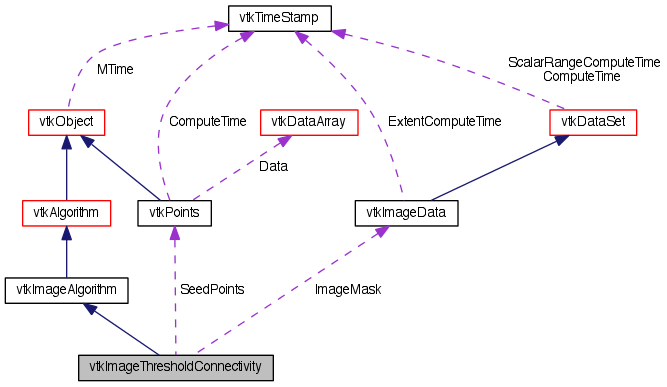

Collaboration diagram for vtkImageThresholdConnectivity:

Public Types
typedef vtkImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ThresholdByUpper (double thresh)
void	ThresholdByLower (double thresh)
void	ThresholdBetween (double lower, double upper)
unsigned long	GetMTime ()

void	SetSeedPoints (vtkPoints *points)
virtual vtkPoints *	GetSeedPoints ()

virtual void	SetReplaceIn (int)
virtual int	GetReplaceIn ()
virtual void	ReplaceInOn ()
virtual void	ReplaceInOff ()

void	SetInValue (double val)
virtual double	GetInValue ()

virtual void	SetReplaceOut (int)
virtual int	GetReplaceOut ()
virtual void	ReplaceOutOn ()
virtual void	ReplaceOutOff ()

void	SetOutValue (double val)
virtual double	GetOutValue ()

virtual double	GetUpperThreshold ()
virtual double	GetLowerThreshold ()

virtual void	SetSliceRangeX (int, int)
void	SetSliceRangeX (int[2])
virtual int *	GetSliceRangeX ()
virtual void	GetSliceRangeX (int &, int &)
virtual void	GetSliceRangeX (int[2])
virtual void	SetSliceRangeY (int, int)
void	SetSliceRangeY (int[2])
virtual int *	GetSliceRangeY ()
virtual void	GetSliceRangeY (int &, int &)
virtual void	GetSliceRangeY (int[2])
virtual void	SetSliceRangeZ (int, int)
void	SetSliceRangeZ (int[2])
virtual int *	GetSliceRangeZ ()
virtual void	GetSliceRangeZ (int &, int &)
virtual void	GetSliceRangeZ (int[2])

virtual void	SetStencil (vtkImageStencilData *stencil)
vtkImageStencilData *	GetStencil ()

virtual void	SetActiveComponent (int)
virtual int	GetActiveComponent ()

virtual void	SetNeighborhoodRadius (double, double, double)
virtual void	SetNeighborhoodRadius (double[3])
virtual double *	GetNeighborhoodRadius ()
virtual void	GetNeighborhoodRadius (double &, double &, double &)
virtual void	GetNeighborhoodRadius (double[3])

virtual void	SetNeighborhoodFraction (double)
virtual double	GetNeighborhoodFraction ()

virtual int	GetNumberOfInVoxels ()
Static Public Member Functions
static vtkImageThresholdConnectivity *	New ()
static int	IsTypeOf (const char *type)
static vtkImageThresholdConnectivity *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageThresholdConnectivity ()
	~vtkImageThresholdConnectivity ()
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6])
virtual int	FillInputPortInformation (int port, vtkInformation *info)
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
double	UpperThreshold
double	LowerThreshold
double	InValue
double	OutValue
int	ReplaceIn
int	ReplaceOut
double	NeighborhoodRadius [3]
double	NeighborhoodFraction
vtkPoints *	SeedPoints
int	SliceRangeX [2]
int	SliceRangeY [2]
int	SliceRangeZ [2]
int	NumberOfInVoxels
int	ActiveComponent
vtkImageData *	ImageMask

Detailed Description

Flood fill an image region.

vtkImageThresholdConnectivity will perform a flood fill on an image, given upper and lower pixel intensity thresholds. It works similarly to vtkImageThreshold, but also allows the user to set seed points to limit the threshold operation to contiguous regions of the image. The filled region, or the "inside", will be passed through to the output by default, while the "outside" will be replaced with zeros. This behavior can be changed by using the ReplaceIn() and ReplaceOut() methods. The scalar type of the output is the same as the input.

See also:: vtkImageThreshold

Thanks:: Thanks to David Gobbi for contributing this class to VTK.

Tests:: vtkImageThresholdConnectivity (Tests)

Definition at line 44 of file vtkImageThresholdConnectivity.h.

Member Typedef Documentation

typedef vtkImageAlgorithm vtkImageThresholdConnectivity::Superclass

Reimplemented from vtkImageAlgorithm.

Definition at line 49 of file vtkImageThresholdConnectivity.h.

Constructor & Destructor Documentation

vtkImageThresholdConnectivity::vtkImageThresholdConnectivity ( ) [protected]

vtkImageThresholdConnectivity::~vtkImageThresholdConnectivity ( ) [protected]

Member Function Documentation

static vtkImageThresholdConnectivity* vtkImageThresholdConnectivity::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageThresholdConnectivity::GetClassName ( ) [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageThresholdConnectivity::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageThresholdConnectivity::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageThresholdConnectivity* vtkImageThresholdConnectivity::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageThresholdConnectivity::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

void vtkImageThresholdConnectivity::SetSeedPoints ( vtkPoints * points )

Set the seeds. The seeds are in real data coordinates, not in voxel index locations.

virtual vtkPoints* vtkImageThresholdConnectivity::GetSeedPoints ( ) [virtual]

Set the seeds. The seeds are in real data coordinates, not in voxel index locations.

void vtkImageThresholdConnectivity::ThresholdByUpper ( double thresh )

Values greater than or equal to this threshold will be filled.

void vtkImageThresholdConnectivity::ThresholdByLower ( double thresh )

Values less than or equal to this threshold will be filled.

void vtkImageThresholdConnectivity::ThresholdBetween	(	double	lower,
		double	upper
	)

Values within this range will be filled, where the range inludes values that are exactly equal to the lower and upper thresholds.

virtual void vtkImageThresholdConnectivity::SetReplaceIn ( int ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual int vtkImageThresholdConnectivity::GetReplaceIn ( ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual void vtkImageThresholdConnectivity::ReplaceInOn ( ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual void vtkImageThresholdConnectivity::ReplaceInOff ( ) [virtual]

Replace the filled region by the value set by SetInValue().

void vtkImageThresholdConnectivity::SetInValue ( double val )

If ReplaceIn is set, the filled region will be replaced by this value.

virtual double vtkImageThresholdConnectivity::GetInValue ( ) [virtual]

If ReplaceIn is set, the filled region will be replaced by this value.

virtual void vtkImageThresholdConnectivity::SetReplaceOut ( int ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual int vtkImageThresholdConnectivity::GetReplaceOut ( ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual void vtkImageThresholdConnectivity::ReplaceOutOn ( ) [virtual]

Replace the filled region by the value set by SetInValue().

virtual void vtkImageThresholdConnectivity::ReplaceOutOff ( ) [virtual]

Replace the filled region by the value set by SetInValue().

void vtkImageThresholdConnectivity::SetOutValue ( double val )

If ReplaceOut is set, outside the fill will be replaced by this value.

virtual double vtkImageThresholdConnectivity::GetOutValue ( ) [virtual]

If ReplaceOut is set, outside the fill will be replaced by this value.

virtual double vtkImageThresholdConnectivity::GetUpperThreshold ( ) [virtual]

Get the Upper and Lower thresholds.

virtual double vtkImageThresholdConnectivity::GetLowerThreshold ( ) [virtual]

Get the Upper and Lower thresholds.

virtual void vtkImageThresholdConnectivity::SetSliceRangeX	(	int	,
		int
	)		`[virtual]`
