abstract class to write data to file(s) More...

#include <vtkWriter.h>

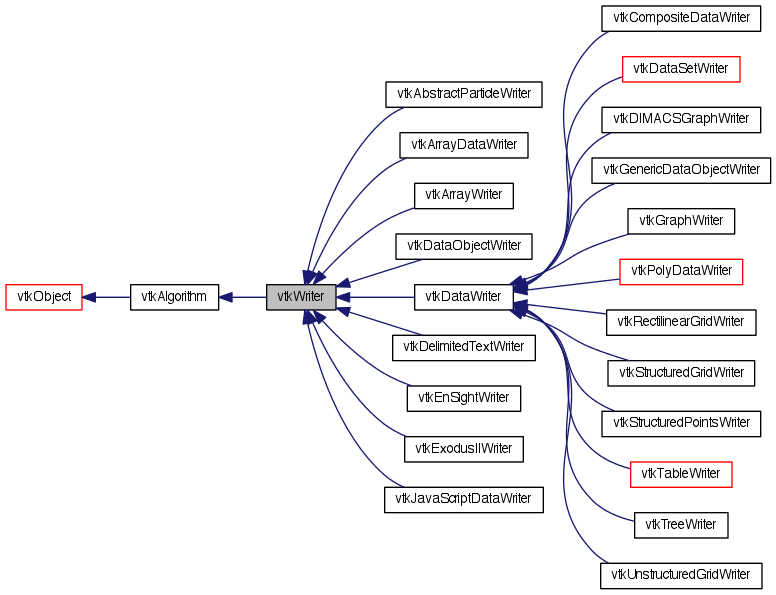

Inheritance diagram for vtkWriter:

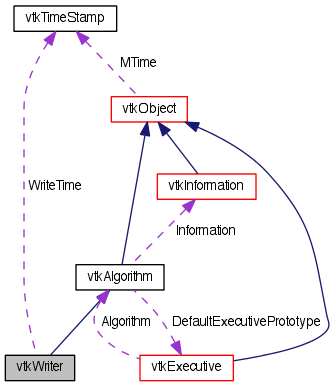

Collaboration diagram for vtkWriter:

Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	Write ()
void	EncodeString (char resname, const char name, bool doublePercent)
void	EncodeWriteString (ostream out, const char name, bool doublePercent)

void	SetInput (vtkDataObject *input)
void	SetInput (int index, vtkDataObject *input)
vtkDataObject *	GetInput ()
vtkDataObject *	GetInput (int port)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkWriter ()
	~vtkWriter ()
virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector)
virtual void	WriteData ()=0
Protected Attributes
vtkTimeStamp	WriteTime

Detailed Description

abstract class to write data to file(s)

vtkWriter is an abstract class for mapper objects that write their data to disk (or into a communications port). All writers respond to Write() method. This method insures that there is input and input is up to date.

Warning:: Every subclass of vtkWriter must implement a WriteData() method. Most likely will have to create SetInput() method as well.

See also:: vtkXMLDataSetWriter vtkDataSetWriter vtkImageWriter vtkMCubesWriter

Events:: vtkCommand::StartEvent vtkCommand::EndEvent

Definition at line 43 of file vtkWriter.h.

Member Typedef Documentation

typedef vtkAlgorithm vtkWriter::Superclass

Constructor & Destructor Documentation

vtkWriter::vtkWriter ( ) [protected]

vtkWriter::~vtkWriter ( ) [protected]

Member Function Documentation

virtual const char* vtkWriter::GetClassName ( ) [virtual]

static int vtkWriter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkExodusIIWriter, vtkMNITagPointWriter, vtkMNIObjectWriter, vtkArrayWriter, vtkArrayDataWriter, vtkDIMACSGraphWriter, vtkPLYWriter, vtkCGMWriter, vtkMCubesWriter, vtkDataWriter, vtkDelimitedTextWriter, vtkEnSightWriter, vtkDataObjectWriter, vtkBYUWriter, vtkSTLWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkAbstractParticleWriter, vtkJavaScriptDataWriter, vtkPolyDataWriter, vtkPDataSetWriter, vtkCompositeDataWriter, vtkIVWriter, vtkTableWriter, vtkUnstructuredGridWriter, vtkSimplePointsWriter, vtkTableToMySQLWriter, vtkTableToPostgreSQLWriter, vtkTableToSQLiteWriter, vtkDataSetWriter, vtkGraphWriter, vtkStructuredPointsWriter, vtkTreeWriter, vtkGenericDataObjectWriter, and vtkTableToDatabaseWriter.

virtual int vtkWriter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkExodusIIWriter, vtkMNITagPointWriter, vtkMNIObjectWriter, vtkArrayWriter, vtkArrayDataWriter, vtkDIMACSGraphWriter, vtkPLYWriter, vtkCGMWriter, vtkMCubesWriter, vtkDataWriter, vtkDelimitedTextWriter, vtkEnSightWriter, vtkDataObjectWriter, vtkBYUWriter, vtkSTLWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkAbstractParticleWriter, vtkJavaScriptDataWriter, vtkPolyDataWriter, vtkPDataSetWriter, vtkCompositeDataWriter, vtkIVWriter, vtkTableWriter, vtkUnstructuredGridWriter, vtkSimplePointsWriter, vtkTableToMySQLWriter, vtkTableToPostgreSQLWriter, vtkTableToSQLiteWriter, vtkDataSetWriter, vtkGraphWriter, vtkStructuredPointsWriter, vtkTreeWriter, vtkGenericDataObjectWriter, and vtkTableToDatabaseWriter.

static vtkWriter* vtkWriter::SafeDownCast ( vtkObject * o ) [static]

void vtkWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkExodusIIWriter, vtkMNITagPointWriter, vtkMNIObjectWriter, vtkArrayWriter, vtkArrayDataWriter, vtkDIMACSGraphWriter, vtkPLYWriter, vtkCGMWriter, vtkMCubesWriter, vtkDataWriter, vtkDelimitedTextWriter, vtkEnSightWriter, vtkDataObjectWriter, vtkBYUWriter, vtkSTLWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkAbstractParticleWriter, vtkJavaScriptDataWriter, vtkPolyDataWriter, vtkCompositeDataWriter, vtkIVWriter, vtkTableWriter, vtkUnstructuredGridWriter, vtkSimplePointsWriter, vtkTableToMySQLWriter, vtkTableToPostgreSQLWriter, vtkTableToSQLiteWriter, vtkPDataSetWriter, vtkDataSetWriter, vtkGraphWriter, vtkStructuredPointsWriter, vtkTreeWriter, vtkGenericDataObjectWriter, and vtkTableToDatabaseWriter.

virtual int vtkWriter::Write ( ) [virtual]

Write data to output. Method executes subclasses WriteData() method, as well as StartMethod() and EndMethod() methods. Returns 1 on success and 0 on failure.

Reimplemented in vtkMNITagPointWriter, vtkArrayWriter, vtkArrayDataWriter, and vtkPDataSetWriter.

void vtkWriter::EncodeString	(	char *	resname,
		const char *	name,
		bool	doublePercent
	)

Encode the string so that the reader will not have problems. The resulting string is up to three times the size of the input string. doublePercent indicates whether to output a double '%' before escaped characters so the string may be used as a printf format string.

void vtkWriter::EncodeWriteString	(	ostream *	out,
		const char *	name,
		bool	doublePercent
	)

Encode the string so that the reader will not have problems. The resulting string is up to three times the size of the input string. Write the string to the output stream. doublePercent indicates whether to output a double '%' before escaped characters so the string may be used as a printf format string.

void vtkWriter::SetInput ( vtkDataObject * input )

Set/get the input to this writer.

void vtkWriter::SetInput	(	int	index,
		vtkDataObject *	input
	)

Set/get the input to this writer.

vtkDataObject* vtkWriter::GetInput ( )

Set/get the input to this writer.

Reimplemented in vtkEnSightWriter, vtkDIMACSGraphWriter, vtkTableToDatabaseWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkPolyDataWriter, vtkCompositeDataWriter, vtkTableWriter, vtkUnstructuredGridWriter, vtkTableToMySQLWriter, vtkTableToPostgreSQLWriter, vtkTableToSQLiteWriter, vtkDataSetWriter, vtkGraphWriter, vtkStructuredPointsWriter, and vtkTreeWriter.

vtkDataObject* vtkWriter::GetInput ( int port )

Set/get the input to this writer.

Reimplemented in vtkDIMACSGraphWriter, vtkTableToDatabaseWriter, vtkRectilinearGridWriter, vtkStructuredGridWriter, vtkPolyDataWriter, vtkCompositeDataWriter, vtkTableWriter, vtkUnstructuredGridWriter, vtkTableToMySQLWriter, vtkTableToPostgreSQLWriter, vtkTableToSQLiteWriter, vtkDataSetWriter, vtkGraphWriter, vtkStructuredPointsWriter, and vtkTreeWriter.

virtual int vtkWriter::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)		`[protected, virtual]`

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkAlgorithm.

Reimplemented in vtkExodusIIWriter.

virtual int vtkWriter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)		`[protected, virtual]`

Reimplemented in vtkExodusIIWriter, and vtkMNITagPointWriter.

virtual void vtkWriter::WriteData ( ) [protected, pure virtual]

Member Data Documentation

vtkTimeStamp vtkWriter::WriteTime [protected]

Definition at line 89 of file vtkWriter.h.

The documentation for this class was generated from the following file:

dox/IO/vtkWriter.h
