vtkRenderLargeImage Class Reference

#include <vtkRenderLargeImage.h>

Inheritance diagram for vtkRenderLargeImage:

[legend]

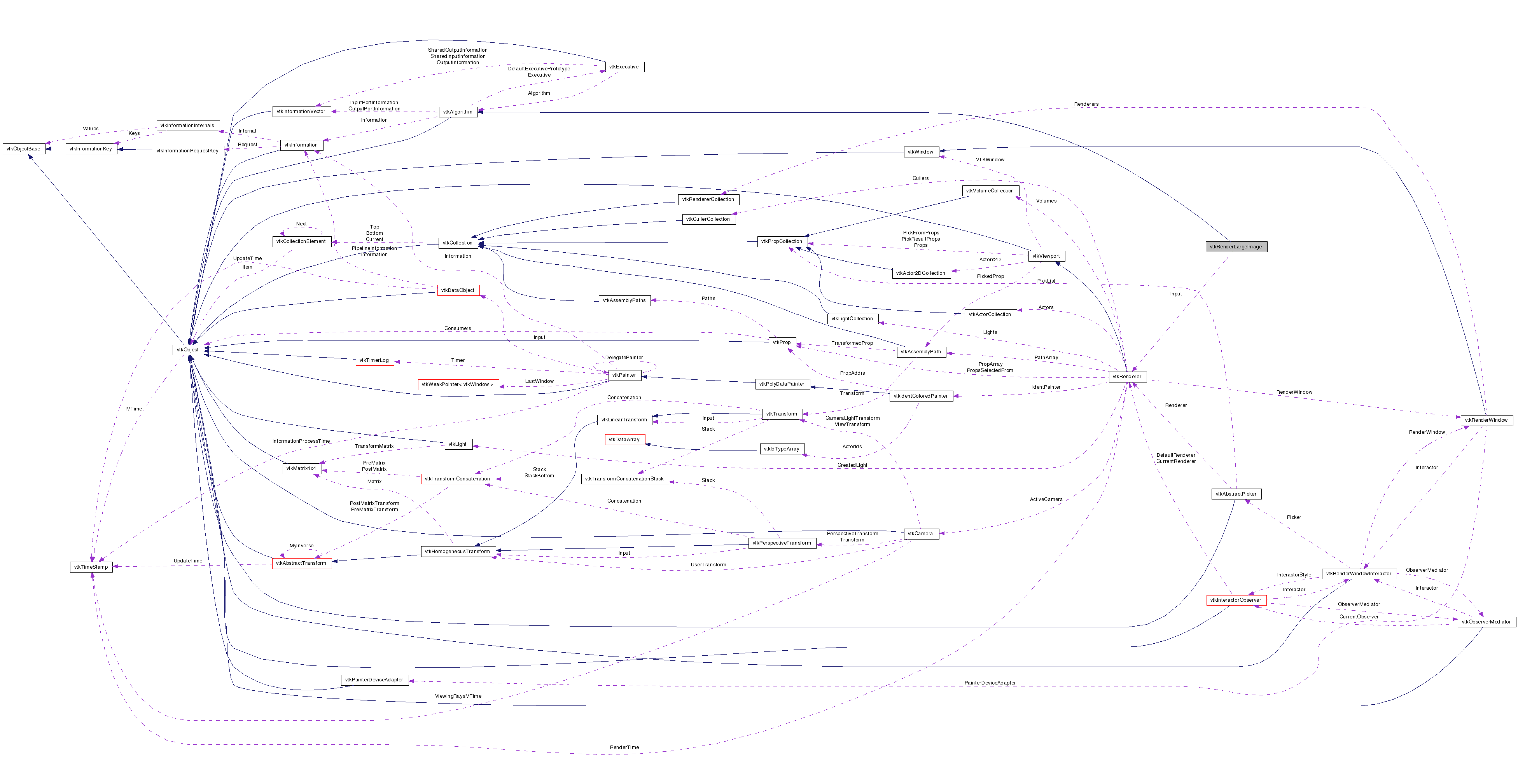

Collaboration diagram for vtkRenderLargeImage:

[legend]

List of all members.

Detailed Description

Use tiling to generate a large rendering.

vtkRenderLargeImage provides methods needed to read a region from a file.

Examples:: vtkRenderLargeImage (Examples)

Tests:: vtkRenderLargeImage (Tests)

Definition at line 38 of file vtkRenderLargeImage.h.


Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (vtkRenderer *)
vtkImageData *	GetOutput ()

virtual void	SetMagnification (int)
virtual int	GetMagnification ()

virtual vtkRenderer *	GetInput ()

virtual int	ProcessRequest (vtkInformation , vtkInformationVector , vtkInformationVector )
Static Public Member Functions
static vtkRenderLargeImage *	New ()
static int	IsTypeOf (const char *type)
static vtkRenderLargeImage *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRenderLargeImage ()
	~vtkRenderLargeImage ()
void	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillOutputPortInformation (int port, vtkInformation *info)
void	Rescale2DActors ()
void	Shift2DActors (int x, int y)
void	Restore2DActors ()
Protected Attributes
int	Magnification
vtkRenderer *	Input
vtkRenderLargeImage2DHelperClass *	StoredData

Member Typedef Documentation

typedef vtkAlgorithm vtkRenderLargeImage::Superclass

Reimplemented from vtkAlgorithm.

Definition at line 42 of file vtkRenderLargeImage.h.

Constructor & Destructor Documentation

vtkRenderLargeImage::vtkRenderLargeImage ( ) [protected]

vtkRenderLargeImage::~vtkRenderLargeImage ( ) [protected]

Member Function Documentation

static vtkRenderLargeImage* vtkRenderLargeImage::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkRenderLargeImage::GetClassName ( ) [virtual]

Reimplemented from vtkAlgorithm.

static int vtkRenderLargeImage::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkRenderLargeImage::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkRenderLargeImage* vtkRenderLargeImage::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkAlgorithm.

void vtkRenderLargeImage::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

virtual void vtkRenderLargeImage::SetMagnification ( int ) [virtual]

The magnification of the current render window

virtual int vtkRenderLargeImage::GetMagnification ( ) [virtual]

The magnification of the current render window

virtual void vtkRenderLargeImage::SetInput ( vtkRenderer * ) [virtual]

Indicates what renderer to get the pixel data from.

virtual vtkRenderer* vtkRenderLargeImage::GetInput ( ) [virtual]

Returns which renderer is being used as the source for the pixel data.

vtkImageData* vtkRenderLargeImage::GetOutput ( )

Get the output data object for a port on this algorithm.

virtual int vtkRenderLargeImage::ProcessRequest	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[virtual]`

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

void vtkRenderLargeImage::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected]`

void vtkRenderLargeImage::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected]`

virtual int vtkRenderLargeImage::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

void vtkRenderLargeImage::Rescale2DActors ( ) [protected]
