| View Issue Details [ Jump to Notes ] | [ Print ] | ||||||||
| ID | Project | Category | View Status | Date Submitted | Last Update | ||||
| 0010299 | ParaView | Feature | public | 2010-02-16 13:48 | 2011-09-01 13:31 | ||||
| Reporter | Ken Moreland | ||||||||
| Assigned To | Andy Bauer | ||||||||
| Priority | normal | Severity | minor | Reproducibility | have not tried | ||||
| Status | closed | Resolution | fixed | ||||||
| Platform | OS | OS Version | |||||||
| Product Version | |||||||||
| Target Version | WhenPossible | Fixed in Version | 3.12 | ||||||
| Summary | 0010299: Coprocessing plugin: No cancel on export state wizard | ||||||||
| Description | The export state wizard has Go Back and Continue buttons, but no cancel buttons. Thus, there is no clear way to cancel the wizard if, for example, you realize you made a mistake and want to correct it before exporting the state. I later discovered that pressing esc seems to cancel the window. It wasn't obvious, though, and I went through the wizard several times unnecessarily before realizing it. | ||||||||
| Tags | No tags attached. | ||||||||
| Project | |||||||||
| Topic Name | |||||||||
| Type | |||||||||
| Attached Files |  exportstatedialog.png [^] (65,742 bytes) 2010-02-27 13:30
 cpwizard-linux.png [^] (17,938 bytes) 2010-03-01 12:47
 exportstatedialog2.png [^] (156,283 bytes) 2010-03-31 11:42
| ||||||||
| Relationships | |
| Relationships |
| Notes | |
|
(0019650) Andy Bauer (developer) 2010-02-26 13:35 |
I wasn't able to recreate this behavior on my machine. Please verify that it is still a problem. |
|
(0019657) Ken Moreland (manager) 2010-02-27 13:31 |

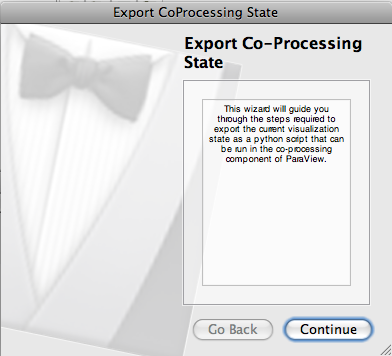

Attached is a screenshot from my computer from ParaView CVS today. Notice that there is no "Cancel" button. There should be a cancel button. |
|
(0019667) Andy Bauer (developer) 2010-03-01 12:47 |

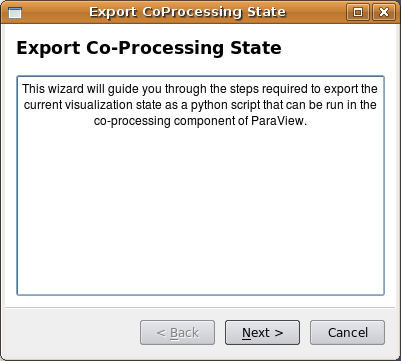

Here's a screen shot on my linux machine showing that it's not a problem there. I'll get on a mac and fix it there. By the way, what version of qt are you using and what Mac OS version? |
|
(0019668) Ken Moreland (manager) 2010-03-01 13:07 |
I admit I am using Qt 4.5, not 4.6. My Mac OS is 10.5.8. |
|
(0019669) Andy Bauer (developer) 2010-03-01 14:09 |
As a side note, it looks like the coprocessing plugin does not work on any platform (at least on XP and ubuntu for me) with qt 4.5 since the "CoProcessing" and "Writers" menus don't appear. I'm still working on checking it out for both qt 4.5 and qt 4.6 on a mac. |
|
(0019670) Andy Bauer (developer) 2010-03-01 16:48 |
It looks like the MacStyle does not have the cancel button by default (see http://doc.qt.nokia.com/4.6/qwizard.html#wizardStyle-prop [^]). It was weird for me in that on my ubuntu machine if I changed the QWizard style to MacStyle I did get the cancel button with Qt 4.6. In any case, I changed the style to ModernStyle to make sure that we do not use MacStyle. Let me know how this works out. |
|
(0019686) Alan Scott (manager) 2010-03-02 12:58 |
We expect that this is an old version of Qt. If this bug still exists after updating Qt, please re-open it. |
|
(0020036) Ken Moreland (manager) 2010-03-31 11:43 |

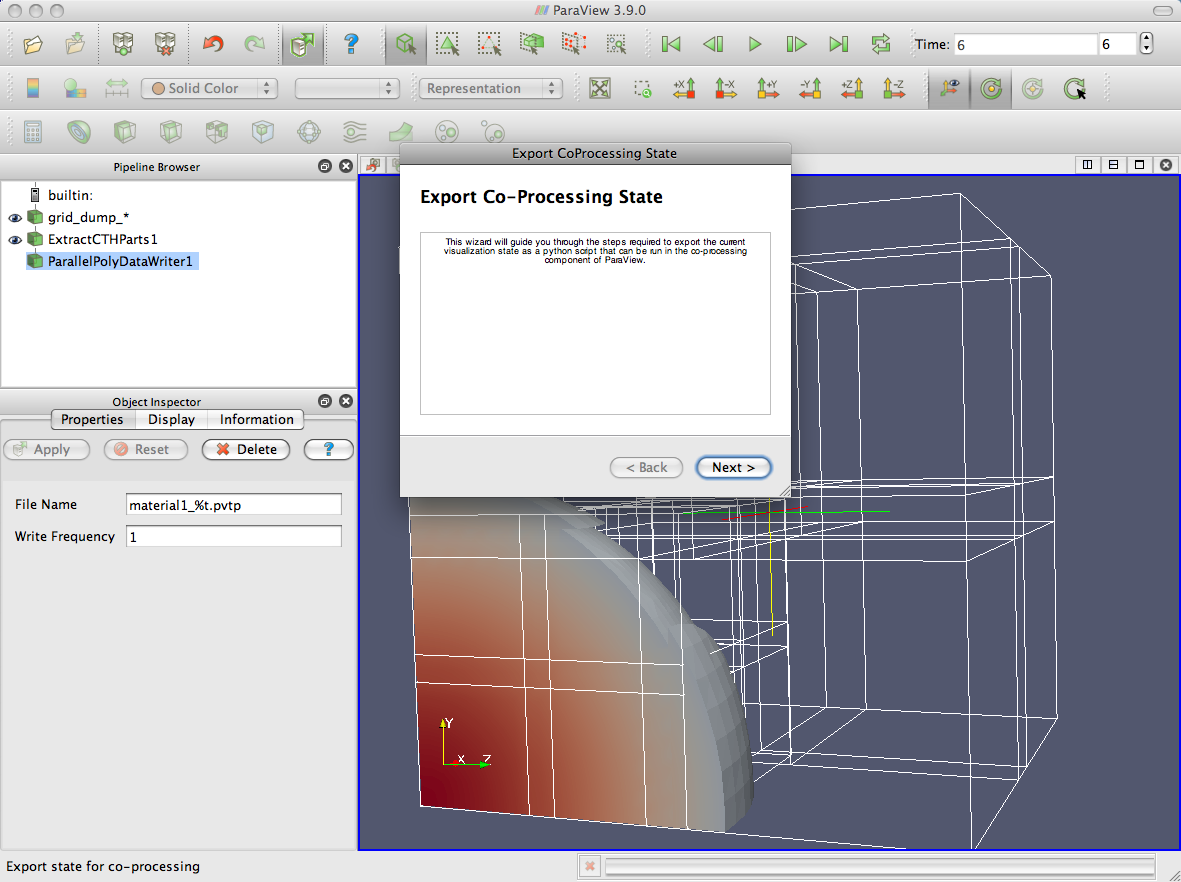

Nope. I upgraded to Qt 4.6.2 and I am still missing the Cancel button. I have uploaded a new screen shot. |
|
(0020349) Andy Bauer (developer) 2010-04-22 10:30 |
I tested this and it's fixed now. Apparently setting the WizardStyle to ModernStyle gets overridden on the mac. The fix was to use setOption(QWizard::NoCancelButton, false). This may be more information than desired but hopefully the next person that hits this problem sees this note :) Thanks to Rob Maynard for pointing the fix out to me. |
| Notes |
| Issue History | |||
| Date Modified | Username | Field | Change |
| 2010-02-16 13:48 | Ken Moreland | New Issue | |
| 2010-02-16 13:49 | Ken Moreland | Status | backlog => tabled |
| 2010-02-16 13:49 | Ken Moreland | Assigned To | => Andy Bauer |
| 2010-02-26 13:35 | Andy Bauer | Note Added: 0019650 | |
| 2010-02-26 13:35 | Andy Bauer | Status | tabled => @20@ |
| 2010-02-27 13:30 | Ken Moreland | File Added: exportstatedialog.png | |
| 2010-02-27 13:31 | Ken Moreland | Note Added: 0019657 | |
| 2010-02-27 13:31 | Ken Moreland | Status | @20@ => tabled |
| 2010-03-01 12:47 | Andy Bauer | Note Added: 0019667 | |
| 2010-03-01 12:47 | Andy Bauer | File Added: cpwizard-linux.png | |
| 2010-03-01 13:07 | Ken Moreland | Note Added: 0019668 | |
| 2010-03-01 14:09 | Andy Bauer | Note Added: 0019669 | |
| 2010-03-01 16:48 | Andy Bauer | Note Added: 0019670 | |
| 2010-03-01 16:48 | Andy Bauer | Status | tabled => @80@ |
| 2010-03-01 16:48 | Andy Bauer | Fixed in Version | => Development |
| 2010-03-01 16:48 | Andy Bauer | Resolution | open => fixed |
| 2010-03-02 12:58 | Alan Scott | Note Added: 0019686 | |
| 2010-03-02 12:58 | Alan Scott | Status | @80@ => closed |
| 2010-03-31 11:42 | Ken Moreland | File Added: exportstatedialog2.png | |
| 2010-03-31 11:43 | Ken Moreland | Note Added: 0020036 | |
| 2010-03-31 11:43 | Ken Moreland | Status | closed => @20@ |
| 2010-03-31 11:43 | Ken Moreland | Resolution | fixed => reopened |
| 2010-03-31 15:19 | Ken Moreland | Status | @20@ => tabled |
| 2010-04-16 01:28 | Utkarsh Ayachit | Target Version | 3.8 => WhenPossible |
| 2010-04-22 10:30 | Andy Bauer | Note Added: 0020349 | |
| 2010-04-22 10:30 | Andy Bauer | Status | tabled => @80@ |
| 2010-04-22 10:30 | Andy Bauer | Resolution | reopened => fixed |
| 2010-04-27 15:00 | Ken Moreland | Status | @80@ => closed |
| 2011-06-16 13:10 | Zack Galbreath | Category | Feature Request => Feature |
| 2011-09-01 13:31 | Utkarsh Ayachit | Fixed in Version | Development => 3.12 |
