View Issue Details [ Jump to Notes ] | [ Print ] | ||||||||
ID | Project | Category | View Status | Date Submitted | Last Update | ||||
0013927 | ParaView | (No Category) | public | 2013-03-05 12:05 | 2015-01-11 08:27 | ||||
Reporter | Patrick O'Leary | ||||||||
Assigned To | Utkarsh Ayachit | ||||||||
Priority | normal | Severity | minor | Reproducibility | have not tried | ||||
Status | closed | Resolution | fixed | ||||||
Platform | OS | OS Version | |||||||
Product Version | 3.98.1 | ||||||||
Target Version | Fixed in Version | 4.0 | |||||||
Summary | 0013927: Bounding box outline shows up in parallel batch python scripts | ||||||||

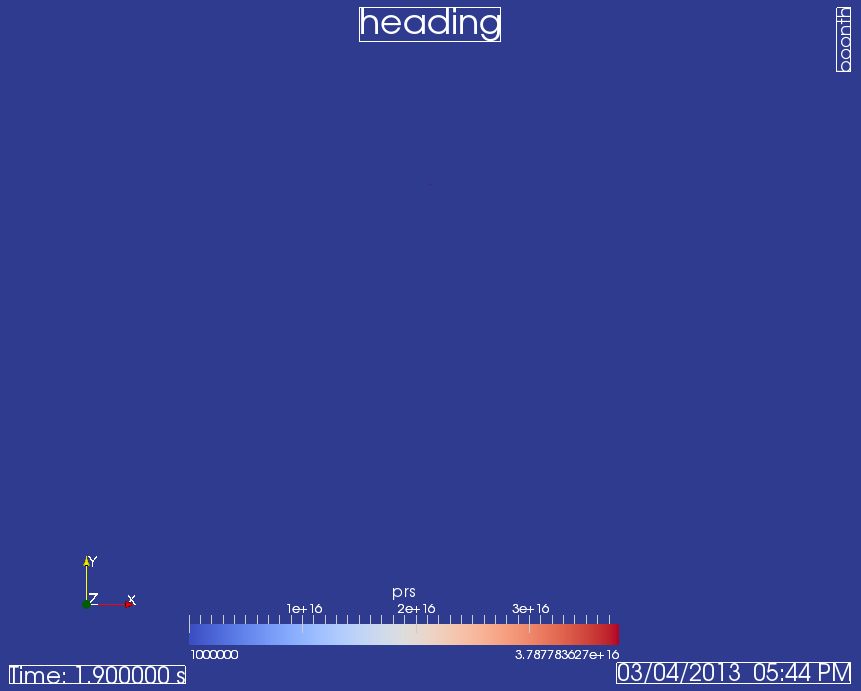

Description | 1. every text has a white bounding box around it (see attached image) 2. the output lists the following error, although an image still gets generated ERROR: In /home/boonth/Desktop/xrage_pv/gitrepo/ParaView-3.98.0/VTK/Interaction/Widgets/vtkAbstractWidget.cxx, line 118 vtkTextWidget (0x83797d0): The interactor must be set prior to enabling the widget Maybe these two problems are related? Utkarsh and I tested out a number of possibilities and it only happens in parallel and batch. # ----------------------- Annotations ----------------------- textColor = [1.0, 1.0, 1.0] HeadingText = Text(Text='heading') HeadingRep = Show() HeadingRep.Interactivity = 0 HeadingRep.WindowLocation = 'UpperCenter' HeadingRep.Color = textColor HeadingRep.FontSize = 18 HeadingRep.Orientation = 0 HeadingRep.TextScaleMode = 'Viewport' UserText = Text(Text='boonth') UserRep = Show() UserRep.Interactivity = 0 UserRep.WindowLocation = 'UpperRightCorner' UserRep.Color = textColor UserRep.FontSize = 10 UserRep.Orientation = 90 UserRep.TextScaleMode = 'Viewport' TimeText = Text(Text='Time: %f s' % 1.9) TimeRep = Show() TimeRep.Interactivity = 0 TimeRep.WindowLocation = 'LowerLeftCorner' TimeRep.Color = textColor TimeRep.FontSize = 12 TimeRep.Orientation = 0 TimeRep.TextScaleMode = 'Viewport' datestring = current_date.strftime('%m/%d/%Y %I:%M %p') DateText = Text(Text=datestring) DateRep = Show() DateRep.Interactivity = 0 DateRep.WindowLocation = 'LowerRightCorner' DateRep.Color = textColor DateRep.FontSize = 12 DateRep.Orientation = 0 DateRep.TextScaleMode = 'Viewport' | ||||||||
Tags | No tags attached. | ||||||||
Project | LANL-InSitu | ||||||||
Topic Name | 13927_fix_text_bounding_boxes | ||||||||
Type | incorrect functionality | ||||||||
Attached Files | pv_prs_ref_00000000.png [^] (17,348 bytes) 2013-03-05 12:05
| ||||||||
Relationships | ||||||
|
Relationships |
Notes | |
(0030415) Utkarsh Ayachit (administrator) 2013-03-06 13:33 |
commit abf2095aae08d29a860b1c63427f25e341b5a243 Author: Utkarsh Ayachit <utkarsh.ayachit@kitware.com> Date: Wed Mar 6 13:30:24 2013 -0500 BUG 0013927. Fixed borders on text widgets. Since the shared-render window had so size set initially, the vtkTextRepresentation ended up incorrectly computing the placement for the text and hence the state for the border visibility in batch mode. This fixes that issue by ensuring that we setup a default size for the shared window as well. The size gets updated when rendering happens to the actual size, so we don't need to be extra smart about the deafult window size. Change-Id: I1d9eb5dbc689aec838539fe9b0fa152db6b31801 commit b49329a3c7e3a57120d45ba98c0260e85af0e9d1 Author: Utkarsh Ayachit <utkarsh.ayachit@kitware.com> Date: Wed Mar 6 10:58:32 2013 -0500 BUG 0013927. Enable 3D widgets only on processes with interactor. Not all processes have an interactor setup. We need to enable 3D widgets only on processes with interactor. This overcomes the warnings printed out in batch mode on satellites (as reported in BUG 0013927). Change-Id: Ic000175331efadb68332b078a8c29e0160d92026 |
(0030431) Utkarsh Ayachit (administrator) 2013-03-14 10:39 |
SUMMARY --------------------------------------------- Topics merged into master: 0013926-webgl-support 0013940-enable-paraview-web-build 13927_fix_text_bounding_boxes 13928-print-monitors 13930_XMLP_writers 13938_blot_color_table 13939-vr-cache-state (VTK) composite-data-display-attributes fix-ordered-composite-distributor-return fix_unnecessary_rebuilds (VTK) update_vtk_master |
(0032065) Alan Scott (manager) 2013-12-24 19:40 |
Old customer review bug. Closing untested. |
Notes |
Issue History | |||
Date Modified | Username | Field | Change |
2013-03-05 12:05 | Patrick O'Leary | New Issue | |
2013-03-05 12:05 | Patrick O'Leary | File Added: pv_prs_ref_00000000.png | |
2013-03-06 10:27 | Utkarsh Ayachit | Assigned To | => Utkarsh Ayachit |
2013-03-06 10:27 | Utkarsh Ayachit | Status | backlog => todo |
2013-03-06 10:27 | Utkarsh Ayachit | Status | todo => active development |
2013-03-06 13:33 | Utkarsh Ayachit | Topic Name | => 13927_fix_text_bounding_boxes |
2013-03-06 13:33 | Utkarsh Ayachit | Note Added: 0030415 | |
2013-03-06 13:33 | Utkarsh Ayachit | Status | active development => gatekeeper review |
2013-03-06 13:33 | Utkarsh Ayachit | Fixed in Version | => git-next |
2013-03-06 13:33 | Utkarsh Ayachit | Resolution | open => fixed |
2013-03-14 10:19 | Utkarsh Ayachit | Relationship added | related to 0013668 |
2013-03-14 10:38 | Utkarsh Ayachit | Fixed in Version | git-next => git-master |
2013-03-14 10:39 | Utkarsh Ayachit | Status | gatekeeper review => customer review |
2013-03-14 10:39 | Utkarsh Ayachit | Note Added: 0030431 | |
2013-05-18 20:00 | Utkarsh Ayachit | Fixed in Version | git-master => 4.0 |
2013-12-24 19:40 | Alan Scott | Note Added: 0032065 | |
2013-12-24 19:40 | Alan Scott | Status | customer review => closed |
2015-01-11 08:27 | Utkarsh Ayachit | Source_changeset_attached | => ParaView master cd13609e |
2015-01-11 08:27 | Utkarsh Ayachit | Source_changeset_attached | => ParaView master abf2095a |
2015-01-11 08:27 | Utkarsh Ayachit | Source_changeset_attached | => ParaView master b49329a3 |
