View Issue Details Jump to Notes ] Print ]
IDProjectCategoryView StatusDate SubmittedLast Update
0004541ParaView(No Category)public2007-03-06 16:532009-05-13 13:59
ReporterKen Moreland
Assigned ToUtkarsh Ayachit
PrioritynormalSeverityminorReproducibilityalways
StatusclosedResolutionfixed
PlatformOSOS Version
Product Version
Target Version3.4Fixed in Version3.4
Summary0004541: Input change does not affect widget bounds
DescriptionIf you have a filter like cut or clip that has a 3D widget, the bounds of the 3D widget do not update if the input to the filter changes its bounds either by changes in upstream filters or by changing the filter input.

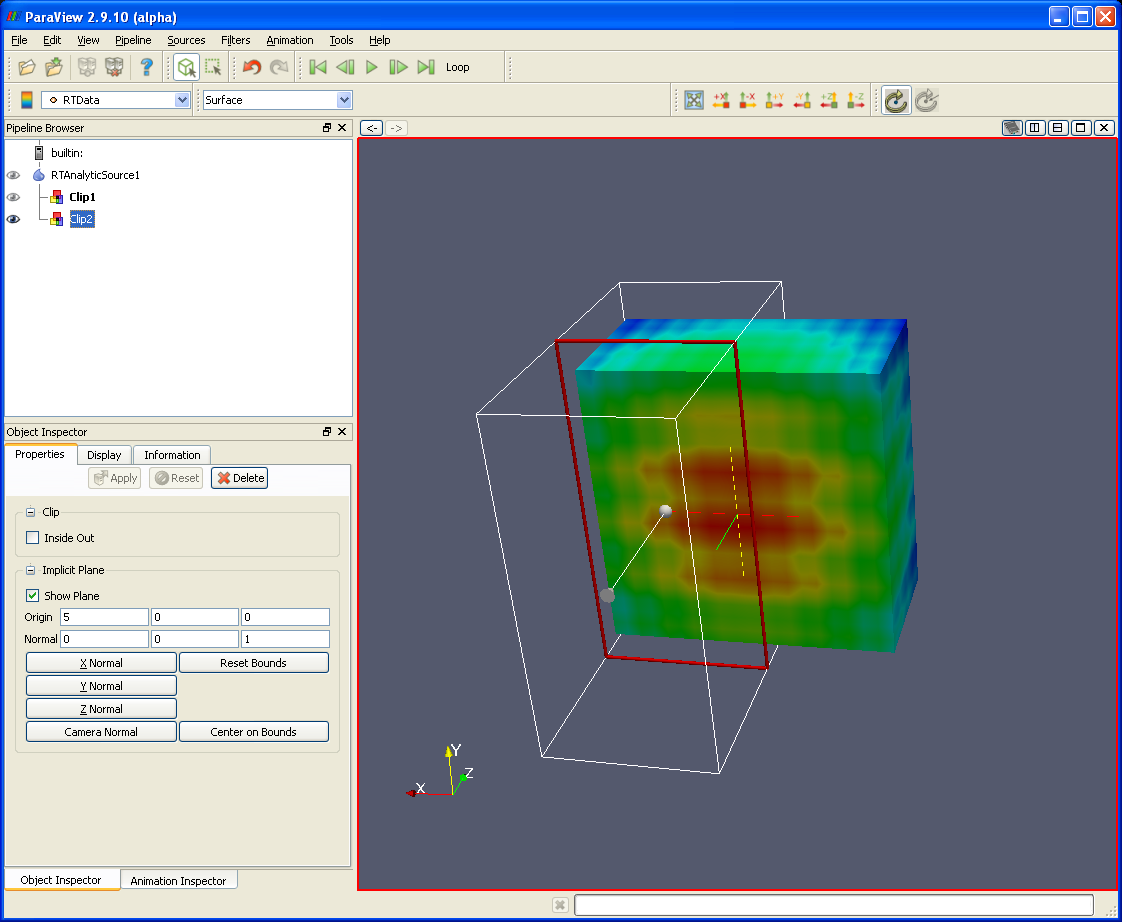

I attached a screen shot showing 3D widget bounds that failed to update.
TagsNo tags attached.
Project
Topic Name
Type
Attached Filespng file icon badwidgetbounds.png [^] (103,986 bytes) 1969-12-31 19:00

 Relationships

  Notes
(0011649)
Berk Geveci (administrator)
2008-05-01 13:37

If new bounds are such that the widget will be invisible, extend the bounds to include old and new bounds.
(0012555)
Utkarsh Ayachit (administrator)
2008-06-27 09:39

Now when the 3D widget get selected, it;s bounds are reset (with smarts).

/cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMPropertyHelper.cxx,v <-- Servers/ServerManager/vtkSMPropertyHelper.cxx
new revision: 1.2; previous revision: 1.1
/cvsroot/ParaView3/ParaView3/Servers/ServerManager/vtkSMPropertyHelper.h,v <-- Servers/ServerManager/vtkSMPropertyHelper.h
new revision: 1.2; previous revision: 1.1
/cvsroot/ParaView3/ParaView3/Servers/ServerManager/Resources/rendering.xml,v <-- Servers/ServerManager/Resources/rendering.xml
new revision: 1.302; previous revision: 1.301
/cvsroot/ParaView3/ParaView3/Qt/Components/pqBoxWidget.cxx,v <-- Qt/Components/pqBoxWidget.cxx
new revision: 1.2; previous revision: 1.1
/cvsroot/ParaView3/ParaView3/Qt/Components/pqBoxWidget.h,v <-- Qt/Components/pqBoxWidget.h
new revision: 1.2; previous revision: 1.1
/cvsroot/ParaView3/ParaView3/Qt/Components/pqImplicitPlaneWidget.cxx,v <-- Qt/Components/pqImplicitPlaneWidget.cxx
new revision: 1.24; previous revision: 1.23
/cvsroot/ParaView3/ParaView3/Qt/Components/pqImplicitPlaneWidget.h,v <-- Qt/Components/pqImplicitPlaneWidget.h
new revision: 1.14; previous revision: 1.13
(0012589)
Alan Scott (manager)
2008-06-30 19:53

Doesn't seem to work for me.
ParaView trunk, client/server.
Source/ Wavelet/ Apply.
Surface and color by RTData.
Clip/ Sphere/ Apply.
Change radius to 11, you never receive the option to hit Apply - and the new radius has no effect.
Click "Inside Out", then click it again. This is what it should look like.
(0012592)
Utkarsh Ayachit (administrator)
2008-07-01 08:14

The Sphere widget issue was another bug which should now be fixed as well.

/cvsroot/ParaView3/ParaView3/Qt/Components/pqSphereWidget.cxx,v <-- Qt/Components/pqSphereWidget.cxx
new revision: 1.2; previous revision: 1.1
(0012640)
Alan Scott (manager)
2008-07-07 18:37

Tested client/server

 Issue History
Date Modified Username Field Change
2008-04-07 16:54 Berk Geveci Category => 3.4
2008-05-01 13:37 Berk Geveci Note Added: 0011649
2008-06-27 09:39 Utkarsh Ayachit Status tabled => @80@
2008-06-27 09:39 Utkarsh Ayachit Resolution open => fixed
2008-06-27 09:39 Utkarsh Ayachit Note Added: 0012555
2008-06-30 19:53 Alan Scott Status @80@ => @20@
2008-06-30 19:53 Alan Scott Resolution fixed => reopened
2008-06-30 19:53 Alan Scott Note Added: 0012589
2008-07-01 08:14 Utkarsh Ayachit Status @20@ => @80@
2008-07-01 08:14 Utkarsh Ayachit Resolution reopened => fixed
2008-07-01 08:14 Utkarsh Ayachit Note Added: 0012592
2008-07-07 18:37 Alan Scott Status @80@ => closed
2008-07-07 18:37 Alan Scott Note Added: 0012640
2009-05-13 13:58 Utkarsh Ayachit Target Version => 3.4
2009-05-13 13:59 Utkarsh Ayachit Fixed in Version => 3.4
2011-06-16 13:10 Zack Galbreath Category => (No Category)
