View Issue Details [ Jump to Notes ]

[ Print ]

Project

Category

View Status

Date Submitted

Last Update

0006766

ParaView

(No Category)

public

2008-04-07 17:17

2009-05-13 13:59

Reporter

Ken Moreland

Assigned To

Berk Geveci

Priority

normal

Severity

minor

Reproducibility

have not tried

Status

closed

Resolution

fixed

Platform

OS Version

Product Version

Target Version

3.4

Fixed in Version

3.4

Summary

0006766: Clipping range does not take 3D widgets into account.

Description

The clipping range calculation does not take the 3D widgets into account. If the 3D widget extends beyond the range of the visible data, it is sometimes clipped by near and/or far planes. To replicate, do the following:

1. Create a sphere source.
2. Apply the cut filter with the default values.
3. Rotate everything around (with the 3D widget still visible) so that you are looking directly onto the clip plane.

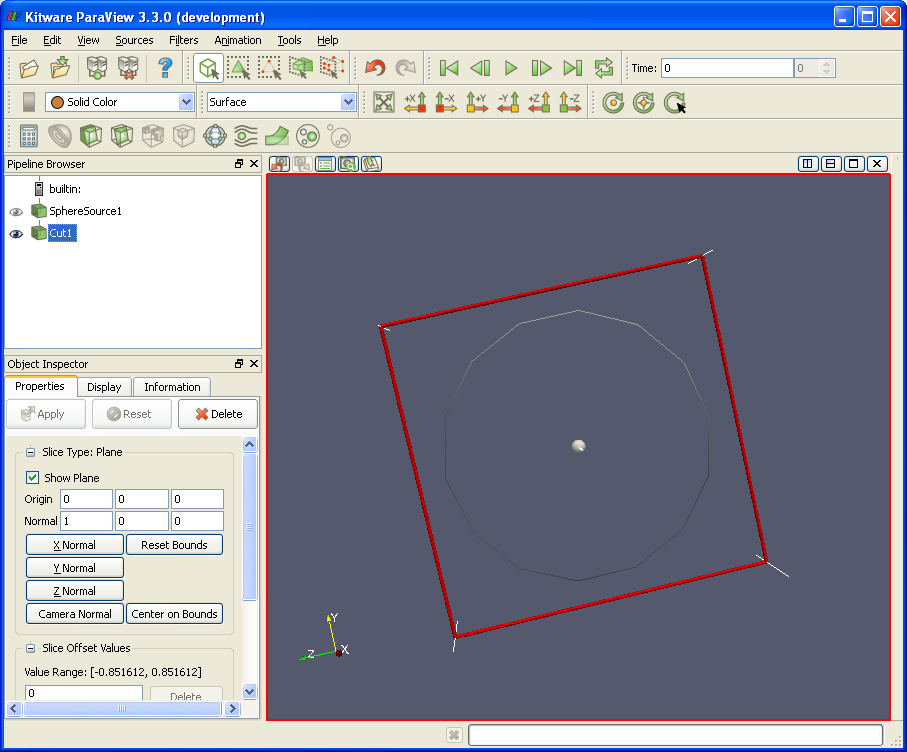

At this point, the front and back part of the widget are clipped off. The attached image shows the results of the clipping.

Tags

No tags attached.

Project

Topic Name

Type

Attached Files

3DWidgetClip.png [^] (82,146 bytes) 2008-04-07 17:17

Relationships

Notes
(0011946) Utkarsh Ayachit (administrator) 2008-05-15 13:49	Has been fixed.

(0012080) Alan Scott (manager) 2008-05-22 21:27	Tested client/server.

Issue History
Date Modified	Username	Field	Change
2008-04-07 17:17	Ken Moreland	New Issue
2008-04-07 17:17	Ken Moreland	File Added: 3DWidgetClip.png
2008-04-10 18:17	Ken Moreland	Status	backlog => tabled
2008-04-10 18:17	Ken Moreland	Assigned To	=> Berk Geveci
2008-05-15 13:49	Utkarsh Ayachit	Status	tabled => @80@
2008-05-15 13:49	Utkarsh Ayachit	Resolution	open => fixed
2008-05-15 13:49	Utkarsh Ayachit	Note Added: 0011946
2008-05-22 21:27	Alan Scott	Status	@80@ => closed
2008-05-22 21:27	Alan Scott	Note Added: 0012080
2009-05-13 13:58	Utkarsh Ayachit	Target Version	=> 3.4
2009-05-13 13:59	Utkarsh Ayachit	Fixed in Version	=> 3.4
2011-06-16 13:10	Zack Galbreath	Category	=> (No Category)
