View Issue Details [ Jump to Notes ] | [ Print ] | ||||||||
ID | Project | Category | View Status | Date Submitted | Last Update | ||||
0007243 | ParaView | (No Category) | public | 2008-06-26 09:57 | 2009-05-13 13:59 | ||||
Reporter | Ken Moreland | ||||||||
Assigned To | Berk Geveci | ||||||||
Priority | normal | Severity | minor | Reproducibility | have not tried | ||||
Status | closed | Resolution | fixed | ||||||
Platform | OS | OS Version | |||||||
Product Version | |||||||||
Target Version | 3.4 | Fixed in Version | 3.4 | ||||||
Summary | 0007243: D3 no longer generating ghost cells | ||||||||
Description | On the 3.3 CVS trunk (6/26/2008) I notice that D3 no longer appears to be generating ghost cells. To see the effect, do the following. 1. Connect to a server with 2 or more processes. 2. Load disk_out_ref. 3. Apply D3 4. Apply Extract Surface 5. Apply Generate Surface Normals **with Splitting OFF** With the splitting feature off, the edges of the mesh should look rounded off in a synthetic bevel. You will notice that there will be some "cracks" in the surface. This is at the boundary of the cells for a particular process. If ghost cells were being generated, the normals would be consistent across this boundary. | ||||||||
Tags | No tags attached. | ||||||||
Project | |||||||||
Topic Name | |||||||||
Type | |||||||||
Attached Files | bug.7243.jpg.png [^] (127,110 bytes) 2008-07-15 12:32
| ||||||||
Relationships | |
Relationships |
Notes | |
(0012710) Utkarsh Ayachit (administrator) 2008-07-15 12:34 |

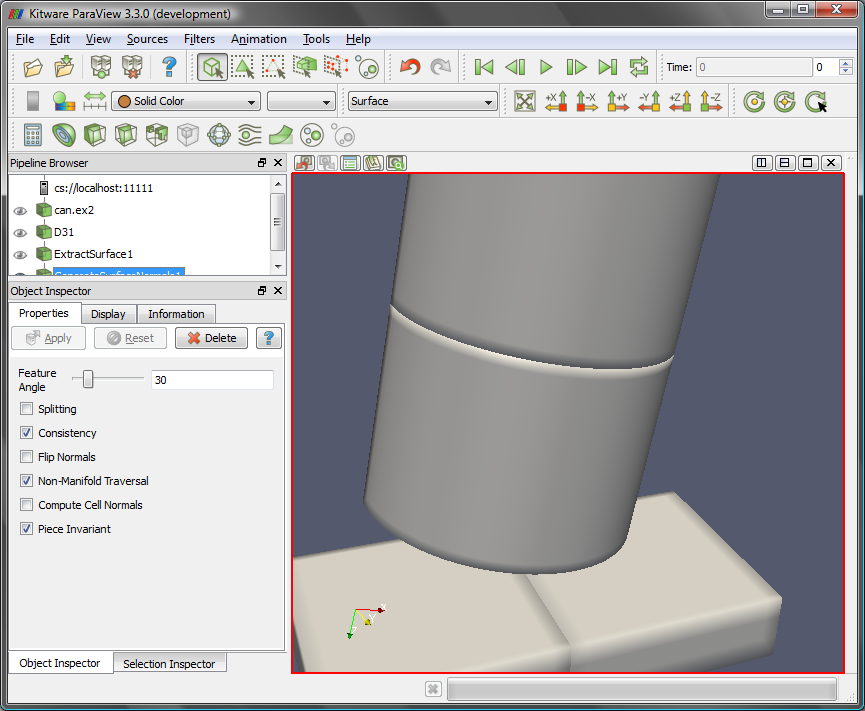

I am not sure I see the cracks you mention. I've attached an image showing what I get. Did this bug get resolved? |
(0012711) Ken Moreland (manager) 2008-07-15 12:40 |
The image you attached exactly shows the problem. See the "line" horizontally through the can and the line vertically through the brick? Those should not be there. They are the "cracks" I was talking about. Although there is no physical separation there, the normals are bent to make inconsistent shading (as if two beveled edges were placed together). The normals are bad because the ghost cells are missing. |
(0012772) Utkarsh Ayachit (administrator) 2008-07-21 10:53 |
The issue seems to be with the executive. After following the steps mentioned to reproduce this bug simply go to the reader and change some property (eg. toggle the state of some array) and then hit apply. We find that the result is as expected (minus the artificial breaks). The upstream filters are not getting executed if the vtkStreamingDemandDrivenPipeline::UPDATE_NUMBER_OF_GHOST_LEVELS() changes. |
(0012956) Utkarsh Ayachit (administrator) 2008-08-07 13:10 |
Berk comitted fixes to composite data pipeline to make sure that ghost levels are respected. |
(0013024) Alan Scott (manager) 2008-08-14 16:41 |
Tested client/server. |
Notes |
Issue History | |||
Date Modified | Username | Field | Change |
2008-06-26 09:57 | Ken Moreland | New Issue | |
2008-07-09 10:53 | Utkarsh Ayachit | Status | backlog => tabled |
2008-07-09 10:53 | Utkarsh Ayachit | Assigned To | => Utkarsh Ayachit |
2008-07-15 12:32 | Utkarsh Ayachit | File Added: bug.7243.jpg.png | |
2008-07-15 12:34 | Utkarsh Ayachit | Status | tabled => @80@ |
2008-07-15 12:34 | Utkarsh Ayachit | Resolution | open => unable to reproduce |
2008-07-15 12:34 | Utkarsh Ayachit | Note Added: 0012710 | |
2008-07-15 12:40 | Ken Moreland | Status | @80@ => @20@ |
2008-07-15 12:40 | Ken Moreland | Resolution | unable to reproduce => reopened |
2008-07-15 12:40 | Ken Moreland | Note Added: 0012711 | |
2008-07-15 13:01 | Utkarsh Ayachit | Status | @20@ => tabled |
2008-07-21 10:53 | Utkarsh Ayachit | Assigned To | Utkarsh Ayachit => Berk Geveci |
2008-07-21 10:53 | Utkarsh Ayachit | Note Added: 0012772 | |
2008-08-07 13:10 | Utkarsh Ayachit | Status | tabled => @80@ |
2008-08-07 13:10 | Utkarsh Ayachit | Resolution | reopened => fixed |
2008-08-07 13:10 | Utkarsh Ayachit | Note Added: 0012956 | |
2008-08-14 16:41 | Alan Scott | Status | @80@ => closed |
2008-08-14 16:41 | Alan Scott | Note Added: 0013024 | |
2009-05-13 13:58 | Utkarsh Ayachit | Target Version | => 3.4 |
2009-05-13 13:59 | Utkarsh Ayachit | Fixed in Version | => 3.4 |
2011-06-16 13:10 | Zack Galbreath | Category | => (No Category) |
