vtkPoints Class Reference

represent and manipulate 3D points. More...

#include <vtkPoints.h>

Inheritance diagram for vtkPoints:

Inheritance graph
[legend]

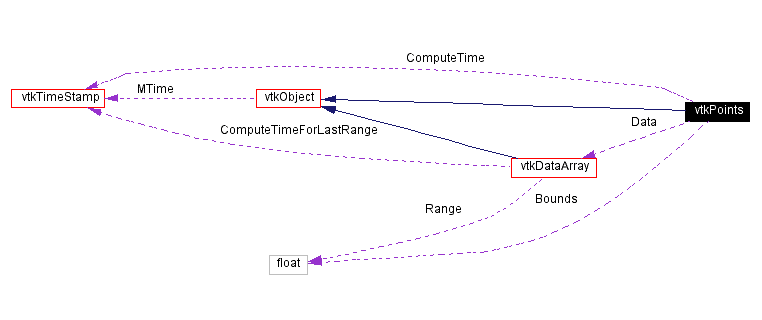

Collaboration diagram for vtkPoints:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual int Allocate (const vtkIdType sz, const vtkIdType ext=1000)
virtual void Initialize ()
vtkPoints * MakeObject ()
virtual int GetDataType ()
void * GetVoidPointer (const int id)
virtual void Squeeze ()
virtual void Reset ()
unsigned long GetActualMemorySize ()
vtkIdType GetNumberOfPoints ()
float * GetPoint (vtkIdType id)
void SetNumberOfPoints (vtkIdType number)
void GetPoints (vtkIdList *ptId, vtkPoints *fp)
virtual void ComputeBounds ()
float * GetBounds ()
void GetBounds (float bounds[6])
virtual void SetData (vtkDataArray *)
vtkDataArray * GetData ()
virtual void SetDataType (int dataType)
void SetDataTypeToBit ()
void SetDataTypeToChar ()
void SetDataTypeToUnsignedChar ()
void SetDataTypeToShort ()
void SetDataTypeToUnsignedShort ()
void SetDataTypeToInt ()
void SetDataTypeToUnsignedInt ()
void SetDataTypeToLong ()
void SetDataTypeToUnsignedLong ()
void SetDataTypeToFloat ()
void SetDataTypeToDouble ()
virtual void DeepCopy (vtkPoints *ad)
virtual void ShallowCopy (vtkPoints *ad)
void GetPoint (vtkIdType id, float x[3])
void GetPoint (vtkIdType id, double x[3])
void SetPoint (vtkIdType id, const float x[3])
void SetPoint (vtkIdType id, const double x[3])
void SetPoint (vtkIdType id, double x, double y, double z)
void InsertPoint (vtkIdType id, const float x[3])
void InsertPoint (vtkIdType id, const double x[3])
void InsertPoint (vtkIdType id, double x, double y, double z)
vtkIdType InsertNextPoint (const float x[3])
vtkIdType InsertNextPoint (const double x[3])
vtkIdType InsertNextPoint (double x, double y, double z)

Static Public Methods

vtkPoints * New (int dataType)
vtkPoints * New ()
int IsTypeOf (const char *type)
vtkPoints * SafeDownCast (vtkObject *o)

Protected Methods

 vtkPoints (int dataType=VTK_FLOAT)
 ~vtkPoints ()

Protected Attributes

float Bounds [6]
vtkTimeStamp ComputeTime
vtkDataArray * Data

Detailed Description

represent and manipulate 3D points.

Date:
2001/11/02 16:41:15
Revision:
1.59

vtkPoints represents 3D points. The data model for vtkPoints is an array of vx-vy-vz triplets accessible by (point or cell) id.

Examples:
vtkPoints (Examples)
Tests:
vtkPoints (Tests)

Definition at line 65 of file vtkPoints.h.

Constructor & Destructor Documentation

vtkPoints::vtkPoints (  int    dataType = VTK_FLOAT )  [protected]


vtkPoints::~vtkPoints (    )  [protected]


Member Function Documentation

vtkPoints* vtkPoints::New (  int    dataType )  [static]


vtkPoints* vtkPoints::New (    )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPoints::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

int vtkPoints::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkPoints::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

vtkPoints* vtkPoints::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

void vtkPoints::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

virtual int vtkPoints::Allocate (  const vtkIdType    sz,
const vtkIdType    ext = 1000
)  [virtual]


Allocate initial memory size.

virtual void vtkPoints::Initialize (    )  [virtual]


Return object to instantiated state.

vtkPoints* vtkPoints::MakeObject (    )


Creates object of same type as this object.

virtual void vtkPoints::SetData (  vtkDataArray *    )  [virtual]


Set/Get the underlying data array. This function must be implemented in a concrete subclass to check for consistency. (The tuple size must match the type of data. For example, 3-tuple data array can be assigned to a vector, normal, or points object, but not a tensor object, which has a tuple dimension of 9. Scalars, on the other hand, can have tuple dimension from 1-4, depending on the type of scalar.)

vtkDataArray* vtkPoints::GetData (    )  [inline]


Set/Get the underlying data array. This function must be implemented in a concrete subclass to check for consistency. (The tuple size must match the type of data. For example, 3-tuple data array can be assigned to a vector, normal, or points object, but not a tensor object, which has a tuple dimension of 9. Scalars, on the other hand, can have tuple dimension from 1-4, depending on the type of scalar.)

Definition at line 93 of file vtkPoints.h.

virtual int vtkPoints::GetDataType (    )  [virtual]


Return the underlying data type. An integer indicating data type is returned as specified in vtkSetGet.h.

virtual void vtkPoints::SetDataType (  int    dataType )  [virtual]


Specify the underlying data type of the object.

void vtkPoints::SetDataTypeToBit (    )  [inline]


Specify the underlying data type of the object.

Definition at line 103 of file vtkPoints.h.

void vtkPoints::SetDataTypeToChar (    )  [inline]


Specify the underlying data type of the object.

Definition at line 104 of file vtkPoints.h.

void vtkPoints::SetDataTypeToUnsignedChar (    )  [inline]


Specify the underlying data type of the object.

Definition at line 105 of file vtkPoints.h.

void vtkPoints::SetDataTypeToShort (    )  [inline]


Specify the underlying data type of the object.

Definition at line 106 of file vtkPoints.h.

void vtkPoints::SetDataTypeToUnsignedShort (    )  [inline]


Specify the underlying data type of the object.

Definition at line 107 of file vtkPoints.h.

void vtkPoints::SetDataTypeToInt (    )  [inline]


Specify the underlying data type of the object.

Definition at line 108 of file vtkPoints.h.

void vtkPoints::SetDataTypeToUnsignedInt (    )  [inline]


Specify the underlying data type of the object.

Definition at line 109 of file vtkPoints.h.

void vtkPoints::SetDataTypeToLong (    )  [inline]


Specify the underlying data type of the object.

Definition at line 110 of file vtkPoints.h.

void vtkPoints::SetDataTypeToUnsignedLong (    )  [inline]


Specify the underlying data type of the object.

Definition at line 111 of file vtkPoints.h.

void vtkPoints::SetDataTypeToFloat (    )  [inline]


Specify the underlying data type of the object.

Definition at line 112 of file vtkPoints.h.

void vtkPoints::SetDataTypeToDouble (    )  [inline]


Specify the underlying data type of the object.

Definition at line 113 of file vtkPoints.h.

void* vtkPoints::GetVoidPointer (  const int    id )  [inline]


Return a void pointer. For image pipeline interface and other special pointer manipulation.

Definition at line 118 of file vtkPoints.h.

virtual void vtkPoints::Squeeze (    )  [inline, virtual]


Reclaim any extra memory.

Definition at line 121 of file vtkPoints.h.

virtual void vtkPoints::Reset (    )  [inline, virtual]


Make object look empty but do not delete memory.

Definition at line 124 of file vtkPoints.h.

virtual void vtkPoints::DeepCopy (  vtkPoints *    ad )  [virtual]


Different ways to copy data. Shallow copy does reference count (i.e., assigns pointers and updates reference count); deep copy runs through entire data array assigning values.

virtual void vtkPoints::ShallowCopy (  vtkPoints *    ad )  [virtual]


Different ways to copy data. Shallow copy does reference count (i.e., assigns pointers and updates reference count); deep copy runs through entire data array assigning values.

unsigned long vtkPoints::GetActualMemorySize (    )


Return the memory in kilobytes consumed by this attribute data. Used to support streaming and reading/writing data. The value returned is guaranteed to be greater than or equal to the memory required to actually represent the data represented by this object. The information returned is valid only after the pipeline has been updated.

vtkIdType vtkPoints::GetNumberOfPoints (    )  [inline]


Return number of points in array.

Definition at line 143 of file vtkPoints.h.

Referenced by vtkPointSet::GetNumberOfPoints().

float* vtkPoints::GetPoint (  vtkIdType    id )  [inline]


Return a pointer to a float point x[3] for a specific id.

Definition at line 146 of file vtkPoints.h.

void vtkPoints::GetPoint (  vtkIdType    id,
float    x[3]
)  [inline]


Copy point components into user provided array v[3] for specified id.

Definition at line 150 of file vtkPoints.h.

void vtkPoints::GetPoint (  vtkIdType    id,
double    x[3]
)  [inline]


Copy point components into user provided array v[3] for specified id.

Definition at line 151 of file vtkPoints.h.

void vtkPoints::SetPoint (  vtkIdType    id,
const float    x[3]
)  [inline]


Insert point into object. No range checking performed (fast!). Make sure you use SetNumberOfPoints() to allocate memory prior to using SetPoint().

Definition at line 158 of file vtkPoints.h.

void vtkPoints::SetPoint (  vtkIdType    id,
const double    x[3]
)  [inline]


Insert point into object. No range checking performed (fast!). Make sure you use SetNumberOfPoints() to allocate memory prior to using SetPoint().

Definition at line 159 of file vtkPoints.h.

void vtkPoints::SetPoint (  vtkIdType    id,
double    x,
double    y,
double    z
)  [inline]


Insert point into object. No range checking performed (fast!). Make sure you use SetNumberOfPoints() to allocate memory prior to using SetPoint().

Definition at line 218 of file vtkPoints.h.

void vtkPoints::InsertPoint (  vtkIdType    id,
const float    x[3]
)  [inline]


Insert point into object. Range checking performed and memory allocated as necessary.

Definition at line 166 of file vtkPoints.h.

void vtkPoints::InsertPoint (  vtkIdType    id,
const double    x[3]
)  [inline]


Insert point into object. Range checking performed and memory allocated as necessary.

Definition at line 168 of file vtkPoints.h.

void vtkPoints::InsertPoint (  vtkIdType    id,
double    x,
double    y,
double    z
)  [inline]


Insert point into object. Range checking performed and memory allocated as necessary.

Definition at line 227 of file vtkPoints.h.

vtkIdType vtkPoints::InsertNextPoint (  const float    x[3] )  [inline]


Insert point into next available slot. Returns id of slot.

Definition at line 175 of file vtkPoints.h.

vtkIdType vtkPoints::InsertNextPoint (  const double    x[3] )  [inline]


Insert point into next available slot. Returns id of slot.

Definition at line 177 of file vtkPoints.h.

vtkIdType vtkPoints::InsertNextPoint (  double    x,
double    y,
double    z
)  [inline]


Insert point into next available slot. Returns id of slot.

Definition at line 237 of file vtkPoints.h.

void vtkPoints::SetNumberOfPoints (  vtkIdType    number )  [inline]


Specify the number of points for this object to hold. Does an allocation as well as setting the MaxId ivar. Used in conjunction with SetPoint() method for fast insertion.

Definition at line 212 of file vtkPoints.h.

void vtkPoints::GetPoints (  vtkIdList *    ptId,
vtkPoints *    fp
)


Given a list of pt ids, return an array of points.

virtual void vtkPoints::ComputeBounds (    )  [virtual]


Determine (xmin,xmax, ymin,ymax, zmin,zmax) bounds of points.

float* vtkPoints::GetBounds (    )


Return the bounds of the points.

void vtkPoints::GetBounds (  float    bounds[6] )


Return the bounds of the points.

Member Data Documentation

float vtkPoints::Bounds[6] [protected]


Definition at line 203 of file vtkPoints.h.

vtkTimeStamp vtkPoints::ComputeTime [protected]


Definition at line 204 of file vtkPoints.h.

vtkDataArray* vtkPoints::Data [protected]


Definition at line 205 of file vtkPoints.h.

The documentation for this class was generated from the following file:
