vtkSource Class Reference

abstract class specifies interface for visualization network source. More...

#include <vtkSource.h>

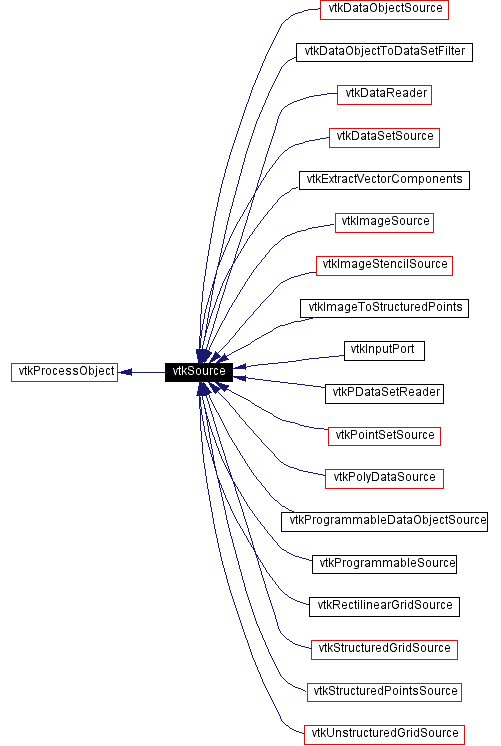

Inheritance diagram for vtkSource:

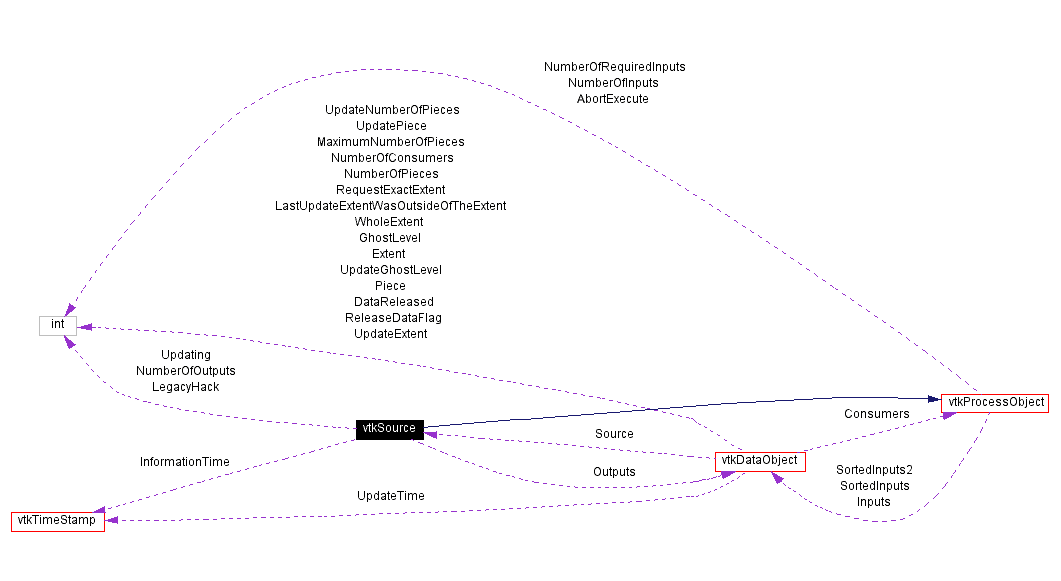

[legend]Collaboration diagram for vtkSource:

[legend]List of all members.

[NOHEADER]
virtual void	EnlargeOutputUpdateExtents (vtkDataObject *output)
int	LegacyHack
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual void	UpdateWholeExtent ()
virtual void	UpdateInformation ()
virtual void	PropagateUpdateExtent (vtkDataObject *output)
virtual void	TriggerAsynchronousUpdate ()
virtual void	UpdateData (vtkDataObject *output)
virtual void	ComputeInputUpdateExtents (vtkDataObject *output)
void	UnRegister (vtkObject *o)
virtual int	InRegisterLoop (vtkObject *)
void	UnRegisterAllOutputs (void)
int	GetOutputIndex (vtkDataObject *out)
virtual void	SetReleaseDataFlag (int)
virtual int	GetReleaseDataFlag ()
virtual void	ReleaseDataFlagOn ()
virtual void	ReleaseDataFlagOff ()
vtkDataObject **	GetOutputs ()
virtual int	GetNumberOfOutputs ()
Static Public Methods
vtkSource *	New ()
int	IsTypeOf (const char *type)
vtkSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkSource ()
	~vtkSource ()
virtual void	Execute ()
virtual void	ExecuteInformation ()
void	SetNumberOfOutputs (int num)
vtkDataObject *	GetOutput (int idx)
virtual void	SetNthOutput (int num, vtkDataObject *output)
virtual void	AddOutput (vtkDataObject *output)
virtual void	RemoveOutput (vtkDataObject *output)
virtual void	ExecuteData (vtkDataObject *vtkNotUsed(output))
Protected Attributes
vtkDataObject **	Outputs
int	NumberOfOutputs
int	Updating
vtkTimeStamp	InformationTime

---

Detailed Description

abstract class specifies interface for visualization network source.

Date:

2001/10/11 13:36:25

Revision:

1.63

vtkSource is an abstract object that specifies behavior and interface of source objects. Source objects are objects that begin visualization pipeline. Sources include readers (read data from file or communications port) and procedural sources (generate data programmatically). vtkSource objects are also objects that generate output data. In this sense vtkSource is used as a superclass to vtkFilter.

Concrete subclasses of vtkSource must define Update() and Execute() methods. The public method Update() invokes network execution and will bring the network up-to-date. The protected Execute() method actually does the work of data creation/generation. The difference between the two methods is that Update() implements input consistency checks and modified time comparisons and then invokes the Execute() which is an implementation of a particular algorithm.

An important feature of subclasses of vtkSource is that it is possible to control the memory-management model (i.e., retain output versus delete output data). If enabled the ReleaseDataFlag enables the deletion of the output data once the downstream process object finishes processing the data (please see text).

See also:

vtkProcessObject vtkDataSetReader vtkFilter vtkPolyDataSource vtkStructuredGridSource vtkStructuredPointsSource vtkUnstructuredGridSource

Events:

vtkCommand::StartEvent vtkCommand::EndEvent

Definition at line 81 of file vtkSource.h.

---

Constructor & Destructor Documentation

vtkSource::vtkSource (    )  [protected]

vtkSource::~vtkSource (    )  [protected]

---

Member Function Documentation

vtkSource* vtkSource::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkProcessObject. Reimplemented in vtkCastToConcrete, vtkDataObjectSource, vtkDataSetSource, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkPointSetSource, vtkPolyDataSource, vtkRectilinearGridSource, vtkStructuredGridSource, vtkStructuredPointsSource, vtkUnstructuredGridSource, vtkAppendFilter, vtkAppendPolyData, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPNGReader, vtkPNMReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

virtual const char* vtkSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkCastToConcrete, vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSimpleImageToImageFilter, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPNGReader, vtkPNMReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkVolumeReader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

int vtkSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkCastToConcrete, vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSimpleImageToImageFilter, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPNGReader, vtkPNMReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkVolumeReader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

virtual int vtkSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkCastToConcrete, vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSimpleImageToImageFilter, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPNGReader, vtkPNMReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkVolumeReader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

vtkSource* vtkSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkCastToConcrete, vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkSimpleImageToImageFilter, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPNGReader, vtkPNMReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkVolumeReader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

void vtkSource::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProcessObject. Reimplemented in vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLineSource, vtkLinkEdgels, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableGlyphFilter, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkMILVideoSource, vtkPolyDataToImageStencil, vtkRenderLargeImage, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFlip, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageMagnify, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkWindowToImageFilter, vtkBMPReader, vtkBYUReader, vtkDataObjectReader, vtkDataReader, vtkDataSetReader, vtkDEMReader, vtkEnSightReader, vtkGenericEnSightReader, vtkImageReader, vtkImageReader2, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkVolumeReader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPVGeometryFilter, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

virtual void vtkSource::Update (    )  [virtual]

Bring object up-to-date before execution. Update() checks modified time against last execution time, and re-executes object if necessary. Reimplemented in vtkDataSetReader, vtkEnSightReader, vtkGenericEnSightReader, vtkPDataSetReader, and vtkImageMarchingCubes.

virtual void vtkSource::UpdateWholeExtent (    )  [virtual]

Like update, but make sure the update extent is the whole extent in the output.

virtual void vtkSource::UpdateInformation (    )  [virtual]

Updates any global information about the data (like spacing for images) Reimplemented in vtkProgrammableSource, vtkImageImport, vtkInputPort, and vtkRendererSource.

virtual void vtkSource::PropagateUpdateExtent (  vtkDataObject *    output )  [virtual]

Reimplemented in vtkImageImport.

virtual void vtkSource::TriggerAsynchronousUpdate (    )  [virtual]

Reimplemented in vtkInputPort.

virtual void vtkSource::UpdateData (  vtkDataObject *    output )  [virtual]

Reimplemented in vtkProgrammableSource, vtkImplicitModeller, vtkImageCacheFilter, vtkImageCast, vtkImageDataStreamer, vtkInputPort, and vtkMemoryLimitImageDataStreamer.

virtual void vtkSource::ComputeInputUpdateExtents (  vtkDataObject *    out )  [virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented in vtkDataSetToDataSetFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredPointsFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkAppendPolyData, vtkCleanPolyData, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkExtractGrid, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph3D, vtkLoopSubdivisionFilter, vtkMergeFilter, vtkPolyDataStreamer, vtkProbeFilter, vtkStructuredGridGeometryFilter, vtkImageIterateFilter, vtkImageReslice, vtkImageSeedConnectivity, vtkPolyDataReader, vtkUnstructuredGridReader, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkPLinearExtrusionFilter, vtkPPolyDataNormals, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkGridSynchronizedTemplates3D, vtkKitwareContourFilter, and vtkSynchronizedTemplates3D.

virtual void vtkSource::SetReleaseDataFlag (  int    )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

virtual int vtkSource::GetReleaseDataFlag (    )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

virtual void vtkSource::ReleaseDataFlagOn (    )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

virtual void vtkSource::ReleaseDataFlagOff (    )  [virtual]

Turn on/off flag to control whether this object's data is released after being used by a source.

void vtkSource::UnRegister (  vtkObject *    o )  [virtual]

Handle the source/data loop. Reimplemented from vtkObject. Reimplemented in vtkSelectPolyData.

virtual int vtkSource::InRegisterLoop (  vtkObject *    )  [virtual]

Test to see if this object is in a reference counting loop. Reimplemented in vtkSelectPolyData.

vtkDataObject** vtkSource::GetOutputs (    )

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc.

virtual int vtkSource::GetNumberOfOutputs (    )  [virtual]

Return an array with all the inputs of this process object. This is useful for tracing back in the pipeline to construct graphs etc.

void vtkSource::UnRegisterAllOutputs (  void    )

Release/disconnect all outputs of this source. This is intended to be called prior to Delete() if the user is concerned about outputs holding on to the filter/source.

int vtkSource::GetOutputIndex (  vtkDataObject *    out )

Return what index output the passed in output is, return -1 if it does not match any of the outputs

virtual void vtkSource::EnlargeOutputUpdateExtents (  vtkDataObject *    output )  [virtual]

Legacy method. This method was used by inmaging filters to change the UpdateExtent of their input so that the vtkImmageToImageFilter superclass would allocate a larger volume. Changing the UpdateExtent of your input is no longer allowed. The alternative method is to write your own "Execute()" method and allocate your own data.

virtual void vtkSource::ExecuteData (  vtkDataObject *vtkNotUsed(output)    )  [inline, protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method Definition at line 161 of file vtkSource.h.

virtual void vtkSource::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented in vtkCastToConcrete, vtkImageSource, vtkImageToStructuredPoints, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLineSource, vtkLinkEdgels, vtkMaskPoints, vtkMaskPolyData, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSphereSource, vtkSplitField, vtkStreamLine, vtkStreamPoints, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkVectorText, vtkWeightedTransformFilter, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkBYUReader, vtkDataObjectReader, vtkDataSetReader, vtkEnSightReader, vtkGenericEnSightReader, vtkMCubesReader, vtkOBJReader, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkSLCReader, vtkSTLReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkUGFacetReader, vtkUnstructuredGridReader, vtkVolume16Reader, vtkClipPlane, vtkCutMaterial, vtkCutPlane, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkPDataSetReader, vtkPieceScalars, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPPolyDataNormals, vtkPSphereSource, vtkPVGeometryFilter, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkRendererSource, and vtkSelectVisiblePoints.

virtual void vtkSource::ExecuteInformation (    )  [protected, virtual]

Reimplemented in vtkCastToConcrete, vtkDataSetToDataSetFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkSimpleImageToImageFilter, vtkStructuredPointsSource, vtkStructuredPointsToStructuredPointsFilter, vtkCleanPolyData, vtkConeSource, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkExtractGrid, vtkGeometryFilter, vtkGlyph3D, vtkOutlineCornerFilter, vtkOutlineFilter, vtkPointSource, vtkProbeFilter, vtkSphereSource, vtkImplicitModeller, vtkRenderLargeImage, vtkTransformToGrid, vtkVideoSource, vtkExtractVOI, vtkImageAccumulate, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageCast, vtkImageChangeInformation, vtkImageClip, vtkImageCorrelation, vtkImageDifference, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageImport, vtkImageIterateFilter, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMathematics, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkSampleFunction, vtkWindowToImageFilter, vtkBMPReader, vtkDEMReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkJPEGReader, vtkParticleReader, vtkPLOT3DReader, vtkPNGReader, vtkPNMReader, vtkRectilinearGridReader, vtkSLCReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTIFFReader, vtkVolume16Reader, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkPDataSetReader, vtkPOPReader, vtkRTAnalyticSource, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkGridSynchronizedTemplates3D, vtkKitwareContourFilter, vtkSweptSurface, and vtkSynchronizedTemplates3D.

void vtkSource::SetNumberOfOutputs (  int    num )  [protected]

vtkDataObject* vtkSource::GetOutput (  int    idx )  [protected]

Reimplemented in vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToStructuredPoints, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataSource, vtkRectilinearGridSource, vtkStructuredGridSource, vtkStructuredPointsSource, vtkUnstructuredGridSource, vtkDataObjectToDataSetFilter, vtkExtractVectorComponents, vtkProgrammableDataObjectSource, vtkSpatialRepresentationFilter, vtkImageOpenClose3D, vtkDataObjectReader, vtkDataSetReader, vtkPolyDataReader, vtkRectilinearGridReader, vtkStructuredGridReader, vtkStructuredPointsReader, and vtkUnstructuredGridReader. Referenced by vtkUnstructuredGridReader::GetOutput(), vtkStructuredPointsReader::GetOutput(), vtkStructuredGridReader::GetOutput(), vtkRectilinearGridReader::GetOutput(), vtkPolyDataReader::GetOutput(), vtkDataSetReader::GetOutput(), vtkDataObjectReader::GetOutput(), vtkProgrammableDataObjectSource::GetOutput(), vtkDataObjectToDataSetFilter::GetOutput(), vtkUnstructuredGridSource::GetOutput(), vtkStructuredPointsSource::GetOutput(), vtkStructuredGridSource::GetOutput(), vtkRectilinearGridSource::GetOutput(), vtkPolyDataSource::GetOutput(), vtkPointSetSource::GetOutput(), vtkImageToStructuredPoints::GetOutput(), vtkImageSource::GetOutput(), vtkDataSetSource::GetOutput(), and vtkDataObjectSource::GetOutput().

virtual void vtkSource::SetNthOutput (  int    num, vtkDataObject *    output )  [protected, virtual]

virtual void vtkSource::AddOutput (  vtkDataObject *    output )  [protected, virtual]

virtual void vtkSource::RemoveOutput (  vtkDataObject *    output )  [protected, virtual]

---

Member Data Documentation

int vtkSource::LegacyHack

Legacy method. This method was used by inmaging filters to change the UpdateExtent of their input so that the vtkImmageToImageFilter superclass would allocate a larger volume. Changing the UpdateExtent of your input is no longer allowed. The alternative method is to write your own "Execute()" method and allocate your own data. Definition at line 150 of file vtkSource.h.

vtkDataObject** vtkSource::Outputs [protected]

Definition at line 183 of file vtkSource.h.

int vtkSource::NumberOfOutputs [protected]

Definition at line 184 of file vtkSource.h.

int vtkSource::Updating [protected]

Reimplemented in vtkDataObjectToDataSetFilter. Definition at line 185 of file vtkSource.h.

vtkTimeStamp vtkSource::InformationTime [protected]

Definition at line 187 of file vtkSource.h.

---

The documentation for this class was generated from the following file:

• Common/vtkSource.h

---
