vtkStructuredPointsSource Class Reference

Abstract class whose subclasses generates structured Points data. More...

#include <vtkStructuredPointsSource.h>

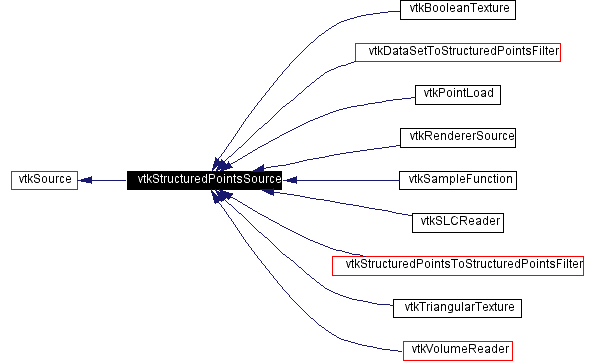

Inheritance diagram for vtkStructuredPointsSource:

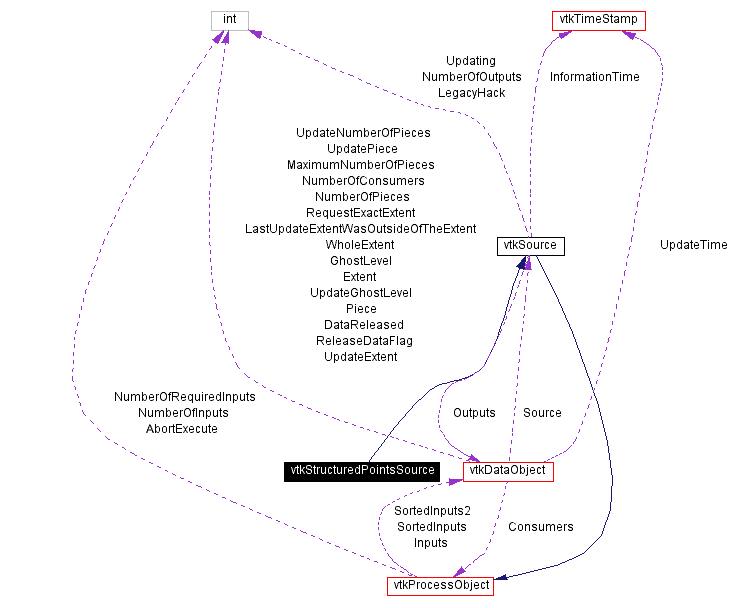

[legend]Collaboration diagram for vtkStructuredPointsSource:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SetOutput (vtkStructuredPoints *output)
vtkStructuredPoints *	GetOutput ()
vtkStructuredPoints *	GetOutput (int idx)
Static Public Methods
vtkStructuredPointsSource *	New ()
int	IsTypeOf (const char *type)
vtkStructuredPointsSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkStructuredPointsSource ()
	~vtkStructuredPointsSource ()
void	ExecuteInformation ()

---

Detailed Description

Abstract class whose subclasses generates structured Points data.

Date:

2001/10/11 13:36:39

Revision:

1.34

vtkStructuredPointsSource is an abstract class whose subclasses generate structured Points data.

See also:

vtkStructuredPointsReader vtkPLOT3DReader

Definition at line 59 of file vtkStructuredPointsSource.h.

---

Constructor & Destructor Documentation

vtkStructuredPointsSource::vtkStructuredPointsSource (    )  [protected]

vtkStructuredPointsSource::~vtkStructuredPointsSource (    )  [inline, protected]

Definition at line 75 of file vtkStructuredPointsSource.h.

---

Member Function Documentation

vtkStructuredPointsSource* vtkStructuredPointsSource::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkSource. Reimplemented in vtkImplicitModeller, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkSLCReader, vtkVolume16Reader, vtkSweptSurface, and vtkRendererSource.

virtual const char* vtkStructuredPointsSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSource. Reimplemented in vtkDataSetToStructuredPointsFilter, vtkStructuredPointsToStructuredPointsFilter, vtkImplicitModeller, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkSLCReader, vtkVolume16Reader, vtkVolumeReader, vtkSweptSurface, and vtkRendererSource.

int vtkStructuredPointsSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSource. Reimplemented in vtkDataSetToStructuredPointsFilter, vtkStructuredPointsToStructuredPointsFilter, vtkImplicitModeller, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkSLCReader, vtkVolume16Reader, vtkVolumeReader, vtkSweptSurface, and vtkRendererSource.

virtual int vtkStructuredPointsSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSource. Reimplemented in vtkDataSetToStructuredPointsFilter, vtkStructuredPointsToStructuredPointsFilter, vtkImplicitModeller, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkSLCReader, vtkVolume16Reader, vtkVolumeReader, vtkSweptSurface, and vtkRendererSource.

vtkStructuredPointsSource* vtkStructuredPointsSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkSource. Reimplemented in vtkDataSetToStructuredPointsFilter, vtkStructuredPointsToStructuredPointsFilter, vtkImplicitModeller, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkSLCReader, vtkVolume16Reader, vtkVolumeReader, vtkSweptSurface, and vtkRendererSource.

void vtkStructuredPointsSource::SetOutput (  vtkStructuredPoints *    output )

Set/Get the output of this source.

vtkStructuredPoints* vtkStructuredPointsSource::GetOutput (    )

Set/Get the output of this source.

vtkStructuredPoints* vtkStructuredPointsSource::GetOutput (  int    idx )  [inline]

Set/Get the output of this source. Reimplemented from vtkSource. Definition at line 69 of file vtkStructuredPointsSource.h.

void vtkStructuredPointsSource::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource. Reimplemented in vtkStructuredPointsToStructuredPointsFilter, vtkImplicitModeller, vtkExtractVOI, vtkSampleFunction, vtkSLCReader, vtkVolume16Reader, and vtkSweptSurface.

---

The documentation for this class was generated from the following file:

• Filtering/vtkStructuredPointsSource.h

---
