superclass for all geometric transformations More...
#include <vtkAbstractTransform.h>
superclass for all geometric transformations

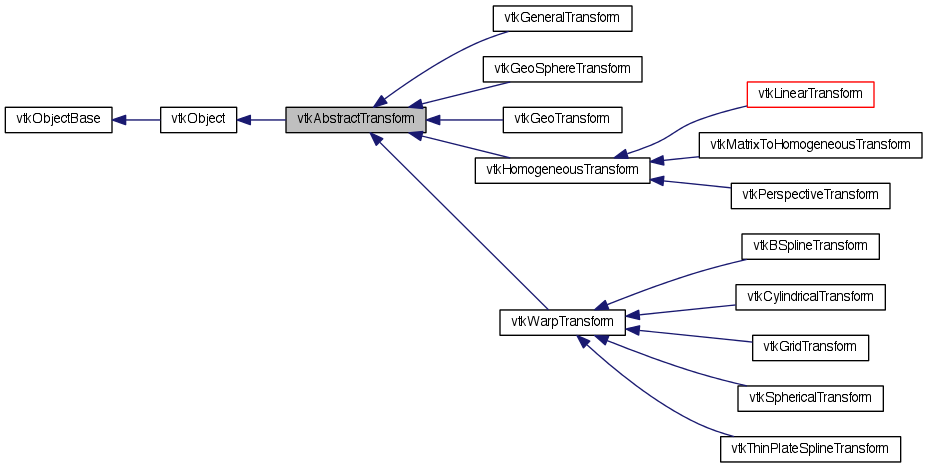

vtkAbstractTransform is the superclass for all VTK geometric transformations. The VTK transform hierarchy is split into two major branches: warp transformations and homogeneous (including linear) transformations. The latter can be represented in terms of a 4x4 transformation matrix, the former cannot.
Transformations can be pipelined through two mechanisms:
1) GetInverse() returns the pipelined inverse of a transformation i.e. if you modify the original transform, any transform previously returned by the GetInverse() method will automatically update itself according to the change.
2) You can do pipelined concatenation of transformations through the vtkGeneralTransform class, the vtkPerspectiveTransform class, or the vtkTransform class.
Definition at line 48 of file vtkAbstractTransform.h.
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkGeoSphereTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
Definition at line 52 of file vtkAbstractTransform.h.
vtkAbstractTransform::vtkAbstractTransform | ( | ) | [protected] |
vtkAbstractTransform::~vtkAbstractTransform | ( | ) | [protected] |
virtual const char* vtkAbstractTransform::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkGeoSphereTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
static int vtkAbstractTransform::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkGeoSphereTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
virtual int vtkAbstractTransform::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkGeoSphereTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
static vtkAbstractTransform* vtkAbstractTransform::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkGeoSphereTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
void vtkAbstractTransform::PrintSelf | ( | ostream & | os, |
vtkIndent | indent | ||
) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkObject.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkSphericalTransform, vtkGridTransform, vtkLandmarkTransform, vtkGeneralTransform, vtkCylindricalTransform, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkGeoSphereTransform, vtkGeoTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkLinearTransform, and vtkWarpTransform.
Apply the transformation to a coordinate. You can use the same array to store both the input and output point.
Definition at line 58 of file vtkAbstractTransform.h.
Apply the transformation to a double-precision coordinate. You can use the same array to store both the input and output point.
Definition at line 65 of file vtkAbstractTransform.h.
Apply the transformation to a double-precision coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 72 of file vtkAbstractTransform.h.
Apply the transformation to a double-precision coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 74 of file vtkAbstractTransform.h.
Apply the transformation to an (x,y,z) coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 81 of file vtkAbstractTransform.h.
Apply the transformation to an (x,y,z) coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 87 of file vtkAbstractTransform.h.
Apply the transformation to a double-precision (x,y,z) coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 94 of file vtkAbstractTransform.h.
Apply the transformation to a double-precision (x,y,z) coordinate. Use this if you are programming in Python, tcl or Java.
Definition at line 100 of file vtkAbstractTransform.h.
void vtkAbstractTransform::TransformNormalAtPoint | ( | const float | point[3], |
const float | in[3], | ||
float | out[3] | ||
) |
Apply the transformation to a normal at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformNormal() instead.
void vtkAbstractTransform::TransformNormalAtPoint | ( | const double | point[3], |
const double | in[3], | ||
double | out[3] | ||
) |
Apply the transformation to a normal at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformNormal() instead.
double* vtkAbstractTransform::TransformNormalAtPoint | ( | const double | point[3], |
const double | normal[3] | ||
) | [inline] |
Definition at line 114 of file vtkAbstractTransform.h.
double* vtkAbstractTransform::TransformDoubleNormalAtPoint | ( | const double | point[3], |
const double | normal[3] | ||
) | [inline] |
Apply the transformation to a double-precision normal at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformDoubleNormal() instead.
Definition at line 123 of file vtkAbstractTransform.h.
float* vtkAbstractTransform::TransformFloatNormalAtPoint | ( | const float | point[3], |
const float | normal[3] | ||
) | [inline] |
Apply the transformation to a single-precision normal at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformFloatNormal() instead.
Definition at line 133 of file vtkAbstractTransform.h.
void vtkAbstractTransform::TransformVectorAtPoint | ( | const float | point[3], |
const float | in[3], | ||
float | out[3] | ||
) |
Apply the transformation to a vector at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformVector() instead.
void vtkAbstractTransform::TransformVectorAtPoint | ( | const double | point[3], |
const double | in[3], | ||
double | out[3] | ||
) |
Apply the transformation to a vector at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformVector() instead.
double* vtkAbstractTransform::TransformVectorAtPoint | ( | const double | point[3], |
const double | vector[3] | ||
) | [inline] |
Definition at line 149 of file vtkAbstractTransform.h.
double* vtkAbstractTransform::TransformDoubleVectorAtPoint | ( | const double | point[3], |
const double | vector[3] | ||
) | [inline] |
Apply the transformation to a double-precision vector at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformDoubleVector() instead.
Definition at line 158 of file vtkAbstractTransform.h.
float* vtkAbstractTransform::TransformFloatVectorAtPoint | ( | const float | point[3], |
const float | vector[3] | ||
) | [inline] |
Apply the transformation to a single-precision vector at the specified vertex. If the transformation is a vtkLinearTransform, you can use TransformFloatVector() instead.
Definition at line 168 of file vtkAbstractTransform.h.
virtual void vtkAbstractTransform::TransformPoints | ( | vtkPoints * | inPts, |
vtkPoints * | outPts | ||
) | [virtual] |
Apply the transformation to a series of points, and append the results to outPts.
Reimplemented in vtkLinearTransform, vtkGeoTransform, vtkIdentityTransform, and vtkHomogeneousTransform.
virtual void vtkAbstractTransform::TransformPointsNormalsVectors | ( | vtkPoints * | inPts, |
vtkPoints * | outPts, | ||
vtkDataArray * | inNms, | ||
vtkDataArray * | outNms, | ||
vtkDataArray * | inVrs, | ||
vtkDataArray * | outVrs | ||
) | [virtual] |
Apply the transformation to a combination of points, normals and vectors.
Reimplemented in vtkLinearTransform, vtkIdentityTransform, and vtkHomogeneousTransform.
vtkAbstractTransform* vtkAbstractTransform::GetInverse | ( | ) |
Get the inverse of this transform. If you modify this transform, the returned inverse transform will automatically update. If you want the inverse of a vtkTransform, you might want to use GetLinearInverse() instead which will type cast the result from vtkAbstractTransform to vtkLinearTransform.
Reimplemented in vtkTransform.
void vtkAbstractTransform::SetInverse | ( | vtkAbstractTransform * | transform | ) |
Set a transformation that this transform will be the inverse of. This transform will automatically update to agree with the inverse transform that you set.
virtual void vtkAbstractTransform::Inverse | ( | ) | [pure virtual] |
Invert the transformation.
Implemented in vtkIterativeClosestPointTransform, vtkLandmarkTransform, vtkTransform, vtkPerspectiveTransform, vtkIdentityTransform, vtkGeoTransform, vtkGeneralTransform, vtkMatrixToLinearTransform, vtkMatrixToHomogeneousTransform, vtkGeoSphereTransform, and vtkWarpTransform.
void vtkAbstractTransform::DeepCopy | ( | vtkAbstractTransform * | ) |
Copy this transform from another of the same type.
void vtkAbstractTransform::Update | ( | ) |
Update the transform to account for any changes which have been made. You do not have to call this method yourself, it is called automatically whenever the transform needs an update.
virtual void vtkAbstractTransform::InternalTransformPoint | ( | const float | in[3], |
float | out[3] | ||
) | [pure virtual] |
This will calculate the transformation without calling Update. Meant for use only within other VTK classes.
Implemented in vtkGeneralTransform, vtkLinearTransform, vtkHomogeneousTransform, vtkIdentityTransform, vtkWarpTransform, vtkGeoTransform, and vtkGeoSphereTransform.
virtual void vtkAbstractTransform::InternalTransformPoint | ( | const double | in[3], |
double | out[3] | ||
) | [pure virtual] |
This will calculate the transformation without calling Update. Meant for use only within other VTK classes.
Implemented in vtkGeneralTransform, vtkLinearTransform, vtkHomogeneousTransform, vtkIdentityTransform, vtkWarpTransform, vtkGeoTransform, and vtkGeoSphereTransform.
virtual void vtkAbstractTransform::InternalTransformDerivative | ( | const float | in[3], |
float | out[3], | ||
float | derivative[3][3] | ||
) | [pure virtual] |
This will transform a point and, at the same time, calculate a 3x3 Jacobian matrix that provides the partial derivatives of the transformation at that point. This method does not call Update. Meant for use only within other VTK classes.
Implemented in vtkGeneralTransform, vtkLinearTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkWarpTransform, vtkGeoTransform, and vtkGeoSphereTransform.
virtual void vtkAbstractTransform::InternalTransformDerivative | ( | const double | in[3], |
double | out[3], | ||
double | derivative[3][3] | ||
) | [pure virtual] |
This will transform a point and, at the same time, calculate a 3x3 Jacobian matrix that provides the partial derivatives of the transformation at that point. This method does not call Update. Meant for use only within other VTK classes.
Implemented in vtkGeneralTransform, vtkLinearTransform, vtkIdentityTransform, vtkHomogeneousTransform, vtkWarpTransform, vtkGeoTransform, and vtkGeoSphereTransform.
virtual vtkAbstractTransform* vtkAbstractTransform::MakeTransform | ( | ) | [pure virtual] |
Make another transform of the same type.
Implemented in vtkTransform, vtkPerspectiveTransform, vtkGeneralTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkIdentityTransform, vtkBSplineTransform, vtkLandmarkTransform, vtkGridTransform, vtkGeoTransform, vtkGeoSphereTransform, vtkMatrixToLinearTransform, vtkMatrixToHomogeneousTransform, vtkSphericalTransform, and vtkCylindricalTransform.
virtual int vtkAbstractTransform::CircuitCheck | ( | vtkAbstractTransform * | transform | ) | [virtual] |
Check for self-reference. Will return true if concatenating with the specified transform, setting it to be our inverse, or setting it to be our input will create a circular reference. CircuitCheck is automatically called by SetInput(), SetInverse(), and Concatenate(vtkXTransform *). Avoid using this function, it is experimental.
Reimplemented in vtkPerspectiveTransform, vtkTransform, and vtkGeneralTransform.
unsigned long vtkAbstractTransform::GetMTime | ( | ) | [virtual] |
Override GetMTime necessary because of inverse transforms.
Reimplemented from vtkObject.
Reimplemented in vtkPerspectiveTransform, vtkTransform, vtkGeneralTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkGridTransform, vtkLandmarkTransform, vtkMatrixToLinearTransform, and vtkMatrixToHomogeneousTransform.
virtual void vtkAbstractTransform::UnRegister | ( | vtkObjectBase * | O | ) | [virtual] |
Needs a special UnRegister() implementation to avoid circular references.
Reimplemented from vtkObjectBase.
void vtkAbstractTransform::Identity | ( | ) |
Reimplemented in vtkTransform, vtkPerspectiveTransform, and vtkGeneralTransform.
virtual void vtkAbstractTransform::InternalUpdate | ( | ) | [inline, protected, virtual] |
Perform any subclass-specific Update.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkGeneralTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkBSplineTransform, vtkGridTransform, vtkLandmarkTransform, vtkMatrixToLinearTransform, and vtkMatrixToHomogeneousTransform.
Definition at line 257 of file vtkAbstractTransform.h.
virtual void vtkAbstractTransform::InternalDeepCopy | ( | vtkAbstractTransform * | ) | [inline, protected, virtual] |
Perform any subclass-specific DeepCopy.
Reimplemented in vtkTransform, vtkPerspectiveTransform, vtkGeneralTransform, vtkIterativeClosestPointTransform, vtkThinPlateSplineTransform, vtkIdentityTransform, vtkBSplineTransform, vtkGridTransform, vtkLandmarkTransform, vtkHomogeneousTransform, vtkMatrixToLinearTransform, vtkMatrixToHomogeneousTransform, vtkSphericalTransform, and vtkCylindricalTransform.
Definition at line 260 of file vtkAbstractTransform.h.
float vtkAbstractTransform::InternalFloatPoint[3] [protected] |
Definition at line 260 of file vtkAbstractTransform.h.
double vtkAbstractTransform::InternalDoublePoint[3] [protected] |
Definition at line 263 of file vtkAbstractTransform.h.
