abstract superclass for composite (multi-block or AMR) datasets More...

#include <vtkCompositeDataSet.h>

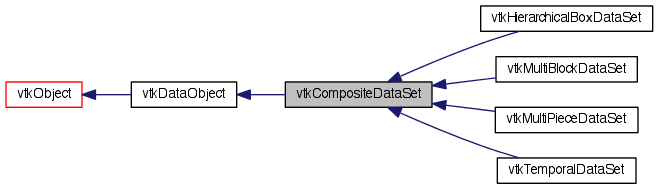

Inheritance diagram for vtkCompositeDataSet:

Collaboration diagram for vtkCompositeDataSet:

Public Types
typedef vtkDataObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkCompositeDataIterator *	NewIterator ()
virtual int	GetDataObjectType ()
virtual vtkAlgorithmOutput *	GetProducerPort ()
virtual void	CopyStructure (vtkCompositeDataSet *input)
virtual void	SetDataSet (vtkCompositeDataIterator iter, vtkDataObject dataObj)
virtual vtkDataObject *	GetDataSet (vtkCompositeDataIterator *iter)
virtual vtkInformation *	GetMetaData (vtkCompositeDataIterator *iter)
virtual int	HasMetaData (vtkCompositeDataIterator *iter)
virtual unsigned long	GetActualMemorySize ()
virtual void	Initialize ()
virtual vtkIdType	GetNumberOfPoints ()

virtual void	ShallowCopy (vtkDataObject *src)
virtual void	DeepCopy (vtkDataObject *src)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkCompositeDataSet *	SafeDownCast (vtkObject *o)
static vtkInformationStringKey *	NAME ()

static vtkCompositeDataSet *	GetData (vtkInformation *info)
static vtkCompositeDataSet *	GetData (vtkInformationVector *v, int i=0)
Protected Member Functions
	vtkCompositeDataSet ()
	~vtkCompositeDataSet ()
void	SetNumberOfChildren (unsigned int num)
unsigned int	GetNumberOfChildren ()
void	SetChild (unsigned int index, vtkDataObject *)
void	RemoveChild (unsigned int index)
vtkDataObject *	GetChild (unsigned int num)
vtkInformation *	GetChildMetaData (unsigned int index)
void	SetChildMetaData (unsigned int index, vtkInformation *info)
int	HasChildMetaData (unsigned int index)
Protected Attributes
vtkCompositeDataSetInternals *	Internals
Friends
class	vtkCompositeDataIterator

Detailed Description

abstract superclass for composite (multi-block or AMR) datasets

vtkCompositeDataSet is an abstract class that represents a collection of datasets (including other composite datasets). It provides an interface to access the datasets through iterators. vtkCompositeDataSet provides methods that are used by subclasses to store the datasets. vtkCompositeDataSet provides the datastructure for a full tree representation. Subclasses provide the semantics for it and control how this tree is built.

See also:: vtkCompositeDataIterator

Examples:: vtkCompositeDataSet (Examples)

Tests:: vtkCompositeDataSet (Tests)

Definition at line 48 of file vtkCompositeDataSet.h.

Member Typedef Documentation

typedef vtkDataObject vtkCompositeDataSet::Superclass

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

Definition at line 51 of file vtkCompositeDataSet.h.

Constructor & Destructor Documentation

vtkCompositeDataSet::vtkCompositeDataSet ( ) [protected]

vtkCompositeDataSet::~vtkCompositeDataSet ( ) [protected]

Member Function Documentation

virtual const char* vtkCompositeDataSet::GetClassName ( ) [virtual]

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static int vtkCompositeDataSet::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual int vtkCompositeDataSet::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

void vtkCompositeDataSet::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual vtkCompositeDataIterator* vtkCompositeDataSet::NewIterator ( ) [virtual]

Return a new iterator (the iterator has to be deleted by user).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual int vtkCompositeDataSet::GetDataObjectType ( ) [inline, virtual]

Return class name of data type (see vtkType.h for definitions).

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

Definition at line 58 of file vtkCompositeDataSet.h.

virtual vtkAlgorithmOutput* vtkCompositeDataSet::GetProducerPort ( ) [virtual]

Get the port currently producing this object.

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::CopyStructure ( vtkCompositeDataSet * input ) [virtual]

Copies the tree structure from the input. All pointers to non-composite data objects are intialized to NULL. This also shallow copies the meta data associated with all the nodes.

virtual void vtkCompositeDataSet::SetDataSet	(	vtkCompositeDataIterator *	iter,
		vtkDataObject *	dataObj
	)		`[virtual]`

Sets the data set at the location pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be any composite datasite with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual vtkDataObject* vtkCompositeDataSet::GetDataSet ( vtkCompositeDataIterator * iter ) [virtual]

Returns the dataset located at the positiong pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual vtkInformation* vtkCompositeDataSet::GetMetaData ( vtkCompositeDataIterator * iter ) [virtual]

Returns the meta-data associated with the position pointed by the iterator. This will create a new vtkInformation object if none already exists. Use HasMetaData to avoid creating the vtkInformation object unnecessarily. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual int vtkCompositeDataSet::HasMetaData ( vtkCompositeDataIterator * iter ) [virtual]

Returns if any meta-data associated with the position pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual unsigned long vtkCompositeDataSet::GetActualMemorySize ( ) [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated.

Reimplemented from vtkDataObject.

static vtkCompositeDataSet* vtkCompositeDataSet::GetData ( vtkInformation * info ) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::GetData	(	vtkInformationVector *	v,
		int	i = `0`
	)		`[static]`

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual void vtkCompositeDataSet::Initialize ( ) [virtual]

Restore data object to initial state,

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::ShallowCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::DeepCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataObject.

virtual vtkIdType vtkCompositeDataSet::GetNumberOfPoints ( ) [virtual]

Returns the total number of points of all blocks. This will iterate over all blocks and call GetNumberOfPoints() so it might be expansive.

static vtkInformationStringKey* vtkCompositeDataSet::NAME ( ) [static]

Key used to put node name in the meta-data associated with a node.

void vtkCompositeDataSet::SetNumberOfChildren ( unsigned int num ) [protected]

Set the number of children.

unsigned int vtkCompositeDataSet::GetNumberOfChildren ( ) [protected]

Get the number of children.

void vtkCompositeDataSet::SetChild	(	unsigned int	index,
		vtkDataObject *
	)		`[protected]`

Set child dataset at a given index. The number of children is adjusted to to be greater than the index specified.

void vtkCompositeDataSet::RemoveChild ( unsigned int index ) [protected]

Remove the child at a given index.

vtkDataObject* vtkCompositeDataSet::GetChild ( unsigned int num ) [protected]

Returns a child dataset at a given index.

vtkInformation* vtkCompositeDataSet::GetChildMetaData ( unsigned int index ) [protected]

Returns the meta-data at a given index. If the index is valid, however, no information object is set, then a new one will created and returned. To avoid unnecessary creation, use HasMetaData().
