Reslice and produce color scalars. More...

#include <vtkImageResliceToColors.h>

Inheritance diagram for vtkImageResliceToColors:

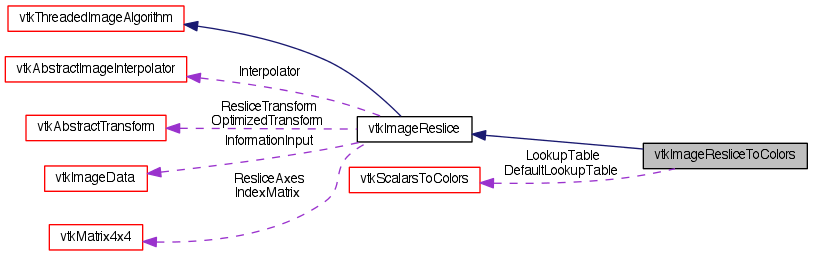

Collaboration diagram for vtkImageResliceToColors:

Public Types
typedef vtkImageReslice	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long int	GetMTime ()

virtual void	SetLookupTable (vtkScalarsToColors *table)
virtual vtkScalarsToColors *	GetLookupTable ()

virtual void	SetOutputFormat (int)
virtual int	GetOutputFormat ()
void	SetOutputFormatToRGBA ()
void	SetOutputFormatToRGB ()
void	SetOutputFormatToLuminanceAlpha ()
void	SetOutputFormatToLuminance ()

void	SetBypass (int bypass)
void	BypassOn ()
void	BypassOff ()
int	GetBypass ()
Static Public Member Functions
static vtkImageResliceToColors *	New ()
static int	IsTypeOf (const char *type)
static vtkImageResliceToColors *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageResliceToColors ()
	~vtkImageResliceToColors ()
int	ConvertScalarInfo (int &scalarType, int &numComponents)
void	ConvertScalars (void inPtr, void outPtr, int inputType, int inputNumComponents, int count, int idX, int idY, int idZ, int threadId)
Protected Attributes
vtkScalarsToColors *	LookupTable
vtkScalarsToColors *	DefaultLookupTable
int	OutputFormat
int	Bypass

Detailed Description

Reslice and produce color scalars.

vtkImageResliceToColors is an extension of vtkImageReslice that produces color scalars. It should be provided with a lookup table that defines the output colors and the desired range of input values to map to those colors. If the input has multiple components, then you should use the SetVectorMode() method of the lookup table to specify how the vectors will be colored. If no lookup table is provided, then the input must already be color scalars, but they will be converted to the specified output format.

See also:: vtkImageMapToColors

Tests:: vtkImageResliceToColors (Tests)

Definition at line 41 of file vtkImageResliceToColors.h.

Member Typedef Documentation

typedef vtkImageReslice vtkImageResliceToColors::Superclass

Reimplemented from vtkImageReslice.

Definition at line 45 of file vtkImageResliceToColors.h.

Constructor & Destructor Documentation

vtkImageResliceToColors::vtkImageResliceToColors ( ) [protected]

vtkImageResliceToColors::~vtkImageResliceToColors ( ) [protected]

Member Function Documentation

static vtkImageResliceToColors* vtkImageResliceToColors::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageReslice.

virtual const char* vtkImageResliceToColors::GetClassName ( ) [virtual]

Reimplemented from vtkImageReslice.

static int vtkImageResliceToColors::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageReslice.

virtual int vtkImageResliceToColors::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageReslice.

static vtkImageResliceToColors* vtkImageResliceToColors::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageReslice.

virtual void vtkImageResliceToColors::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageReslice.

virtual void vtkImageResliceToColors::SetLookupTable ( vtkScalarsToColors * table ) [virtual]

Set a lookup table to apply to the data. Use the Range, VectorMode, and VectorComponents of the table to control the mapping of the input data to colors. If any output voxel is transformed to a point outside the input volume, then that voxel will be set to the BackgroundColor.

virtual vtkScalarsToColors* vtkImageResliceToColors::GetLookupTable ( ) [virtual]

Set a lookup table to apply to the data. Use the Range, VectorMode, and VectorComponents of the table to control the mapping of the input data to colors. If any output voxel is transformed to a point outside the input volume, then that voxel will be set to the BackgroundColor.

virtual void vtkImageResliceToColors::SetOutputFormat ( int ) [virtual]
