Thick slab reformat through data. More...

#include <vtkImageSlabReslice.h>

Inheritance diagram for vtkImageSlabReslice:

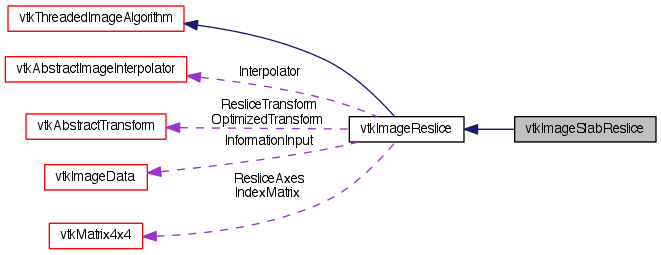

Collaboration diagram for vtkImageSlabReslice:

Public Types
typedef vtkImageReslice	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetBlendMode (int)
virtual int	GetBlendMode ()
void	SetBlendModeToMin ()
void	SetBlendModeToMax ()
void	SetBlendModeToMean ()

virtual int	GetNumBlendSamplePoints ()

virtual void	SetSlabThickness (double)
virtual double	GetSlabThickness ()

virtual void	SetSlabResolution (double)
virtual double	GetSlabResolution ()
Static Public Member Functions
static vtkImageSlabReslice *	New ()
static int	IsTypeOf (const char *type)
static vtkImageSlabReslice *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageSlabReslice ()
	~vtkImageSlabReslice ()

virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
int	BlendMode
double	SlabThickness
double	SlabResolution
int	NumBlendSamplePoints

Detailed Description

Thick slab reformat through data.

This class derives from vtkImageResliceBase. Much like vtkImageReslice, it reslices the data. It is multi-threaded. It takes a three dimensional image as input and produces a two dimensional thick MPR along some direction.

The class reslices the thick slab using a blending function. Supported blending functions are Minimum Intensity blend through the slab, maximum intensity blend and a Mean (average) intensity of values across the slab.

The user can adjust the thickness of the slab by using the method SetSlabThickness. The distance between sample points used for blending across the thickness of the slab is controlled by the method SetSlabResolution. These two methods determine the number of slices used across the slab for blending, which is computed as {(2 x (int)(0.5 x SlabThickness/SlabResolution)) + 1}. This value may be queried via GetNumBlendSamplePoints() and is always >= 1.

Much like vtkImageReslice, the reslice axes direction cosines may be set via the methods SetResliceAxes or SetResliceAxesDirectionCosines. The output spacing is controlled by SetOutputSpacing and the output origin is controlled by SetOutputOrigin. The default value to be set on pixels that lie outside the volume when reformatting is controlled by SetBackgroundColor or SetBackgroundLevel. The SetResliceAxesOrigin() method can also be used to provide an (x,y,z) point that the slice will pass through.

See also:: vtkImageReslice

Examples:: vtkImageSlabReslice (Examples)

Definition at line 56 of file vtkImageSlabReslice.h.

Member Typedef Documentation

typedef vtkImageReslice vtkImageSlabReslice::Superclass

Reimplemented from vtkImageReslice.

Definition at line 61 of file vtkImageSlabReslice.h.

Constructor & Destructor Documentation

vtkImageSlabReslice::vtkImageSlabReslice ( ) [protected]

vtkImageSlabReslice::~vtkImageSlabReslice ( ) [protected]

Member Function Documentation

static vtkImageSlabReslice* vtkImageSlabReslice::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageReslice.

virtual const char* vtkImageSlabReslice::GetClassName ( ) [virtual]

Reimplemented from vtkImageReslice.

static int vtkImageSlabReslice::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageReslice.

virtual int vtkImageSlabReslice::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageReslice.

static vtkImageSlabReslice* vtkImageSlabReslice::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageReslice.

virtual void vtkImageSlabReslice::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Printself method.

Reimplemented from vtkImageReslice.

virtual void vtkImageSlabReslice::SetBlendMode ( int ) [virtual]
