Multiprocessing communication superclass. More...

#include <vtkMultiProcessController.h>

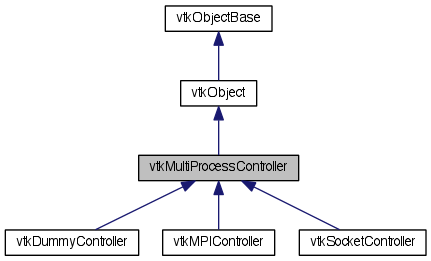

Inheritance diagram for vtkMultiProcessController:

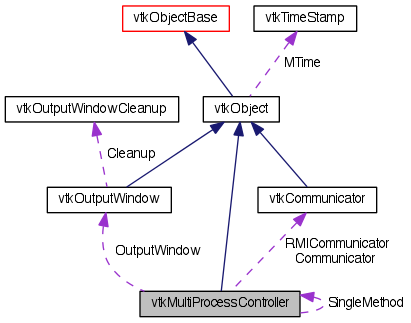

Collaboration diagram for vtkMultiProcessController:

Public Types
enum	Errors { RMI_NO_ERROR, RMI_TAG_ERROR, RMI_ARG_ERROR }
enum	Consts { ANY_SOURCE = -1, INVALID_SOURCE = -2 }
enum	Tags { RMI_TAG = 1, RMI_ARG_TAG = 2, BREAK_RMI_TAG = 3, XML_WRITER_DATA_INFO = 4 }
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Initialize (int vtkNotUsed(argc), char **vtkNotUsed(argv))=0
virtual void	Finalize ()=0
virtual void	Finalize (int finalizedExternally)=0
void	SetSingleMethod (vtkProcessFunctionType, void *data)
virtual void	SingleMethodExecute ()=0
virtual void	MultipleMethodExecute ()=0
int	GetLocalProcessId ()
virtual void	CreateOutputWindow ()=0
virtual unsigned long	AddRMI (vtkRMIFunctionType, void *localArg, int tag)
virtual int	RemoveFirstRMI (int tag)
virtual int	RemoveRMI (unsigned long id)
virtual unsigned long	AddRMICallback (vtkRMIFunctionType, void *localArg, int tag)
virtual void	RemoveAllRMICallbacks (int tag)
virtual bool	RemoveRMICallback (unsigned long id)
void	TriggerRMI (int remoteProcessId, void *arg, int argLength, int tag)
void	TriggerBreakRMIs ()
void	Barrier ()
vtkIdType	GetCount ()

virtual void	Initialize (int vtkNotUsed(argc), char **vtkNotUsed(argv), int initializedExternally)=0

void	SetNumberOfProcesses (int num)
int	GetNumberOfProcesses ()

void	SetSingleProcessObject (vtkProcess *p)

void	SetMultipleMethod (int index, vtkProcessFunctionType, void *data)

virtual vtkMultiProcessController *	CreateSubController (vtkProcessGroup *group)

virtual vtkMultiProcessController *	PartitionController (int localColor, int localKey)

virtual void	RemoveRMI (vtkRMIFunctionType f, void *arg, int tag)

void	TriggerRMI (int remoteProcessId, const char *arg, int tag)

void	TriggerRMI (int remoteProcessId, int tag)

void	TriggerRMIOnAllChildren (void *arg, int argLength, int tag)
void	TriggerRMIOnAllChildren (const char *arg, int tag)
void	TriggerRMIOnAllChildren (int tag)

int	ProcessRMIs (int reportErrors, int dont_loop=0)
int	ProcessRMIs ()

virtual void	SetBreakFlag (int)
virtual int	GetBreakFlag ()

virtual vtkCommunicator *	GetCommunicator ()

int	Send (const int *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const unsigned int *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const unsigned long *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const char *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const unsigned char *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const float *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (const double *data, vtkIdType length, int remoteProcessId, int tag)
int	Send (vtkDataObject *data, int remoteId, int tag)
int	Send (vtkDataArray *data, int remoteId, int tag)

int	Send (const vtkMultiProcessStream &stream, int remoteId, int tag)

int	Receive (int *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (unsigned int *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (unsigned long *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (char *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (unsigned char *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (float *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (double *data, vtkIdType maxlength, int remoteProcessId, int tag)
int	Receive (vtkDataObject *data, int remoteId, int tag)
int	Receive (vtkDataArray *data, int remoteId, int tag)

int	Receive (vtkMultiProcessStream &stream, int remoteId, int tag)
vtkDataObject *	ReceiveDataObject (int remoteId, int tag)

int	Broadcast (int *data, vtkIdType length, int srcProcessId)
int	Broadcast (unsigned int *data, vtkIdType length, int srcProcessId)
int	Broadcast (unsigned long *data, vtkIdType length, int srcProcessId)
int	Broadcast (unsigned char *data, vtkIdType length, int srcProcessId)
int	Broadcast (char *data, vtkIdType length, int srcProcessId)
int	Broadcast (float *data, vtkIdType length, int srcProcessId)
int	Broadcast (double *data, vtkIdType length, int srcProcessId)
int	Broadcast (vtkDataObject *data, int srcProcessId)
int	Broadcast (vtkDataArray *data, int srcProcessId)
int	Broadcast (vtkMultiProcessStream &stream, int srcProcessId)

int	Gather (const int sendBuffer, int recvBuffer, vtkIdType length, int destProcessId)
int	Gather (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, int destProcessId)
int	Gather (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, int destProcessId)
int	Gather (const char sendBuffer, char recvBuffer, vtkIdType length, int destProcessId)
int	Gather (const float sendBuffer, float recvBuffer, vtkIdType length, int destProcessId)
int	Gather (const double sendBuffer, double recvBuffer, vtkIdType length, int destProcessId)
int	Gather (vtkDataArray sendBuffer, vtkDataArray recvBuffer, int destProcessId)

int	GatherV (const int sendBuffer, int recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (const char sendBuffer, char recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (const float sendBuffer, float recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (const double sendBuffer, double recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)
int	GatherV (vtkDataArray sendBuffer, vtkDataArray recvBuffer, vtkIdType recvLengths, vtkIdType offsets, int destProcessId)

int	GatherV (vtkDataArray sendBuffer, vtkDataArray recvBuffer, int destProcessId)

int	Scatter (const int sendBuffer, int recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (const char sendBuffer, char recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (const float sendBuffer, float recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (const double sendBuffer, double recvBuffer, vtkIdType length, int srcProcessId)
int	Scatter (vtkDataArray sendBuffer, vtkDataArray recvBuffer, int srcProcessId)

int	ScatterV (const int sendBuffer, int recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)
int	ScatterV (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)
int	ScatterV (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)
int	ScatterV (const char sendBuffer, char recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)
int	ScatterV (const float sendBuffer, float recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)
int	ScatterV (const double sendBuffer, double recvBuffer, vtkIdType sendLengths, vtkIdType offsets, vtkIdType recvLength, int srcProcessId)

int	AllGather (const int sendBuffer, int recvBuffer, vtkIdType length)
int	AllGather (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length)
int	AllGather (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length)
int	AllGather (const char sendBuffer, char recvBuffer, vtkIdType length)
int	AllGather (const float sendBuffer, float recvBuffer, vtkIdType length)
int	AllGather (const double sendBuffer, double recvBuffer, vtkIdType length)
int	AllGather (vtkDataArray sendBuffer, vtkDataArray recvBuffer)

int	AllGatherV (const int sendBuffer, int recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (const char sendBuffer, char recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (const float sendBuffer, float recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (const double sendBuffer, double recvBuffer, vtkIdType sendLength, vtkIdType recvLengths, vtkIdType offsets)
int	AllGatherV (vtkDataArray sendBuffer, vtkDataArray recvBuffer, vtkIdType recvLengths, vtkIdType offsets)

int	AllGatherV (vtkDataArray sendBuffer, vtkDataArray recvBuffer)

int	Reduce (const int sendBuffer, int recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const unsigned int sendBuffer, unsigned int recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const char sendBuffer, char recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const float sendBuffer, float recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (const double sendBuffer, double recvBuffer, vtkIdType length, int operation, int destProcessId)
int	Reduce (vtkDataArray sendBuffer, vtkDataArray recvBuffer, int operation, int destProcessId)

int	Reduce (const int sendBuffer, int recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (const char sendBuffer, char recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (const float sendBuffer, float recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (const double sendBuffer, double recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation, int destProcessId)
int	Reduce (vtkDataArray sendBuffer, vtkDataArray recvBuffer, vtkCommunicator::Operation *operation, int destProcessId)

int	AllReduce (const int sendBuffer, int recvBuffer, vtkIdType length, int operation)
int	AllReduce (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, int operation)
int	AllReduce (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, int operation)
int	AllReduce (const char sendBuffer, char recvBuffer, vtkIdType length, int operation)
int	AllReduce (const float sendBuffer, float recvBuffer, vtkIdType length, int operation)
int	AllReduce (const double sendBuffer, double recvBuffer, vtkIdType length, int operation)
int	AllReduce (vtkDataArray sendBuffer, vtkDataArray recvBuffer, int operation)
int	AllReduce (const int sendBuffer, int recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (const unsigned long sendBuffer, unsigned long recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (const unsigned char sendBuffer, unsigned char recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (const char sendBuffer, char recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (const float sendBuffer, float recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (const double sendBuffer, double recvBuffer, vtkIdType length, vtkCommunicator::Operation *operation)
int	AllReduce (vtkDataArray sendBuffer, vtkDataArray recvBuffer, vtkCommunicator::Operation *operation)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMultiProcessController *	SafeDownCast (vtkObject *o)
static vtkMultiProcessController *	GetGlobalController ()
static void	SetGlobalController (vtkMultiProcessController *controller)

static int	GetBreakRMITag ()
static int	GetRMITag ()
static int	GetRMIArgTag ()
Protected Member Functions
	vtkMultiProcessController ()
	~vtkMultiProcessController ()
void	GetMultipleMethod (int index, vtkProcessFunctionType &func, void *&data)
void	ProcessRMI (int remoteProcessId, void *arg, int argLength, int rmiTag)
virtual vtkMultiProcessController *	GetLocalController ()

virtual void	TriggerRMIInternal (int remoteProcessId, void *arg, int argLength, int rmiTag, bool propagate)
Protected Attributes
vtkProcessFunctionType	SingleMethod
void *	SingleData
int	BreakFlag
int	ForceDeepCopy
vtkOutputWindow *	OutputWindow
vtkCommunicator *	Communicator
vtkCommunicator *	RMICommunicator

Detailed Description

Multiprocessing communication superclass.

vtkMultiProcessController is used to control multiple processes in a distributed computing environment. It has methods for executing single/multiple method(s) on multiple processors, triggering registered callbacks (Remote Methods) (AddRMI(), TriggerRMI()) and communication. Please note that the communication is done using the communicator which is accessible to the user. Therefore it is possible to get the communicator with GetCommunicator() and use it to send and receive data. This is the encouraged communication method. The internal (RMI) communications are done using a second internal communicator (called RMICommunicator).

See also:: vtkMPIController vtkCommunicator vtkMPICommunicator

Examples:: vtkMultiProcessController (Examples)

Tests:: vtkMultiProcessController (Tests)

Definition at line 69 of file vtkMultiProcessController.h.

Member Typedef Documentation

typedef vtkObject vtkMultiProcessController::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

Definition at line 72 of file vtkMultiProcessController.h.

Member Enumeration Documentation

enum vtkMultiProcessController::Errors

Enumerator:

RMI_NO_ERROR
RMI_TAG_ERROR
RMI_ARG_ERROR

Definition at line 298 of file vtkMultiProcessController.h.

enum vtkMultiProcessController::Consts

Enumerator:

ANY_SOURCE
INVALID_SOURCE

Reimplemented in vtkSocketController.

Definition at line 305 of file vtkMultiProcessController.h.

enum vtkMultiProcessController::Tags

Enumerator:

RMI_TAG
RMI_ARG_TAG
BREAK_RMI_TAG
XML_WRITER_DATA_INFO

Definition at line 311 of file vtkMultiProcessController.h.

Constructor & Destructor Documentation

vtkMultiProcessController::vtkMultiProcessController ( ) [protected]

vtkMultiProcessController::~vtkMultiProcessController ( ) [protected]

Member Function Documentation

virtual const char* vtkMultiProcessController::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

static int vtkMultiProcessController::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

virtual int vtkMultiProcessController::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

static vtkMultiProcessController* vtkMultiProcessController::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

void vtkMultiProcessController::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkMPIController, vtkSocketController, and vtkDummyController.

virtual void vtkMultiProcessController::Initialize	(	int *	vtkNotUsedargc,
		char ***	vtkNotUsedargv
	)		`[pure virtual]`

This method is for setting up the processes. If a subclass needs to initialize process communication (i.e. MPI) it would over ride this method.

virtual void vtkMultiProcessController::Initialize	(	int *	vtkNotUsedargc,
		char ***	vtkNotUsedargv,
		int	initializedExternally
	)		`[pure virtual]`

This method is for setting up the processes. If a subclass needs to initialize process communication (i.e. MPI) it would over ride this method. Provided for initialization outside vtk.

Implemented in vtkMPIController.

virtual void vtkMultiProcessController::Finalize ( ) [pure virtual]

This method is for cleaning up. If a subclass needs to clean up process communication (i.e. MPI) it would over ride this method.

Implemented in vtkMPIController, vtkSocketController, and vtkDummyController.

virtual void vtkMultiProcessController::Finalize ( int finalizedExternally ) [pure virtual]

This method is for cleaning up. If a subclass needs to clean up process communication (i.e. MPI) it would over ride this method. Provided for finalization outside vtk.

Implemented in vtkMPIController, vtkSocketController, and vtkDummyController.

void vtkMultiProcessController::SetNumberOfProcesses ( int num )

Set the number of processes you will be using. This defaults to the maximum number available. If you set this to a value higher than the default, you will get an error.

int vtkMultiProcessController::GetNumberOfProcesses ( )

Set the number of processes you will be using. This defaults to the maximum number available. If you set this to a value higher than the default, you will get an error.

void vtkMultiProcessController::SetSingleMethod	(	vtkProcessFunctionType	,
		void *	data
	)

Set the SingleMethod to f() and the UserData of the for the method to be executed by all of the processes when SingleMethodExecute is called. All the processes will start by calling this function.

void vtkMultiProcessController::SetSingleProcessObject ( vtkProcess * p )

Object-oriented flavor of SetSingleMethod(). Instead of passing some function pointer and user data, a vtkProcess object is passed where the method to execute is Execute() and the data the object itself.

virtual void vtkMultiProcessController::SingleMethodExecute ( ) [pure virtual]

Execute the SingleMethod (as define by SetSingleMethod) using this->NumberOfProcesses processes. This will only return when all the processes finish executing their methods.

Implemented in vtkMPIController, vtkSocketController, and vtkDummyController.

void vtkMultiProcessController::SetMultipleMethod	(	int	index,
		vtkProcessFunctionType	,
		void *	data
	)

Set the MultipleMethod to f() and the UserData of the for the method to be executed by the process index when MultipleMethodExecute is called. This is for having each process start with a different function and data argument.

virtual void vtkMultiProcessController::MultipleMethodExecute ( ) [pure virtual]

Execute the MultipleMethods (as define by calling SetMultipleMethod for each of the required this->NumberOfProcesses methods) using this->NumberOfProcesses processes.

Implemented in vtkMPIController, vtkSocketController, and vtkDummyController.

int vtkMultiProcessController::GetLocalProcessId ( )

Tells you which process [0, NumProcess) you are in.

Reimplemented in vtkDummyController.

static vtkMultiProcessController* vtkMultiProcessController::GetGlobalController ( ) [static]

This convenience method returns the controller associated with the local process. It returns NULL until the processes are spawned. It is better if you hang on to the controller passed as an argument to the SingleMethod or MultipleMethod functions.

virtual void vtkMultiProcessController::CreateOutputWindow ( ) [pure virtual]

This method can be used to tell the controller to create a special output window in which all messages are preceded by the process id.

Implemented in vtkMPIController, vtkSocketController, and vtkDummyController.

virtual vtkMultiProcessController* vtkMultiProcessController::CreateSubController ( vtkProcessGroup * group ) [virtual]

Creates a new controller with the processes specified by the given group. The new controller will already be initialized for you. You are responsible for deleting the controller once you are done. It is invalid to pass this method a group with a different communicator than is used by this controller. This operation is collective accross all processes defined in the group. It is undefined what will happen if the group is not the same on all processes. This method must be called by all processes in the controller regardless of whether they are in the group. NULL is returned on all process not in the group.

Reimplemented in vtkMPIController.

virtual vtkMultiProcessController* vtkMultiProcessController::PartitionController	(	int	localColor,
		int	localKey
	)		`[virtual]`

Partitions this controller based on a coloring. That is, each process passes in a color. All processes with the same color are grouped into the same partition. The processes are ordered by their self-assigned key. Lower keys have lower process ids. Ties are broken by the current process ids. (For example, if all the keys are 0, then the resulting processes will be ordered in the same way.) This method returns a new controller to each process that represents the local partition. This is basically the same operation as MPI_Comm_split.

Reimplemented in vtkMPIController.

virtual unsigned long vtkMultiProcessController::AddRMI	(	vtkRMIFunctionType	,
		void *	localArg,
		int	tag
	)		`[virtual]`

Register remote method invocation in the receiving process which makes the call. It must have a unique tag as an RMI id. The vtkRMIFunctionType has several arguments: localArg (same as passed in), remoteArg, remoteArgLength (memory passed by process triggering the RMI), remoteProcessId. Since only one callback can be registered per tag, this method will remove any previously registered callback for the given tag. Returns a unique Id for the RMI registration which can be used to unregister the callback. RemoveRMI() should be preferred over RemoveFirstRMI() since it avoid accidental removal of callbacks.

virtual int vtkMultiProcessController::RemoveFirstRMI ( int tag ) [virtual]

Remove the first RMI matching the tag.

virtual int vtkMultiProcessController::RemoveRMI ( unsigned long id ) [virtual]

Remove the RMI matching the id. The id is the same id returned by AddRMI().

virtual void vtkMultiProcessController::RemoveRMI	(	vtkRMIFunctionType	f,
		void *	arg,
		int	tag
	)		`[inline, virtual]`

Take an RMI away.

Definition at line 204 of file vtkMultiProcessController.h.

virtual unsigned long vtkMultiProcessController::AddRMICallback	(	vtkRMIFunctionType	,
		void *	localArg,
		int	tag
	)		`[virtual]`

These methods are a part of the newer API to add multiple rmi callbacks. When the RMI is triggered, all the callbacks are called Adds a new callback for an RMI. Returns the identifier for the callback.

virtual void vtkMultiProcessController::RemoveAllRMICallbacks ( int tag ) [virtual]

These methods are a part of the newer API to add multiple rmi callbacks. When the RMI is triggered, all the callbacks are called Removes all callbacks for the tag.

virtual bool vtkMultiProcessController::RemoveRMICallback ( unsigned long id ) [virtual]

Remove a callback. Returns true is the remove was successful.

void vtkMultiProcessController::TriggerRMI	(	int	remoteProcessId,
		void *	arg,
		int	argLength,
		int	tag
	)

A method to trigger a method invocation in another process.

void vtkMultiProcessController::TriggerBreakRMIs ( )

A conveniance method. Called on process 0 to break "ProcessRMIs" loop on all other processes.

void vtkMultiProcessController::TriggerRMI	(	int	remoteProcessId,
		const char *	arg,
		int	tag
	)		`[inline]`

Convenience method when the arg is a string.

Definition at line 233 of file vtkMultiProcessController.h.

void vtkMultiProcessController::TriggerRMI	(	int	remoteProcessId,
		int	tag
	)		`[inline]`

Convenience method when there is no argument.

Definition at line 240 of file vtkMultiProcessController.h.

void vtkMultiProcessController::TriggerRMIOnAllChildren	(	void *	arg,
		int	argLength,
		int	tag
	)

This is a convenicence method to trigger an RMI call on all the "children" of the current node. The children of the current node can be determined by drawing a binary tree starting at node 0 and then assigned nodes ids incrementally in a breadth-first fashion from left to right. This is designed to be used when trigger an RMI call on all satellites from the root node.

void vtkMultiProcessController::TriggerRMIOnAllChildren	(	const char *	arg,
		int	tag
	)		`[inline]`

This is a convenicence method to trigger an RMI call on all the "children" of the current node. The children of the current node can be determined by drawing a binary tree starting at node 0 and then assigned nodes ids incrementally in a breadth-first fashion from left to right. This is designed to be used when trigger an RMI call on all satellites from the root node.

Definition at line 252 of file vtkMultiProcessController.h.

void vtkMultiProcessController::TriggerRMIOnAllChildren ( int tag ) [inline]

This is a convenicence method to trigger an RMI call on all the "children" of the current node. The children of the current node can be determined by drawing a binary tree starting at node 0 and then assigned nodes ids incrementally in a breadth-first fashion from left to right. This is designed to be used when trigger an RMI call on all satellites from the root node.

Definition at line 257 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ProcessRMIs	(	int	reportErrors,
		int	dont_loop = `0`
	)

Calling this method gives control to the controller to start processing RMIs. Possible return values are: RMI_NO_ERROR, RMI_TAG_ERROR : rmi tag could not be received, RMI_ARG_ERROR : rmi arg could not be received. If reportErrors is false, no vtkErrorMacro is called. ProcessRMIs() calls ProcessRMIs(int) with reportErrors = 0. If dont_loop is 1, this call just process one RMI message and exits.

int vtkMultiProcessController::ProcessRMIs ( )

Calling this method gives control to the controller to start processing RMIs. Possible return values are: RMI_NO_ERROR, RMI_TAG_ERROR : rmi tag could not be received, RMI_ARG_ERROR : rmi arg could not be received. If reportErrors is false, no vtkErrorMacro is called. ProcessRMIs() calls ProcessRMIs(int) with reportErrors = 0. If dont_loop is 1, this call just process one RMI message and exits.

virtual void vtkMultiProcessController::SetBreakFlag ( int ) [virtual]

Setting this flag to 1 will cause the ProcessRMIs loop to return. This also causes vtkUpStreamPorts to return from their WaitForUpdate loops.

virtual int vtkMultiProcessController::GetBreakFlag ( ) [virtual]

Setting this flag to 1 will cause the ProcessRMIs loop to return. This also causes vtkUpStreamPorts to return from their WaitForUpdate loops.

virtual vtkCommunicator* vtkMultiProcessController::GetCommunicator ( ) [virtual]

Returns the communicator associated with this controller. A default communicator is created in constructor.

Reimplemented in vtkDummyController.

static int vtkMultiProcessController::GetBreakRMITag ( ) [inline, static]

Accessor to some default tags.

Definition at line 291 of file vtkMultiProcessController.h.

static int vtkMultiProcessController::GetRMITag ( ) [inline, static]

Accessor to some default tags.

Definition at line 292 of file vtkMultiProcessController.h.

static int vtkMultiProcessController::GetRMIArgTag ( ) [inline, static]

Accessor to some default tags.

Definition at line 293 of file vtkMultiProcessController.h.

void vtkMultiProcessController::Barrier ( ) [inline]

This method can be used to synchronize processes.

Definition at line 1361 of file vtkMultiProcessController.h.

static void vtkMultiProcessController::SetGlobalController ( vtkMultiProcessController * controller ) [static]

int vtkMultiProcessController::Send	(	const int *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1081 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const unsigned int *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1094 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const unsigned long *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1107 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const char *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1122 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const unsigned char *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1135 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const float *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1149 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const double *	data,
		vtkIdType	length,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1162 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	vtkDataObject *	data,
		int	remoteId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1055 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	vtkDataArray *	data,
		int	remoteId,
		int	tag
	)		`[inline]`

This method sends data to another process. Tag eliminates ambiguity when multiple sends or receives exist in the same process. It is recommended to use custom tag number over 100. vtkMultiProcessController has reserved tags between 1 and 4. vtkCommunicator has reserved tags between 10 and 16.

Definition at line 1068 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Send	(	const vtkMultiProcessStream &	stream,
		int	remoteId,
		int	tag
	)		`[inline]`

Send a stream to another process. vtkMultiProcessStream makes it possible to send data with arbitrary length and different base types to the other process(es). Instead of making several Send() requests for each type of arguments, it's generally more efficient to push the arguments into the stream and the send the stream over.

Definition at line 1191 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	int *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1240 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	unsigned int *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1253 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	unsigned long *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1266 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	char *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1281 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	unsigned char *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1294 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	float *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1308 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	double *	data,
		vtkIdType	maxlength,
		int	remoteProcessId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1321 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	vtkDataObject *	data,
		int	remoteId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1201 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	vtkDataArray *	data,
		int	remoteId,
		int	tag
	)		`[inline]`

This method receives data from a corresponding send. It blocks until the receive is finished. It calls methods in "data" to communicate the sending data. In the overrloads that take in a maxlength argument, this length is the maximum length of the message to receive. If the maxlength is less than the length of the message sent by the sender, an error will be flagged. Once a message is received, use the GetCount() method to determine the actual size of the data received.

Definition at line 1227 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Receive	(	vtkMultiProcessStream &	stream,
		int	remoteId,
		int	tag
	)		`[inline]`

Receive a stream from the other processes.

Definition at line 1351 of file vtkMultiProcessController.h.

vtkDataObject * vtkMultiProcessController::ReceiveDataObject	(	int	remoteId,
		int	tag
	)		`[inline]`

Receive a stream from the other processes.

Definition at line 1214 of file vtkMultiProcessController.h.

vtkIdType vtkMultiProcessController::GetCount ( ) [inline]

Returns the number of words received by the most recent Receive(). Note that this is not the number of bytes received, but the number of items of the data-type received by the most recent Receive() eg. if Receive(int*,..) was used, then this returns the number of ints received; if Receive(double*,..) was used, then this returns the number of doubles received etc. The return value is valid only after a successful Receive().

Definition at line 1369 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	int *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 407 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	unsigned int *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 410 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	unsigned long *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 413 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	unsigned char *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 416 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	char *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 419 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	float *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 422 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	double *	data,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 425 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	vtkDataObject *	data,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 433 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	vtkDataArray *	data,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 436 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Broadcast	(	vtkMultiProcessStream &	stream,
		int	srcProcessId
	)		`[inline]`

Broadcast sends the array in the process with id srcProcessId to all of the other processes. All processes must call these method with the same arguments in order for it to complete.

Definition at line 440 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 455 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 460 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 465 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 470 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 475 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	length,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 480 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Gather	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		int	destProcessId
	)		`[inline]`

Gather collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The length argument (which must be the same on all processes) is the length of the sendBuffers. The recvBuffer (on te destination process) must be of length length*numProcesses. Gather is the inverse operation of Scatter.

Definition at line 492 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 509 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 516 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 523 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 530 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 537 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 544 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets,
		int	destProcessId
	)		`[inline]`

GatherV is the vector variant of Gather. It extends the functionality of Gather by allowing a varying count of data from each process. GatherV collects arrays in the process with id destProcessId. Each process (including the destination) sends the contents of its send buffer to the destination process. The destination process receives the messages and stores them in rank order. The sendLength argument defines how much the local process sends to destProcessId and recvLengths is an array containing the amount destProcessId receives from each process, in rank order.

Definition at line 560 of file vtkMultiProcessController.h.

int vtkMultiProcessController::GatherV	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		int	destProcessId
	)		`[inline]`

This special form of GatherV will automatically determine recvLengths and offsets to tightly pack the data in the recvBuffer in process order. It will also resize recvBuffer in order to accommodate the incoming data (unlike the other GatherV variants).

Definition at line 574 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 586 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 591 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 596 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 601 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 606 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	length,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 611 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Scatter	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		int	srcProcessId
	)		`[inline]`

Scatter takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer. Process 0 receives the first length values, process 1 receives the second length values, and so on. Scatter is the inverse operation of Gather.

Definition at line 623 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 636 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 643 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 650 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 657 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 664 of file vtkMultiProcessController.h.

int vtkMultiProcessController::ScatterV	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType *	sendLengths,
		vtkIdType *	offsets,
		vtkIdType	recvLength,
		int	srcProcessId
	)		`[inline]`

ScatterV is the vector variant of Scatter. It extends the functionality of Scatter by allowing a varying count of data to each process. ScatterV takes an array in the process with id srcProcessId and distributes it. Each process (including the source) receives a portion of the send buffer defined by the sendLengths and offsets arrays.

Definition at line 671 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 691 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 694 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 698 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 702 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 705 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	length
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 708 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGather	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer
	)		`[inline]`

Same as gather except that the result ends up on all processes.

Definition at line 718 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 725 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 732 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 739 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 746 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 753 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	sendLength,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 760 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		vtkIdType *	recvLengths,
		vtkIdType *	offsets
	)		`[inline]`

Same as GatherV except that the result is placed in all processes.

Definition at line 776 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllGatherV	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer
	)		`[inline]`

This special form of AllGatherV will automatically determine recvLengths and offsets to tightly pack the data in the recvBuffer in process order. It will also resize recvBuffer in order to accommodate the incoming data (unlike the other GatherV variants).

Definition at line 789 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 798 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const unsigned int *	sendBuffer,
		unsigned int *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 803 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 808 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 813 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 818 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 823 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	length,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 828 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		int	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes an identifier defined in the vtkCommunicator::StandardOperations enum to define the operation.

Definition at line 840 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 852 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const unsigned long *	sendBuffer,
		unsigned long *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 858 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const unsigned char *	sendBuffer,
		unsigned char *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 864 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const char *	sendBuffer,
		char *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 870 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const float *	sendBuffer,
		float *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 876 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	const double *	sendBuffer,
		double *	recvBuffer,
		vtkIdType	length,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 882 of file vtkMultiProcessController.h.

int vtkMultiProcessController::Reduce	(	vtkDataArray *	sendBuffer,
		vtkDataArray *	recvBuffer,
		vtkCommunicator::Operation *	operation,
		int	destProcessId
	)		`[inline]`

Reduce an array to the given destination process. This version of Reduce takes a custom operation as a subclass of vtkCommunicator::Operation.

Definition at line 896 of file vtkMultiProcessController.h.

int vtkMultiProcessController::AllReduce	(	const int *	sendBuffer,
		int *	recvBuffer,
		vtkIdType	length,
		int	operation
	)		`[inline]`
