Abstract class for iterator over a vtkTree. More...

#include <vtkTreeIterator.h>

Inheritance diagram for vtkTreeIterator:

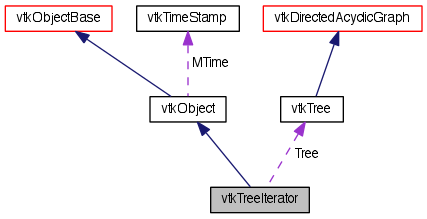

Collaboration diagram for vtkTreeIterator:

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
vtkIdType	Next ()
bool	HasNext ()
void	Restart ()

void	SetTree (vtkTree *graph)
virtual vtkTree *	GetTree ()

void	SetStartVertex (vtkIdType vertex)
virtual vtkIdType	GetStartVertex ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkTreeIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTreeIterator ()
	~vtkTreeIterator ()
virtual void	Initialize ()=0
virtual vtkIdType	NextInternal ()=0
Protected Attributes
vtkTree *	Tree
vtkIdType	StartVertex
vtkIdType	NextId

Detailed Description

Abstract class for iterator over a vtkTree.

The base class for tree iterators vtkTreeBFSIterator and vtkTreeDFSIterator.

After setting up the iterator, the normal mode of operation is to set up a while(iter->HasNext()) loop, with the statement vtkIdType vertex = iter->Next() inside the loop.

See also:: vtkTreeBFSIterator vtkTreeDFSIterator

Definition at line 37 of file vtkTreeIterator.h.

Member Typedef Documentation

typedef vtkObject vtkTreeIterator::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

Definition at line 40 of file vtkTreeIterator.h.

Constructor & Destructor Documentation

vtkTreeIterator::vtkTreeIterator ( ) [protected]

vtkTreeIterator::~vtkTreeIterator ( ) [protected]

Member Function Documentation

virtual const char* vtkTreeIterator::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

static int vtkTreeIterator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

virtual int vtkTreeIterator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

static vtkTreeIterator* vtkTreeIterator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

virtual void vtkTreeIterator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

void vtkTreeIterator::SetTree ( vtkTree * graph )

Set/get the graph to iterate over.

virtual vtkTree* vtkTreeIterator::GetTree ( ) [virtual]

Set/get the graph to iterate over.

void vtkTreeIterator::SetStartVertex ( vtkIdType vertex )

The start vertex of the traversal. The tree iterator will only iterate over the subtree rooted at vertex. If not set (or set to a negative value), starts at the root of the tree.

virtual vtkIdType vtkTreeIterator::GetStartVertex ( ) [virtual]

The start vertex of the traversal. The tree iterator will only iterate over the subtree rooted at vertex. If not set (or set to a negative value), starts at the root of the tree.

vtkIdType vtkTreeIterator::Next ( )

The next vertex visited in the graph.

bool vtkTreeIterator::HasNext ( )

Return true when all vertices have been visited.

void vtkTreeIterator::Restart ( )

Reset the iterator to its start vertex.

virtual void vtkTreeIterator::Initialize ( ) [protected, pure virtual]

Implemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.

virtual vtkIdType vtkTreeIterator::NextInternal ( ) [protected, pure virtual]

Implemented in vtkTreeDFSIterator, and vtkTreeBFSIterator.
