vtkBandedPolyDataContourFilter Class Reference

#include <vtkBandedPolyDataContourFilter.h>

Inheritance diagram for vtkBandedPolyDataContourFilter:

Inheritance graph
[legend]

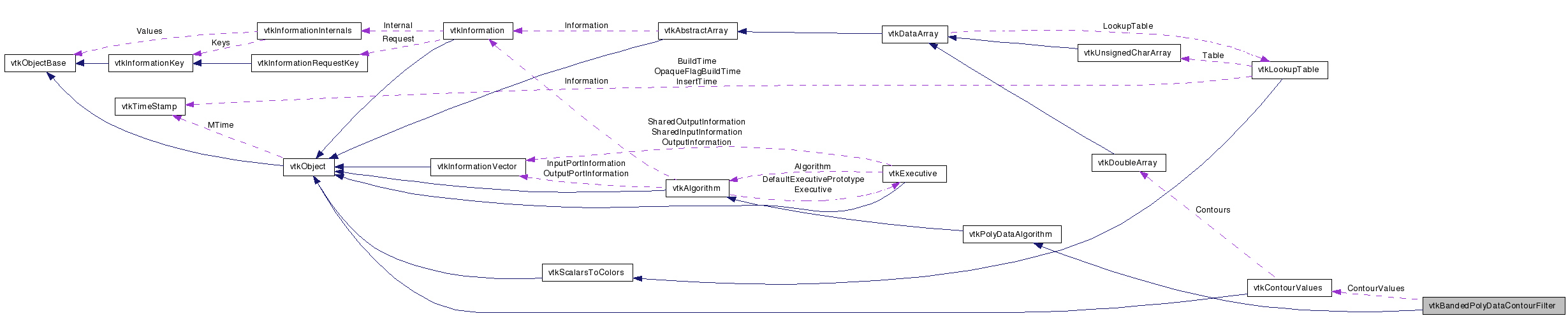

Collaboration diagram for vtkBandedPolyDataContourFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

generate filled contours for vtkPolyData

vtkBandedPolyDataContourFilter is a filter that takes as input vtkPolyData and produces as output filled contours (also represented as vtkPolyData). Filled contours are bands of cells that all have the same cell scalar value, and can therefore be colored the same. The method is also referred to as filled contour generation.

To use this filter you must specify one or more contour values. You can either use the method SetValue() to specify each contour value, or use GenerateValues() to generate a series of evenly spaced contours. Each contour value divides (or clips) the data into two pieces, values below the contour value, and values above it. The scalar values of each band correspond to the specified contour value. Note that if the first and last contour values are not the minimum/maximum contour range, then two extra contour values are added corresponding to the minimum and maximum range values. These extra contour bands can be prevented from being output by turning clipping on.

See also:
vtkClipDataSet vtkClipPolyData vtkClipVolume vtkContourFilter
Examples:
vtkBandedPolyDataContourFilter (Examples)
Tests:
vtkBandedPolyDataContourFilter (Tests)

Definition at line 63 of file vtkBandedPolyDataContourFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkPolyDataGetContourEdgesOutput ()
unsigned long GetMTime ()
void SetValue (int i, double value)
double GetValue (int i)
double * GetValues ()
void GetValues (double *contourValues)
void SetNumberOfContours (int number)
int GetNumberOfContours ()
void GenerateValues (int numContours, double range[2])
void GenerateValues (int numContours, double rangeStart, double rangeEnd)
virtual void SetClipping (int)
virtual int GetClipping ()
virtual void ClippingOn ()
virtual void ClippingOff ()
virtual void SetScalarMode (int)
virtual int GetScalarMode ()
void SetScalarModeToIndex ()
void SetScalarModeToValue ()
virtual void SetGenerateContourEdges (int)
virtual int GetGenerateContourEdges ()
virtual void GenerateContourEdgesOn ()
virtual void GenerateContourEdgesOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkBandedPolyDataContourFilter
SafeDownCast (vtkObject *o)
static
vtkBandedPolyDataContourFilter
New ()

Protected Member Functions

 vtkBandedPolyDataContourFilter ()
 ~vtkBandedPolyDataContourFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int ComputeScalarIndex (double)
int IsContourValue (double val)
int ClipEdge (int v1, int v2, vtkPoints *pts, vtkDataArray *inScalars, vtkDoubleArray *outScalars, vtkPointData *inPD, vtkPointData *outPD)
int InsertCell (vtkCellArray *cells, int npts, vtkIdType *pts, int cellId, double s, vtkFloatArray *newS)

Protected Attributes

vtkContourValuesContourValues
int Clipping
int ScalarMode
double * ClipValues
int NumberOfClipValues
int ClipIndex [2]
double ClipTolerance
int GenerateContourEdges

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 66 of file vtkBandedPolyDataContourFilter.h.


Constructor & Destructor Documentation

vtkBandedPolyDataContourFilter::vtkBandedPolyDataContourFilter (  )  [protected]

vtkBandedPolyDataContourFilter::~vtkBandedPolyDataContourFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkBandedPolyDataContourFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkBandedPolyDataContourFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkBandedPolyDataContourFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkBandedPolyDataContourFilter* vtkBandedPolyDataContourFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkBandedPolyDataContourFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkBandedPolyDataContourFilter* vtkBandedPolyDataContourFilter::New (  )  [static]

Construct object with no contours defined.

Reimplemented from vtkPolyDataAlgorithm.

void vtkBandedPolyDataContourFilter::SetValue ( int  i,
double  value
) [inline]

Methods to set / get contour values. A single value at a time can be set with SetValue(). Multiple contour values can be set with GenerateValues(). Note that GenerateValues() generates n values inclusive of the start and end range values.

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.

Definition at line 165 of file vtkBandedPolyDataContourFilter.h.

double vtkBandedPolyDataContourFilter::GetValue ( int  i  )  [inline]

Get the ith contour value.

Definition at line 171 of file vtkBandedPolyDataContourFilter.h.

double * vtkBandedPolyDataContourFilter::GetValues (  )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list.

Definition at line 178 of file vtkBandedPolyDataContourFilter.h.

void vtkBandedPolyDataContourFilter::GetValues ( double *  contourValues  )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.

Definition at line 186 of file vtkBandedPolyDataContourFilter.h.

void vtkBandedPolyDataContourFilter::SetNumberOfContours ( int  number  )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.

Definition at line 194 of file vtkBandedPolyDataContourFilter.h.

int vtkBandedPolyDataContourFilter::GetNumberOfContours (  )  [inline]

Get the number of contours in the list of contour values.

Definition at line 200 of file vtkBandedPolyDataContourFilter.h.

void vtkBandedPolyDataContourFilter::GenerateValues ( int  numContours,
double  range[2]
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 207 of file vtkBandedPolyDataContourFilter.h.

void vtkBandedPolyDataContourFilter::GenerateValues ( int  numContours,
double  rangeStart,
double  rangeEnd
) [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 215 of file vtkBandedPolyDataContourFilter.h.

virtual void vtkBandedPolyDataContourFilter::SetClipping ( int   )  [virtual]

Indicate whether to clip outside the range specified by the user. (The range is contour value[0] to contour value[numContours-1].) Clipping means all cells outside of the range specified are not sent to the output.

virtual int vtkBandedPolyDataContourFilter::GetClipping (  )  [virtual]

Indicate whether to clip outside the range specified by the user. (The range is contour value[0] to contour value[numContours-1].) Clipping means all cells outside of the range specified are not sent to the output.

virtual void vtkBandedPolyDataContourFilter::ClippingOn (  )  [virtual]

Indicate whether to clip outside the range specified by the user. (The range is contour value[0] to contour value[numContours-1].) Clipping means all cells outside of the range specified are not sent to the output.

virtual void vtkBandedPolyDataContourFilter::ClippingOff (  )  [virtual]

Indicate whether to clip outside the range specified by the user. (The range is contour value[0] to contour value[numContours-1].) Clipping means all cells outside of the range specified are not sent to the output.

virtual void vtkBandedPolyDataContourFilter::SetScalarMode ( int   )  [virtual]

Control whether the cell scalars are output as an integer index or a scalar value. If an index, the index refers to the bands produced by the clipping range. If a value, then a scalar value which is a value between clip values is used.

virtual int vtkBandedPolyDataContourFilter::GetScalarMode (  )  [virtual]

Control whether the cell scalars are output as an integer index or a scalar value. If an index, the index refers to the bands produced by the clipping range. If a value, then a scalar value which is a value between clip values is used.

void vtkBandedPolyDataContourFilter::SetScalarModeToIndex (  )  [inline]

Control whether the cell scalars are output as an integer index or a scalar value. If an index, the index refers to the bands produced by the clipping range. If a value, then a scalar value which is a value between clip values is used.

Definition at line 104 of file vtkBandedPolyDataContourFilter.h.

void vtkBandedPolyDataContourFilter::SetScalarModeToValue (  )  [inline]

Control whether the cell scalars are output as an integer index or a scalar value. If an index, the index refers to the bands produced by the clipping range. If a value, then a scalar value which is a value between clip values is used.

Definition at line 106 of file vtkBandedPolyDataContourFilter.h.

virtual void vtkBandedPolyDataContourFilter::SetGenerateContourEdges ( int   )  [virtual]

Turn on/off a flag to control whether contour edges are generated. Contour edges are the edges between bands. If enabled, they are generated from polygons/triangle strips and placed into the second output (the ContourEdgesOutput).

virtual int vtkBandedPolyDataContourFilter::GetGenerateContourEdges (  )  [virtual]

Turn on/off a flag to control whether contour edges are generated. Contour edges are the edges between bands. If enabled, they are generated from polygons/triangle strips and placed into the second output (the ContourEdgesOutput).

virtual void vtkBandedPolyDataContourFilter::GenerateContourEdgesOn (  )  [virtual]

Turn on/off a flag to control whether contour edges are generated. Contour edges are the edges between bands. If enabled, they are generated from polygons/triangle strips and placed into the second output (the ContourEdgesOutput).

virtual void vtkBandedPolyDataContourFilter::GenerateContourEdgesOff (  )  [virtual]

Turn on/off a flag to control whether contour edges are generated. Contour edges are the edges between bands. If enabled, they are generated from polygons/triangle strips and placed into the second output (the ContourEdgesOutput).

vtkPolyData* vtkBandedPolyDataContourFilter::GetContourEdgesOutput (  )

Get the second output which contains the edges dividing the contour bands. This output is empty unless GenerateContourEdges is enabled.

unsigned long vtkBandedPolyDataContourFilter::GetMTime (  )  [virtual]

Overload GetMTime because we delegate to vtkContourValues so its modified time must be taken into account.

Reimplemented from vtkObject.

int vtkBandedPolyDataContourFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkBandedPolyDataContourFilter::ComputeScalarIndex ( double   )  [protected]

int vtkBandedPolyDataContourFilter::IsContourValue ( double  val  )  [protected]

int vtkBandedPolyDataContourFilter::ClipEdge ( int  v1,
int  v2,
vtkPoints pts,
vtkDataArray inScalars,
vtkDoubleArray outScalars,
vtkPointData inPD,
vtkPointData outPD
) [protected]

int vtkBandedPolyDataContourFilter::InsertCell ( vtkCellArray cells,
int  npts,
vtkIdType pts,
int  cellId,
double  s,
vtkFloatArray newS
) [protected]


Member Data Documentation

Definition at line 143 of file vtkBandedPolyDataContourFilter.h.

Definition at line 145 of file vtkBandedPolyDataContourFilter.h.

Definition at line 146 of file vtkBandedPolyDataContourFilter.h.

Definition at line 149 of file vtkBandedPolyDataContourFilter.h.

Definition at line 150 of file vtkBandedPolyDataContourFilter.h.

Definition at line 151 of file vtkBandedPolyDataContourFilter.h.

Definition at line 152 of file vtkBandedPolyDataContourFilter.h.

Definition at line 155 of file vtkBandedPolyDataContourFilter.h.


The documentation for this class was generated from the following file:
