vtkCgShader Class Reference
#include <vtkCgShader.h>

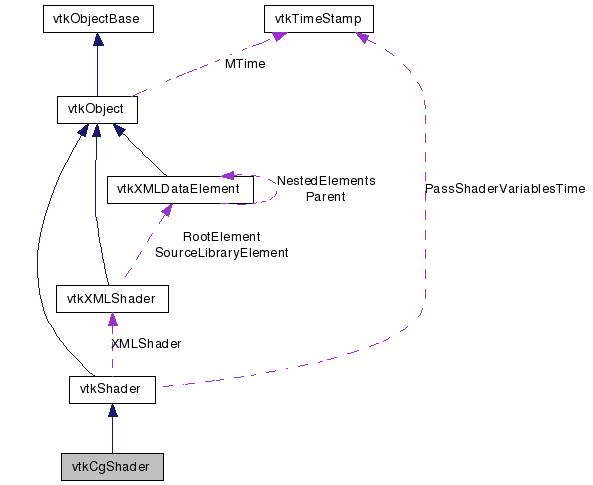

Detailed Description
Cg Shader.vtkCgShader is the only class that interfaces directly with the Cg libraries. Once is has a valid shader described by a vtkXMLDataElement it will create, compile, install, and initialize the parameters of a Cg hardware shader.
- Supported Shader Types::
- Basic Types: uniform float uniform double
- Supported Shader Types::
- Vector Types: uniform float{1|2|3|4} uniform double{1|2|3|4}
- Supported Shader Types::
- Matrix Types: uniform float{1|2|3|4}x{1|2|3|4} uniform double{1|2|3|4}x{1|2|3|4}
- Supported Shader Types::
- NOTE: In the above, 'double' and 'float' refer to the application's representation, the hardware shader must define all of the above types as 'uniform float'.
- Supported Shader Types::
- State Matrix Parameters: uniform float4x4 with the following Cg-defined settings: CG_GL_MATRIX_IDENTITY CG_GL_MATRIX_TRANSPOSE CG_GL_MATRIX_INVERSE CG_GL_MATRIX_INVERSE_TRANSPOSE CG_GL_MODELVIEW_MATRIX CG_GL_PROJECTION_MATRIX CG_GL_TEXTURE_MATRIX CG_GL_MODELVIEW_PROJECTION_MATRIX
- Supported Shader Types::
- Texture Samplers: sample1D - Not tested sample2D sample3D - Not supported by VTK sampleRECT - Not supported by VTK sampleCUBE - Not supported by VTK
- Supported Shader Types::
- User-Defined: uniform struct
- Supported Shader Types::
- VTK-Specific Hardware Data Structures: vtkProperty vtkLight vtkCamera See vtkSNL/Rendering/Shaders/vtkProperty.cg See vtkSNL/Rendering/Shaders/vtkLight.cg See vtkSNL/Rendering/Shaders/vtkCamera.cg
- Thanks:
- Shader support in VTK includes key contributions by Gary Templet at Sandia National Labs.
Definition at line 106 of file vtkCgShader.h.
Public Types | |
| typedef vtkShader | Superclass |
Public Member Functions | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual int | Compile () |
| virtual void | Bind () |
| virtual void | Unbind () |
| void | ReportError () |
| void | ReleaseGraphicsResources (vtkWindow *) |
| virtual void | PassShaderVariables (vtkActor *actor, vtkRenderer *ren) |
Static Public Member Functions | |
| static vtkCgShader * | New () |
| static int | IsTypeOf (const char *type) |
| static vtkCgShader * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
| vtkCgShader () | |
| ~vtkCgShader () | |
| virtual void | SetSamplerParameter (const char *name, vtkTexture *texture, int) |
| virtual void | SetUniformParameter (const char *name, int numValues, const int *value) |
| virtual void | SetUniformParameter (const char *name, int numValues, const float *value) |
| virtual void | SetUniformParameter (const char *name, int numValues, const double *value) |
| virtual void | SetMatrixParameter (const char *name, int numValues, int order, const float *value) |
| virtual void | SetMatrixParameter (const char *name, int numValues, int order, const double *value) |
| virtual void | SetMatrixParameter (const char *name, const char *state_matix_type, const char *transform_type) |
Friends | |
| class | vtkCgShaderDeviceAdapter |
Member Typedef Documentation
| typedef vtkShader vtkCgShader::Superclass |
Constructor & Destructor Documentation
| vtkCgShader::vtkCgShader | ( | ) | [protected] |
| vtkCgShader::~vtkCgShader | ( | ) | [protected] |
Member Function Documentation
| static vtkCgShader* vtkCgShader::New | ( | ) | [static] |
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.
| virtual const char* vtkCgShader::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkShader.
| static int vtkCgShader::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkShader.
| virtual int vtkCgShader::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkShader.
| static vtkCgShader* vtkCgShader::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkShader.
| void vtkCgShader::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
| virtual int vtkCgShader::Compile | ( | ) | [virtual] |
Called to compile the shader code. The subclasses must only compile the code in this method. Returns if the compile was successful. Subclasses should compile the code only if it was not already compiled.
Implements vtkShader.
| virtual void vtkCgShader::Bind | ( | ) | [virtual] |
In this method the shader can enable/bind itself. This is applicable only to Cg, since in GLSL, individual shaders in a program can't be enabled/bound.
Reimplemented from vtkShader.
| virtual void vtkCgShader::Unbind | ( | ) | [virtual] |
| void vtkCgShader::ReportError | ( | ) |
Internal method don't call directly. Called by Cg erro callback to report Cg errors.
| void vtkCgShader::ReleaseGraphicsResources | ( | vtkWindow * | ) | [virtual] |
Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.
Reimplemented from vtkShader.
| virtual void vtkCgShader::PassShaderVariables | ( | vtkActor * | actor, | |
| vtkRenderer * | ren | |||
| ) | [virtual] |
Called to pass VTK actor/property/light values and other Shader variables over to the shader. This is called by the ShaderProgram during each render. We override this method for Cg shaders, since for Cg shaders, we need to ensure that the actor transformations are pushed before state matrix uniform variables are bound.
Reimplemented from vtkShader.
| virtual void vtkCgShader::SetUniformParameter | ( | const char * | name, | |
| int | numValues, | |||
| const int * | value | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetParameter and glUniform.
Implements vtkShader.
| virtual void vtkCgShader::SetUniformParameter | ( | const char * | name, | |
| int | numValues, | |||
| const float * | value | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetParameter and glUniform.
Implements vtkShader.
| virtual void vtkCgShader::SetUniformParameter | ( | const char * | name, | |
| int | numValues, | |||
| const double * | value | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetParameter and glUniform.
Implements vtkShader.
| virtual void vtkCgShader::SetMatrixParameter | ( | const char * | name, | |
| int | numValues, | |||
| int | order, | |||
| const float * | value | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetMatrixParameterfc and glUniformMatrix.
Implements vtkShader.
| virtual void vtkCgShader::SetMatrixParameter | ( | const char * | name, | |
| int | numValues, | |||
| int | order, | |||
| const double * | value | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetMatrixParameterfc and glUniformMatrix.
Implements vtkShader.
| virtual void vtkCgShader::SetMatrixParameter | ( | const char * | name, | |
| const char * | state_matix_type, | |||
| const char * | transform_type | |||
| ) | [protected, virtual] |
Equivalent to cgGLSetMatrixParameterfc and glUniformMatrix.
Implements vtkShader.
| virtual void vtkCgShader::SetSamplerParameter | ( | const char * | name, | |
| vtkTexture * | texture, | |||
| int | textureIndex | |||
| ) | [protected, virtual] |
Establishes the given texture as the uniform sampler to perform lookups on. The textureIndex argument corresponds to the indices of the textures in a vtkProperty. Subclass may have to cast the texture to vtkOpenGLTexture to obtain the GLuint for texture this texture. Subclasses must override these and perform GLSL or Cg calls.
Implements vtkShader.
Friends And Related Function Documentation
friend class vtkCgShaderDeviceAdapter [friend] |
Definition at line 170 of file vtkCgShader.h.
The documentation for this class was generated from the following file:
- dox/Rendering/vtkCgShader.h
