vtkCleanPolyData Class Reference

#include <vtkCleanPolyData.h>

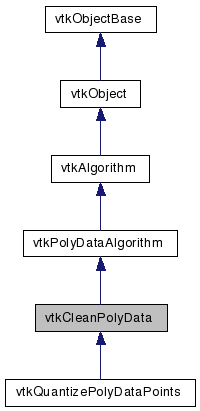

Inheritance diagram for vtkCleanPolyData:

[legend]

Collaboration diagram for vtkCleanPolyData:

[legend]

List of all members.

Detailed Description

merge duplicate points, and/or remove unused points and/or remove degenerate cells

vtkCleanPolyData is a filter that takes polygonal data as input and generates polygonal data as output. vtkCleanPolyData can merge duplicate points (within specified tolerance and if enabled), eliminate points that are not used, and if enabled, transform degenerate cells into appropriate forms (for example, a triangle is converted into a line if two points of triangle are merged).

Conversion of degenerate cells is controlled by the flags ConvertLinesToPoints, ConvertPolysToLines, ConvertStripsToPolys which act cumulatively such that a degenerate strip may become a poly. The full set is Line with 1 points -> Vert (if ConvertLinesToPoints) Poly with 2 points -> Line (if ConvertPolysToLines) Poly with 1 points -> Vert (if ConvertPolysToLines && ConvertLinesToPoints) Strp with 3 points -> Poly (if ConvertStripsToPolys) Strp with 2 points -> Line (if ConvertStripsToPolys && ConvertPolysToLines) Strp with 1 points -> Vert (if ConvertStripsToPolys && ConvertPolysToLines && ConvertLinesToPoints)

If tolerance is specified precisely=0.0, then vtkCleanPolyData will use the vtkMergePoints object to merge points (which is faster). Otherwise the slower vtkPointLocator is used. Before inserting points into the point locator, this class calls a function OperateOnPoint which can be used (in subclasses) to further refine the cleaning process. See vtkQuantizePolyDataPoints.

Note that merging of points can be disabled. In this case, a point locator will not be used, and points that are not used by any cells will be eliminated, but never merged.

Warning:: Merging points can alter topology, including introducing non-manifold forms. The tolerance should be chosen carefully to avoid these problems. Subclasses should handle OperateOnBounds as well as OperateOnPoint to ensure that the locator is correctly initialized (i.e. all modified points must lie inside modified bounds).

See also:: vtkQuantizePolyDataPoints

Examples:: vtkCleanPolyData (Examples)

Tests:: vtkCleanPolyData (Tests)

Definition at line 72 of file vtkCleanPolyData.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	CreateDefaultLocator (vtkPolyData *input=0)
void	ReleaseLocator ()
unsigned long int	GetMTime ()
virtual void	OperateOnPoint (double in[3], double out[3])
virtual void	OperateOnBounds (double in[6], double out[6])
virtual void	SetPieceInvariant (int)
virtual int	GetPieceInvariant ()
virtual void	PieceInvariantOn ()
virtual void	PieceInvariantOff ()

virtual void	SetToleranceIsAbsolute (int)
virtual void	ToleranceIsAbsoluteOn ()
virtual void	ToleranceIsAbsoluteOff ()
virtual int	GetToleranceIsAbsolute ()

virtual void	SetTolerance (double)
virtual double	GetTolerance ()

virtual void	SetAbsoluteTolerance (double)
virtual double	GetAbsoluteTolerance ()

virtual void	SetConvertLinesToPoints (int)
virtual void	ConvertLinesToPointsOn ()
virtual void	ConvertLinesToPointsOff ()
virtual int	GetConvertLinesToPoints ()

virtual void	SetConvertPolysToLines (int)
virtual void	ConvertPolysToLinesOn ()
virtual void	ConvertPolysToLinesOff ()
virtual int	GetConvertPolysToLines ()

virtual void	SetConvertStripsToPolys (int)
virtual void	ConvertStripsToPolysOn ()
virtual void	ConvertStripsToPolysOff ()
virtual int	GetConvertStripsToPolys ()

virtual void	SetPointMerging (int)
virtual int	GetPointMerging ()
virtual void	PointMergingOn ()
virtual void	PointMergingOff ()

virtual void	SetLocator (vtkPointLocator *locator)
virtual vtkPointLocator *	GetLocator ()
Static Public Member Functions
static vtkCleanPolyData *	New ()
static int	IsTypeOf (const char *type)
static vtkCleanPolyData *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCleanPolyData ()
	~vtkCleanPolyData ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
int	PointMerging
double	Tolerance
double	AbsoluteTolerance
int	ConvertLinesToPoints
int	ConvertPolysToLines
int	ConvertStripsToPolys
int	ToleranceIsAbsolute
vtkPointLocator *	Locator
int	PieceInvariant

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkCleanPolyData::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

Definition at line 77 of file vtkCleanPolyData.h.

Constructor & Destructor Documentation

vtkCleanPolyData::vtkCleanPolyData ( ) [protected]

vtkCleanPolyData::~vtkCleanPolyData ( ) [protected]

Member Function Documentation

static vtkCleanPolyData* vtkCleanPolyData::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

void vtkCleanPolyData::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

virtual const char* vtkCleanPolyData::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

static int vtkCleanPolyData::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

virtual int vtkCleanPolyData::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

static vtkCleanPolyData* vtkCleanPolyData::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented in vtkQuantizePolyDataPoints.

virtual void vtkCleanPolyData::SetToleranceIsAbsolute ( int ) [virtual]

By default ToleranceIsAbsolute is false and Tolerance is a fraction of Bounding box diagonal, if true, AbsoluteTolerance is used when adding points to locator (merging)

virtual void vtkCleanPolyData::ToleranceIsAbsoluteOn ( ) [virtual]

By default ToleranceIsAbsolute is false and Tolerance is a fraction of Bounding box diagonal, if true, AbsoluteTolerance is used when adding points to locator (merging)

virtual void vtkCleanPolyData::ToleranceIsAbsoluteOff ( ) [virtual]

By default ToleranceIsAbsolute is false and Tolerance is a fraction of Bounding box diagonal, if true, AbsoluteTolerance is used when adding points to locator (merging)

virtual int vtkCleanPolyData::GetToleranceIsAbsolute ( ) [virtual]

By default ToleranceIsAbsolute is false and Tolerance is a fraction of Bounding box diagonal, if true, AbsoluteTolerance is used when adding points to locator (merging)

virtual void vtkCleanPolyData::SetTolerance ( double ) [virtual]

Specify tolerance in terms of fraction of bounding box length.

virtual double vtkCleanPolyData::GetTolerance ( ) [virtual]

Specify tolerance in terms of fraction of bounding box length.

virtual void vtkCleanPolyData::SetAbsoluteTolerance ( double ) [virtual]

Specify tolerance in absolute terms

virtual double vtkCleanPolyData::GetAbsoluteTolerance ( ) [virtual]

Specify tolerance in absolute terms

virtual void vtkCleanPolyData::SetConvertLinesToPoints ( int ) [virtual]

Turn on/off conversion of degenerate lines to points

virtual void vtkCleanPolyData::ConvertLinesToPointsOn ( ) [virtual]

Turn on/off conversion of degenerate lines to points

virtual void vtkCleanPolyData::ConvertLinesToPointsOff ( ) [virtual]

Turn on/off conversion of degenerate lines to points

virtual int vtkCleanPolyData::GetConvertLinesToPoints ( ) [virtual]

Turn on/off conversion of degenerate lines to points

virtual void vtkCleanPolyData::SetConvertPolysToLines ( int ) [virtual]

Turn on/off conversion of degenerate polys to lines

virtual void vtkCleanPolyData::ConvertPolysToLinesOn ( ) [virtual]

Turn on/off conversion of degenerate polys to lines

virtual void vtkCleanPolyData::ConvertPolysToLinesOff ( ) [virtual]

Turn on/off conversion of degenerate polys to lines

virtual int vtkCleanPolyData::GetConvertPolysToLines ( ) [virtual]

Turn on/off conversion of degenerate polys to lines

virtual void vtkCleanPolyData::SetConvertStripsToPolys ( int ) [virtual]

Turn on/off conversion of degenerate strips to polys

virtual void vtkCleanPolyData::ConvertStripsToPolysOn ( ) [virtual]

Turn on/off conversion of degenerate strips to polys

virtual void vtkCleanPolyData::ConvertStripsToPolysOff ( ) [virtual]

Turn on/off conversion of degenerate strips to polys

virtual int vtkCleanPolyData::GetConvertStripsToPolys ( ) [virtual]

Turn on/off conversion of degenerate strips to polys

virtual void vtkCleanPolyData::SetPointMerging ( int ) [virtual]

Set/Get a boolean value that controls whether point merging is performed. If on, a locator will be used, and points laying within the appropriate tolerance may be merged. If off, points are never merged. By default, merging is on.

virtual int vtkCleanPolyData::GetPointMerging ( ) [virtual]

Set/Get a boolean value that controls whether point merging is performed. If on, a locator will be used, and points laying within the appropriate tolerance may be merged. If off, points are never merged. By default, merging is on.

virtual void vtkCleanPolyData::PointMergingOn ( ) [virtual]

Set/Get a boolean value that controls whether point merging is performed. If on, a locator will be used, and points laying within the appropriate tolerance may be merged. If off, points are never merged. By default, merging is on.

virtual void vtkCleanPolyData::PointMergingOff ( ) [virtual]

Set/Get a boolean value that controls whether point merging is performed. If on, a locator will be used, and points laying within the appropriate tolerance may be merged. If off, points are never merged. By default, merging is on.

virtual void vtkCleanPolyData::SetLocator ( vtkPointLocator * locator ) [virtual]

Set/Get a spatial locator for speeding the search process. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkCleanPolyData::GetLocator ( ) [virtual]

Set/Get a spatial locator for speeding the search process. By default an instance of vtkMergePoints is used.

void vtkCleanPolyData::CreateDefaultLocator ( vtkPolyData * input = 0 )

Create default locator. Used to create one when none is specified.

void vtkCleanPolyData::ReleaseLocator ( ) [inline]

Release locator

Definition at line 142 of file vtkCleanPolyData.h.

unsigned long int vtkCleanPolyData::GetMTime ( ) [virtual]

Get the MTime of this object also considering the locator.

Reimplemented from vtkObject.

virtual void vtkCleanPolyData::OperateOnPoint	(	double	in[3],
		double	out[3]
	)			`[virtual]`

Perform operation on a point

Reimplemented in vtkQuantizePolyDataPoints.

virtual void vtkCleanPolyData::OperateOnBounds	(	double	in[6],
		double	out[6]
	)			`[virtual]`

Perform operation on bounds

Reimplemented in vtkQuantizePolyDataPoints.

virtual void vtkCleanPolyData::SetPieceInvariant ( int ) [virtual]

virtual int vtkCleanPolyData::GetPieceInvariant ( ) [virtual]

virtual void vtkCleanPolyData::PieceInvariantOn ( ) [virtual]

virtual void vtkCleanPolyData::PieceInvariantOff ( ) [virtual]

virtual int vtkCleanPolyData::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
