vtkCompositeDataSet Class Reference

#include <vtkCompositeDataSet.h>

Inheritance diagram for vtkCompositeDataSet:

Inheritance graph
[legend]

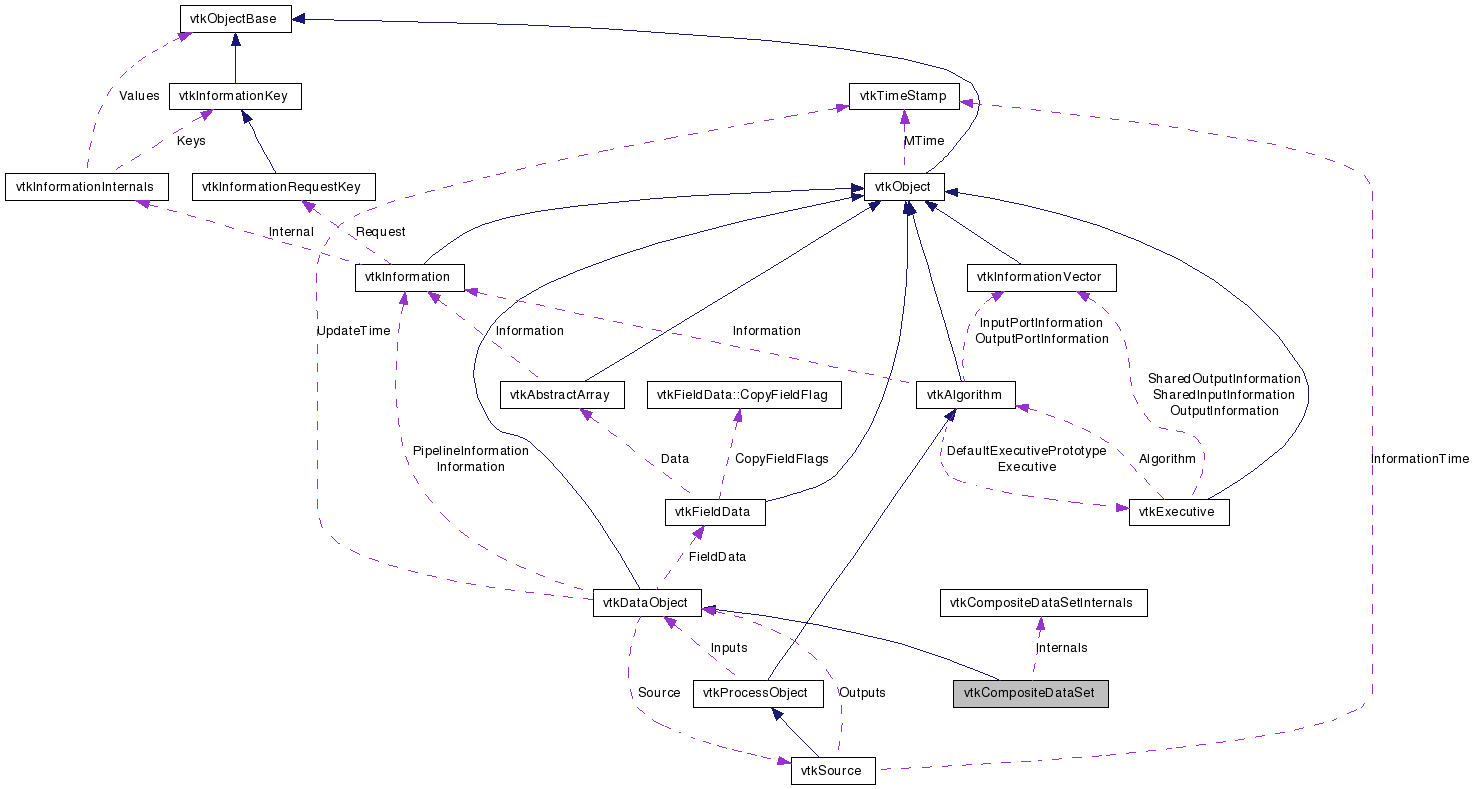

Collaboration diagram for vtkCompositeDataSet:

Collaboration graph
[legend]

List of all members.


Detailed Description

abstact superclass for composite (multi-block or AMR) datasets

vtkCompositeDataSet is an abstract class that represents a collection of datasets (including other composite datasets). It provides an interface to access the datasets through iterators. vtkCompositeDataSet provides methods are used by subclasses to store the datasets. vtkCompositeDataSet provides the datastructure for a full tree representation. Subclasses provide the semantics for it and control how this tree is buit.

See also:
vtkCompositeDataIterator

Definition at line 40 of file vtkCompositeDataSet.h.


Public Types

typedef vtkDataObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkCompositeDataIteratorNewIterator ()
virtual int GetDataObjectType ()
virtual vtkAlgorithmOutputGetProducerPort ()
virtual void CopyStructure (vtkCompositeDataSet *input)
virtual void SetDataSet (vtkCompositeDataIterator *iter, vtkDataObject *dataObj)
virtual vtkDataObjectGetDataSet (vtkCompositeDataIterator *iter)
virtual vtkInformationGetMetaData (vtkCompositeDataIterator *iter)
virtual int HasMetaData (vtkCompositeDataIterator *iter)
virtual void Initialize ()
virtual vtkIdType GetNumberOfPoints ()
virtual void ShallowCopy (vtkDataObject *src)
virtual void DeepCopy (vtkDataObject *src)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCompositeDataSetSafeDownCast (vtkObject *o)
static vtkCompositeDataSetGetData (vtkInformation *info)
static vtkCompositeDataSetGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkCompositeDataSet ()
 ~vtkCompositeDataSet ()
void SetNumberOfChildren (unsigned int num)
unsigned int GetNumberOfChildren ()
void SetChild (unsigned int index, vtkDataObject *)
vtkDataObjectGetChild (unsigned int num)
vtkInformationGetChildMetaData (unsigned int index)
void SetChildMetaData (unsigned int index, vtkInformation *info)
int HasChildMetaData (unsigned int index)

Protected Attributes

vtkCompositeDataSetInternalsInternals

Friends

class vtkCompositeDataIterator

Member Typedef Documentation

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

Definition at line 43 of file vtkCompositeDataSet.h.


Constructor & Destructor Documentation

vtkCompositeDataSet::vtkCompositeDataSet (  )  [protected]

vtkCompositeDataSet::~vtkCompositeDataSet (  )  [protected]


Member Function Documentation

virtual const char* vtkCompositeDataSet::GetClassName (  )  [virtual]

static int vtkCompositeDataSet::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual int vtkCompositeDataSet::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::SafeDownCast ( vtkObject o  )  [static]

void vtkCompositeDataSet::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual vtkCompositeDataIterator* vtkCompositeDataSet::NewIterator (  )  [virtual]

Return a new iterator (the iterator has to be deleted by user).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual int vtkCompositeDataSet::GetDataObjectType (  )  [inline, virtual]

Return class name of data type (see vtkType.h for definitions).

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

Definition at line 50 of file vtkCompositeDataSet.h.

virtual vtkAlgorithmOutput* vtkCompositeDataSet::GetProducerPort (  )  [virtual]

Get the port currently producing this object.

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::CopyStructure ( vtkCompositeDataSet input  )  [virtual]

Copies the tree structure from the input. All pointers to non-composite data objects are intialized to NULL. This also shallow copies the meta data associated with all the nodes.

virtual void vtkCompositeDataSet::SetDataSet ( vtkCompositeDataIterator iter,
vtkDataObject dataObj
) [virtual]

Sets the data set at the location pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be any composite datasite with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual vtkDataObject* vtkCompositeDataSet::GetDataSet ( vtkCompositeDataIterator iter  )  [virtual]

Returns the dataset located at the positiong pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet.

virtual vtkInformation* vtkCompositeDataSet::GetMetaData ( vtkCompositeDataIterator iter  )  [virtual]

Returns the meta-data associated with the position pointed by the iterator. This will create a new vtkInformation object if none already exists. Use HasMetaData to avoid creating the vtkInformation object unnecessarily. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual int vtkCompositeDataSet::HasMetaData ( vtkCompositeDataIterator iter  )  [virtual]

Returns if any meta-data associated with the position pointed by the iterator. The iterator does not need to be iterating over this dataset itself. It can be an iterator for composite dataset with similar structure (achieved by using CopyStructure).

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, vtkMultiBlockDataSet, vtkMultiPieceDataSet, and vtkTemporalDataSet.

virtual void vtkCompositeDataSet::Initialize (  )  [virtual]

Restore data object to initial state,

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::ShallowCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataObject.

virtual void vtkCompositeDataSet::DeepCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataObject.

virtual vtkIdType vtkCompositeDataSet::GetNumberOfPoints (  )  [virtual]

Returns the total number of points of all blocks. This will iterate over all blocks and call GetNumberOfPoints() so it might be expansive.

void vtkCompositeDataSet::SetNumberOfChildren ( unsigned int  num  )  [protected]

Set the number of children.

unsigned int vtkCompositeDataSet::GetNumberOfChildren (  )  [protected]

Get the number of children.

void vtkCompositeDataSet::SetChild ( unsigned int  index,
vtkDataObject
) [protected]

Set child dataset at a given index. The number of children is adjusted to to be greater than the index specified.

vtkDataObject* vtkCompositeDataSet::GetChild ( unsigned int  num  )  [protected]

Returns a child dataset at a given index.

vtkInformation* vtkCompositeDataSet::GetChildMetaData ( unsigned int  index  )  [protected]

Returns the meta-data at a given index. If the index is valid, however, no information object is set, then a new one will created and returned. To avoid unnecessary creation, use HasMetaData().

void vtkCompositeDataSet::SetChildMetaData ( unsigned int  index,
vtkInformation info
) [protected]

Sets the meta-data at a given index.

int vtkCompositeDataSet::HasChildMetaData ( unsigned int  index  )  [protected]

Returns if meta-data information is available for the given child index. Returns 1 is present, 0 otherwise.


Friends And Related Function Documentation

friend class vtkCompositeDataIterator [friend]

Definition at line 141 of file vtkCompositeDataSet.h.


Member Data Documentation

Definition at line 139 of file vtkCompositeDataSet.h.


The documentation for this class was generated from the following file:
