vtkDataObjectGenerator Class Reference

#include <vtkDataObjectGenerator.h>

Inheritance diagram for vtkDataObjectGenerator:

[legend]

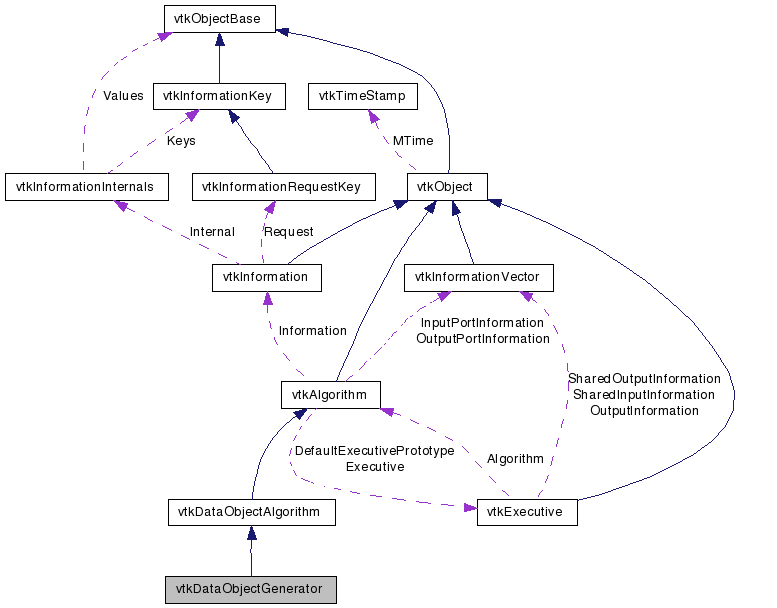

Collaboration diagram for vtkDataObjectGenerator:

[legend]

List of all members.

Detailed Description

produces simple (composite or atomic) data sets for testing.

vtkDataObjectGenerator parses a string and produces dataobjects from the dataobject template names it sees in the string. For example, if the string contains "ID1" the generator will create a vtkImageData. "UF1", "RD1", "SD1", "PD1", and "UG1" will produce vtkUniformGrid, vtkRectilinearGrid, vtkStructuredGrid, vtkPolyData and vtkUnstructuredGrid respectively. You can compose composite datasets from the atomic ones listed above by putting them between "(" and ")" in the string to create groups, and then placing a collection of groups together inside one of the three composite dataset identifiers - "MB{}", "HD<>" or "HB[]". "HB[ (UF1)(UF1)(UF1) ]" will create a vtkHierarchicalBoxDataSet representing an octree, in which the firstmost cell is refined, and then the firstmost refined cell is refined itself. "HD< (UG1UG1UG1) (PD1)>" will create a vtkHierachicalDataSet which contains two refinement levels, the first is a group with three unstructured grids, the second, more refined level is a vtkPolyData. "MB{ (ID1)(PD1 RG1)(MB{}) }" will create a vtkMultiBlockDataSet consisting of three groups. The first group has one data set, a vtkImageData. The second group has two datasets, a vtkPolyData and a vtkRectilinearGrid. The third contains a vtkMultiBlockDataSet, which in this case is empty.

Definition at line 47 of file vtkDataObjectGenerator.h.


Public Types
typedef vtkDataObjectAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetProgram (const char *)
virtual char *	GetProgram ()
Static Public Member Functions
static vtkDataObjectGenerator *	New ()
static int	IsTypeOf (const char *type)
static vtkDataObjectGenerator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDataObjectGenerator ()
	~vtkDataObjectGenerator ()
virtual int	RequestData (vtkInformation req, vtkInformationVector inV, vtkInformationVector outV)
virtual int	RequestDataObject (vtkInformation req, vtkInformationVector inV, vtkInformationVector outV)
virtual int	RequestInformation (vtkInformation req, vtkInformationVector inV, vtkInformationVector outV)
virtual int	RequestUpdateExtent (vtkInformation req, vtkInformationVector inV, vtkInformationVector outV)
vtkDataObject *	CreateOutputDataObjects (vtkInternalStructureCache *structure)
vtkDataObject *	FillOutputDataObjects (vtkInternalStructureCache *structure, int level, int stripe=0)
void	MakeImageData1 (vtkDataSet *ds)
void	MakeUniformGrid1 (vtkDataSet *ds)
void	MakeRectilinearGrid1 (vtkDataSet *ds)
void	MakeStructuredGrid1 (vtkDataSet *ds)
void	MakePolyData1 (vtkDataSet *ds)
void	MakeUnstructuredGrid1 (vtkDataSet *ds)
void	MakeValues (vtkDataSet *ds)
Protected Attributes
char *	Program
vtkInternalStructureCache *	Structure
vtkIdType	Rank
vtkIdType	Processors
double	XOffset
double	YOffset
double	ZOffset
vtkIdType	CellIdCounter
vtkIdType	PointIdCounter

Member Typedef Documentation

typedef vtkDataObjectAlgorithm vtkDataObjectGenerator::Superclass

Reimplemented from vtkDataObjectAlgorithm.

Definition at line 52 of file vtkDataObjectGenerator.h.

Constructor & Destructor Documentation

vtkDataObjectGenerator::vtkDataObjectGenerator ( ) [protected]

vtkDataObjectGenerator::~vtkDataObjectGenerator ( ) [protected]

Member Function Documentation

static vtkDataObjectGenerator* vtkDataObjectGenerator::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObjectAlgorithm.

virtual const char* vtkDataObjectGenerator::GetClassName ( ) [virtual]

Reimplemented from vtkDataObjectAlgorithm.

static int vtkDataObjectGenerator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkDataObjectGenerator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObjectAlgorithm.

static vtkDataObjectGenerator* vtkDataObjectGenerator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataObjectAlgorithm.

void vtkDataObjectGenerator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObjectAlgorithm.

virtual void vtkDataObjectGenerator::SetProgram ( const char * ) [virtual]

The string that will be parsed to specify a dataobject structure.

virtual char* vtkDataObjectGenerator::GetProgram ( ) [virtual]

The string that will be parsed to specify a dataobject structure.

virtual int vtkDataObjectGenerator::RequestData	(	vtkInformation *	req,
		vtkInformationVector **	inV,
		vtkInformationVector *	outV
	)			`[protected, virtual]`

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkDataObjectGenerator::RequestDataObject	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkDataObjectAlgorithm.

virtual int vtkDataObjectGenerator::RequestInformation	(	vtkInformation *	req,
		vtkInformationVector **	inV,
		vtkInformationVector *	outV
	)			`[protected, virtual]`
