vtkDEMReader Class Reference

#include <vtkDEMReader.h>

Inheritance diagram for vtkDEMReader:

Inheritance graph
[legend]
Collaboration diagram for vtkDEMReader:

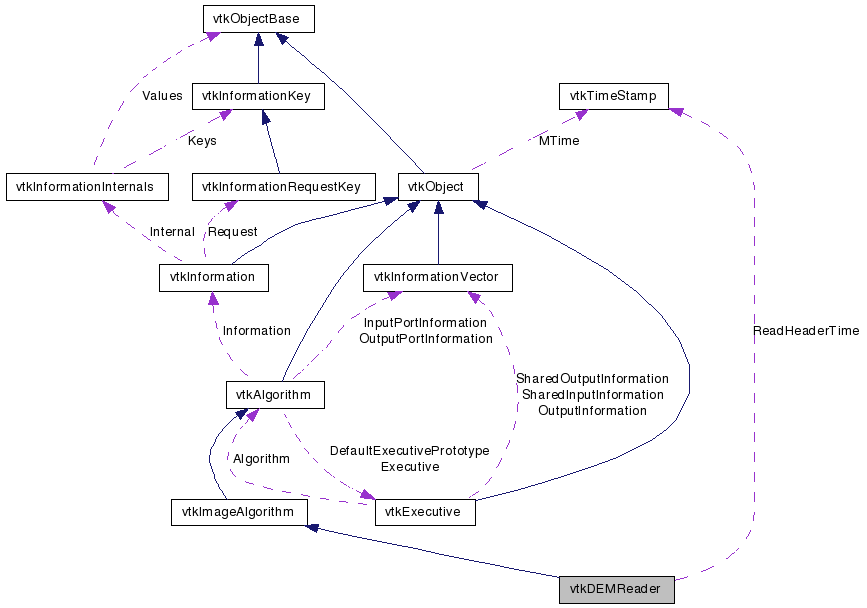

Collaboration graph
[legend]

List of all members.


Detailed Description

read a digital elevation model (DEM) file

vtkDEMReader reads digital elevation files and creates image data. Digital elevation files are produced by the US Geological Survey. A complete description of the DEM file is located at the USGS site. The reader reads the entire dem file and create a vtkImageData that contains a single scalar component that is the elevation in meters. The spacing is also expressed in meters. A number of get methods provide access to fields on the header.

Examples:
vtkDEMReader (Examples)
Tests:
vtkDEMReader (Tests)

Definition at line 39 of file vtkDEMReader.h.


Public Types

enum  { REFERENCE_SEA_LEVEL = 0, REFERENCE_ELEVATION_BOUNDS }
typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetElevationReference (int)
virtual int GetElevationReference ()
void SetElevationReferenceToSeaLevel ()
void SetElevationReferenceToElevationBounds ()
const char * GetElevationReferenceAsString (void)
virtual char * GetMapLabel ()
virtual int GetDEMLevel ()
virtual int GetElevationPattern ()
virtual int GetGroundSystem ()
virtual int GetGroundZone ()
virtual float * GetProjectionParameters ()
virtual void GetProjectionParameters (float data[15])
virtual int GetPlaneUnitOfMeasure ()
virtual int GetElevationUnitOfMeasure ()
virtual int GetPolygonSize ()
virtual float * GetElevationBounds ()
virtual void GetElevationBounds (float data[2])
virtual float GetLocalRotation ()
virtual int GetAccuracyCode ()
virtual float * GetSpatialResolution ()
virtual void GetSpatialResolution (float data[3])
virtual int * GetProfileDimension ()
virtual void GetProfileDimension (int data[2])
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Static Public Member Functions

static vtkDEMReaderNew ()
static int IsTypeOf (const char *type)
static vtkDEMReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkDEMReader ()
 ~vtkDEMReader ()
void ComputeExtentOriginAndSpacing (int extent[6], double origin[6], double spacing[6])
int ReadTypeARecord ()
int ReadProfiles (vtkImageData *data)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkTimeStamp ReadHeaderTime
int NumberOfColumns
int NumberOfRows
int WholeExtent [6]
char * FileName
char MapLabel [145]
int DEMLevel
int ElevationPattern
int GroundSystem
int GroundZone
float ProjectionParameters [15]
int PlaneUnitOfMeasure
int ElevationUnitOfMeasure
int PolygonSize
float GroundCoords [4][2]
float ElevationBounds [2]
float LocalRotation
int AccuracyCode
float SpatialResolution [3]
int ProfileDimension [2]
int ProfileSeekOffset
int ElevationReference

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 43 of file vtkDEMReader.h.


Member Enumeration Documentation

anonymous enum

Enumerator:
REFERENCE_SEA_LEVEL
REFERENCE_ELEVATION_BOUNDS

Definition at line 53 of file vtkDEMReader.h.


Constructor & Destructor Documentation

vtkDEMReader::vtkDEMReader (  )  [protected]

vtkDEMReader::~vtkDEMReader (  )  [protected]


Member Function Documentation

static vtkDEMReader* vtkDEMReader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkDEMReader::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkDEMReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkDEMReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkDEMReader* vtkDEMReader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkDEMReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

virtual void vtkDEMReader::SetFileName ( const char *   )  [virtual]

Specify file name of Digital Elevation Model (DEM) file

virtual char* vtkDEMReader::GetFileName (  )  [virtual]

Specify file name of Digital Elevation Model (DEM) file

virtual void vtkDEMReader::SetElevationReference ( int   )  [virtual]

Specify the elevation origin to use. By default, the elevation origin is equal to ElevationBounds[0]. A more convenient origin is to use sea level (i.e., a value of 0.0).

virtual int vtkDEMReader::GetElevationReference (  )  [virtual]

Specify the elevation origin to use. By default, the elevation origin is equal to ElevationBounds[0]. A more convenient origin is to use sea level (i.e., a value of 0.0).

void vtkDEMReader::SetElevationReferenceToSeaLevel (  )  [inline]

Specify the elevation origin to use. By default, the elevation origin is equal to ElevationBounds[0]. A more convenient origin is to use sea level (i.e., a value of 0.0).

Definition at line 63 of file vtkDEMReader.h.

void vtkDEMReader::SetElevationReferenceToElevationBounds (  )  [inline]

Specify the elevation origin to use. By default, the elevation origin is equal to ElevationBounds[0]. A more convenient origin is to use sea level (i.e., a value of 0.0).

Definition at line 65 of file vtkDEMReader.h.

const char* vtkDEMReader::GetElevationReferenceAsString ( void   )

Specify the elevation origin to use. By default, the elevation origin is equal to ElevationBounds[0]. A more convenient origin is to use sea level (i.e., a value of 0.0).

virtual char* vtkDEMReader::GetMapLabel (  )  [virtual]

An ASCII description of the map

virtual int vtkDEMReader::GetDEMLevel (  )  [virtual]

Code 1=DEM-1, 2=DEM_2, ...

virtual int vtkDEMReader::GetElevationPattern (  )  [virtual]

Code 1=regular, 2=random, reserved for future use

virtual int vtkDEMReader::GetGroundSystem (  )  [virtual]

Ground planimetric reference system

virtual int vtkDEMReader::GetGroundZone (  )  [virtual]

Zone in ground planimetric reference system

virtual float* vtkDEMReader::GetProjectionParameters (  )  [virtual]

Map Projection parameters. All are zero.

virtual void vtkDEMReader::GetProjectionParameters ( float  data[15]  )  [virtual]

Map Projection parameters. All are zero.

virtual int vtkDEMReader::GetPlaneUnitOfMeasure (  )  [virtual]

Defining unit of measure for ground planimetric coordinates throughout the file. 0 = radians, 1 = feet, 2 = meters, 3 = arc-seconds.

virtual int vtkDEMReader::GetElevationUnitOfMeasure (  )  [virtual]

Defining unit of measure for elevation coordinates throughout the file. 1 = feet, 2 = meters

virtual int vtkDEMReader::GetPolygonSize (  )  [virtual]

Number of sides in the polygon which defines the coverage of the DEM file. Set to 4.

virtual float* vtkDEMReader::GetElevationBounds (  )  [virtual]

Minimum and maximum elevation for the DEM. The units in the file are in ElevationUnitOfMeasure. This class converts them to meters.

virtual void vtkDEMReader::GetElevationBounds ( float  data[2]  )  [virtual]

Minimum and maximum elevation for the DEM. The units in the file are in ElevationUnitOfMeasure. This class converts them to meters.

virtual float vtkDEMReader::GetLocalRotation (  )  [virtual]

Counterclockwise angle (in radians) from the primary axis of the planimetric reference to the primary axis of the DEM local reference system. IGNORED BY THIS IMPLEMENTATION.

virtual int vtkDEMReader::GetAccuracyCode (  )  [virtual]

Accuracy code for elevations. 0=unknown accuracy

virtual float* vtkDEMReader::GetSpatialResolution (  )  [virtual]

DEM spatial resolution for x,y,z. Values are expressed in units of resolution. Since elevations are read as integers, this permits fractional elevations.

virtual void vtkDEMReader::GetSpatialResolution ( float  data[3]  )  [virtual]

DEM spatial resolution for x,y,z. Values are expressed in units of resolution. Since elevations are read as integers, this permits fractional elevations.

virtual int* vtkDEMReader::GetProfileDimension (  )  [virtual]

The number of rows and columns in the DEM.

virtual void vtkDEMReader::GetProfileDimension ( int  data[2]  )  [virtual]

The number of rows and columns in the DEM.

virtual int vtkDEMReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [virtual]

Reads the DEM Type A record to compute the extent, origin and spacing of the image data. The number of scalar components is set to 1 and the output scalar type is VTK_FLOAT.

Reimplemented from vtkImageAlgorithm.

void vtkDEMReader::ComputeExtentOriginAndSpacing ( int  extent[6],
double  origin[6],
double  spacing[6]
) [protected]

int vtkDEMReader::ReadTypeARecord (  )  [protected]

int vtkDEMReader::ReadProfiles ( vtkImageData data  )  [protected]

virtual int vtkDEMReader::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

Definition at line 161 of file vtkDEMReader.h.

Definition at line 162 of file vtkDEMReader.h.

int vtkDEMReader::NumberOfRows [protected]

Definition at line 163 of file vtkDEMReader.h.

int vtkDEMReader::WholeExtent[6] [protected]

Definition at line 164 of file vtkDEMReader.h.

char* vtkDEMReader::FileName [protected]

Definition at line 165 of file vtkDEMReader.h.

char vtkDEMReader::MapLabel[145] [protected]

Definition at line 166 of file vtkDEMReader.h.

int vtkDEMReader::DEMLevel [protected]

Definition at line 167 of file vtkDEMReader.h.

Definition at line 168 of file vtkDEMReader.h.

int vtkDEMReader::GroundSystem [protected]

Definition at line 169 of file vtkDEMReader.h.

int vtkDEMReader::GroundZone [protected]

Definition at line 170 of file vtkDEMReader.h.

float vtkDEMReader::ProjectionParameters[15] [protected]

Definition at line 171 of file vtkDEMReader.h.

Definition at line 172 of file vtkDEMReader.h.

Definition at line 173 of file vtkDEMReader.h.

int vtkDEMReader::PolygonSize [protected]

Definition at line 174 of file vtkDEMReader.h.

float vtkDEMReader::GroundCoords[4][2] [protected]

Definition at line 175 of file vtkDEMReader.h.

float vtkDEMReader::ElevationBounds[2] [protected]

Definition at line 176 of file vtkDEMReader.h.

float vtkDEMReader::LocalRotation [protected]

Definition at line 177 of file vtkDEMReader.h.

int vtkDEMReader::AccuracyCode [protected]

Definition at line 178 of file vtkDEMReader.h.

float vtkDEMReader::SpatialResolution[3] [protected]

Definition at line 179 of file vtkDEMReader.h.

int vtkDEMReader::ProfileDimension[2] [protected]

Definition at line 180 of file vtkDEMReader.h.

Definition at line 181 of file vtkDEMReader.h.

Definition at line 182 of file vtkDEMReader.h.


The documentation for this class was generated from the following file:
