vtkExtractVectorComponents Class Reference

#include <vtkExtractVectorComponents.h>

Inheritance diagram for vtkExtractVectorComponents:

Inheritance graph
[legend]

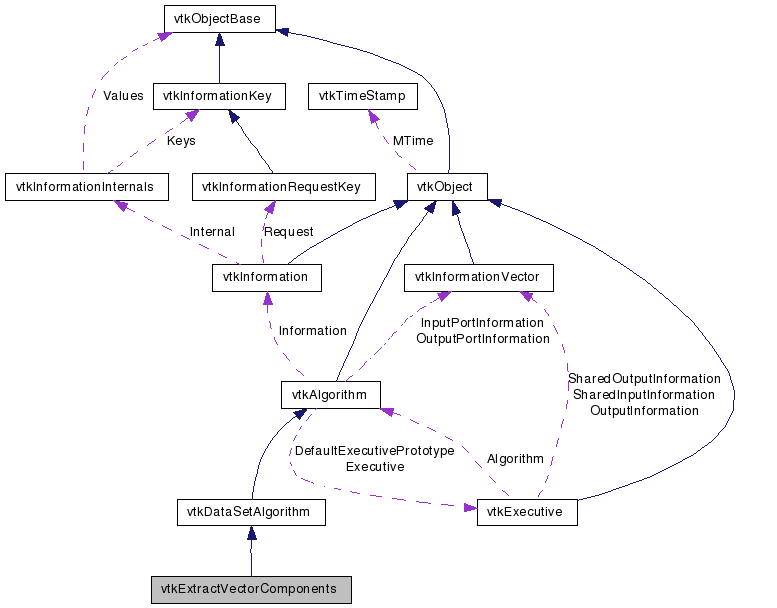

Collaboration diagram for vtkExtractVectorComponents:

Collaboration graph
[legend]

List of all members.


Detailed Description

extract components of vector as separate scalars

vtkExtractVectorComponents is a filter that extracts vector components as separate scalars. This is accomplished by creating three different outputs. Each output is the same as the input, except that the scalar values will be one of the three components of the vector. These can be found in the VxComponent, VyComponent, and VzComponent. Alternatively, if the ExtractToFieldData flag is set, the filter will put all the components in the field data. The first component will be the scalar and the others will be non-attribute arrays.

Warning:
This filter is unusual in that it creates multiple outputs. If you use the GetOutput() method, you will be retrieving the x vector component.
Tests:
vtkExtractVectorComponents (Tests)

Definition at line 43 of file vtkExtractVectorComponents.h.


Public Types

typedef vtkDataSetAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetInput (vtkDataSet *input)
vtkDataSetGetVxComponent ()
vtkDataSetGetVyComponent ()
vtkDataSetGetVzComponent ()
virtual void SetExtractToFieldData (int)
virtual int GetExtractToFieldData ()
virtual void ExtractToFieldDataOn ()
virtual void ExtractToFieldDataOff ()

Static Public Member Functions

static vtkExtractVectorComponentsNew ()
static int IsTypeOf (const char *type)
static vtkExtractVectorComponentsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkExtractVectorComponents ()
 ~vtkExtractVectorComponents ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

int ExtractToFieldData
int OutputsInitialized

Member Typedef Documentation

Reimplemented from vtkDataSetAlgorithm.

Definition at line 47 of file vtkExtractVectorComponents.h.


Constructor & Destructor Documentation

vtkExtractVectorComponents::vtkExtractVectorComponents (  )  [protected]

vtkExtractVectorComponents::~vtkExtractVectorComponents (  )  [protected]


Member Function Documentation

static vtkExtractVectorComponents* vtkExtractVectorComponents::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataSetAlgorithm.

virtual const char* vtkExtractVectorComponents::GetClassName (  )  [virtual]

Reimplemented from vtkDataSetAlgorithm.

static int vtkExtractVectorComponents::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

virtual int vtkExtractVectorComponents::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAlgorithm.

static vtkExtractVectorComponents* vtkExtractVectorComponents::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataSetAlgorithm.

void vtkExtractVectorComponents::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAlgorithm.

virtual void vtkExtractVectorComponents::SetInput ( vtkDataSet input  )  [virtual]

Specify the input data or filter.

Reimplemented from vtkDataSetAlgorithm.

vtkDataSet* vtkExtractVectorComponents::GetVxComponent (  )

Get the output dataset representing velocity x-component. If output is NULL then input hasn't been set, which is necessary for abstract objects. (Note: this method returns the same information as the GetOutput() method with an index of 0.)

vtkDataSet* vtkExtractVectorComponents::GetVyComponent (  )

Get the output dataset representing velocity y-component. If output is NULL then input hasn't been set, which is necessary for abstract objects. (Note: this method returns the same information as the GetOutput() method with an index of 1.) Note that if ExtractToFieldData is true, this output will be empty.

vtkDataSet* vtkExtractVectorComponents::GetVzComponent (  )

Get the output dataset representing velocity z-component. If output is NULL then input hasn't been set, which is necessary for abstract objects. (Note: this method returns the same information as the GetOutput() method with an index of 2.) Note that if ExtractToFieldData is true, this output will be empty.

virtual void vtkExtractVectorComponents::SetExtractToFieldData ( int   )  [virtual]

Determines whether the vector components will be put in separate outputs or in the first output's field data

virtual int vtkExtractVectorComponents::GetExtractToFieldData (  )  [virtual]

Determines whether the vector components will be put in separate outputs or in the first output's field data

virtual void vtkExtractVectorComponents::ExtractToFieldDataOn (  )  [virtual]

Determines whether the vector components will be put in separate outputs or in the first output's field data

virtual void vtkExtractVectorComponents::ExtractToFieldDataOff (  )  [virtual]

Determines whether the vector components will be put in separate outputs or in the first output's field data

virtual int vtkExtractVectorComponents::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks the algorithm to do its work. This is the method you should override to do whatever the algorithm is designed to do. This happens during the fourth pass in the pipeline execution process.

Reimplemented from vtkDataSetAlgorithm.


Member Data Documentation

Definition at line 86 of file vtkExtractVectorComponents.h.

Definition at line 87 of file vtkExtractVectorComponents.h.
