vtkFFMPEGWriter Class Reference

#include <vtkFFMPEGWriter.h>

Inheritance diagram for vtkFFMPEGWriter:

Inheritance graph
[legend]

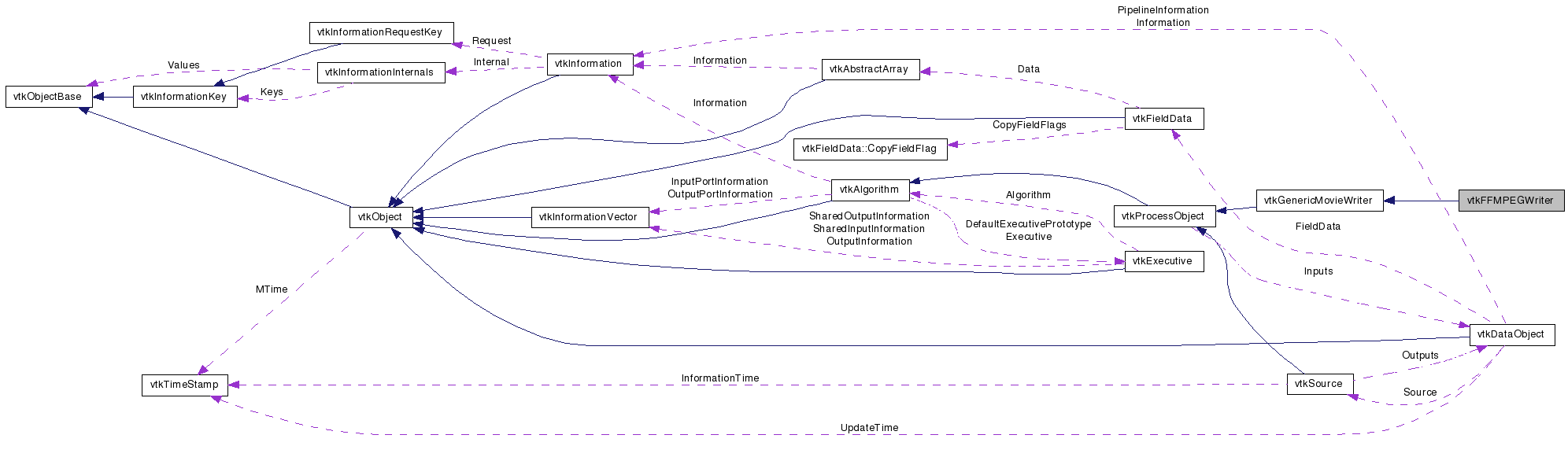

Collaboration diagram for vtkFFMPEGWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Uses the FFMPEG library to write video files.

vtkFFMPEGWriter is an adapter that allows VTK to use the LGPL'd FFMPEG library to write movie files. FFMPEG can create a variety of multimedia file formats and can use a variety of encoding algorithms (codecs). This class creates .avi files containing MP43 encoded video without audio.

The FFMPEG multimedia library source code can be obtained from the sourceforge web site at http://ffmpeg.sourceforge.net/download.php or is a tarball along with installation instructions at http://www.vtk.org/files/support/ffmpeg_source.tar.gz

Tests:
vtkFFMPEGWriter (Tests)

Definition at line 41 of file vtkFFMPEGWriter.h.


Public Types

typedef vtkGenericMovieWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Start ()
void Write ()
void End ()
virtual void SetQuality (int)
virtual int GetQuality ()
virtual void SetRate (int)
virtual int GetRate ()

Static Public Member Functions

static vtkFFMPEGWriterNew ()
static int IsTypeOf (const char *type)
static vtkFFMPEGWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkFFMPEGWriter ()
 ~vtkFFMPEGWriter ()

Protected Attributes

vtkFFMPEGWriterInternal * Internals
int Initialized
int Quality
int Rate

Member Typedef Documentation

Reimplemented from vtkGenericMovieWriter.

Definition at line 45 of file vtkFFMPEGWriter.h.


Constructor & Destructor Documentation

vtkFFMPEGWriter::vtkFFMPEGWriter (  )  [protected]

vtkFFMPEGWriter::~vtkFFMPEGWriter (  )  [protected]


Member Function Documentation

static vtkFFMPEGWriter* vtkFFMPEGWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkFFMPEGWriter::GetClassName (  )  [virtual]

Reimplemented from vtkGenericMovieWriter.

static int vtkFFMPEGWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGenericMovieWriter.

virtual int vtkFFMPEGWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkGenericMovieWriter.

static vtkFFMPEGWriter* vtkFFMPEGWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkGenericMovieWriter.

void vtkFFMPEGWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGenericMovieWriter.

void vtkFFMPEGWriter::Start (  )  [virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implements vtkGenericMovieWriter.

void vtkFFMPEGWriter::Write (  )  [virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implements vtkGenericMovieWriter.

void vtkFFMPEGWriter::End (  )  [virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process.

Implements vtkGenericMovieWriter.

virtual void vtkFFMPEGWriter::SetQuality ( int   )  [virtual]

Set/Get the compression quality. 0 means worst quality and smallest file size 2 means best quality and largest file size

virtual int vtkFFMPEGWriter::GetQuality (  )  [virtual]

Set/Get the compression quality. 0 means worst quality and smallest file size 2 means best quality and largest file size

virtual void vtkFFMPEGWriter::SetRate ( int   )  [virtual]

Set/Get the frame rate, in frame/s.

virtual int vtkFFMPEGWriter::GetRate (  )  [virtual]

Set/Get the frame rate, in frame/s.


Member Data Documentation

vtkFFMPEGWriterInternal* vtkFFMPEGWriter::Internals [protected]

Definition at line 72 of file vtkFFMPEGWriter.h.

Definition at line 74 of file vtkFFMPEGWriter.h.

int vtkFFMPEGWriter::Quality [protected]

Definition at line 75 of file vtkFFMPEGWriter.h.

int vtkFFMPEGWriter::Rate [protected]

Definition at line 76 of file vtkFFMPEGWriter.h.


The documentation for this class was generated from the following file:
