vtkImageCanvasSource2D Class Reference

#include <vtkImageCanvasSource2D.h>

Inheritance diagram for vtkImageCanvasSource2D:

Inheritance graph
[legend]

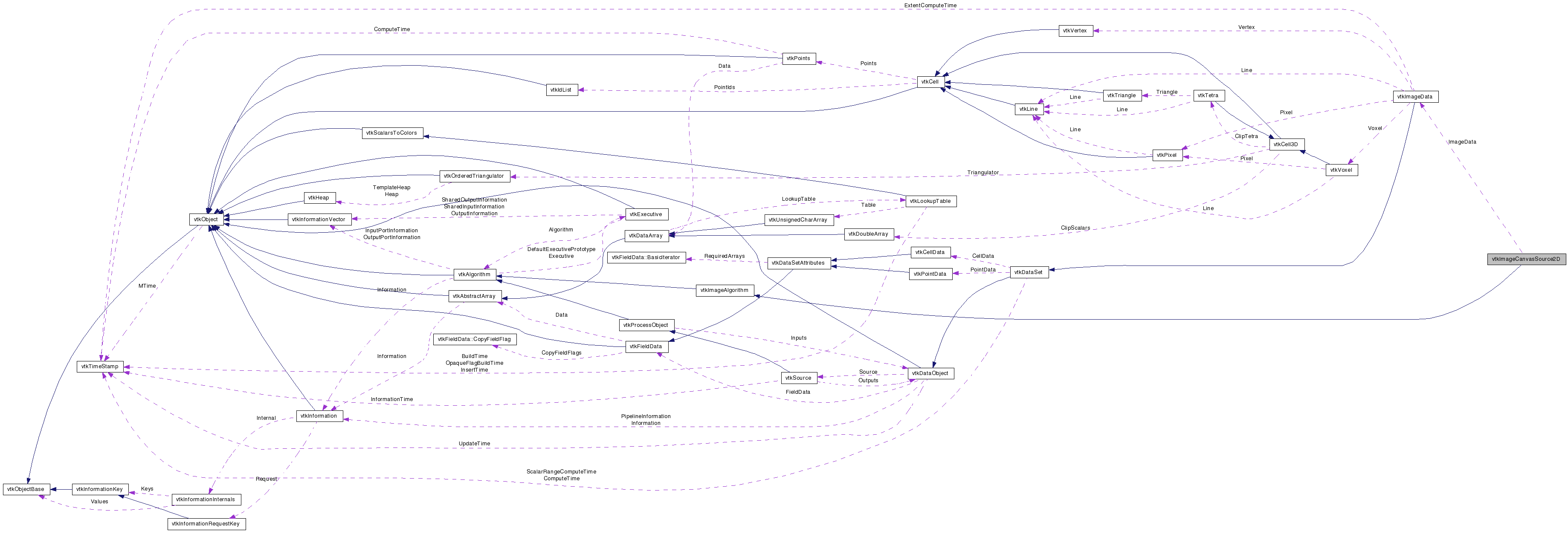

Collaboration diagram for vtkImageCanvasSource2D:

Collaboration graph
[legend]

List of all members.


Detailed Description

Paints on a canvas.

vtkImageCanvasSource2D is a source that starts as a blank image. you may add to the image with two-dimensional drawing routines. It can paint multi-spectral images.

Examples:
vtkImageCanvasSource2D (Examples)
Tests:
vtkImageCanvasSource2D (Tests)

Definition at line 34 of file vtkImageCanvasSource2D.h.


Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void FillBox (int min0, int max0, int min1, int max1)
void FillTube (int x0, int y0, int x1, int y1, double radius)
void FillTriangle (int x0, int y0, int x1, int y1, int x2, int y2)
void DrawCircle (int c0, int c1, double radius)
void DrawPoint (int p0, int p1)
void DrawSegment (int x0, int y0, int x1, int y1)
void DrawSegment3D (double *p0, double *p1)
void DrawSegment3D (double x1, double y1, double z1, double x2, double y2, double z2)
void FillPixel (int x, int y)
virtual void SetDrawColor (double, double, double, double)
virtual void SetDrawColor (double[4])
virtual double * GetDrawColor ()
virtual void GetDrawColor (double &, double &, double &, double &)
virtual void GetDrawColor (double[4])
void SetDrawColor (double a)
void SetDrawColor (double a, double b)
void SetDrawColor (double a, double b, double c)
void DrawImage (int x0, int y0, vtkImageData *i)
void DrawImage (int x0, int y0, vtkImageData *, int sx, int sy, int width, int height)
void SetExtent (int *extent)
void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual void SetDefaultZ (int)
virtual int GetDefaultZ ()
virtual void SetRatio (double, double, double)
virtual void SetRatio (double[3])
virtual double * GetRatio ()
virtual void GetRatio (double &, double &, double &)
virtual void GetRatio (double[3])
virtual void SetNumberOfScalarComponents (int i)
virtual int GetNumberOfScalarComponents () const
void SetScalarTypeToFloat ()
void SetScalarTypeToDouble ()
void SetScalarTypeToInt ()
void SetScalarTypeToUnsignedInt ()
void SetScalarTypeToLong ()
void SetScalarTypeToUnsignedLong ()
void SetScalarTypeToShort ()
void SetScalarTypeToUnsignedShort ()
void SetScalarTypeToUnsignedChar ()
void SetScalarTypeToChar ()
void SetScalarType (int)
int GetScalarType () const

Static Public Member Functions

static vtkImageCanvasSource2DNew ()
static int IsTypeOf (const char *type)
static vtkImageCanvasSource2DSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageCanvasSource2D ()
 ~vtkImageCanvasSource2D ()
int ClipSegment (int &a0, int &a1, int &b0, int &b1)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkImageDataImageData
int WholeExtent [6]
double DrawColor [4]
int DefaultZ
double Ratio [3]

Member Typedef Documentation

Reimplemented from vtkImageAlgorithm.

Definition at line 40 of file vtkImageCanvasSource2D.h.


Constructor & Destructor Documentation

vtkImageCanvasSource2D::vtkImageCanvasSource2D (  )  [protected]

vtkImageCanvasSource2D::~vtkImageCanvasSource2D (  )  [protected]


Member Function Documentation

static vtkImageCanvasSource2D* vtkImageCanvasSource2D::New (  )  [static]

Construct an instance of vtkImageCanvasSource2D with no data.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageCanvasSource2D::GetClassName (  )  [virtual]

Reimplemented from vtkImageAlgorithm.

static int vtkImageCanvasSource2D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageCanvasSource2D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

static vtkImageCanvasSource2D* vtkImageCanvasSource2D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageAlgorithm.

void vtkImageCanvasSource2D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

virtual void vtkImageCanvasSource2D::SetDrawColor ( double  ,
double  ,
double  ,
double
) [virtual]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

virtual void vtkImageCanvasSource2D::SetDrawColor ( double  [4]  )  [virtual]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

virtual double* vtkImageCanvasSource2D::GetDrawColor (  )  [virtual]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

virtual void vtkImageCanvasSource2D::GetDrawColor ( double &  ,
double &  ,
double &  ,
double &
) [virtual]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

virtual void vtkImageCanvasSource2D::GetDrawColor ( double  [4]  )  [virtual]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

void vtkImageCanvasSource2D::SetDrawColor ( double  a  )  [inline]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

Definition at line 48 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetDrawColor ( double  a,
double  b
) [inline]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

Definition at line 49 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetDrawColor ( double  a,
double  b,
double  c
) [inline]

Set/Get DrawValue. This is the value that is used when filling data or drawing lines.

Definition at line 50 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::FillBox ( int  min0,
int  max0,
int  min1,
int  max1
)

void vtkImageCanvasSource2D::FillTube ( int  x0,
int  y0,
int  x1,
int  y1,
double  radius
)

void vtkImageCanvasSource2D::FillTriangle ( int  x0,
int  y0,
int  x1,
int  y1,
int  x2,
int  y2
)

void vtkImageCanvasSource2D::DrawCircle ( int  c0,
int  c1,
double  radius
)

void vtkImageCanvasSource2D::DrawPoint ( int  p0,
int  p1
)

void vtkImageCanvasSource2D::DrawSegment ( int  x0,
int  y0,
int  x1,
int  y1
)

void vtkImageCanvasSource2D::DrawSegment3D ( double *  p0,
double *  p1
)

void vtkImageCanvasSource2D::DrawSegment3D ( double  x1,
double  y1,
double  z1,
double  x2,
double  y2,
double  z2
) [inline]

Definition at line 61 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::DrawImage ( int  x0,
int  y0,
vtkImageData i
) [inline]

Draw subimage of the input image in the canvas at position x0 and y0. The subimage is defined with sx, sy, width, and height.

Definition at line 70 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::DrawImage ( int  x0,
int  y0,
vtkImageData ,
int  sx,
int  sy,
int  width,
int  height
)

Draw subimage of the input image in the canvas at position x0 and y0. The subimage is defined with sx, sy, width, and height.

void vtkImageCanvasSource2D::FillPixel ( int  x,
int  y
)

Fill a colored area with another color. (like connectivity) All pixels connected (and with the same value) to pixel (x, y) get replaced by the current "DrawColor".

void vtkImageCanvasSource2D::SetExtent ( int *  extent  )

These methods set the WholeExtent of the output It sets the size of the canvas. Extent is a min max 3D box. Minimums and maximums are inclusive.

void vtkImageCanvasSource2D::SetExtent ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
)

These methods set the WholeExtent of the output It sets the size of the canvas. Extent is a min max 3D box. Minimums and maximums are inclusive.

virtual void vtkImageCanvasSource2D::SetDefaultZ ( int   )  [virtual]

The drawing operations can only draw into one 2D XY plane at a time. If the canvas is a 3D volume, then this z value is used as the default for 2D operations.

virtual int vtkImageCanvasSource2D::GetDefaultZ (  )  [virtual]

The drawing operations can only draw into one 2D XY plane at a time. If the canvas is a 3D volume, then this z value is used as the default for 2D operations.

virtual void vtkImageCanvasSource2D::SetRatio ( double  ,
double  ,
double
) [virtual]

Set/Get Ratio. This is the value that is used to pre-multiply each (x, y, z) drawing coordinates (including DefaultZ).

virtual void vtkImageCanvasSource2D::SetRatio ( double  [3]  )  [virtual]

Set/Get Ratio. This is the value that is used to pre-multiply each (x, y, z) drawing coordinates (including DefaultZ).

virtual double* vtkImageCanvasSource2D::GetRatio (  )  [virtual]

Set/Get Ratio. This is the value that is used to pre-multiply each (x, y, z) drawing coordinates (including DefaultZ).

virtual void vtkImageCanvasSource2D::GetRatio ( double &  ,
double &  ,
double &
) [virtual]

Set/Get Ratio. This is the value that is used to pre-multiply each (x, y, z) drawing coordinates (including DefaultZ).

virtual void vtkImageCanvasSource2D::GetRatio ( double  [3]  )  [virtual]

Set/Get Ratio. This is the value that is used to pre-multiply each (x, y, z) drawing coordinates (including DefaultZ).

virtual void vtkImageCanvasSource2D::SetNumberOfScalarComponents ( int  i  )  [virtual]

Set the number of scalar components

virtual int vtkImageCanvasSource2D::GetNumberOfScalarComponents (  )  const [virtual]

Set the number of scalar components

void vtkImageCanvasSource2D::SetScalarTypeToFloat (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 116 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToDouble (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 117 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToInt (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 118 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToUnsignedInt (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 119 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToLong (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 121 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToUnsignedLong (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 122 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToShort (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 124 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToUnsignedShort (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 125 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToUnsignedChar (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 127 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarTypeToChar (  )  [inline]

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

Definition at line 129 of file vtkImageCanvasSource2D.h.

void vtkImageCanvasSource2D::SetScalarType ( int   )

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

int vtkImageCanvasSource2D::GetScalarType (  )  const

Set/Get the data scalar type (i.e VTK_DOUBLE). Note that these methods are setting and getting the pipeline scalar type. i.e. they are setting the type that the image data will be once it has executed. Until the REQUEST_DATA pass the actual scalars may be of some other type. This is for backwards compatibility

int vtkImageCanvasSource2D::ClipSegment ( int &  a0,
int &  a1,
int &  b0,
int &  b1
) [protected]

virtual int vtkImageCanvasSource2D::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageCanvasSource2D::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

Definition at line 142 of file vtkImageCanvasSource2D.h.

Definition at line 143 of file vtkImageCanvasSource2D.h.

double vtkImageCanvasSource2D::DrawColor[4] [protected]

Definition at line 144 of file vtkImageCanvasSource2D.h.

Definition at line 145 of file vtkImageCanvasSource2D.h.

double vtkImageCanvasSource2D::Ratio[3] [protected]

Definition at line 146 of file vtkImageCanvasSource2D.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:29:05 2008 for VTK by  doxygen 1.5.6
