vtkImageMultipleInputFilter Class Reference

#include <vtkImageMultipleInputFilter.h>

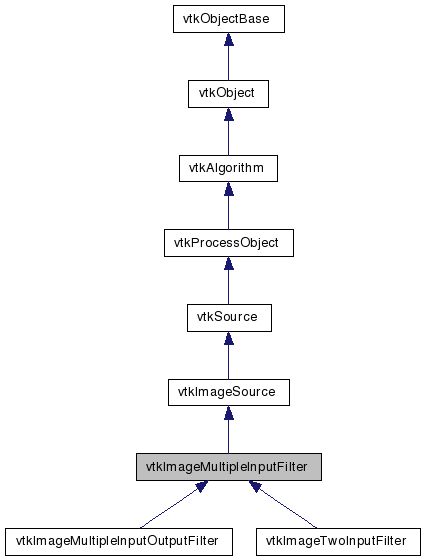

Inheritance diagram for vtkImageMultipleInputFilter:

[legend]

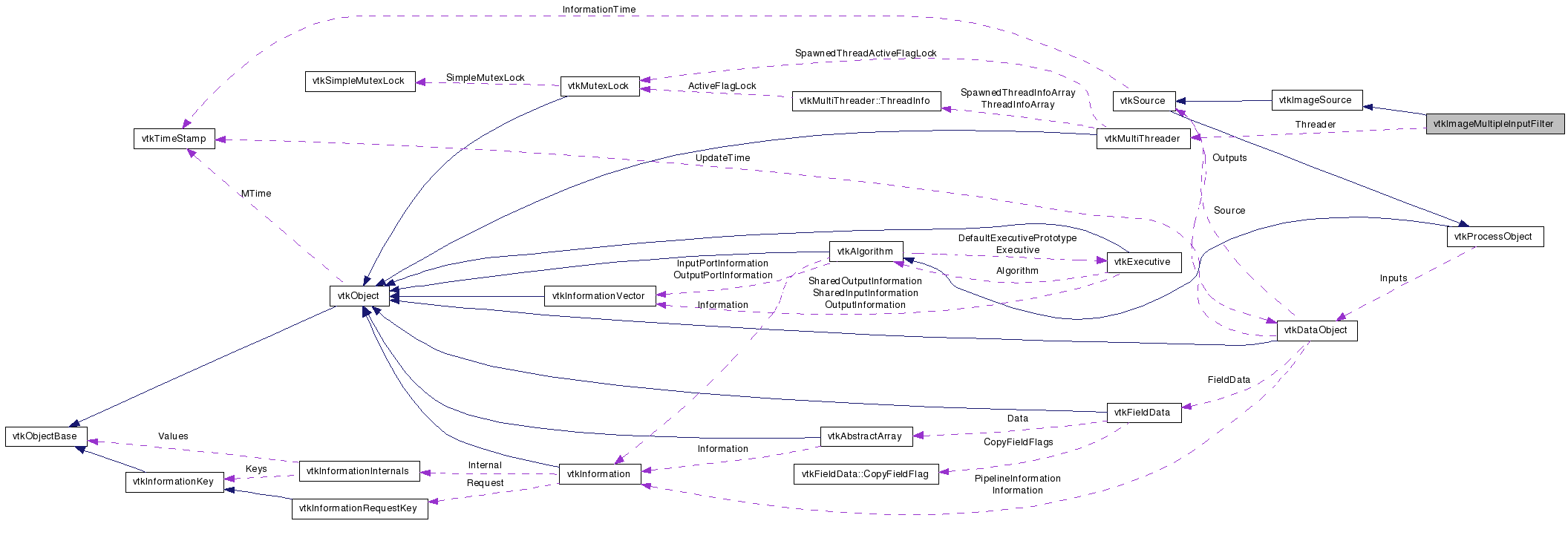

Collaboration diagram for vtkImageMultipleInputFilter:

[legend]

List of all members.

Detailed Description

Generic filter that has N inputs.

vtkImageMultipleInputFilter is a super class for filters that have any number of inputs. Streaming is not available in this class yet.

See also:: vtkImageToImageFilter vtkImageInPlaceFilter vtkImageTwoInputFilter

Definition at line 32 of file vtkImageMultipleInputFilter.h.


Public Types
typedef vtkImageSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (int num, vtkImageData *input)

virtual void	AddInput (vtkImageData *input)
virtual void	RemoveInput (vtkImageData *input)

vtkImageData *	GetInput (int num)
vtkImageData *	GetInput ()

virtual void	SetBypass (int)
virtual int	GetBypass ()
virtual void	BypassOn ()
virtual void	BypassOff ()

virtual void	SetNumberOfThreads (int)
virtual int	GetNumberOfThreads ()

virtual int	SplitExtent (int splitExt[6], int startExt[6], int num, int total)

virtual void	ThreadedExecute (vtkImageData *inDatas, vtkImageData outData, int extent[6], int threadId)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkImageMultipleInputFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageMultipleInputFilter ()
	~vtkImageMultipleInputFilter ()
void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void	ExecuteData (vtkDataObject *output)
void	MultiThread (vtkImageData *indatas, vtkImageData outdata)
void	ExecuteInformation ()
virtual void	ExecuteInformation (vtkImageData *, vtkImageData )
virtual int	FillInputPortInformation (int, vtkInformation *)
Protected Attributes
vtkMultiThreader *	Threader
int	Bypass
int	NumberOfThreads

Member Typedef Documentation

typedef vtkImageSource vtkImageMultipleInputFilter::Superclass

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

Definition at line 35 of file vtkImageMultipleInputFilter.h.

Constructor & Destructor Documentation

vtkImageMultipleInputFilter::vtkImageMultipleInputFilter ( ) [protected]

vtkImageMultipleInputFilter::~vtkImageMultipleInputFilter ( ) [protected]

Member Function Documentation

virtual const char* vtkImageMultipleInputFilter::GetClassName ( ) [virtual]

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

static int vtkImageMultipleInputFilter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

virtual int vtkImageMultipleInputFilter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

static vtkImageMultipleInputFilter* vtkImageMultipleInputFilter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

void vtkImageMultipleInputFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageSource.

Reimplemented in vtkImageMultipleInputOutputFilter, and vtkImageTwoInputFilter.

virtual void vtkImageMultipleInputFilter::SetInput	(	int	num,
		vtkImageData *	input
	)			`[virtual]`

Set an Input of this filter.

virtual void vtkImageMultipleInputFilter::AddInput ( vtkImageData * input ) [virtual]

Adds an input to the first null position in the input list. Expands the list memory if necessary

virtual void vtkImageMultipleInputFilter::RemoveInput ( vtkImageData * input ) [virtual]

Adds an input to the first null position in the input list. Expands the list memory if necessary

vtkImageData* vtkImageMultipleInputFilter::GetInput ( int num )

Get one input to this filter.

vtkImageData* vtkImageMultipleInputFilter::GetInput ( )

Get one input to this filter.

virtual void vtkImageMultipleInputFilter::SetBypass ( int ) [virtual]

Turning bypass on will cause the filter to turn off and simply pass the data from the first input (input0) through. It is implemented for consistency with vtkImageToImageFilter.

virtual int vtkImageMultipleInputFilter::GetBypass ( ) [virtual]

Turning bypass on will cause the filter to turn off and simply pass the data from the first input (input0) through. It is implemented for consistency with vtkImageToImageFilter.

virtual void vtkImageMultipleInputFilter::BypassOn ( ) [virtual]

Turning bypass on will cause the filter to turn off and simply pass the data from the first input (input0) through. It is implemented for consistency with vtkImageToImageFilter.

virtual void vtkImageMultipleInputFilter::BypassOff ( ) [virtual]

Turning bypass on will cause the filter to turn off and simply pass the data from the first input (input0) through. It is implemented for consistency with vtkImageToImageFilter.

virtual void vtkImageMultipleInputFilter::SetNumberOfThreads ( int ) [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkImageMultipleInputFilter::GetNumberOfThreads ( ) [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkImageMultipleInputFilter::SplitExtent	(	int	splitExt[6],
		int	startExt[6],
		int	num,
		int	total
	)			`[virtual]`

Putting this here until I merge graphics and imaging streaming.

virtual void vtkImageMultipleInputFilter::ThreadedExecute	(	vtkImageData **	inDatas,
		vtkImageData *	outData,
		int	extent[6],
		int	threadId
	)			`[virtual]`

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

Reimplemented in vtkImageMultipleInputOutputFilter.

void vtkImageMultipleInputFilter::ComputeInputUpdateExtents ( vtkDataObject * output ) [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkSource.

Reimplemented in vtkImageMultipleInputOutputFilter.

virtual void vtkImageMultipleInputFilter::ComputeInputUpdateExtent	(	int	inExt[6],
		int	outExt[6],
		int	whichInput
	)			`[protected, virtual]`

Reimplemented in vtkImageMultipleInputOutputFilter.

void vtkImageMultipleInputFilter::ExecuteData ( vtkDataObject * output ) [protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method

Reimplemented from vtkSource.

Reimplemented in vtkImageMultipleInputOutputFilter.

void vtkImageMultipleInputFilter::MultiThread	(	vtkImageData **	indatas,
		vtkImageData *	outdata
	)			`[protected]`

void vtkImageMultipleInputFilter::ExecuteInformation ( ) [protected, virtual]

Reimplemented from vtkSource.

Reimplemented in vtkImageMultipleInputOutputFilter.

virtual void vtkImageMultipleInputFilter::ExecuteInformation	(	vtkImageData **	,
		vtkImageData *
	)			`[inline, protected, virtual]`

Reimplemented in vtkImageMultipleInputOutputFilter.

Definition at line 107 of file vtkImageMultipleInputFilter.h.

virtual int vtkImageMultipleInputFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkProcessObject.
