vtkImageNonMaximumSuppression Class Reference

#include <vtkImageNonMaximumSuppression.h>

Inheritance diagram for vtkImageNonMaximumSuppression:

Inheritance graph
[legend]

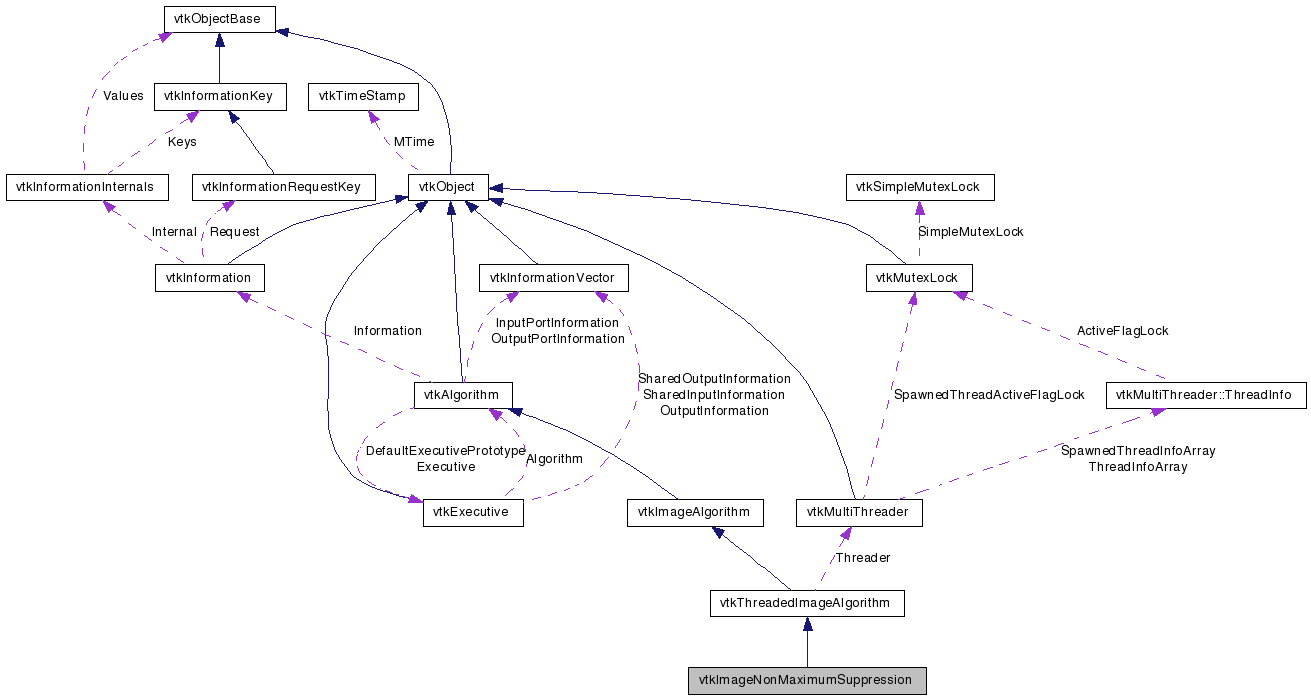

Collaboration diagram for vtkImageNonMaximumSuppression:

Collaboration graph
[legend]

List of all members.


Detailed Description

Performs non-maximum suppression.

vtkImageNonMaximumSuppression Sets to zero any pixel that is not a peak. If a pixel has a neighbor along the vector that has larger magnitude, the smaller pixel is set to zero. The filter takes two inputs: a magnitude and a vector. Output is magnitude information and is always in doubles. Typically this filter is used with vtkImageGradient and vtkImageGradientMagnitude as inputs.

Tests:
vtkImageNonMaximumSuppression (Tests)

Definition at line 38 of file vtkImageNonMaximumSuppression.h.


Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetMagnitudeInput (vtkImageData *input)
void SetVectorInput (vtkImageData *input)
virtual void SetHandleBoundaries (int)
virtual int GetHandleBoundaries ()
virtual void HandleBoundariesOn ()
virtual void HandleBoundariesOff ()
virtual void SetDimensionality (int)
virtual int GetDimensionality ()

Static Public Member Functions

static
vtkImageNonMaximumSuppression
New ()
static int IsTypeOf (const char *type)
static
vtkImageNonMaximumSuppression
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageNonMaximumSuppression ()
 ~vtkImageNonMaximumSuppression ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)

Protected Attributes

int HandleBoundaries
int Dimensionality

Member Typedef Documentation

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 42 of file vtkImageNonMaximumSuppression.h.


Constructor & Destructor Documentation

vtkImageNonMaximumSuppression::vtkImageNonMaximumSuppression (  )  [protected]

vtkImageNonMaximumSuppression::~vtkImageNonMaximumSuppression (  )  [inline, protected]

Definition at line 68 of file vtkImageNonMaximumSuppression.h.


Member Function Documentation

static vtkImageNonMaximumSuppression* vtkImageNonMaximumSuppression::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageNonMaximumSuppression::GetClassName (  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageNonMaximumSuppression::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageNonMaximumSuppression::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageNonMaximumSuppression* vtkImageNonMaximumSuppression::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageNonMaximumSuppression::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageNonMaximumSuppression::SetMagnitudeInput ( vtkImageData input  )  [inline]

Set the magnitude and vector inputs.

Definition at line 47 of file vtkImageNonMaximumSuppression.h.

void vtkImageNonMaximumSuppression::SetVectorInput ( vtkImageData input  )  [inline]

Set the magnitude and vector inputs.

Definition at line 48 of file vtkImageNonMaximumSuppression.h.

virtual void vtkImageNonMaximumSuppression::SetHandleBoundaries ( int   )  [virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual int vtkImageNonMaximumSuppression::GetHandleBoundaries (  )  [virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageNonMaximumSuppression::HandleBoundariesOn (  )  [virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageNonMaximumSuppression::HandleBoundariesOff (  )  [virtual]

If "HandleBoundariesOn" then boundary pixels are duplicated So central differences can get values.

virtual void vtkImageNonMaximumSuppression::SetDimensionality ( int   )  [virtual]

Determines how the input is interpreted (set of 2d slices or a 3D volume)

virtual int vtkImageNonMaximumSuppression::GetDimensionality (  )  [virtual]

Determines how the input is interpreted (set of 2d slices or a 3D volume)

virtual int vtkImageNonMaximumSuppression::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual int vtkImageNonMaximumSuppression::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Reimplemented from vtkImageAlgorithm.

virtual void vtkImageNonMaximumSuppression::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

Definition at line 68 of file vtkImageNonMaximumSuppression.h.

Definition at line 71 of file vtkImageNonMaximumSuppression.h.


The documentation for this class was generated from the following file:
