vtkImplicitPlaneWidget Class Reference

#include <vtkImplicitPlaneWidget.h>

Inheritance diagram for vtkImplicitPlaneWidget:

Inheritance graph
[legend]

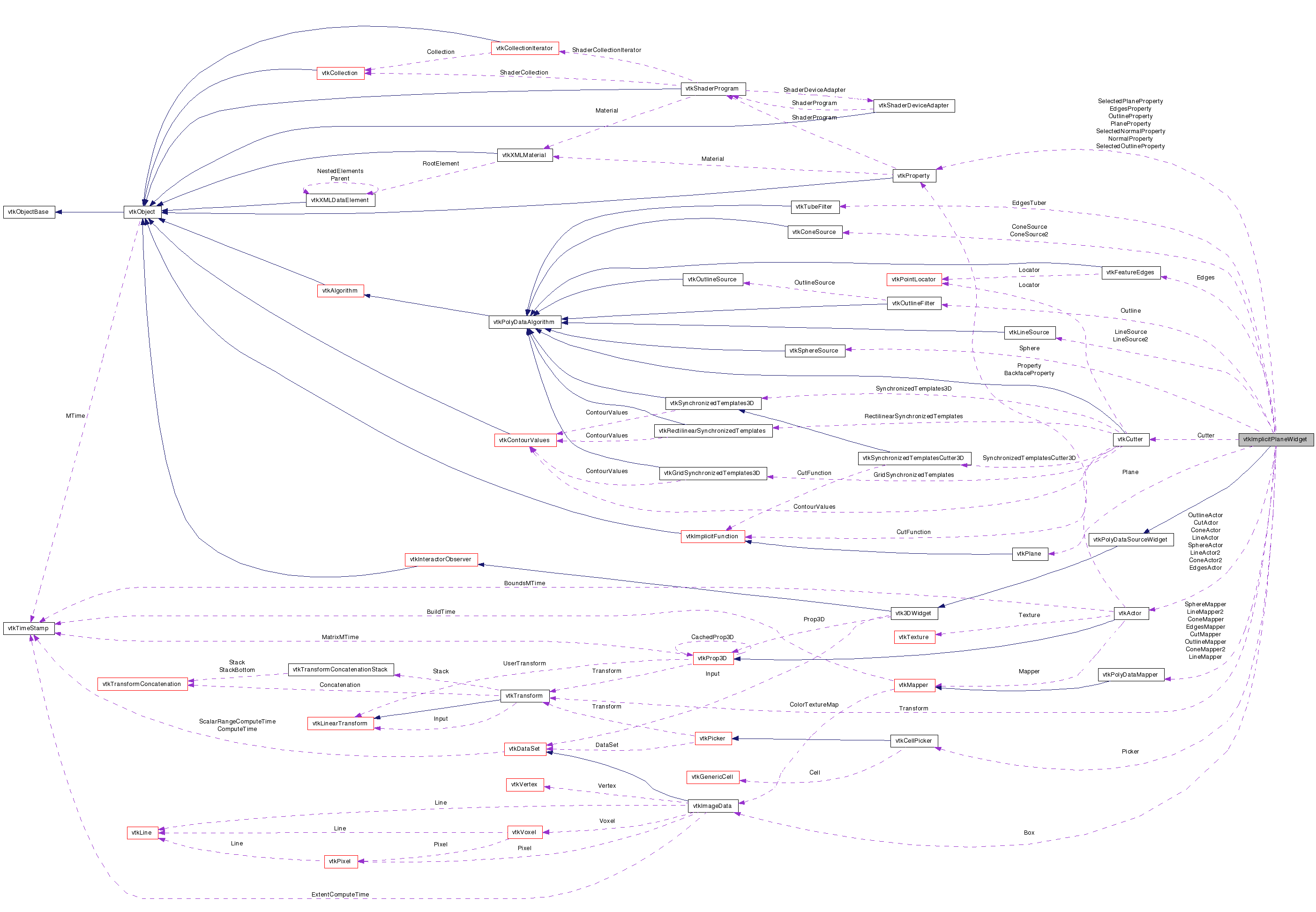

Collaboration diagram for vtkImplicitPlaneWidget:

Collaboration graph
[legend]

List of all members.


Detailed Description

3D widget for manipulating an infinite plane

This 3D widget defines an infinite plane that can be interactively placed in a scene. The widget is represented by a plane with a normal vector; the plane is contained by a bounding box, and where the plane intersects the bounding box the edges are shown (possibly tubed). The normal can be selected and moved to rotate the plane; the plane itself can be selected and translated in various directions. As the plane is moved, the implicit plane function and polygon (representing the plane cut against the bounding box) is updated.

To use this object, just invoke SetInteractor() with the argument of the method a vtkRenderWindowInteractor. You may also wish to invoke "PlaceWidget()" to initially position the widget. If the "i" key (for "interactor") is pressed, the vtkImplicitPlaneWidget will appear. (See superclass documentation for information about changing this behavior.) If you select the normal vector, the plane can be arbitrarily rotated. The plane can be translated along the normal by selecting the plane and moving it. The plane (the plane origin) can also be arbitrary moved by selecting the plane with the middle mouse button. The right mouse button can be used to uniformly scale the bounding box (moving "up" the box scales larger; moving "down" the box scales smaller). Events that occur outside of the widget (i.e., no part of the widget is picked) are propagated to any other registered obsevers (such as the interaction style). Turn off the widget by pressing the "i" key again (or invoke the Off() method).

The vtkImplicitPlaneWidget has several methods that can be used in conjunction with other VTK objects. The GetPolyData() method can be used to get a polygonal representation (the single polygon clipped by the bounding box). Typical usage of the widget is to make use of the StartInteractionEvent, InteractionEvent, and EndInteractionEvent events. The InteractionEvent is called on mouse motion; the other two events are called on button down and button up (either left or right button). (Note: there is also a PlaceWidgetEvent that is invoked when the widget is placed with PlaceWidget().)

Some additional features of this class include the ability to control the properties of the widget. You do this by setting property values on the normal vector (selected and unselected properties); the plane (selected and unselected properties); the outline (selected and unselected properties); and the edges. The edges may also be tubed or not.

Warning:
Note that the widget can be picked even when it is "behind" other actors. This is an intended feature and not a bug.
See also:
vtk3DWidget vtkBoxWidget vtkPlaneWidget vtkLineWidget vtkPointWidget vtkSphereWidget vtkImagePlaneWidget
Events:
vtkCommand::DisableEvent vtkCommand::EndInteractionEvent vtkCommand::InteractionEvent vtkCommand::StartInteractionEvent vtkCommand::EnableEvent
Examples:
vtkImplicitPlaneWidget (Examples)
Tests:
vtkImplicitPlaneWidget (Tests)

Definition at line 97 of file vtkImplicitPlaneWidget.h.


Public Types

typedef vtkPolyDataSourceWidget Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void GetPolyData (vtkPolyData *pd)
vtkPolyDataAlgorithmGetPolyDataAlgorithm ()
void GetPlane (vtkPlane *plane)
void UpdatePlacement ()
virtual void SizeHandles ()
virtual void SetEnabled (int)
virtual void PlaceWidget (double bounds[6])
void PlaceWidget ()
void PlaceWidget (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
virtual void SetOrigin (double x, double y, double z)
virtual void SetOrigin (double x[3])
double * GetOrigin ()
void GetOrigin (double xyz[3])
void SetNormal (double x, double y, double z)
void SetNormal (double x[3])
double * GetNormal ()
void GetNormal (double xyz[3])
void SetNormalToXAxis (int)
virtual int GetNormalToXAxis ()
virtual void NormalToXAxisOn ()
virtual void NormalToXAxisOff ()
void SetNormalToYAxis (int)
virtual int GetNormalToYAxis ()
virtual void NormalToYAxisOn ()
virtual void NormalToYAxisOff ()
void SetNormalToZAxis (int)
virtual int GetNormalToZAxis ()
virtual void NormalToZAxisOn ()
virtual void NormalToZAxisOff ()
virtual void SetTubing (int)
virtual int GetTubing ()
virtual void TubingOn ()
virtual void TubingOff ()
void SetDrawPlane (int plane)
virtual int GetDrawPlane ()
virtual void DrawPlaneOn ()
virtual void DrawPlaneOff ()
virtual void SetOutlineTranslation (int)
virtual int GetOutlineTranslation ()
virtual void OutlineTranslationOn ()
virtual void OutlineTranslationOff ()
virtual void SetOutsideBounds (int)
virtual int GetOutsideBounds ()
virtual void OutsideBoundsOn ()
virtual void OutsideBoundsOff ()
virtual void SetScaleEnabled (int)
virtual int GetScaleEnabled ()
virtual void ScaleEnabledOn ()
virtual void ScaleEnabledOff ()
virtual void SetOriginTranslation (int)
virtual int GetOriginTranslation ()
virtual void OriginTranslationOn ()
virtual void OriginTranslationOff ()
virtual void SetDiagonalRatio (double)
virtual double GetDiagonalRatio ()
virtual vtkPropertyGetNormalProperty ()
virtual vtkPropertyGetSelectedNormalProperty ()
virtual vtkPropertyGetPlaneProperty ()
virtual vtkPropertyGetSelectedPlaneProperty ()
virtual vtkPropertyGetOutlineProperty ()
virtual vtkPropertyGetSelectedOutlineProperty ()
virtual vtkPropertyGetEdgesProperty ()

Static Public Member Functions

static vtkImplicitPlaneWidgetNew ()
static int IsTypeOf (const char *type)
static vtkImplicitPlaneWidgetSafeDownCast (vtkObject *o)

Protected Types

enum  WidgetState {
  Start = 0, MovingPlane, MovingOutline, MovingOrigin,
  Scaling, Pushing, Rotating, Outside
}

Protected Member Functions

 vtkImplicitPlaneWidget ()
 ~vtkImplicitPlaneWidget ()
void OnLeftButtonDown ()
void OnLeftButtonUp ()
void OnMiddleButtonDown ()
void OnMiddleButtonUp ()
void OnRightButtonDown ()
void OnRightButtonUp ()
void OnMouseMove ()
void UpdateRepresentation ()
void HighlightOutline (int highlight)
virtual void HighlightPlane (int highlight)
void HighlightNormal (int highlight)
void ConstrainOrigin (double x[3])
void Rotate (int X, int Y, double *p1, double *p2, double *vpn)
void TranslatePlane (double *p1, double *p2)
void TranslateOutline (double *p1, double *p2)
void TranslateOrigin (double *p1, double *p2)
void Push (double *p1, double *p2)
void Scale (double *p1, double *p2, int X, int Y)
void CreateDefaultProperties ()
void GeneratePlane ()

Static Protected Member Functions

static void ProcessEvents (vtkObject *object, unsigned long event, void *clientdata, void *calldata)

Protected Attributes

int State
int NormalToXAxis
int NormalToYAxis
int NormalToZAxis
vtkPlanePlane
vtkImageDataBox
vtkOutlineFilterOutline
vtkPolyDataMapperOutlineMapper
vtkActorOutlineActor
int OutlineTranslation
int ScaleEnabled
int OutsideBounds
vtkCutterCutter
vtkPolyDataMapperCutMapper
vtkActorCutActor
int DrawPlane
vtkFeatureEdgesEdges
vtkTubeFilterEdgesTuber
vtkPolyDataMapperEdgesMapper
vtkActorEdgesActor
int Tubing
double DiagonalRatio
vtkConeSourceConeSource
vtkPolyDataMapperConeMapper
vtkActorConeActor
vtkLineSourceLineSource
vtkPolyDataMapperLineMapper
vtkActorLineActor
vtkConeSourceConeSource2
vtkPolyDataMapperConeMapper2
vtkActorConeActor2
vtkLineSourceLineSource2
vtkPolyDataMapperLineMapper2
vtkActorLineActor2
vtkSphereSourceSphere
vtkPolyDataMapperSphereMapper
vtkActorSphereActor
int OriginTranslation
vtkCellPickerPicker
vtkTransformTransform
vtkPropertyNormalProperty
vtkPropertySelectedNormalProperty
vtkPropertyPlaneProperty
vtkPropertySelectedPlaneProperty
vtkPropertyOutlineProperty
vtkPropertySelectedOutlineProperty
vtkPropertyEdgesProperty

Member Typedef Documentation

Reimplemented from vtkPolyDataSourceWidget.

Definition at line 103 of file vtkImplicitPlaneWidget.h.


Member Enumeration Documentation

Enumerator:
Start
MovingPlane
MovingOutline
MovingOrigin
Scaling
Pushing
Rotating
Outside

Definition at line 258 of file vtkImplicitPlaneWidget.h.


Constructor & Destructor Documentation

vtkImplicitPlaneWidget::vtkImplicitPlaneWidget (  )  [protected]

vtkImplicitPlaneWidget::~vtkImplicitPlaneWidget (  )  [protected]


Member Function Documentation

static vtkImplicitPlaneWidget* vtkImplicitPlaneWidget::New (  )  [static]

Instantiate the object.

Reimplemented from vtkObject.

virtual const char* vtkImplicitPlaneWidget::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataSourceWidget.

static int vtkImplicitPlaneWidget::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSourceWidget.

virtual int vtkImplicitPlaneWidget::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSourceWidget.

static vtkImplicitPlaneWidget* vtkImplicitPlaneWidget::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataSourceWidget.

void vtkImplicitPlaneWidget::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataSourceWidget.

virtual void vtkImplicitPlaneWidget::SetEnabled ( int   )  [virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtkInteractorObserver.

virtual void vtkImplicitPlaneWidget::PlaceWidget ( double  bounds[6]  )  [virtual]

Methods that satisfy the superclass' API.

Implements vtkPolyDataSourceWidget.

void vtkImplicitPlaneWidget::PlaceWidget (  )  [inline, virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtkPolyDataSourceWidget.

Definition at line 110 of file vtkImplicitPlaneWidget.h.

void vtkImplicitPlaneWidget::PlaceWidget ( double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax
) [inline, virtual]

Methods that satisfy the superclass' API.

Reimplemented from vtkPolyDataSourceWidget.

Definition at line 112 of file vtkImplicitPlaneWidget.h.

virtual void vtkImplicitPlaneWidget::SetOrigin ( double  x,
double  y,
double  z
) [virtual]

Get the origin of the plane.

virtual void vtkImplicitPlaneWidget::SetOrigin ( double  x[3]  )  [virtual]

Get the origin of the plane.

double* vtkImplicitPlaneWidget::GetOrigin (  )

Get the origin of the plane.

void vtkImplicitPlaneWidget::GetOrigin ( double  xyz[3]  )

Get the origin of the plane.

void vtkImplicitPlaneWidget::SetNormal ( double  x,
double  y,
double  z
)

Get the normal to the plane.

void vtkImplicitPlaneWidget::SetNormal ( double  x[3]  )

Get the normal to the plane.

double* vtkImplicitPlaneWidget::GetNormal (  )

Get the normal to the plane.

void vtkImplicitPlaneWidget::GetNormal ( double  xyz[3]  )

Get the normal to the plane.

void vtkImplicitPlaneWidget::SetNormalToXAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneWidget::GetNormalToXAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToXAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToXAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneWidget::SetNormalToYAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneWidget::GetNormalToYAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToYAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToYAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

void vtkImplicitPlaneWidget::SetNormalToZAxis ( int   )

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual int vtkImplicitPlaneWidget::GetNormalToZAxis (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToZAxisOn (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::NormalToZAxisOff (  )  [virtual]

Force the plane widget to be aligned with one of the x-y-z axes. If one axis is set on, the other two will be set off. Remember that when the state changes, a ModifiedEvent is invoked. This can be used to snap the plane to the axes if it is orginally not aligned.

virtual void vtkImplicitPlaneWidget::SetTubing ( int   )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual int vtkImplicitPlaneWidget::GetTubing (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneWidget::TubingOn (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

virtual void vtkImplicitPlaneWidget::TubingOff (  )  [virtual]

Turn on/off tubing of the wire outline of the plane. The tube thickens the line by wrapping with a vtkTubeFilter.

void vtkImplicitPlaneWidget::SetDrawPlane ( int  plane  )

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual int vtkImplicitPlaneWidget::GetDrawPlane (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneWidget::DrawPlaneOn (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneWidget::DrawPlaneOff (  )  [virtual]

Enable/disable the drawing of the plane. In some cases the plane interferes with the object that it is operating on (i.e., the plane interferes with the cut surface it produces producing z-buffer artifacts.)

virtual void vtkImplicitPlaneWidget::SetOutlineTranslation ( int   )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual int vtkImplicitPlaneWidget::GetOutlineTranslation (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneWidget::OutlineTranslationOn (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneWidget::OutlineTranslationOff (  )  [virtual]

Turn on/off the ability to translate the bounding box by grabbing it with the left mouse button.

virtual void vtkImplicitPlaneWidget::SetOutsideBounds ( int   )  [virtual]

Turn on/off the ability to move the widget outside of the input's bound

virtual int vtkImplicitPlaneWidget::GetOutsideBounds (  )  [virtual]

Turn on/off the ability to move the widget outside of the input's bound

virtual void vtkImplicitPlaneWidget::OutsideBoundsOn (  )  [virtual]

Turn on/off the ability to move the widget outside of the input's bound

virtual void vtkImplicitPlaneWidget::OutsideBoundsOff (  )  [virtual]

Turn on/off the ability to move the widget outside of the input's bound

virtual void vtkImplicitPlaneWidget::SetScaleEnabled ( int   )  [virtual]

Turn on/off the ability to scale with the mouse

virtual int vtkImplicitPlaneWidget::GetScaleEnabled (  )  [virtual]

Turn on/off the ability to scale with the mouse

virtual void vtkImplicitPlaneWidget::ScaleEnabledOn (  )  [virtual]

Turn on/off the ability to scale with the mouse

virtual void vtkImplicitPlaneWidget::ScaleEnabledOff (  )  [virtual]

Turn on/off the ability to scale with the mouse

virtual void vtkImplicitPlaneWidget::SetOriginTranslation ( int   )  [virtual]

Turn on/off the ability to translate the origin (sphere) with the left mouse button.

virtual int vtkImplicitPlaneWidget::GetOriginTranslation (  )  [virtual]

Turn on/off the ability to translate the origin (sphere) with the left mouse button.

virtual void vtkImplicitPlaneWidget::OriginTranslationOn (  )  [virtual]

Turn on/off the ability to translate the origin (sphere) with the left mouse button.

virtual void vtkImplicitPlaneWidget::OriginTranslationOff (  )  [virtual]

Turn on/off the ability to translate the origin (sphere) with the left mouse button.

virtual void vtkImplicitPlaneWidget::SetDiagonalRatio ( double   )  [virtual]

By default the arrow is 30% of the diagonal length. DiagonalRatio control this ratio in the interval [0-2]

virtual double vtkImplicitPlaneWidget::GetDiagonalRatio (  )  [virtual]

By default the arrow is 30% of the diagonal length. DiagonalRatio control this ratio in the interval [0-2]

void vtkImplicitPlaneWidget::GetPolyData ( vtkPolyData pd  )

Grab the polydata that defines the plane. The polydata contains a single polygon that is clipped by the bounding box.

vtkPolyDataAlgorithm* vtkImplicitPlaneWidget::GetPolyDataAlgorithm (  )  [virtual]

Satisfies superclass API. This returns a pointer to the underlying PolyData (which represents the plane).

Implements vtkPolyDataSourceWidget.

void vtkImplicitPlaneWidget::GetPlane ( vtkPlane plane  )

Get the implicit function for the plane. The user must provide the instance of the class vtkPlane. Note that vtkPlane is a subclass of vtkImplicitFunction, meaning that it can be used by a variety of filters to perform clipping, cutting, and selection of data.

void vtkImplicitPlaneWidget::UpdatePlacement (  )  [virtual]

Satisfies the superclass API. This will change the state of the widget to match changes that have been made to the underlying PolyDataSource

Implements vtkPolyDataSourceWidget.

virtual void vtkImplicitPlaneWidget::SizeHandles (  )  [virtual]

Control widget appearance

Reimplemented from vtk3DWidget.

virtual vtkProperty* vtkImplicitPlaneWidget::GetNormalProperty (  )  [virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneWidget::GetSelectedNormalProperty (  )  [virtual]

Get the properties on the normal (line and cone).

virtual vtkProperty* vtkImplicitPlaneWidget::GetPlaneProperty (  )  [virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneWidget::GetSelectedPlaneProperty (  )  [virtual]

Get the plane properties. The properties of the plane when selected and unselected can be manipulated.

virtual vtkProperty* vtkImplicitPlaneWidget::GetOutlineProperty (  )  [virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneWidget::GetSelectedOutlineProperty (  )  [virtual]

Get the property of the outline.

virtual vtkProperty* vtkImplicitPlaneWidget::GetEdgesProperty (  )  [virtual]

Get the property of the intersection edges. (This property also applies to the edges when tubed.)

static void vtkImplicitPlaneWidget::ProcessEvents ( vtkObject object,
unsigned long  event,
void *  clientdata,
void *  calldata
) [static, protected]

Handles the char widget activation event. Also handles the delete event.

Reimplemented from vtkInteractorObserver.

void vtkImplicitPlaneWidget::OnLeftButtonDown (  )  [protected]

void vtkImplicitPlaneWidget::OnLeftButtonUp (  )  [protected]

void vtkImplicitPlaneWidget::OnMiddleButtonDown (  )  [protected]

void vtkImplicitPlaneWidget::OnMiddleButtonUp (  )  [protected]

void vtkImplicitPlaneWidget::OnRightButtonDown (  )  [protected]

void vtkImplicitPlaneWidget::OnRightButtonUp (  )  [protected]

void vtkImplicitPlaneWidget::OnMouseMove (  )  [protected]

void vtkImplicitPlaneWidget::UpdateRepresentation (  )  [protected]

void vtkImplicitPlaneWidget::HighlightOutline ( int  highlight  )  [protected]

virtual void vtkImplicitPlaneWidget::HighlightPlane ( int  highlight  )  [protected, virtual]

void vtkImplicitPlaneWidget::HighlightNormal ( int  highlight  )  [protected]

void vtkImplicitPlaneWidget::ConstrainOrigin ( double  x[3]  )  [protected]

void vtkImplicitPlaneWidget::Rotate ( int  X,
int  Y,
double *  p1,
double *  p2,
double *  vpn
) [protected]

void vtkImplicitPlaneWidget::TranslatePlane ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneWidget::TranslateOutline ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneWidget::TranslateOrigin ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneWidget::Push ( double *  p1,
double *  p2
) [protected]

void vtkImplicitPlaneWidget::Scale ( double *  p1,
double *  p2,
int  X,
int  Y
) [protected]

void vtkImplicitPlaneWidget::CreateDefaultProperties (  )  [protected]

void vtkImplicitPlaneWidget::GeneratePlane (  )  [protected]


Member Data Documentation

Definition at line 257 of file vtkImplicitPlaneWidget.h.

Definition at line 285 of file vtkImplicitPlaneWidget.h.

Definition at line 286 of file vtkImplicitPlaneWidget.h.

Definition at line 287 of file vtkImplicitPlaneWidget.h.

Definition at line 291 of file vtkImplicitPlaneWidget.h.

Definition at line 294 of file vtkImplicitPlaneWidget.h.

Definition at line 295 of file vtkImplicitPlaneWidget.h.

Definition at line 296 of file vtkImplicitPlaneWidget.h.

Definition at line 297 of file vtkImplicitPlaneWidget.h.

Definition at line 299 of file vtkImplicitPlaneWidget.h.

Definition at line 300 of file vtkImplicitPlaneWidget.h.

Definition at line 301 of file vtkImplicitPlaneWidget.h.

Definition at line 304 of file vtkImplicitPlaneWidget.h.

Definition at line 305 of file vtkImplicitPlaneWidget.h.

Definition at line 306 of file vtkImplicitPlaneWidget.h.

Definition at line 307 of file vtkImplicitPlaneWidget.h.

Definition at line 311 of file vtkImplicitPlaneWidget.h.

Definition at line 312 of file vtkImplicitPlaneWidget.h.

Definition at line 313 of file vtkImplicitPlaneWidget.h.

Definition at line 314 of file vtkImplicitPlaneWidget.h.

Definition at line 315 of file vtkImplicitPlaneWidget.h.

Definition at line 318 of file vtkImplicitPlaneWidget.h.

Definition at line 321 of file vtkImplicitPlaneWidget.h.

Definition at line 322 of file vtkImplicitPlaneWidget.h.

Definition at line 323 of file vtkImplicitPlaneWidget.h.

Definition at line 327 of file vtkImplicitPlaneWidget.h.

Definition at line 328 of file vtkImplicitPlaneWidget.h.

Definition at line 329 of file vtkImplicitPlaneWidget.h.

Definition at line 332 of file vtkImplicitPlaneWidget.h.

Definition at line 333 of file vtkImplicitPlaneWidget.h.

Definition at line 334 of file vtkImplicitPlaneWidget.h.

Definition at line 337 of file vtkImplicitPlaneWidget.h.

Definition at line 338 of file vtkImplicitPlaneWidget.h.

Definition at line 339 of file vtkImplicitPlaneWidget.h.

Definition at line 342 of file vtkImplicitPlaneWidget.h.

Definition at line 343 of file vtkImplicitPlaneWidget.h.

Definition at line 344 of file vtkImplicitPlaneWidget.h.

Definition at line 345 of file vtkImplicitPlaneWidget.h.

Definition at line 348 of file vtkImplicitPlaneWidget.h.

Definition at line 351 of file vtkImplicitPlaneWidget.h.

Definition at line 364 of file vtkImplicitPlaneWidget.h.

Definition at line 365 of file vtkImplicitPlaneWidget.h.

Definition at line 366 of file vtkImplicitPlaneWidget.h.

Definition at line 367 of file vtkImplicitPlaneWidget.h.

Definition at line 368 of file vtkImplicitPlaneWidget.h.

Definition at line 369 of file vtkImplicitPlaneWidget.h.

Definition at line 370 of file vtkImplicitPlaneWidget.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 13:32:23 2008 for VTK by  doxygen 1.5.6
