vtkInteractorStyleRubberBand3D Class Reference

#include <vtkInteractorStyleRubberBand3D.h>

Inheritance diagram for vtkInteractorStyleRubberBand3D:

[legend]

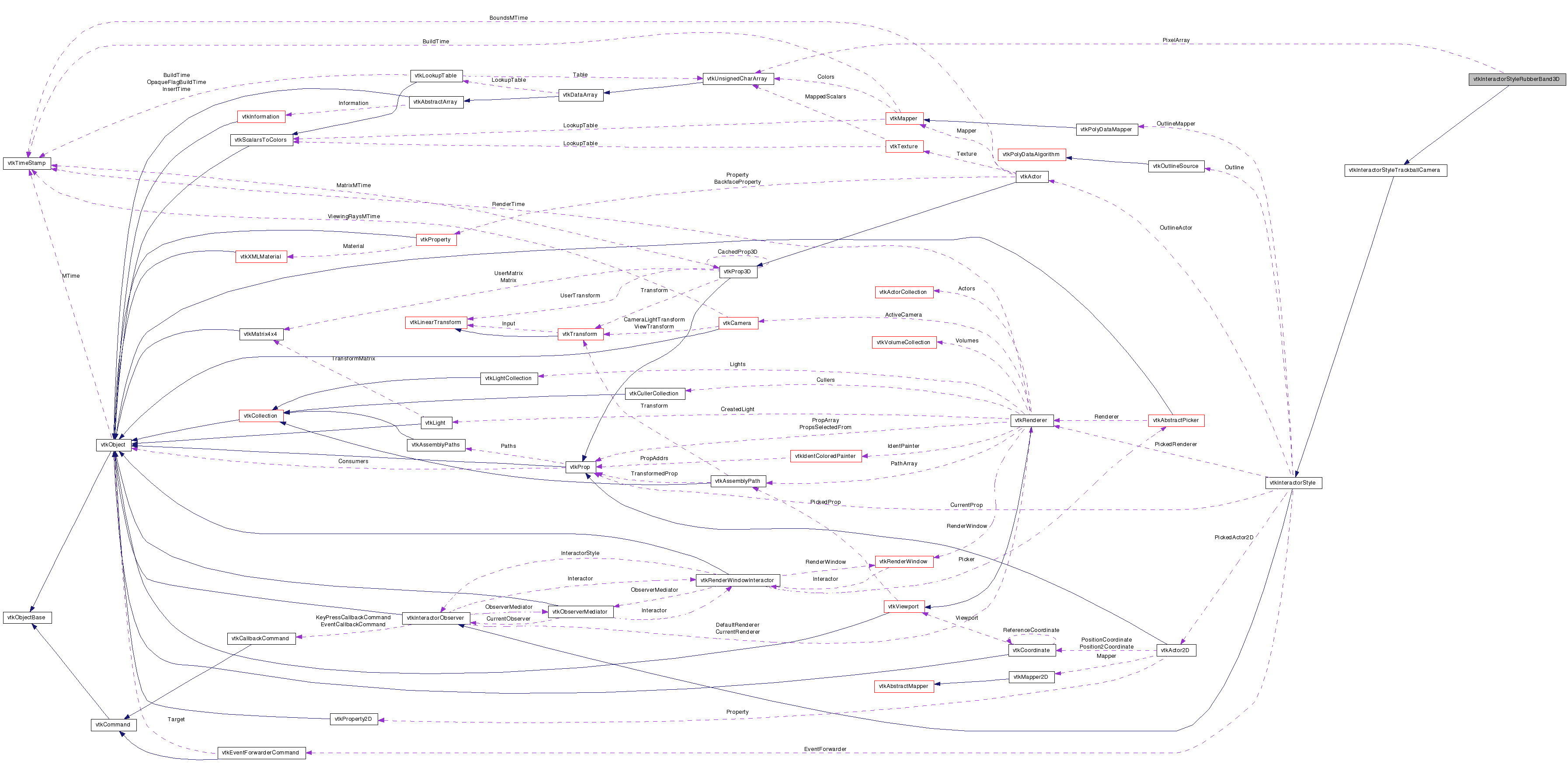

Collaboration diagram for vtkInteractorStyleRubberBand3D:

[legend]

List of all members.

Detailed Description

A rubber band interactor for a 3D view.

vtkInteractorStyleRubberBand3D manages interaction in a 3D view. The style also allows draws a rubber band using the left button. All camera changes invoke InteractionBeginEvent when the button is pressed, InteractionEvent when the mouse (or wheel) is moved, and InteractionEndEvent when the button is released. The bindings are as follows: Left mouse - Select (invokes a SelectionChangedEvent). Right mouse - Rotate. Shift + right mouse - Zoom. Middle mouse - Pan. Scroll wheel - Zoom.

Events:: vtkCommand::SelectionChangedEvent

Definition at line 47 of file vtkInteractorStyleRubberBand3D.h.


Public Types
enum	{ NONE, PANNING, ZOOMING, ROTATING, SELECTING }
typedef vtkInteractorStyleTrackballCamera	Superclass

enum	{ SELECT_NORMAL = 0, SELECT_UNION = 1 }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	OnLeftButtonDown ()
virtual void	OnLeftButtonUp ()
virtual void	OnMiddleButtonDown ()
virtual void	OnMiddleButtonUp ()
virtual void	OnRightButtonDown ()
virtual void	OnRightButtonUp ()
virtual void	OnMouseMove ()
virtual void	OnMouseWheelForward ()
virtual void	OnMouseWheelBackward ()

virtual int	GetInteraction ()
Static Public Member Functions
static vtkInteractorStyleRubberBand3D *	New ()
static int	IsTypeOf (const char *type)
static vtkInteractorStyleRubberBand3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkInteractorStyleRubberBand3D ()
	~vtkInteractorStyleRubberBand3D ()
void	RedrawRubberBand ()
Protected Attributes
int	Interaction
int	StartPosition [2]
int	EndPosition [2]
vtkUnsignedCharArray *	PixelArray

Member Typedef Documentation

typedef vtkInteractorStyleTrackballCamera vtkInteractorStyleRubberBand3D::Superclass

Reimplemented from vtkInteractorStyleTrackballCamera.

Definition at line 51 of file vtkInteractorStyleRubberBand3D.h.

Member Enumeration Documentation

anonymous enum

Selection types

Enumerator:

SELECT_NORMAL
SELECT_UNION

Definition at line 67 of file vtkInteractorStyleRubberBand3D.h.

anonymous enum

Enumerator:

NONE
PANNING
ZOOMING
ROTATING
SELECTING

Definition at line 81 of file vtkInteractorStyleRubberBand3D.h.

Constructor & Destructor Documentation

vtkInteractorStyleRubberBand3D::vtkInteractorStyleRubberBand3D ( ) [protected]

vtkInteractorStyleRubberBand3D::~vtkInteractorStyleRubberBand3D ( ) [protected]

Member Function Documentation

static vtkInteractorStyleRubberBand3D* vtkInteractorStyleRubberBand3D::New ( ) [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers.

Reimplemented from vtkInteractorStyleTrackballCamera.

virtual const char* vtkInteractorStyleRubberBand3D::GetClassName ( ) [virtual]

Reimplemented from vtkInteractorStyleTrackballCamera.

static int vtkInteractorStyleRubberBand3D::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyleTrackballCamera.

virtual int vtkInteractorStyleRubberBand3D::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyleTrackballCamera.

static vtkInteractorStyleRubberBand3D* vtkInteractorStyleRubberBand3D::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkInteractorStyleTrackballCamera.

void vtkInteractorStyleRubberBand3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorStyleTrackballCamera.

virtual void vtkInteractorStyleRubberBand3D::OnLeftButtonDown ( ) [virtual]
