vtkInteractorStyleRubberBandZoom Class Reference

#include <vtkInteractorStyleRubberBandZoom.h>

Inheritance diagram for vtkInteractorStyleRubberBandZoom:

[legend]

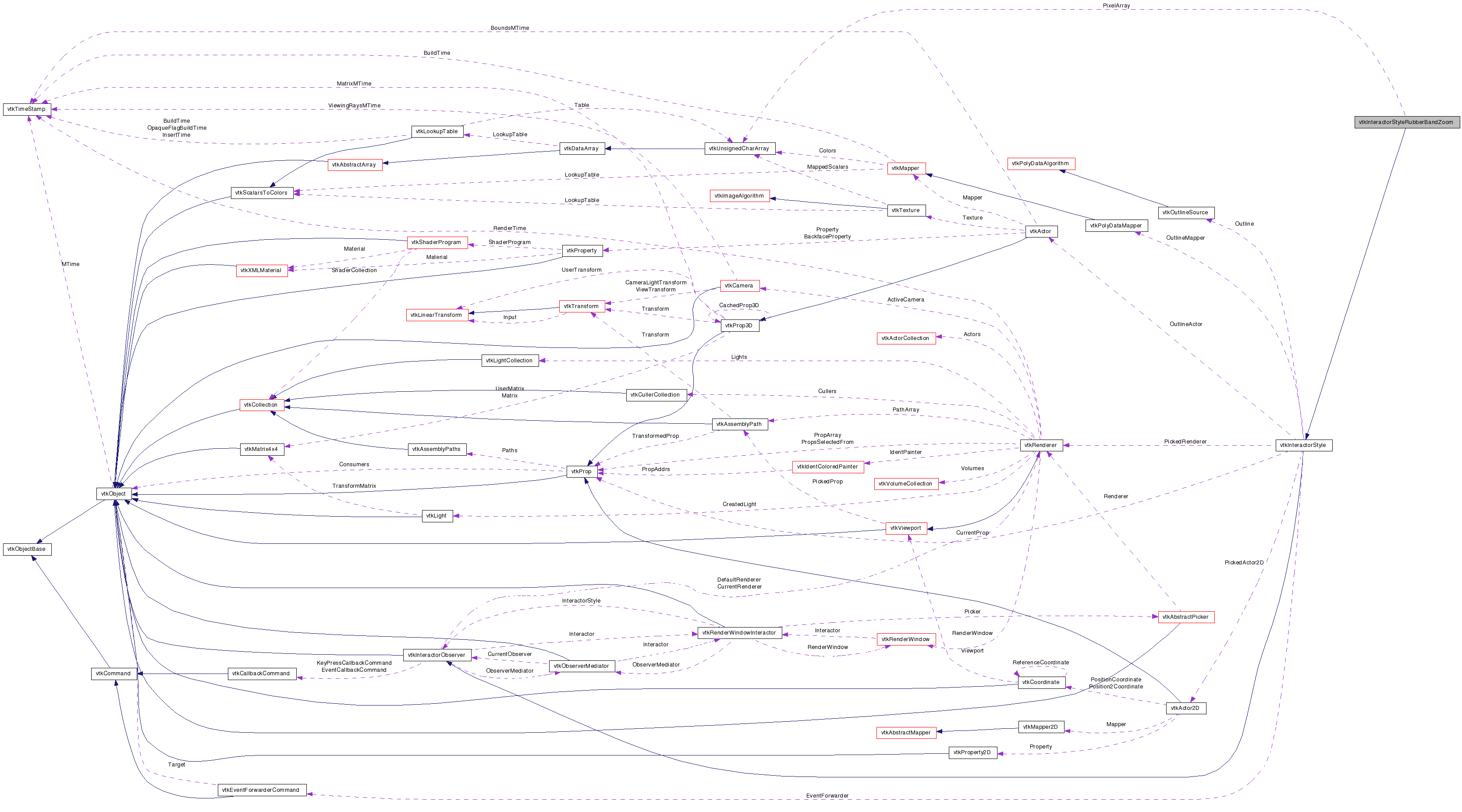

Collaboration diagram for vtkInteractorStyleRubberBandZoom:

[legend]

List of all members.

Detailed Description

zoom in by amount indicated by rubber band box

This interactor style allows the user to draw a rectangle in the render window using the left mouse button. When the mouse button is released, the current camera zooms by an amount determined from the shorter side of the drawn rectangle.

Tests:: vtkInteractorStyleRubberBandZoom (Tests)

Definition at line 34 of file vtkInteractorStyleRubberBandZoom.h.


Public Types
typedef vtkInteractorStyle	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	OnMouseMove ()
virtual void	OnLeftButtonDown ()
virtual void	OnLeftButtonUp ()
Static Public Member Functions
static vtkInteractorStyleRubberBandZoom *	New ()
static int	IsTypeOf (const char *type)
static vtkInteractorStyleRubberBandZoom *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkInteractorStyleRubberBandZoom ()
	~vtkInteractorStyleRubberBandZoom ()
virtual void	Zoom ()
Protected Attributes
int	StartPosition [2]
int	EndPosition [2]
int	Moving
vtkUnsignedCharArray *	PixelArray

Member Typedef Documentation

typedef vtkInteractorStyle vtkInteractorStyleRubberBandZoom::Superclass

Reimplemented from vtkInteractorStyle.

Definition at line 38 of file vtkInteractorStyleRubberBandZoom.h.

Constructor & Destructor Documentation

vtkInteractorStyleRubberBandZoom::vtkInteractorStyleRubberBandZoom ( ) [protected]

vtkInteractorStyleRubberBandZoom::~vtkInteractorStyleRubberBandZoom ( ) [protected]

Member Function Documentation

static vtkInteractorStyleRubberBandZoom* vtkInteractorStyleRubberBandZoom::New ( ) [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers.

Reimplemented from vtkInteractorStyle.

virtual const char* vtkInteractorStyleRubberBandZoom::GetClassName ( ) [virtual]

Reimplemented from vtkInteractorStyle.

static int vtkInteractorStyleRubberBandZoom::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

virtual int vtkInteractorStyleRubberBandZoom::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

static vtkInteractorStyleRubberBandZoom* vtkInteractorStyleRubberBandZoom::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleRubberBandZoom::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleRubberBandZoom::OnMouseMove ( ) [virtual]

Event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleRubberBandZoom::OnLeftButtonDown ( ) [virtual]

Event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleRubberBandZoom::OnLeftButtonUp ( ) [virtual]

Event bindings

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleRubberBandZoom::Zoom ( ) [protected, virtual]

These methods for the different interactions in different modes are overridden in subclasses to perform the correct motion. Since they might be called from OnTimer, they do not have mouse coord parameters (use interactor's GetEventPosition and GetLastEventPosition)

Reimplemented from vtkInteractorStyle.
