vtkIVExporter Class Reference

#include <vtkIVExporter.h>

Inheritance diagram for vtkIVExporter:

Inheritance graph
[legend]

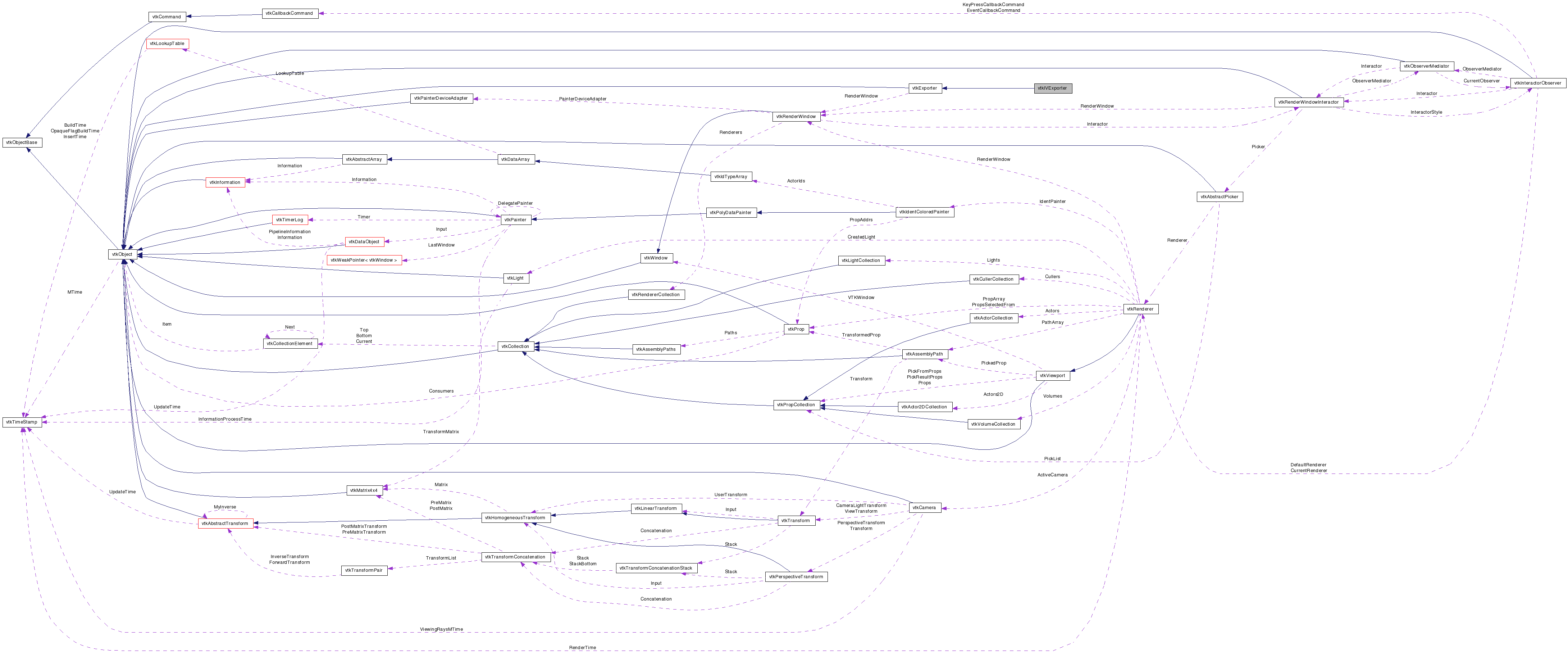

Collaboration diagram for vtkIVExporter:

Collaboration graph
[legend]

List of all members.


Detailed Description

export a scene into OpenInventor 2.0 format.

vtkIVExporter is a concrete subclass of vtkExporter that writes OpenInventor 2.0 files.

See also:
vtkExporter
Tests:
vtkIVExporter (Tests)

Definition at line 39 of file vtkIVExporter.h.


Public Types

typedef vtkExporter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetFileName (const char *)
virtual char * GetFileName ()

Static Public Member Functions

static vtkIVExporterNew ()
static int IsTypeOf (const char *type)
static vtkIVExporterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkIVExporter ()
 ~vtkIVExporter ()
void WriteData ()
void WriteALight (vtkLight *aLight, FILE *fp)
void WriteAnActor (vtkActor *anActor, FILE *fp)
void WritePointData (vtkPoints *points, vtkDataArray *normals, vtkDataArray *tcoords, vtkUnsignedCharArray *colors, FILE *fp)

Protected Attributes

char * FileName

Member Typedef Documentation

Reimplemented from vtkExporter.

Definition at line 43 of file vtkIVExporter.h.


Constructor & Destructor Documentation

vtkIVExporter::vtkIVExporter (  )  [protected]

vtkIVExporter::~vtkIVExporter (  )  [protected]


Member Function Documentation

static vtkIVExporter* vtkIVExporter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkIVExporter::GetClassName (  )  [virtual]

Reimplemented from vtkExporter.

static int vtkIVExporter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

virtual int vtkIVExporter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

static vtkIVExporter* vtkIVExporter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkExporter.

void vtkIVExporter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExporter.

virtual void vtkIVExporter::SetFileName ( const char *   )  [virtual]

Specify the name of the OpenInventor file to write.

virtual char* vtkIVExporter::GetFileName (  )  [virtual]

Specify the name of the OpenInventor file to write.

void vtkIVExporter::WriteData (  )  [protected, virtual]

Implements vtkExporter.

void vtkIVExporter::WriteALight ( vtkLight aLight,
FILE *  fp
) [protected]

void vtkIVExporter::WriteAnActor ( vtkActor anActor,
FILE *  fp
) [protected]

void vtkIVExporter::WritePointData ( vtkPoints points,
vtkDataArray normals,
vtkDataArray tcoords,
vtkUnsignedCharArray colors,
FILE *  fp
) [protected]


Member Data Documentation

char* vtkIVExporter::FileName [protected]

Definition at line 62 of file vtkIVExporter.h.


The documentation for this class was generated from the following file:
