vtkLineRepresentation Class Reference

#include <vtkLineRepresentation.h>

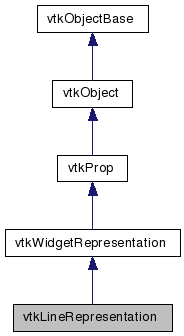

Inheritance diagram for vtkLineRepresentation:

[legend]

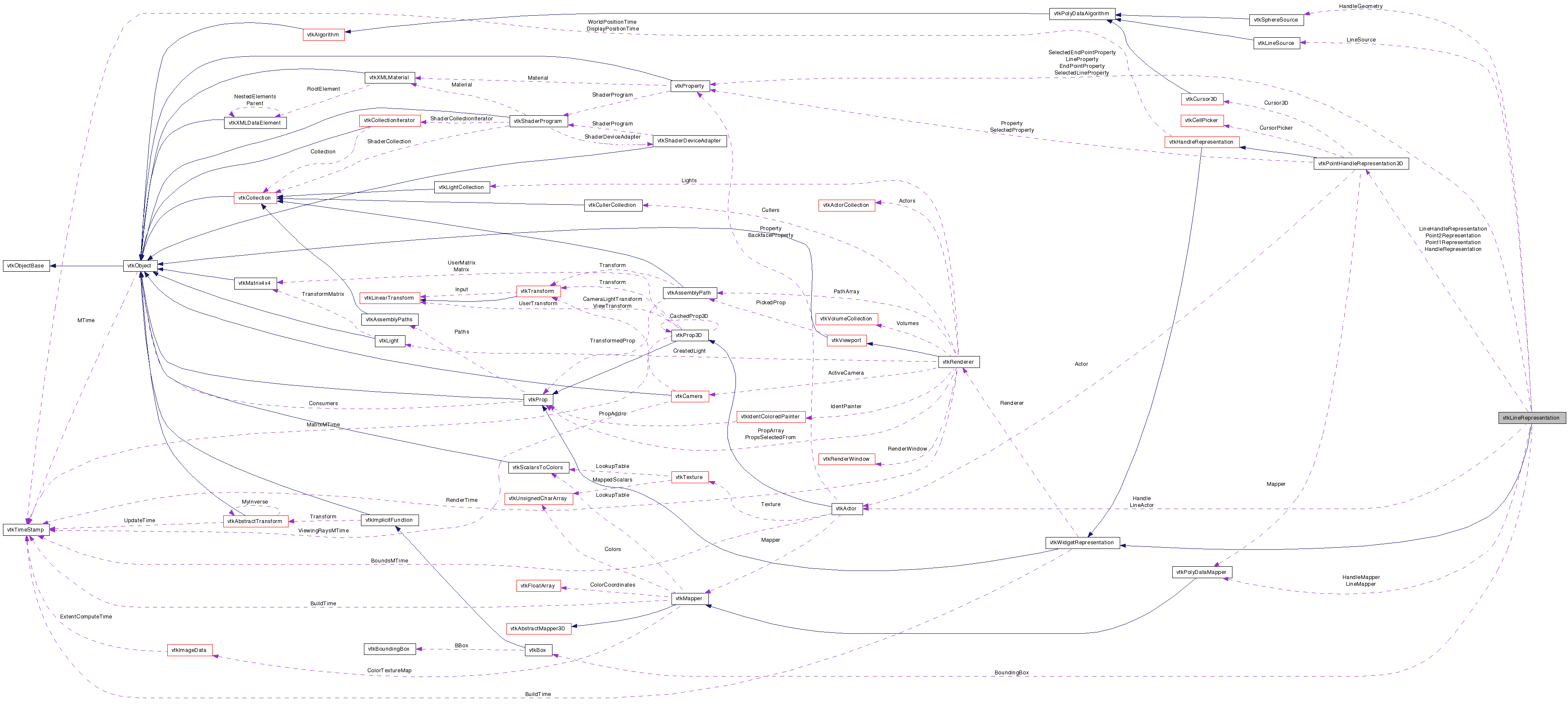

Collaboration diagram for vtkLineRepresentation:

[legend]

List of all members.

Detailed Description

a class defining the representation for a vtkLineWidget2

This class is a concrete representation for the vtkLineWidget2. It represents a straight line with three handles: one at the beginning and ending of the line, and one used to translate the line. Through interaction with the widget, the line representation can be arbitrarily placed in the 3D space.

To use this representation, you normally specify the position of the two end points (either in world or display coordinates). The PlaceWidget() method is also used to intially position the representation.

Warning:: This class, and vtkLineWidget2, are next generation VTK widgets. An earlier version of this functionality was defined in the class vtkLineWidget.

See also:: vtkLineWidget2 vtkLineWidget

Tests:: vtkLineRepresentation (Tests)

Definition at line 56 of file vtkLineRepresentation.h.


typedef vtkWidgetRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkLineRepresentation *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Types
enum	{ Outside = 0, OnP1, OnP2, TranslatingP1, TranslatingP2, OnLine, Scaling }
Public Member Functions
void	GetPolyData (vtkPolyData *pd)
virtual unsigned long	GetMTime ()
virtual void	SetRenderer (vtkRenderer *ren)

void	GetPoint1WorldPosition (double pos[3])
double *	GetPoint1WorldPosition ()
void	GetPoint1DisplayPosition (double pos[3])
double *	GetPoint1DisplayPosition ()
void	SetPoint1WorldPosition (double pos[3])
void	SetPoint1DisplayPosition (double pos[3])
void	GetPoint2DisplayPosition (double pos[3])
double *	GetPoint2DisplayPosition ()
void	GetPoint2WorldPosition (double pos[3])
double *	GetPoint2WorldPosition ()
void	SetPoint2WorldPosition (double pos[3])
void	SetPoint2DisplayPosition (double pos[3])

void	SetHandleRepresentation (vtkPointHandleRepresentation3D *handle)
void	InstantiateHandleRepresentation ()

virtual vtkPointHandleRepresentation3D *	GetPoint1Representation ()
virtual vtkPointHandleRepresentation3D *	GetPoint2Representation ()
virtual vtkPointHandleRepresentation3D *	GetLineHandleRepresentation ()

virtual vtkProperty *	GetEndPointProperty ()
virtual vtkProperty *	GetSelectedEndPointProperty ()

virtual vtkProperty *	GetLineProperty ()
virtual vtkProperty *	GetSelectedLineProperty ()

virtual void	SetTolerance (int)
virtual int	GetTolerance ()

void	SetResolution (int res)
int	GetResolution ()

virtual void	PlaceWidget (double bounds[6])
virtual void	BuildRepresentation ()
virtual int	ComputeInteractionState (int X, int Y, int modify=0)
virtual void	StartWidgetInteraction (double e[2])
virtual void	WidgetInteraction (double e[2])
virtual double *	GetBounds ()

virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual int	RenderOpaqueGeometry (vtkViewport *)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int	HasTranslucentPolygonalGeometry ()

virtual void	SetInteractionState (int)

virtual void	SetRepresentationState (int)
virtual int	GetRepresentationState ()
Static Public Member Functions
static vtkLineRepresentation *	New ()
Protected Member Functions
	vtkLineRepresentation ()
	~vtkLineRepresentation ()
void	CreateDefaultProperties ()
void	ClampPosition (double x[3])
void	HighlightPoint (int ptId, int highlight)
void	HighlightLine (int highlight)
int	InBounds (double x[3])
void	SizeHandles ()
Protected Attributes
vtkPointHandleRepresentation3D *	HandleRepresentation
vtkPointHandleRepresentation3D *	Point1Representation
vtkPointHandleRepresentation3D *	Point2Representation
vtkPointHandleRepresentation3D *	LineHandleRepresentation
int	RepresentationState
vtkActor *	LineActor
vtkPolyDataMapper *	LineMapper
vtkLineSource *	LineSource
vtkActor **	Handle
vtkPolyDataMapper **	HandleMapper
vtkSphereSource **	HandleGeometry
vtkProperty *	EndPointProperty
vtkProperty *	SelectedEndPointProperty
vtkProperty *	LineProperty
vtkProperty *	SelectedLineProperty
int	Tolerance
int	ClampToBounds
double	StartP1 [3]
double	StartP2 [3]
double	StartLineHandle [3]
double	Length
double	LastEventPosition [3]
vtkBox *	BoundingBox
int	InitializedDisplayPosition

Member Typedef Documentation

typedef vtkWidgetRepresentation vtkLineRepresentation::Superclass

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

Definition at line 64 of file vtkLineRepresentation.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

Outside
OnP1
OnP2
TranslatingP1
TranslatingP2
OnLine
Scaling

Definition at line 163 of file vtkLineRepresentation.h.

Constructor & Destructor Documentation

vtkLineRepresentation::vtkLineRepresentation ( ) [protected]

vtkLineRepresentation::~vtkLineRepresentation ( ) [protected]

Member Function Documentation

static vtkLineRepresentation* vtkLineRepresentation::New ( ) [static]

Instantiate the class.

Reimplemented from vtkObject.

virtual const char* vtkLineRepresentation::GetClassName ( ) [virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static int vtkLineRepresentation::IsTypeOf ( const char * type ) [static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkLineRepresentation::IsA ( const char * type ) [virtual]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

static vtkLineRepresentation* vtkLineRepresentation::SafeDownCast ( vtkObject * o ) [static]

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkLineRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard methods for the class.

Reimplemented from vtkWidgetRepresentation.

void vtkLineRepresentation::GetPoint1WorldPosition ( double pos[3] )
