vtkMultiBlockDataGroupFilter Class Reference

#include <vtkMultiBlockDataGroupFilter.h>

Inheritance diagram for vtkMultiBlockDataGroupFilter:

[legend]

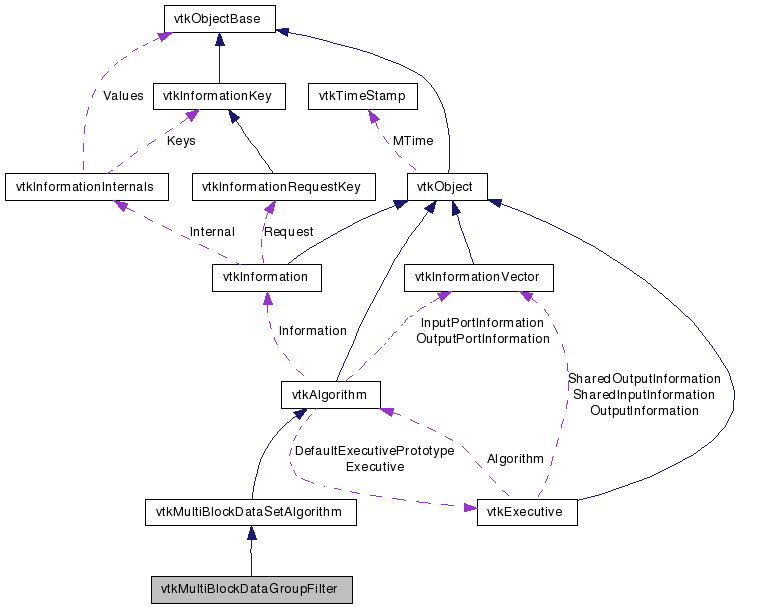

Collaboration diagram for vtkMultiBlockDataGroupFilter:

[legend]

List of all members.

---

Detailed Description

collects multiple inputs into one multi-group dataset

vtkMultiBlockDataGroupFilter is an M to 1 filter that merges multiple input into one multi-group dataset. It will assign each input to one group of the multi-group dataset and will assign each update piece as a sub-block. For example, if there are two inputs and four update pieces, the output contains two groups with four datasets each.

Definition at line 30 of file vtkMultiBlockDataGroupFilter.h.

Public Types
typedef vtkMultiBlockDataSetAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	AddInput (vtkDataObject *)
void	AddInput (int, vtkDataObject *)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMultiBlockDataGroupFilter *	SafeDownCast (vtkObject *o)
static vtkMultiBlockDataGroupFilter *	New ()
Protected Member Functions
	vtkMultiBlockDataGroupFilter ()
	~vtkMultiBlockDataGroupFilter ()
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)

---

Member Typedef Documentation

typedef vtkMultiBlockDataSetAlgorithm vtkMultiBlockDataGroupFilter::Superclass

Reimplemented from vtkMultiBlockDataSetAlgorithm.

Definition at line 33 of file vtkMultiBlockDataGroupFilter.h.

---

Constructor & Destructor Documentation

vtkMultiBlockDataGroupFilter::vtkMultiBlockDataGroupFilter

(

)

[protected]

vtkMultiBlockDataGroupFilter::~vtkMultiBlockDataGroupFilter

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkMultiBlockDataGroupFilter::GetClassName

(

)

[virtual]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static int vtkMultiBlockDataGroupFilter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkMultiBlockDataGroupFilter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkMultiBlockDataGroupFilter* vtkMultiBlockDataGroupFilter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkMultiBlockDataGroupFilter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

static vtkMultiBlockDataGroupFilter* vtkMultiBlockDataGroupFilter::New

(

)

[static]

Construct object with PointIds and CellIds on; and ids being generated as scalars.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

void vtkMultiBlockDataGroupFilter::AddInput

(

vtkDataObject *

)

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

void vtkMultiBlockDataGroupFilter::AddInput	(	int	,
		vtkDataObject *
	)

Add an input of this algorithm. Note that these methods support old-style pipeline connections. When writing new code you should use the more general vtkAlgorithm::AddInputConnection(). See SetInput() for details.

int vtkMultiBlockDataGroupFilter::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

virtual int vtkMultiBlockDataGroupFilter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkMultiBlockDataSetAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkMultiBlockDataGroupFilter.h
