vtkOOGLExporter Class Reference

#include <vtkOOGLExporter.h>

Inheritance diagram for vtkOOGLExporter:

[legend]

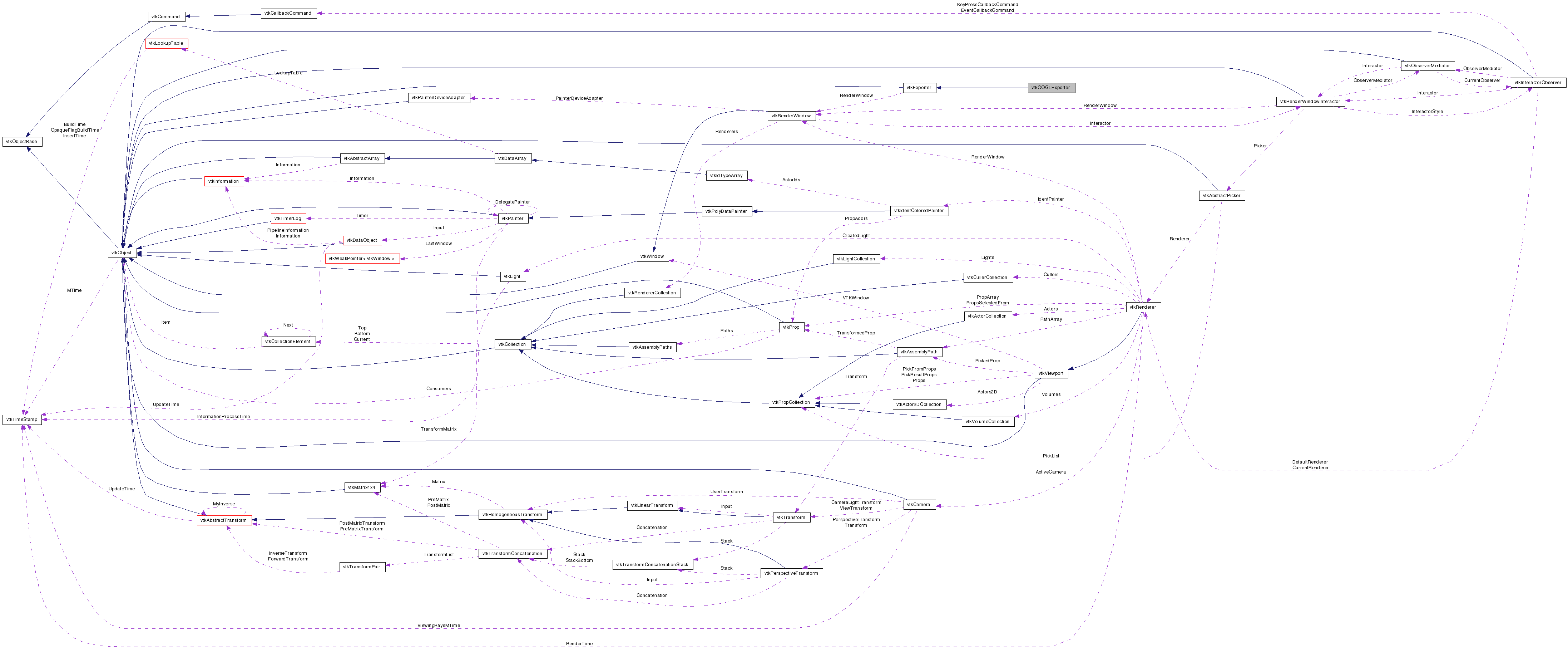

Collaboration diagram for vtkOOGLExporter:

[legend]

List of all members.

---

Detailed Description

export a scene into Geomview OOGL format.

vtkOOGLExporter is a concrete subclass of vtkExporter that writes Geomview OOGL files.

See also:

vtkExporter

Tests:

vtkOOGLExporter (Tests)

Definition at line 37 of file vtkOOGLExporter.h.

Public Types
typedef vtkExporter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
Static Public Member Functions
static vtkOOGLExporter *	New ()
static int	IsTypeOf (const char *type)
static vtkOOGLExporter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkOOGLExporter ()
	~vtkOOGLExporter ()
void	WriteData ()
void	WriteALight (vtkLight *aLight, FILE *fp)
void	WriteAnActor (vtkActor *anActor, FILE *fp, int count)
Protected Attributes
char *	FileName

---

Member Typedef Documentation

typedef vtkExporter vtkOOGLExporter::Superclass

Reimplemented from vtkExporter.

Definition at line 41 of file vtkOOGLExporter.h.

---

Constructor & Destructor Documentation

vtkOOGLExporter::vtkOOGLExporter

(

)

[protected]

vtkOOGLExporter::~vtkOOGLExporter

(

)

[protected]

---

Member Function Documentation

static vtkOOGLExporter* vtkOOGLExporter::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkOOGLExporter::GetClassName

(

)

[virtual]

Reimplemented from vtkExporter.

static int vtkOOGLExporter::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

virtual int vtkOOGLExporter::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkExporter.

static vtkOOGLExporter* vtkOOGLExporter::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkExporter.

void vtkOOGLExporter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExporter.

virtual void vtkOOGLExporter::SetFileName

(

const char *

)

[virtual]

Specify the name of the Geomview file to write.

virtual char* vtkOOGLExporter::GetFileName

(

)

[virtual]

Specify the name of the Geomview file to write.

void vtkOOGLExporter::WriteData

(

)

[protected, virtual]

Implements vtkExporter.

void vtkOOGLExporter::WriteALight	(	vtkLight *	aLight,
		FILE *	fp
	)			[protected]

void vtkOOGLExporter::WriteAnActor	(	vtkActor *	anActor,
		FILE *	fp,
		int	count
	)			[protected]

---

Member Data Documentation

char* vtkOOGLExporter::FileName [protected]

Definition at line 57 of file vtkOOGLExporter.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOOGLExporter.h
