vtkPLYWriter Class Reference

#include <vtkPLYWriter.h>

Inheritance diagram for vtkPLYWriter:

Inheritance graph
[legend]

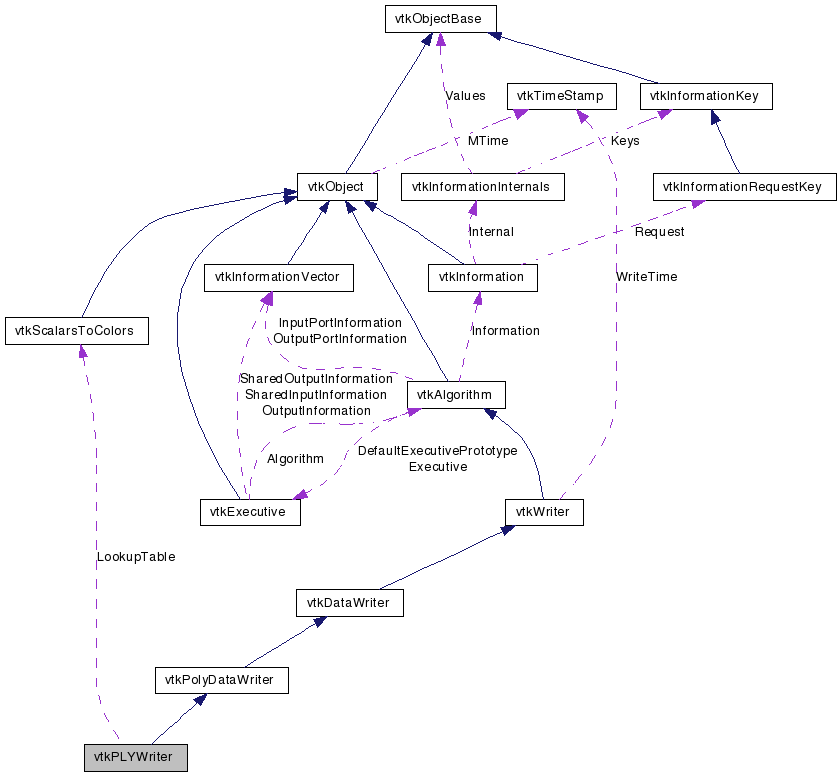

Collaboration diagram for vtkPLYWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

write Stanford PLY file format

vtkPLYWriter writes polygonal data in Stanford University PLY format (see http://graphics.stanford.edu/data/3Dscanrep/). The data can be written in either binary (little or big endian) or ASCII representation. As for PointData and CellData, vtkPLYWriter cannot handle normals or vectors. It only handles RGB PointData and CellData. You need to set the name of the array (using SetName for the array and SetArrayName for the writer). If the array is not a vtkUnsignedCharArray with 3 components, you need to specify a vtkLookupTable to map the scalars to RGB.

Warning:
PLY does not handle big endian versus little endian correctly.
See also:
vtkPLYReader
Tests:
vtkPLYWriter (Tests)

Definition at line 55 of file vtkPLYWriter.h.


Public Types

typedef vtkPolyDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDataByteOrder (int)
virtual int GetDataByteOrder ()
void SetDataByteOrderToBigEndian ()
void SetDataByteOrderToLittleEndian ()
virtual void SetColorMode (int)
virtual int GetColorMode ()
void SetColorModeToDefault ()
void SetColorModeToUniformCellColor ()
void SetColorModeToUniformPointColor ()
void SetColorModeToUniformColor ()
void SetColorModeToOff ()
virtual void SetArrayName (const char *)
virtual char * GetArrayName ()
virtual void SetComponent (int)
virtual int GetComponent ()
virtual void SetLookupTable (vtkScalarsToColors *)
virtual vtkScalarsToColorsGetLookupTable ()
virtual void SetColor (unsigned char, unsigned char, unsigned char)
virtual void SetColor (unsigned char[3])
virtual unsigned char * GetColor ()
virtual void GetColor (unsigned char &, unsigned char &, unsigned char &)
virtual void GetColor (unsigned char[3])

Static Public Member Functions

static vtkPLYWriterNew ()
static int IsTypeOf (const char *type)
static vtkPLYWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPLYWriter ()
 ~vtkPLYWriter ()
void WriteData ()
unsigned char * GetColors (vtkIdType num, vtkDataSetAttributes *dsa)

Protected Attributes

int DataByteOrder
char * ArrayName
int Component
int ColorMode
vtkScalarsToColorsLookupTable
unsigned char Color [3]

Member Typedef Documentation

Reimplemented from vtkPolyDataWriter.

Definition at line 59 of file vtkPLYWriter.h.


Constructor & Destructor Documentation

vtkPLYWriter::vtkPLYWriter (  )  [protected]

vtkPLYWriter::~vtkPLYWriter (  )  [protected]


Member Function Documentation

static vtkPLYWriter* vtkPLYWriter::New (  )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkPolyDataWriter.

virtual const char* vtkPLYWriter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataWriter.

static int vtkPLYWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

virtual int vtkPLYWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

static vtkPLYWriter* vtkPLYWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataWriter.

void vtkPLYWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataWriter.

virtual void vtkPLYWriter::SetDataByteOrder ( int   )  [virtual]

If the file type is binary, then the user can specify which byte order to use (little versus big endian).

virtual int vtkPLYWriter::GetDataByteOrder (  )  [virtual]

If the file type is binary, then the user can specify which byte order to use (little versus big endian).

void vtkPLYWriter::SetDataByteOrderToBigEndian (  )  [inline]

If the file type is binary, then the user can specify which byte order to use (little versus big endian).

Definition at line 67 of file vtkPLYWriter.h.

void vtkPLYWriter::SetDataByteOrderToLittleEndian (  )  [inline]

If the file type is binary, then the user can specify which byte order to use (little versus big endian).

Definition at line 69 of file vtkPLYWriter.h.

virtual void vtkPLYWriter::SetColorMode ( int   )  [virtual]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

virtual int vtkPLYWriter::GetColorMode (  )  [virtual]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

void vtkPLYWriter::SetColorModeToDefault (  )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 89 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformCellColor (  )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 91 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformPointColor (  )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 93 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformColor (  )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 95 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToOff (  )  [inline]

These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 97 of file vtkPLYWriter.h.

virtual void vtkPLYWriter::SetArrayName ( const char *   )  [virtual]

Specify the array name to use to color the data.

virtual char* vtkPLYWriter::GetArrayName (  )  [virtual]

Specify the array name to use to color the data.

virtual void vtkPLYWriter::SetComponent ( int   )  [virtual]

Specify the array component to use to color the data.

virtual int vtkPLYWriter::GetComponent (  )  [virtual]

Specify the array component to use to color the data.

virtual void vtkPLYWriter::SetLookupTable ( vtkScalarsToColors  )  [virtual]

A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual vtkScalarsToColors* vtkPLYWriter::GetLookupTable (  )  [virtual]

A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual void vtkPLYWriter::SetColor ( unsigned  char,
unsigned  char,
unsigned  char
) [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::SetColor ( unsigned  char[3]  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual unsigned char* vtkPLYWriter::GetColor (  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor ( unsigned char &  ,
unsigned char &  ,
unsigned char &
) [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor ( unsigned  char[3]  )  [virtual]

Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

void vtkPLYWriter::WriteData (  )  [protected, virtual]

Reimplemented from vtkPolyDataWriter.

unsigned char* vtkPLYWriter::GetColors ( vtkIdType  num,
vtkDataSetAttributes dsa
) [protected]


Member Data Documentation

int vtkPLYWriter::DataByteOrder [protected]

Definition at line 136 of file vtkPLYWriter.h.

char* vtkPLYWriter::ArrayName [protected]

Definition at line 137 of file vtkPLYWriter.h.

int vtkPLYWriter::Component [protected]

Definition at line 138 of file vtkPLYWriter.h.

int vtkPLYWriter::ColorMode [protected]

Definition at line 139 of file vtkPLYWriter.h.

Definition at line 140 of file vtkPLYWriter.h.

unsigned char vtkPLYWriter::Color[3] [protected]

Definition at line 141 of file vtkPLYWriter.h.


The documentation for this class was generated from the following file:
