vtkRuledSurfaceFilter Class Reference

#include <vtkRuledSurfaceFilter.h>

Inheritance diagram for vtkRuledSurfaceFilter:

Inheritance graph
[legend]

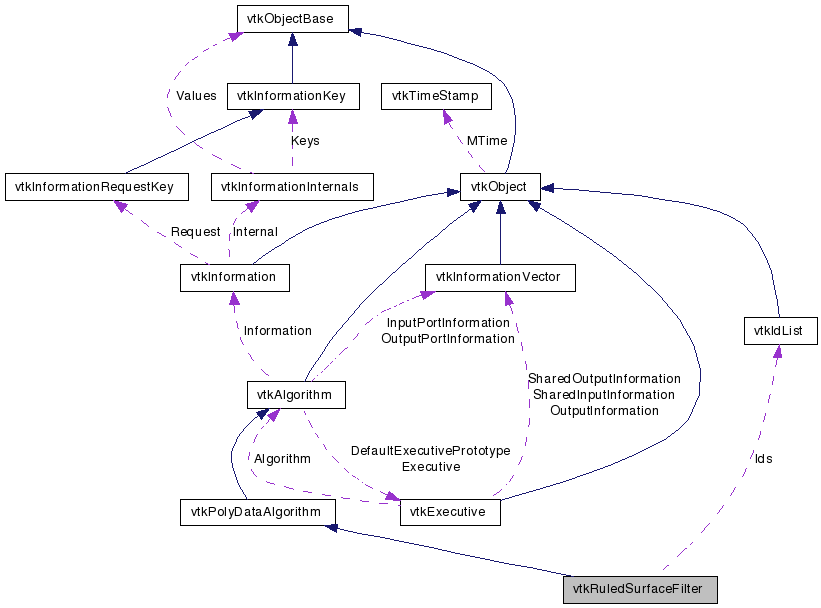

Collaboration diagram for vtkRuledSurfaceFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

generates a surface from a set of lines

vtkRuledSurfaceFilter is a filter that generates a surface from a set of lines. The lines are assumed to be "parallel" in the sense that they do not intersect and remain somewhat close to one another. A surface is generated by connecting the points defining each pair of lines with straight lines. This creates a strip for each pair of lines (i.e., a triangulation is created from two generating lines). The filter can handle an arbitrary number of lines, with lines i and i+1 assumed connected. Note that there are several different approaches for creating the ruled surface, the method for creating the surface can either use the input points or resample from the polylines (using a user-specified resolution).

This filter offers some other important features. A DistanceFactor ivar is used to decide when two lines are too far apart to connect. (The factor is a multiple of the distance between the first two points of the two lines defining the strip.) If the distance between the two generating lines becomes too great, then the surface is not generated in that region. (Note: if the lines separate and then merge, then a hole can be generated in the surface.) In addition, the Offset and OnRation ivars can be used to create nifty striped surfaces. Closed surfaces (e.g., tubes) can be created by setting the CloseSurface ivar. (The surface can be closed in the other direction by repeating the first and last point in the polylines defining the surface.)

An important use of this filter is to combine it with vtkStreamLine to generate stream surfaces. It can also be used to create surfaces from contours.

Warning:
The number of lines must be greater than two if a surface is to be generated. sides (i.e., a ribbon), use vtkRibbonFilter.
See also:
vtkRibbonFilter vtkStreamLine
Examples:
vtkRuledSurfaceFilter (Examples)
Tests:
vtkRuledSurfaceFilter (Tests)

Definition at line 71 of file vtkRuledSurfaceFilter.h.


Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDistanceFactor (double)
virtual double GetDistanceFactor ()
virtual void SetOnRatio (int)
virtual int GetOnRatio ()
virtual void SetOffset (int)
virtual int GetOffset ()
virtual void SetCloseSurface (int)
virtual int GetCloseSurface ()
virtual void CloseSurfaceOn ()
virtual void CloseSurfaceOff ()
virtual void SetRuledMode (int)
virtual int GetRuledMode ()
void SetRuledModeToResample ()
void SetRuledModeToPointWalk ()
const char * GetRuledModeAsString ()
virtual void SetResolution (int, int)
void SetResolution (int[2])
virtual int * GetResolution ()
virtual void GetResolution (int data[2])
virtual void SetPassLines (int)
virtual int GetPassLines ()
virtual void PassLinesOn ()
virtual void PassLinesOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkRuledSurfaceFilterSafeDownCast (vtkObject *o)
static vtkRuledSurfaceFilterNew ()

Protected Member Functions

 vtkRuledSurfaceFilter ()
 ~vtkRuledSurfaceFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

double DistanceFactor
int OnRatio
int Offset
int CloseSurface
int RuledMode
int Resolution [2]
int PassLines

Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 74 of file vtkRuledSurfaceFilter.h.


Constructor & Destructor Documentation

vtkRuledSurfaceFilter::vtkRuledSurfaceFilter (  )  [protected]

vtkRuledSurfaceFilter::~vtkRuledSurfaceFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkRuledSurfaceFilter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkRuledSurfaceFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRuledSurfaceFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkRuledSurfaceFilter* vtkRuledSurfaceFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkRuledSurfaceFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkRuledSurfaceFilter* vtkRuledSurfaceFilter::New (  )  [static]

Construct object with OnRatio=1, Offset=0. DistanceFactor=3.0, CloseSurface off, and PassLines off.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkRuledSurfaceFilter::SetDistanceFactor ( double   )  [virtual]

Set/Get the factor that controls tearing of the surface.

virtual double vtkRuledSurfaceFilter::GetDistanceFactor (  )  [virtual]

Set/Get the factor that controls tearing of the surface.

virtual void vtkRuledSurfaceFilter::SetOnRatio ( int   )  [virtual]

Control the striping of the ruled surface. If OnRatio is greater than 1, then every nth strip is turned on, beginning with the Offset strip.

virtual int vtkRuledSurfaceFilter::GetOnRatio (  )  [virtual]

Control the striping of the ruled surface. If OnRatio is greater than 1, then every nth strip is turned on, beginning with the Offset strip.

virtual void vtkRuledSurfaceFilter::SetOffset ( int   )  [virtual]

Control the striping of the ruled surface. The offset sets the first stripe that is visible. Offset is generally used with OnRatio to create nifty striping effects.

virtual int vtkRuledSurfaceFilter::GetOffset (  )  [virtual]

Control the striping of the ruled surface. The offset sets the first stripe that is visible. Offset is generally used with OnRatio to create nifty striping effects.

virtual void vtkRuledSurfaceFilter::SetCloseSurface ( int   )  [virtual]

Indicate whether the surface is to be closed. If this boolean is on, then the first and last polyline are used to generate a stripe that closes the surface. (Note: to close the surface in the other direction, repeat the first point in the polyline as the last point in the polyline.)

virtual int vtkRuledSurfaceFilter::GetCloseSurface (  )  [virtual]

Indicate whether the surface is to be closed. If this boolean is on, then the first and last polyline are used to generate a stripe that closes the surface. (Note: to close the surface in the other direction, repeat the first point in the polyline as the last point in the polyline.)

virtual void vtkRuledSurfaceFilter::CloseSurfaceOn (  )  [virtual]

Indicate whether the surface is to be closed. If this boolean is on, then the first and last polyline are used to generate a stripe that closes the surface. (Note: to close the surface in the other direction, repeat the first point in the polyline as the last point in the polyline.)

virtual void vtkRuledSurfaceFilter::CloseSurfaceOff (  )  [virtual]

Indicate whether the surface is to be closed. If this boolean is on, then the first and last polyline are used to generate a stripe that closes the surface. (Note: to close the surface in the other direction, repeat the first point in the polyline as the last point in the polyline.)

virtual void vtkRuledSurfaceFilter::SetRuledMode ( int   )  [virtual]

Set the mode by which to create the ruled surface. (Dramatically different results are possible depending on the chosen mode.) The resample mode evenly resamples the polylines (based on length) and generates triangle strips. The point walk mode uses the existing points and walks around the polyline using existing points.

virtual int vtkRuledSurfaceFilter::GetRuledMode (  )  [virtual]

Set the mode by which to create the ruled surface. (Dramatically different results are possible depending on the chosen mode.) The resample mode evenly resamples the polylines (based on length) and generates triangle strips. The point walk mode uses the existing points and walks around the polyline using existing points.

void vtkRuledSurfaceFilter::SetRuledModeToResample (  )  [inline]

Set the mode by which to create the ruled surface. (Dramatically different results are possible depending on the chosen mode.) The resample mode evenly resamples the polylines (based on length) and generates triangle strips. The point walk mode uses the existing points and walks around the polyline using existing points.

Definition at line 123 of file vtkRuledSurfaceFilter.h.

void vtkRuledSurfaceFilter::SetRuledModeToPointWalk (  )  [inline]

Set the mode by which to create the ruled surface. (Dramatically different results are possible depending on the chosen mode.) The resample mode evenly resamples the polylines (based on length) and generates triangle strips. The point walk mode uses the existing points and walks around the polyline using existing points.

Definition at line 125 of file vtkRuledSurfaceFilter.h.

const char* vtkRuledSurfaceFilter::GetRuledModeAsString (  )

Set the mode by which to create the ruled surface. (Dramatically different results are possible depending on the chosen mode.) The resample mode evenly resamples the polylines (based on length) and generates triangle strips. The point walk mode uses the existing points and walks around the polyline using existing points.

virtual void vtkRuledSurfaceFilter::SetResolution ( int  ,
int
) [virtual]

If the ruled surface generation mode is RESAMPLE, then these parameters are used to determine the resample rate. Resolution[0] defines the resolution in the direction of the polylines; Resolution[1] defines the resolution across the polylines (i.e., direction orthogonal to Resolution[0]).

void vtkRuledSurfaceFilter::SetResolution ( int  [2]  )

If the ruled surface generation mode is RESAMPLE, then these parameters are used to determine the resample rate. Resolution[0] defines the resolution in the direction of the polylines; Resolution[1] defines the resolution across the polylines (i.e., direction orthogonal to Resolution[0]).

virtual int* vtkRuledSurfaceFilter::GetResolution (  )  [virtual]

If the ruled surface generation mode is RESAMPLE, then these parameters are used to determine the resample rate. Resolution[0] defines the resolution in the direction of the polylines; Resolution[1] defines the resolution across the polylines (i.e., direction orthogonal to Resolution[0]).

virtual void vtkRuledSurfaceFilter::GetResolution ( int  data[2]  )  [virtual]

If the ruled surface generation mode is RESAMPLE, then these parameters are used to determine the resample rate. Resolution[0] defines the resolution in the direction of the polylines; Resolution[1] defines the resolution across the polylines (i.e., direction orthogonal to Resolution[0]).

virtual void vtkRuledSurfaceFilter::SetPassLines ( int   )  [virtual]

Indicate whether the generating lines are to be passed to the output. By defualt lines are not passed to the output.

virtual int vtkRuledSurfaceFilter::GetPassLines (  )  [virtual]

Indicate whether the generating lines are to be passed to the output. By defualt lines are not passed to the output.

virtual void vtkRuledSurfaceFilter::PassLinesOn (  )  [virtual]

Indicate whether the generating lines are to be passed to the output. By defualt lines are not passed to the output.

virtual void vtkRuledSurfaceFilter::PassLinesOff (  )  [virtual]

Indicate whether the generating lines are to be passed to the output. By defualt lines are not passed to the output.

int vtkRuledSurfaceFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 155 of file vtkRuledSurfaceFilter.h.

Definition at line 156 of file vtkRuledSurfaceFilter.h.

Definition at line 157 of file vtkRuledSurfaceFilter.h.

Definition at line 158 of file vtkRuledSurfaceFilter.h.

Definition at line 159 of file vtkRuledSurfaceFilter.h.

Definition at line 160 of file vtkRuledSurfaceFilter.h.

Definition at line 161 of file vtkRuledSurfaceFilter.h.


The documentation for this class was generated from the following file:
