vtkSmoothErrorMetric Class Reference

#include <vtkSmoothErrorMetric.h>

Inheritance diagram for vtkSmoothErrorMetric:

Inheritance graph
[legend]

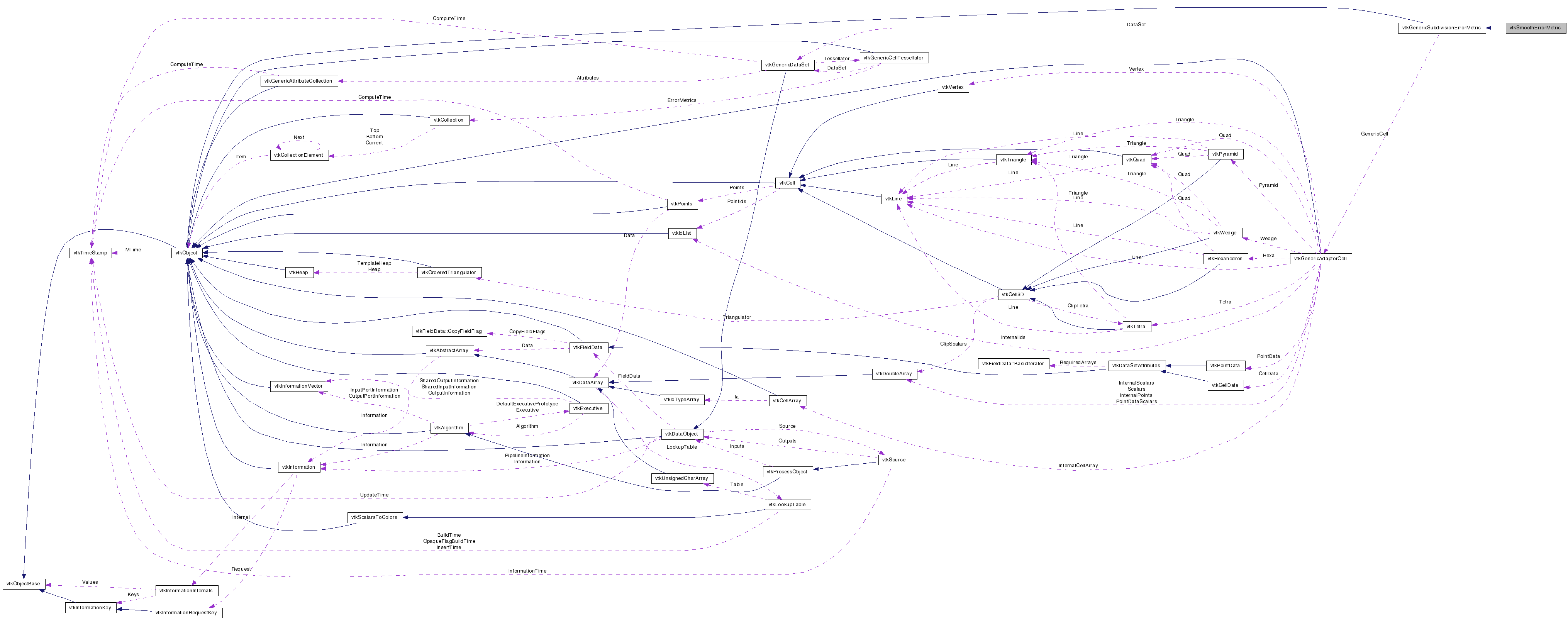

Collaboration diagram for vtkSmoothErrorMetric:

Collaboration graph
[legend]

List of all members.


Detailed Description

Objects that compute geometry-based error during cell tessellation according to some max angle.

It is a concrete error metric, based on a geometric criterium: a max angle between the chord passing through the midpoint and one of the endpoints and the other chord passing through the midpoint and the other endpoint of the edge. It is related to the flatness of an edge.

See also:
vtkGenericCellTessellator vtkGenericSubdivisionErrorMetric
Tests:
vtkSmoothErrorMetric (Tests)

Definition at line 40 of file vtkSmoothErrorMetric.h.

typedef
vtkGenericSubdivisionErrorMetric
Superclass
static int IsTypeOf (const char *type)
static vtkSmoothErrorMetricSafeDownCast (vtkObject *o)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Public Member Functions

double GetAngleTolerance ()
void SetAngleTolerance (double value)
int RequiresEdgeSubdivision (double *leftPoint, double *midPoint, double *rightPoint, double alpha)
double GetError (double *leftPoint, double *midPoint, double *rightPoint, double alpha)

Static Public Member Functions

static vtkSmoothErrorMetricNew ()

Protected Member Functions

 vtkSmoothErrorMetric ()
virtual ~vtkSmoothErrorMetric ()

Protected Attributes

double AngleTolerance
double CosTolerance

Member Typedef Documentation

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

Definition at line 49 of file vtkSmoothErrorMetric.h.


Constructor & Destructor Documentation

vtkSmoothErrorMetric::vtkSmoothErrorMetric (  )  [protected]

virtual vtkSmoothErrorMetric::~vtkSmoothErrorMetric (  )  [protected, virtual]


Member Function Documentation

static vtkSmoothErrorMetric* vtkSmoothErrorMetric::New (  )  [static]

Construct the error metric with a default flatness threshold of 90.1 degrees.

Reimplemented from vtkObject.

virtual const char* vtkSmoothErrorMetric::GetClassName (  )  [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

static int vtkSmoothErrorMetric::IsTypeOf ( const char *  type  )  [static]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

virtual int vtkSmoothErrorMetric::IsA ( const char *  type  )  [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

static vtkSmoothErrorMetric* vtkSmoothErrorMetric::SafeDownCast ( vtkObject o  )  [static]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

void vtkSmoothErrorMetric::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Standard VTK type and error macros.

Reimplemented from vtkGenericSubdivisionErrorMetric.

double vtkSmoothErrorMetric::GetAngleTolerance (  )

Return the flatness threshold.

Postcondition:
positive_result: result>90 && result<180

void vtkSmoothErrorMetric::SetAngleTolerance ( double  value  )

Set the flatness threshold with an angle in degrees. Internally compute the cosine. value is supposed to be in ]90,180[, if not it is clamped in [90.1,179.9]. For instance 178 will give better result than 150.

int vtkSmoothErrorMetric::RequiresEdgeSubdivision ( double *  leftPoint,
double *  midPoint,
double *  rightPoint,
double  alpha
) [virtual]

Does the edge need to be subdivided according to the cosine between the two chords passing through the mid-point and the endpoints? The edge is defined by its `leftPoint' and its `rightPoint'. `leftPoint', `midPoint' and `rightPoint' have to be initialized before calling RequiresEdgeSubdivision(). Their format is global coordinates, parametric coordinates and point centered attributes: xyx rst abc de... `alpha' is the normalized abscissa of the midpoint along the edge. (close to 0 means close to the left point, close to 1 means close to the right point)

Precondition:
leftPoint_exists: leftPoint!=0

midPoint_exists: midPoint!=0

rightPoint_exists: rightPoint!=0

clamped_alpha: alpha>0 && alpha<1

valid_size: sizeof(leftPoint)=sizeof(midPoint)=sizeof(rightPoint) =GetAttributeCollection()->GetNumberOfPointCenteredComponents()+6

Implements vtkGenericSubdivisionErrorMetric.

double vtkSmoothErrorMetric::GetError ( double *  leftPoint,
double *  midPoint,
double *  rightPoint,
double  alpha
) [virtual]

Return the error at the mid-point. It will return an error relative to the bounding box size if GetRelative() is true, a square absolute error otherwise. See RequiresEdgeSubdivision() for a description of the arguments.

Precondition:
leftPoint_exists: leftPoint!=0

midPoint_exists: midPoint!=0

rightPoint_exists: rightPoint!=0

clamped_alpha: alpha>0 && alpha<1

valid_size: sizeof(leftPoint)=sizeof(midPoint)=sizeof(rightPoint) =GetAttributeCollection()->GetNumberOfPointCenteredComponents()+6

Postcondition:
positive_result: result>=0

Implements vtkGenericSubdivisionErrorMetric.


Member Data Documentation

Definition at line 99 of file vtkSmoothErrorMetric.h.

Definition at line 100 of file vtkSmoothErrorMetric.h.
