vtkTableToTreeFilter Class Reference

#include <vtkTableToTreeFilter.h>

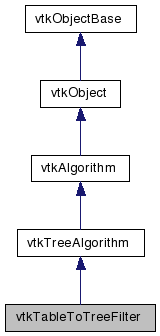

Inheritance diagram for vtkTableToTreeFilter:

Inheritance graph
[legend]

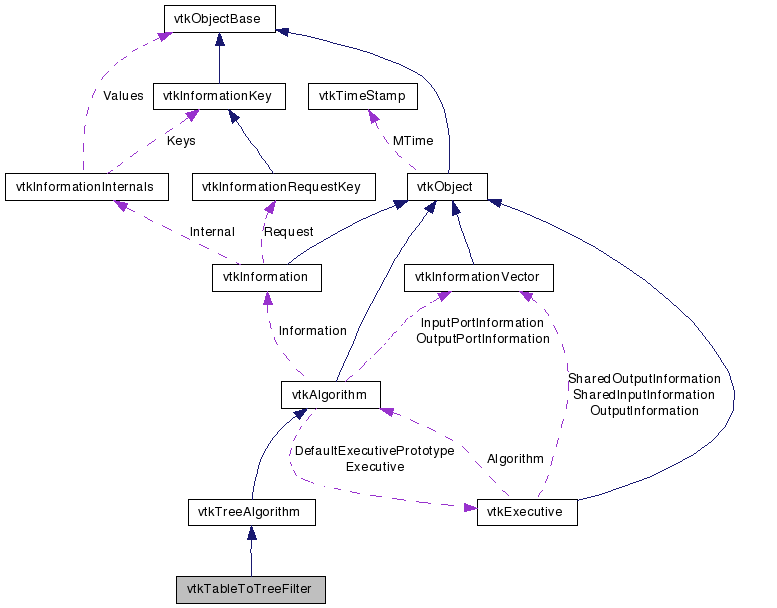

Collaboration diagram for vtkTableToTreeFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Filter that converts a vtkTable to a vtkTree.

vtkTableToTreeFilter is a filter for converting a vtkTable data structure into a vtkTree datastructure. Currently, this will convert the table into a star, with each row of the table as a child of a new root node. The columns of the table are passed as node fields of the tree.

Tests:
vtkTableToTreeFilter (Tests)

Definition at line 39 of file vtkTableToTreeFilter.h.


Public Types

typedef vtkTreeAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkTableToTreeFilterNew ()
static int IsTypeOf (const char *type)
static vtkTableToTreeFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkTableToTreeFilter ()
 ~vtkTableToTreeFilter ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
int FillOutputPortInformation (int vtkNotUsed(port), vtkInformation *info)
int FillInputPortInformation (int vtkNotUsed(port), vtkInformation *info)

Member Typedef Documentation

Reimplemented from vtkTreeAlgorithm.

Definition at line 43 of file vtkTableToTreeFilter.h.


Constructor & Destructor Documentation

vtkTableToTreeFilter::vtkTableToTreeFilter (  )  [protected]

vtkTableToTreeFilter::~vtkTableToTreeFilter (  )  [protected]


Member Function Documentation

static vtkTableToTreeFilter* vtkTableToTreeFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTreeAlgorithm.

virtual const char* vtkTableToTreeFilter::GetClassName (  )  [virtual]

Reimplemented from vtkTreeAlgorithm.

static int vtkTableToTreeFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

virtual int vtkTableToTreeFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkTreeAlgorithm.

static vtkTableToTreeFilter* vtkTableToTreeFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkTreeAlgorithm.

void vtkTableToTreeFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTreeAlgorithm.

int vtkTableToTreeFilter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkTreeAlgorithm.

int vtkTableToTreeFilter::FillOutputPortInformation ( int   vtkNotUsedport,
vtkInformation info
) [protected]

int vtkTableToTreeFilter::FillInputPortInformation ( int   vtkNotUsedport,
vtkInformation info
) [protected]


The documentation for this class was generated from the following file:
