vtkVertex Class Reference

#include <vtkVertex.h>

Inheritance diagram for vtkVertex:

[legend]

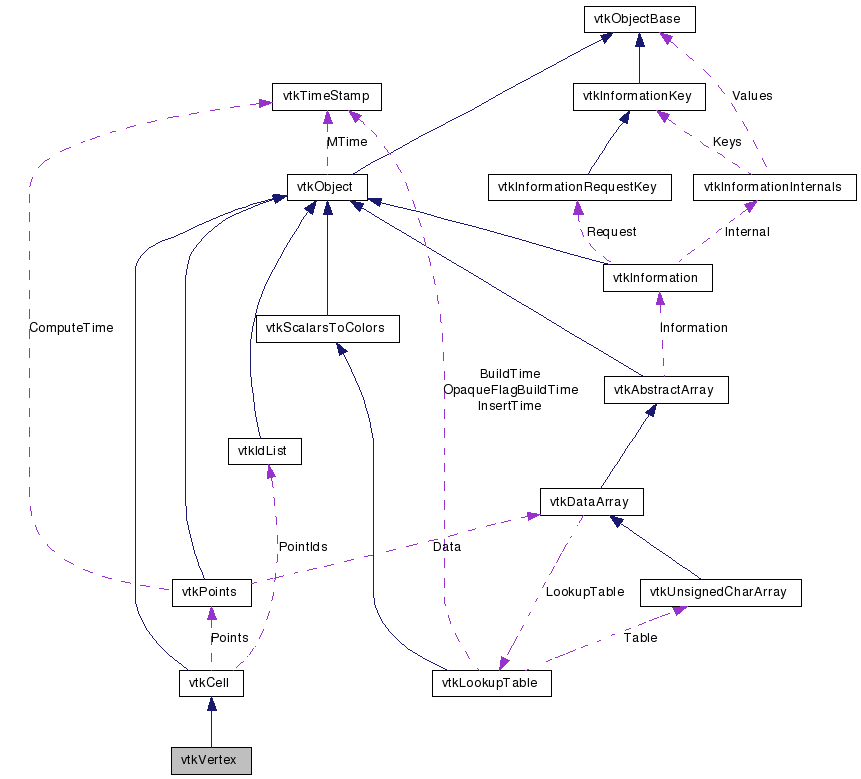

Collaboration diagram for vtkVertex:

[legend]

List of all members.

Detailed Description

a cell that represents a 3D point

vtkVertex is a concrete implementation of vtkCell to represent a 3D point.

Examples:: vtkVertex (Examples)

Tests:: vtkVertex (Tests)

Definition at line 32 of file vtkVertex.h.


static void	InterpolationFunctions (double pcoords[3], double weights[1])
static void	InterpolationDerivs (double pcoords[3], double derivs[3])
virtual void	InterpolateFunctions (double pcoords[3], double weights[1])
virtual void	InterpolateDerivs (double pcoords[3], double derivs[3])
Public Types
typedef vtkCell	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	CellBoundary (int subId, double pcoords[3], vtkIdList *pts)
int	GetParametricCenter (double pcoords[3])
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetEdge (int)
vtkCell *	GetFace (int)
void	Clip (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray pts, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
int	EvaluatePosition (double x[3], double closestPoint, int &subId, double pcoords[3], double &dist2, double weights)
void	EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)
virtual double *	GetParametricCoords ()

void	Contour (double value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts1, vtkCellArray lines, vtkCellArray verts2, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)

int	IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)

void	Derivatives (int subId, double pcoords[3], double values, int dim, double derivs)
Static Public Member Functions
static vtkVertex *	New ()
static int	IsTypeOf (const char *type)
static vtkVertex *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkVertex ()
	~vtkVertex ()

Member Typedef Documentation

typedef vtkCell vtkVertex::Superclass

Reimplemented from vtkCell.

Definition at line 36 of file vtkVertex.h.

Constructor & Destructor Documentation

vtkVertex::vtkVertex ( ) [protected]

vtkVertex::~vtkVertex ( ) [inline, protected]

Definition at line 124 of file vtkVertex.h.

Member Function Documentation

static vtkVertex* vtkVertex::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkVertex::GetClassName ( ) [virtual]

Reimplemented from vtkCell.

static int vtkVertex::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

virtual int vtkVertex::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

static vtkVertex* vtkVertex::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkCell.

void vtkVertex::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCell.

int vtkVertex::GetCellType ( ) [inline, virtual]
