vtkVolume Class Reference

#include <vtkVolume.h>

Inheritance diagram for vtkVolume:

Inheritance graph
[legend]

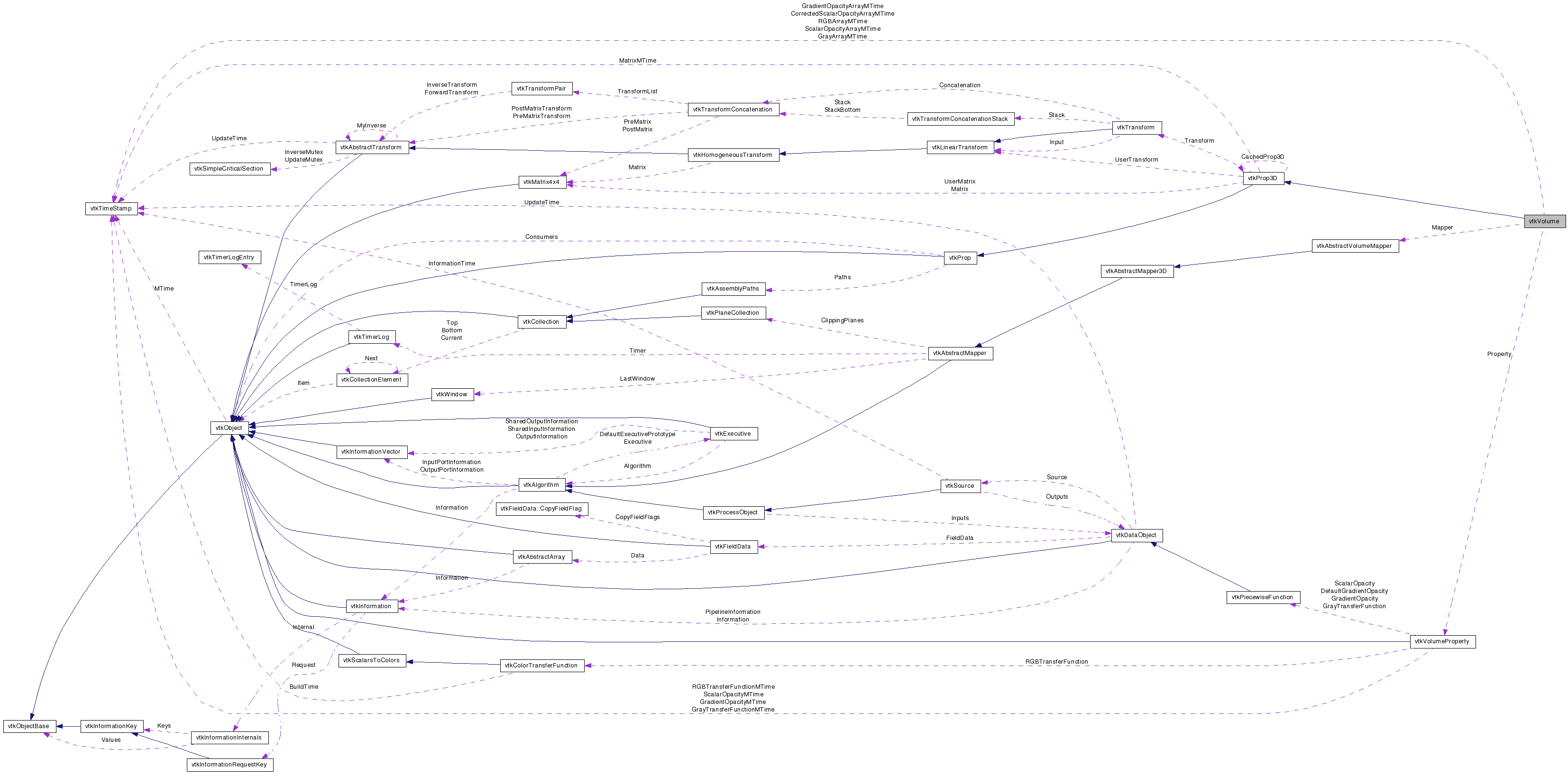

Collaboration diagram for vtkVolume:

Collaboration graph
[legend]

List of all members.


Detailed Description

represents a volume (data & properties) in a rendered scene

vtkVolume is used to represent a volumetric entity in a rendering scene. It inherits functions related to the volume's position, orientation and origin from vtkProp3D. The volume maintains a reference to the volumetric data (i.e., the volume mapper). The volume also contains a reference to a volume property which contains all common volume rendering parameters.

See also:
vtkAbstractVolumeMapper vtkVolumeProperty vtkProp3D
Examples:
vtkVolume (Examples)
Tests:
vtkVolume (Tests)

Definition at line 48 of file vtkVolume.h.


Public Types

typedef vtkProp3D Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void GetVolumes (vtkPropCollection *vc)
void Update ()
unsigned long int GetMTime ()
unsigned long GetRedrawMTime ()
void ShallowCopy (vtkProp *prop)
int RenderVolumetricGeometry (vtkViewport *viewport)
void ReleaseGraphicsResources (vtkWindow *)
float GetArraySize ()
void UpdateTransferFunctions (vtkRenderer *ren)
void SetMapper (vtkAbstractVolumeMapper *mapper)
virtual vtkAbstractVolumeMapperGetMapper ()
void SetProperty (vtkVolumeProperty *property)
vtkVolumePropertyGetProperty ()
double * GetBounds ()
void GetBounds (double bounds[6])
double GetMinXBound ()
double GetMaxXBound ()
double GetMinYBound ()
double GetMaxYBound ()
double GetMinZBound ()
double GetMaxZBound ()
float * GetCorrectedScalarOpacityArray (int)
float * GetCorrectedScalarOpacityArray ()
float * GetScalarOpacityArray (int)
float * GetScalarOpacityArray ()
float * GetGradientOpacityArray (int)
float * GetGradientOpacityArray ()
float * GetGrayArray (int)
float * GetGrayArray ()
float * GetRGBArray (int)
float * GetRGBArray ()
float GetGradientOpacityConstant (int)
float GetGradientOpacityConstant ()
void UpdateScalarOpacityforSampleSize (vtkRenderer *ren, float sample_distance)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkVolumeSafeDownCast (vtkObject *o)
static vtkVolumeNew ()

Protected Member Functions

 vtkVolume ()
 ~vtkVolume ()
float ComputeScreenCoverage (vtkViewport *vp)

Protected Attributes

vtkAbstractVolumeMapperMapper
vtkVolumePropertyProperty
float * RGBArray [VTK_MAX_VRCOMP]
vtkTimeStamp RGBArrayMTime [VTK_MAX_VRCOMP]
float * GrayArray [VTK_MAX_VRCOMP]
vtkTimeStamp GrayArrayMTime [VTK_MAX_VRCOMP]
float * ScalarOpacityArray [VTK_MAX_VRCOMP]
vtkTimeStamp ScalarOpacityArrayMTime [VTK_MAX_VRCOMP]
float * CorrectedScalarOpacityArray [VTK_MAX_VRCOMP]
vtkTimeStamp CorrectedScalarOpacityArrayMTime [VTK_MAX_VRCOMP]
float CorrectedStepSize
int ArraySize
float GradientOpacityArray [VTK_MAX_VRCOMP][256]
float GradientOpacityConstant [VTK_MAX_VRCOMP]
vtkTimeStamp GradientOpacityArrayMTime [VTK_MAX_VRCOMP]

Member Typedef Documentation

Reimplemented from vtkProp3D.

Definition at line 51 of file vtkVolume.h.


Constructor & Destructor Documentation

vtkVolume::vtkVolume (  )  [protected]

vtkVolume::~vtkVolume (  )  [protected]


Member Function Documentation

virtual const char* vtkVolume::GetClassName (  )  [virtual]

Reimplemented from vtkProp3D.

static int vtkVolume::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

virtual int vtkVolume::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkProp3D.

static vtkVolume* vtkVolume::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkProp3D.

void vtkVolume::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkProp3D.

static vtkVolume* vtkVolume::New (  )  [static]

Creates a Volume with the following defaults: origin(0,0,0) position=(0,0,0) scale=1 visibility=1 pickable=1 dragable=1 orientation=(0,0,0).

Reimplemented from vtkObject.

void vtkVolume::SetMapper ( vtkAbstractVolumeMapper mapper  )

Set/Get the volume mapper.

virtual vtkAbstractVolumeMapper* vtkVolume::GetMapper (  )  [virtual]

Set/Get the volume mapper.

void vtkVolume::SetProperty ( vtkVolumeProperty property  )

Set/Get the volume property.

vtkVolumeProperty* vtkVolume::GetProperty (  )

Set/Get the volume property.

void vtkVolume::GetVolumes ( vtkPropCollection vc  )  [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. This method is used in that process.

Reimplemented from vtkProp.

void vtkVolume::Update (  )

Update the volume rendering pipeline by updating the volume mapper

double* vtkVolume::GetBounds (  )  [virtual]

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

Implements vtkProp3D.

void vtkVolume::GetBounds ( double  bounds[6]  )  [inline]

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

Reimplemented from vtkProp3D.

Definition at line 83 of file vtkVolume.h.

double vtkVolume::GetMinXBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

double vtkVolume::GetMaxXBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

double vtkVolume::GetMinYBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

double vtkVolume::GetMaxYBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

double vtkVolume::GetMinZBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

double vtkVolume::GetMaxZBound (  )

Get the bounds - either all six at once (xmin, xmax, ymin, ymax, zmin, zmax) or one at a time.

unsigned long int vtkVolume::GetMTime (  )  [virtual]

Return the MTime also considering the property etc.

Reimplemented from vtkProp3D.

unsigned long vtkVolume::GetRedrawMTime (  )  [virtual]

Return the mtime of anything that would cause the rendered image to appear differently. Usually this involves checking the mtime of the prop plus anything else it depends on such as properties, mappers, etc.

Reimplemented from vtkProp.

void vtkVolume::ShallowCopy ( vtkProp prop  )  [virtual]

Shallow copy of this vtkVolume. Overloads the virtual vtkProp method.

Reimplemented from vtkProp3D.

int vtkVolume::RenderVolumetricGeometry ( vtkViewport viewport  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Support the standard render methods. Depending on the mapper type, the volume may be rendered using this method (FRAMEBUFFER volume such as texture mapping will be rendered this way)

Reimplemented from vtkProp.

void vtkVolume::ReleaseGraphicsResources ( vtkWindow  )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE Release any graphics resources that are being consumed by this volume. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkProp.

float* vtkVolume::GetCorrectedScalarOpacityArray ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float* vtkVolume::GetCorrectedScalarOpacityArray (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 122 of file vtkVolume.h.

float* vtkVolume::GetScalarOpacityArray ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float* vtkVolume::GetScalarOpacityArray (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 130 of file vtkVolume.h.

float* vtkVolume::GetGradientOpacityArray ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float* vtkVolume::GetGradientOpacityArray (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 137 of file vtkVolume.h.

float* vtkVolume::GetGrayArray ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float* vtkVolume::GetGrayArray (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 144 of file vtkVolume.h.

float* vtkVolume::GetRGBArray ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float* vtkVolume::GetRGBArray (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 151 of file vtkVolume.h.

float vtkVolume::GetGradientOpacityConstant ( int   )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float vtkVolume::GetGradientOpacityConstant (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 158 of file vtkVolume.h.

float vtkVolume::GetArraySize (  )  [inline]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

Definition at line 164 of file vtkVolume.h.

void vtkVolume::UpdateTransferFunctions ( vtkRenderer ren  )

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

void vtkVolume::UpdateScalarOpacityforSampleSize ( vtkRenderer ren,
float  sample_distance
)

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS

float vtkVolume::ComputeScreenCoverage ( vtkViewport vp  )  [protected]


Member Data Documentation

Definition at line 183 of file vtkVolume.h.

Definition at line 184 of file vtkVolume.h.

float* vtkVolume::RGBArray[VTK_MAX_VRCOMP] [protected]

Definition at line 190 of file vtkVolume.h.

vtkTimeStamp vtkVolume::RGBArrayMTime[VTK_MAX_VRCOMP] [protected]

Definition at line 191 of file vtkVolume.h.

float* vtkVolume::GrayArray[VTK_MAX_VRCOMP] [protected]

Definition at line 197 of file vtkVolume.h.

vtkTimeStamp vtkVolume::GrayArrayMTime[VTK_MAX_VRCOMP] [protected]

Definition at line 198 of file vtkVolume.h.

float* vtkVolume::ScalarOpacityArray[VTK_MAX_VRCOMP] [protected]

Definition at line 204 of file vtkVolume.h.

vtkTimeStamp vtkVolume::ScalarOpacityArrayMTime[VTK_MAX_VRCOMP] [protected]

Definition at line 205 of file vtkVolume.h.

float* vtkVolume::CorrectedScalarOpacityArray[VTK_MAX_VRCOMP] [protected]

Definition at line 211 of file vtkVolume.h.

Definition at line 212 of file vtkVolume.h.

float vtkVolume::CorrectedStepSize [protected]

Definition at line 218 of file vtkVolume.h.

int vtkVolume::ArraySize [protected]

Definition at line 221 of file vtkVolume.h.

float vtkVolume::GradientOpacityArray[VTK_MAX_VRCOMP][256] [protected]

Definition at line 224 of file vtkVolume.h.

float vtkVolume::GradientOpacityConstant[VTK_MAX_VRCOMP] [protected]

Definition at line 225 of file vtkVolume.h.

Definition at line 226 of file vtkVolume.h.


The documentation for this class was generated from the following file:
