vtkVolume16Reader Class Reference
#include <vtkVolume16Reader.h>
Detailed Description
read 16 bit image filesvtkVolume16Reader is a source object that reads 16 bit image files.
Volume16Reader creates structured point datasets. The dimension of the dataset depends upon the number of files read. Reading a single file results in a 2D image, while reading more than one file results in a 3D volume.
File names are created using FilePattern and FilePrefix as follows: sprintf (filename, FilePattern, FilePrefix, number); where number is in the range ImageRange[0] to ImageRange[1]. If ImageRange[1] <= ImageRange[0], then slice number ImageRange[0] is read. Thus to read an image set ImageRange[0] = ImageRange[1] = slice number. The default behavior is to read a single file (i.e., image slice 1).
The DataMask instance variable is used to read data files with imbedded connectivity or segmentation information. For example, some data has the high order bit set to indicate connected surface. The DataMask allows you to select this data. Other important ivars include HeaderSize, which allows you to skip over initial info, and SwapBytes, which turns on/off byte swapping.
The Transform instance variable specifies a permutation transformation to map slice space into world space. vtkImageReader has replaced the functionality of this class and should be used instead.
- See also:
- vtkSliceCubes vtkMarchingCubes vtkImageReader
- Examples:
- vtkVolume16Reader (Examples)

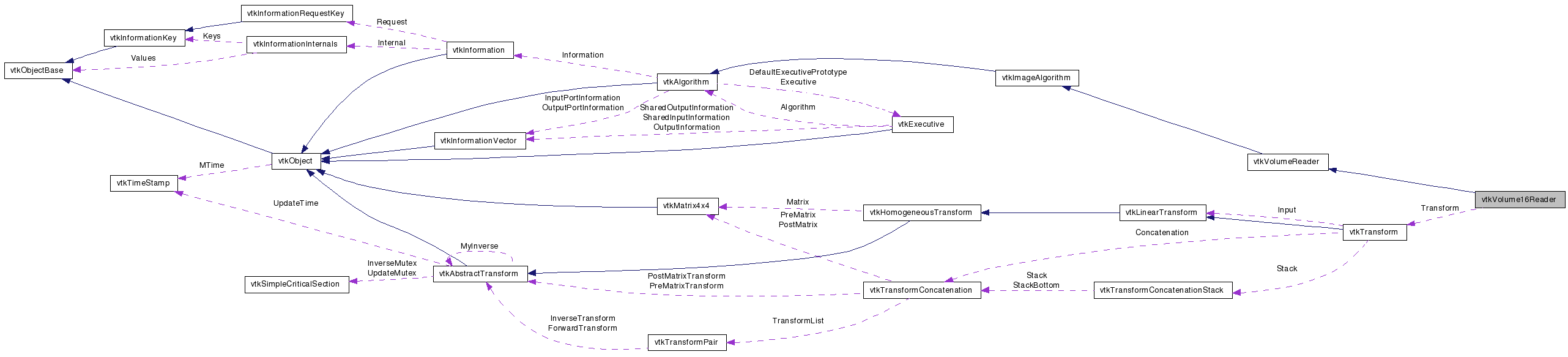

Definition at line 65 of file vtkVolume16Reader.h.
Public Types | |
| typedef vtkVolumeReader | Superclass |
Public Member Functions | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| vtkImageData * | GetImage (int ImageNumber) |
| virtual void | SetDataDimensions (int, int) |
| void | SetDataDimensions (int[2]) |
| virtual int * | GetDataDimensions () |
| virtual void | GetDataDimensions (int data[2]) |
| virtual void | SetDataMask (unsigned short) |
| virtual unsigned short | GetDataMask () |
| virtual void | SetHeaderSize (int) |
| virtual int | GetHeaderSize () |
| void | SetDataByteOrderToBigEndian () |
| void | SetDataByteOrderToLittleEndian () |
| int | GetDataByteOrder () |
| void | SetDataByteOrder (int) |
| const char * | GetDataByteOrderAsString () |
| virtual void | SetSwapBytes (int) |
| virtual int | GetSwapBytes () |
| virtual void | SwapBytesOn () |
| virtual void | SwapBytesOff () |
| virtual void | SetTransform (vtkTransform *) |
| virtual vtkTransform * | GetTransform () |
Static Public Member Functions | |
| static int | IsTypeOf (const char *type) |
| static vtkVolume16Reader * | SafeDownCast (vtkObject *o) |
| static vtkVolume16Reader * | New () |
Protected Member Functions | |
| vtkVolume16Reader () | |
| ~vtkVolume16Reader () | |
| virtual int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
| virtual int | RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
| void | TransformSlice (unsigned short *slice, unsigned short *pixels, int k, int dimensions[3], int bounds[3]) |
| void | ComputeTransformedDimensions (int dimensions[3]) |
| void | ComputeTransformedBounds (int bounds[6]) |
| void | ComputeTransformedSpacing (double Spacing[3]) |
| void | ComputeTransformedOrigin (double origin[3]) |
| void | AdjustSpacingAndOrigin (int dimensions[3], double Spacing[3], double origin[3]) |
| void | ReadImage (int ImageNumber, vtkUnsignedShortArray *) |
| void | ReadVolume (int FirstImage, int LastImage, vtkUnsignedShortArray *) |
| int | Read16BitImage (FILE *fp, unsigned short *pixels, int xsize, int ysize, int skip, int swapBytes) |
Protected Attributes | |
| int | DataDimensions [2] |
| unsigned short | DataMask |
| int | SwapBytes |
| int | HeaderSize |
| vtkTransform * | Transform |
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkVolume16Reader::vtkVolume16Reader | ( | ) | [protected] |
| vtkVolume16Reader::~vtkVolume16Reader | ( | ) | [protected] |
Member Function Documentation
| virtual const char* vtkVolume16Reader::GetClassName | ( | ) | [virtual] |
Reimplemented from vtkVolumeReader.
| static int vtkVolume16Reader::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeReader.
| virtual int vtkVolume16Reader::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeReader.
| static vtkVolume16Reader* vtkVolume16Reader::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Reimplemented from vtkVolumeReader.
| void vtkVolume16Reader::PrintSelf | ( | ostream & | os, | |
| vtkIndent | indent | |||
| ) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkVolumeReader.
| static vtkVolume16Reader* vtkVolume16Reader::New | ( | ) | [static] |
Construct object with NULL file prefix; file pattern "%s.%d"; image range set to (1,1); data origin (0,0,0); data spacing (1,1,1); no data mask; header size 0; and byte swapping turned off.
Reimplemented from vtkAlgorithm.
| virtual void vtkVolume16Reader::SetDataDimensions | ( | int | , | |
| int | ||||
| ) | [virtual] |
Specify the dimensions for the data.
| void vtkVolume16Reader::SetDataDimensions | ( | int | [2] | ) |
Specify the dimensions for the data.
| virtual int* vtkVolume16Reader::GetDataDimensions | ( | ) | [virtual] |
Specify the dimensions for the data.
| virtual void vtkVolume16Reader::GetDataDimensions | ( | int | data[2] | ) | [virtual] |
Specify the dimensions for the data.
| virtual void vtkVolume16Reader::SetDataMask | ( | unsigned | short | ) | [virtual] |
Specify a mask used to eliminate data in the data file (e.g., connectivity bits).
| virtual unsigned short vtkVolume16Reader::GetDataMask | ( | ) | [virtual] |
Specify a mask used to eliminate data in the data file (e.g., connectivity bits).
| virtual void vtkVolume16Reader::SetHeaderSize | ( | int | ) | [virtual] |
Specify the number of bytes to seek over at start of image.
| virtual int vtkVolume16Reader::GetHeaderSize | ( | ) | [virtual] |
Specify the number of bytes to seek over at start of image.
| void vtkVolume16Reader::SetDataByteOrderToBigEndian | ( | ) |
These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.
| void vtkVolume16Reader::SetDataByteOrderToLittleEndian | ( | ) |
These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.
| int vtkVolume16Reader::GetDataByteOrder | ( | ) |
These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.
| void vtkVolume16Reader::SetDataByteOrder | ( | int | ) |
These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.
| const char* vtkVolume16Reader::GetDataByteOrderAsString | ( | ) |
These methods should be used instead of the SwapBytes methods. They indicate the byte ordering of the file you are trying to read in. These methods will then either swap or not swap the bytes depending on the byte ordering of the machine it is being run on. For example, reading in a BigEndian file on a BigEndian machine will result in no swapping. Trying to read the same file on a LittleEndian machine will result in swapping. As a quick note most UNIX machines are BigEndian while PC's and VAX tend to be LittleEndian. So if the file you are reading in was generated on a VAX or PC, SetDataByteOrderToLittleEndian otherwise SetDataByteOrderToBigEndian.
| virtual void vtkVolume16Reader::SetSwapBytes | ( | int | ) | [virtual] |
Turn on/off byte swapping.
| virtual int vtkVolume16Reader::GetSwapBytes | ( | ) | [virtual] |
Turn on/off byte swapping.
| virtual void vtkVolume16Reader::SwapBytesOn | ( | ) | [virtual] |
Turn on/off byte swapping.
| virtual void vtkVolume16Reader::SwapBytesOff | ( | ) | [virtual] |
Turn on/off byte swapping.
| virtual void vtkVolume16Reader::SetTransform | ( | vtkTransform * | ) | [virtual] |
Set/Get transformation matrix to transform the data from slice space into world space. This matrix must be a permutation matrix. To qualify, the sums of the rows must be + or - 1.
| virtual vtkTransform* vtkVolume16Reader::GetTransform | ( | ) | [virtual] |
Set/Get transformation matrix to transform the data from slice space into world space. This matrix must be a permutation matrix. To qualify, the sums of the rows must be + or - 1.
| vtkImageData* vtkVolume16Reader::GetImage | ( | int | ImageNumber | ) | [virtual] |
Other objects make use of these methods
Implements vtkVolumeReader.
| virtual int vtkVolume16Reader::RequestData | ( | vtkInformation * | request, | |
| vtkInformationVector ** | inputVector, | |||
| vtkInformationVector * | outputVector | |||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented from vtkImageAlgorithm.
| virtual int vtkVolume16Reader::RequestInformation | ( | vtkInformation * | , | |
| vtkInformationVector ** | , | |||
| vtkInformationVector * | ||||
| ) | [protected, virtual] |
Reimplemented from vtkImageAlgorithm.
| void vtkVolume16Reader::TransformSlice | ( | unsigned short * | slice, | |
| unsigned short * | pixels, | |||
| int | k, | |||
| int | dimensions[3], | |||
| int | bounds[3] | |||
| ) | [protected] |
| void vtkVolume16Reader::ComputeTransformedDimensions | ( | int | dimensions[3] | ) | [protected] |
| void vtkVolume16Reader::ComputeTransformedBounds | ( | int | bounds[6] | ) | [protected] |
| void vtkVolume16Reader::ComputeTransformedSpacing | ( | double | Spacing[3] | ) | [protected] |
| void vtkVolume16Reader::ComputeTransformedOrigin | ( | double | origin[3] | ) | [protected] |
| void vtkVolume16Reader::AdjustSpacingAndOrigin | ( | int | dimensions[3], | |
| double | Spacing[3], | |||
| double | origin[3] | |||
| ) | [protected] |
| void vtkVolume16Reader::ReadImage | ( | int | ImageNumber, | |
| vtkUnsignedShortArray * | ||||
| ) | [protected] |
| void vtkVolume16Reader::ReadVolume | ( | int | FirstImage, | |
| int | LastImage, | |||
| vtkUnsignedShortArray * | ||||
| ) | [protected] |
| int vtkVolume16Reader::Read16BitImage | ( | FILE * | fp, | |
| unsigned short * | pixels, | |||
| int | xsize, | |||
| int | ysize, | |||
| int | skip, | |||
| int | swapBytes | |||
| ) | [protected] |
Member Data Documentation
int vtkVolume16Reader::DataDimensions[2] [protected] |
Definition at line 137 of file vtkVolume16Reader.h.
unsigned short vtkVolume16Reader::DataMask [protected] |
Definition at line 138 of file vtkVolume16Reader.h.
int vtkVolume16Reader::SwapBytes [protected] |
Definition at line 139 of file vtkVolume16Reader.h.
int vtkVolume16Reader::HeaderSize [protected] |
Definition at line 140 of file vtkVolume16Reader.h.
vtkTransform* vtkVolume16Reader::Transform [protected] |
Definition at line 141 of file vtkVolume16Reader.h.
The documentation for this class was generated from the following file:
- dox/IO/vtkVolume16Reader.h
