vtkXMLPDataSetWriter Class Reference

#include <vtkXMLPDataSetWriter.h>

Inheritance diagram for vtkXMLPDataSetWriter:

Inheritance graph
[legend]

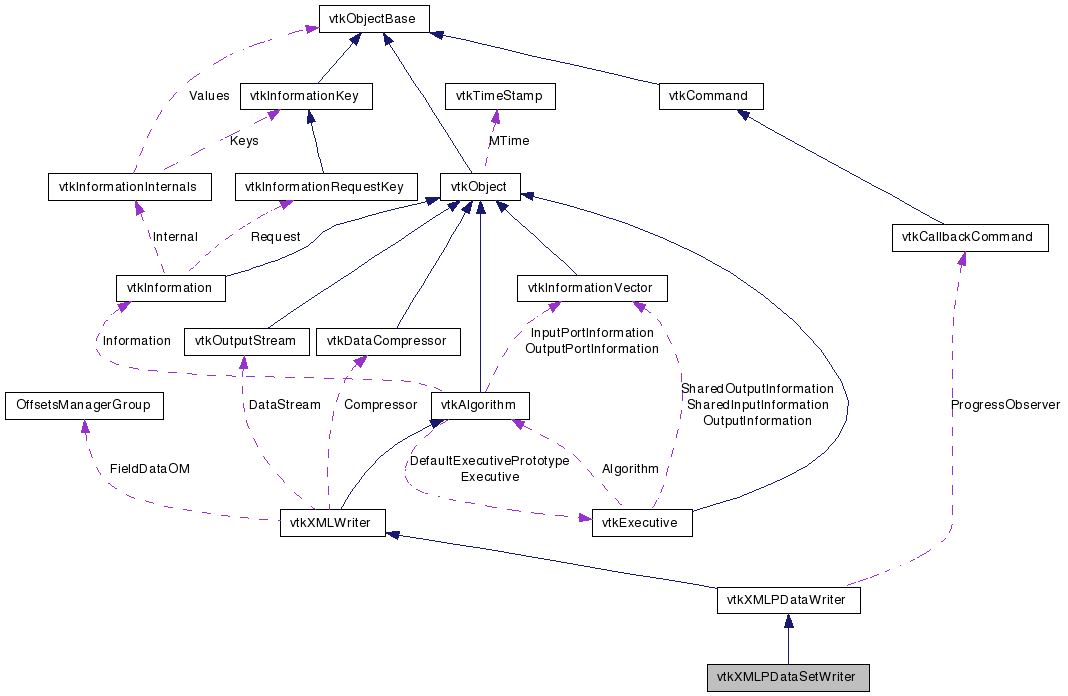

Collaboration diagram for vtkXMLPDataSetWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Write any type of PVTK XML file.

vtkXMLPDataSetWriter is a wrapper around the PVTK XML file format writers. Given an input vtkDataSet, the correct writer is automatically selected based on the type of input.

See also:
vtkXMLPImageDataWriter vtkXMLPStructuredGridWriter vtkXMLPRectilinearGridWriter vtkXMLPPolyDataWriter vtkXMLPUnstructuredGridWriter
Tests:
vtkXMLPDataSetWriter (Tests)

Definition at line 36 of file vtkXMLPDataSetWriter.h.


Public Types

typedef vtkXMLPDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkDataSetGetInput ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkXMLPDataSetWriterSafeDownCast (vtkObject *o)
static vtkXMLPDataSetWriterNew ()

Protected Member Functions

 vtkXMLPDataSetWriter ()
 ~vtkXMLPDataSetWriter ()
virtual int FillInputPortInformation (int port, vtkInformation *info)
virtual int WriteInternal ()
const char * GetDataSetName ()
const char * GetDefaultFileExtension ()
vtkXMLWriterCreatePieceWriter (int index)

Member Typedef Documentation

Reimplemented from vtkXMLPDataWriter.

Definition at line 39 of file vtkXMLPDataSetWriter.h.


Constructor & Destructor Documentation

vtkXMLPDataSetWriter::vtkXMLPDataSetWriter (  )  [protected]

vtkXMLPDataSetWriter::~vtkXMLPDataSetWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLPDataSetWriter::GetClassName (  )  [virtual]

Reimplemented from vtkXMLPDataWriter.

static int vtkXMLPDataSetWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPDataWriter.

virtual int vtkXMLPDataSetWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPDataWriter.

static vtkXMLPDataSetWriter* vtkXMLPDataSetWriter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkXMLPDataWriter.

void vtkXMLPDataSetWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPDataWriter.

static vtkXMLPDataSetWriter* vtkXMLPDataSetWriter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkDataSet* vtkXMLPDataSetWriter::GetInput (  )

Get/Set the writer's input.

Reimplemented from vtkXMLWriter.

virtual int vtkXMLPDataSetWriter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

virtual int vtkXMLPDataSetWriter::WriteInternal (  )  [protected, virtual]

Reimplemented from vtkXMLPDataWriter.

const char* vtkXMLPDataSetWriter::GetDataSetName (  )  [protected, virtual]

Implements vtkXMLWriter.

const char* vtkXMLPDataSetWriter::GetDefaultFileExtension (  )  [protected, virtual]

Get the default file extension for files written by this writer.

Implements vtkXMLWriter.

vtkXMLWriter* vtkXMLPDataSetWriter::CreatePieceWriter ( int  index  )  [protected, virtual]

Implements vtkXMLPDataWriter.


The documentation for this class was generated from the following file:
