vtkXMLPDataWriter Class Reference

#include <vtkXMLPDataWriter.h>

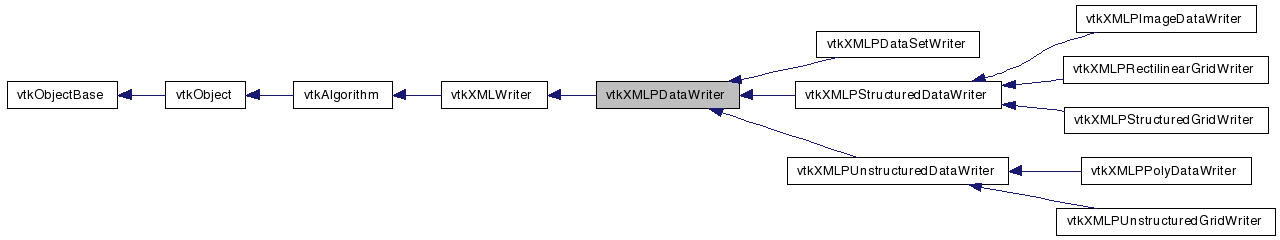

Inheritance diagram for vtkXMLPDataWriter:

Inheritance graph
[legend]

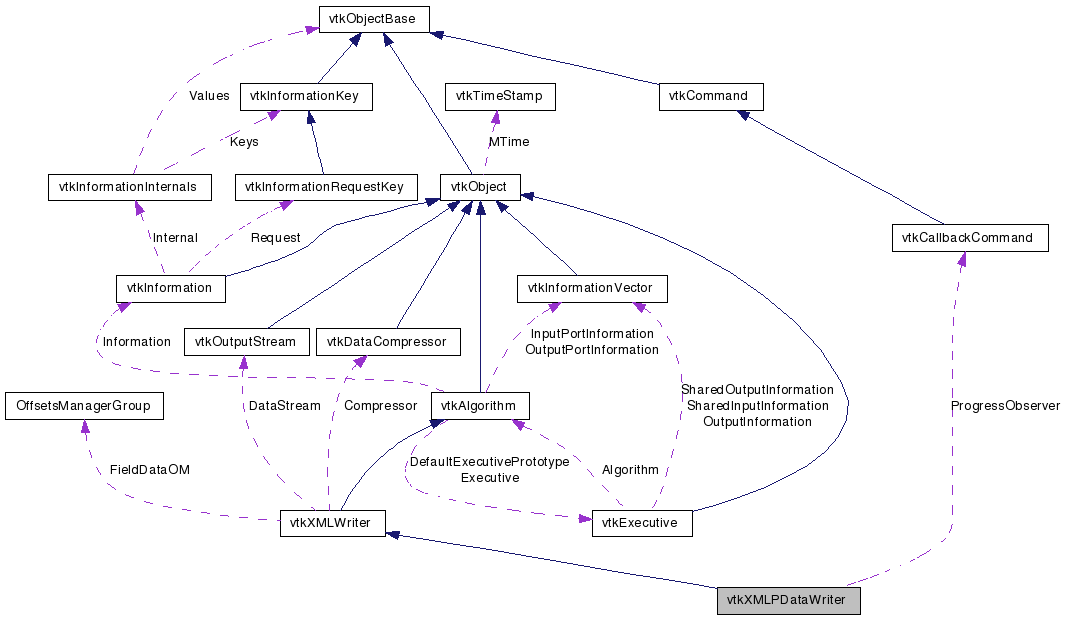

Collaboration diagram for vtkXMLPDataWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Write data in a parallel XML format.

vtkXMLPDataWriter is the superclass for all XML parallel data set writers. It provides functionality needed for writing parallel formats, such as the selection of which writer writes the summary file and what range of pieces are assigned to each serial writer.

Definition at line 31 of file vtkXMLPDataWriter.h.


Public Types

typedef vtkXMLWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetNumberOfPieces (int)
virtual int GetNumberOfPieces ()
virtual void SetStartPiece (int)
virtual int GetStartPiece ()
virtual void SetEndPiece (int)
virtual int GetEndPiece ()
virtual void SetGhostLevel (int)
virtual int GetGhostLevel ()
virtual void SetWriteSummaryFile (int flag)
virtual int GetWriteSummaryFile ()
virtual void WriteSummaryFileOn ()
virtual void WriteSummaryFileOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkXMLPDataWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLPDataWriter ()
 ~vtkXMLPDataWriter ()
virtual int WriteInternal ()
virtual vtkXMLWriterCreatePieceWriter (int index)=0
virtual void WritePrimaryElementAttributes (ostream &os, vtkIndent indent)
int WriteData ()
virtual void WritePData (vtkIndent indent)
virtual void WritePPieceAttributes (int index)
char * CreatePieceFileName (int index, const char *path=0)
void SplitFileName ()
int WritePieces ()
int WritePiece (int index)
virtual void ProgressCallback (vtkAlgorithm *w)

Static Protected Member Functions

static void ProgressCallbackFunction (vtkObject *, unsigned long, void *, void *)

Protected Attributes

int StartPiece
int EndPiece
int NumberOfPieces
int GhostLevel
int WriteSummaryFile
int WriteSummaryFileInitialized
char * PathName
char * FileNameBase
char * FileNameExtension
char * PieceFileNameExtension
vtkCallbackCommandProgressObserver

Member Typedef Documentation


Constructor & Destructor Documentation

vtkXMLPDataWriter::vtkXMLPDataWriter (  )  [protected]

vtkXMLPDataWriter::~vtkXMLPDataWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLPDataWriter::GetClassName (  )  [virtual]

static int vtkXMLPDataWriter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLPDataSetWriter, vtkXMLPImageDataWriter, vtkXMLPPolyDataWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredDataWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredDataWriter, and vtkXMLPUnstructuredGridWriter.

virtual int vtkXMLPDataWriter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLPDataSetWriter, vtkXMLPImageDataWriter, vtkXMLPPolyDataWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredDataWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredDataWriter, and vtkXMLPUnstructuredGridWriter.

static vtkXMLPDataWriter* vtkXMLPDataWriter::SafeDownCast ( vtkObject o  )  [static]

void vtkXMLPDataWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLPDataSetWriter, vtkXMLPImageDataWriter, vtkXMLPPolyDataWriter, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredDataWriter, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredDataWriter, and vtkXMLPUnstructuredGridWriter.

virtual void vtkXMLPDataWriter::SetNumberOfPieces ( int   )  [virtual]

Get/Set the number of pieces that are being written in parallel.

virtual int vtkXMLPDataWriter::GetNumberOfPieces (  )  [virtual]

Get/Set the number of pieces that are being written in parallel.

virtual void vtkXMLPDataWriter::SetStartPiece ( int   )  [virtual]

Get/Set the range of pieces assigned to this writer.

virtual int vtkXMLPDataWriter::GetStartPiece (  )  [virtual]

Get/Set the range of pieces assigned to this writer.

virtual void vtkXMLPDataWriter::SetEndPiece ( int   )  [virtual]

Get/Set the range of pieces assigned to this writer.

virtual int vtkXMLPDataWriter::GetEndPiece (  )  [virtual]

Get/Set the range of pieces assigned to this writer.

virtual void vtkXMLPDataWriter::SetGhostLevel ( int   )  [virtual]

Get/Set the ghost level used for this writer's piece.

virtual int vtkXMLPDataWriter::GetGhostLevel (  )  [virtual]

Get/Set the ghost level used for this writer's piece.

virtual void vtkXMLPDataWriter::SetWriteSummaryFile ( int  flag  )  [virtual]

Get/Set whether this instance of the writer should write the summary file that refers to all of the pieces' individual files. Default is yes only for piece 0 writer.

virtual int vtkXMLPDataWriter::GetWriteSummaryFile (  )  [virtual]

Get/Set whether this instance of the writer should write the summary file that refers to all of the pieces' individual files. Default is yes only for piece 0 writer.

virtual void vtkXMLPDataWriter::WriteSummaryFileOn (  )  [virtual]

Get/Set whether this instance of the writer should write the summary file that refers to all of the pieces' individual files. Default is yes only for piece 0 writer.

virtual void vtkXMLPDataWriter::WriteSummaryFileOff (  )  [virtual]

Get/Set whether this instance of the writer should write the summary file that refers to all of the pieces' individual files. Default is yes only for piece 0 writer.

virtual int vtkXMLPDataWriter::WriteInternal (  )  [protected, virtual]

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLPDataSetWriter.

virtual vtkXMLWriter* vtkXMLPDataWriter::CreatePieceWriter ( int  index  )  [protected, pure virtual]

virtual void vtkXMLPDataWriter::WritePrimaryElementAttributes ( ostream &  os,
vtkIndent  indent
) [protected, virtual]

Reimplemented from vtkXMLWriter.

Reimplemented in vtkXMLPImageDataWriter, and vtkXMLPStructuredDataWriter.

int vtkXMLPDataWriter::WriteData (  )  [protected, virtual]

Reimplemented from vtkXMLWriter.

virtual void vtkXMLPDataWriter::WritePData ( vtkIndent  indent  )  [protected, virtual]

virtual void vtkXMLPDataWriter::WritePPieceAttributes ( int  index  )  [protected, virtual]

Reimplemented in vtkXMLPStructuredDataWriter.

char* vtkXMLPDataWriter::CreatePieceFileName ( int  index,
const char *  path = 0
) [protected]

void vtkXMLPDataWriter::SplitFileName (  )  [protected]

int vtkXMLPDataWriter::WritePieces (  )  [protected]

int vtkXMLPDataWriter::WritePiece ( int  index  )  [protected]

static void vtkXMLPDataWriter::ProgressCallbackFunction ( vtkObject ,
unsigned  long,
void *  ,
void *
) [static, protected]

virtual void vtkXMLPDataWriter::ProgressCallback ( vtkAlgorithm w  )  [protected, virtual]


Member Data Documentation

Definition at line 91 of file vtkXMLPDataWriter.h.

int vtkXMLPDataWriter::EndPiece [protected]

Definition at line 92 of file vtkXMLPDataWriter.h.

Definition at line 93 of file vtkXMLPDataWriter.h.

Definition at line 94 of file vtkXMLPDataWriter.h.

Definition at line 95 of file vtkXMLPDataWriter.h.

Definition at line 96 of file vtkXMLPDataWriter.h.

char* vtkXMLPDataWriter::PathName [protected]

Definition at line 98 of file vtkXMLPDataWriter.h.

Definition at line 99 of file vtkXMLPDataWriter.h.

Definition at line 100 of file vtkXMLPDataWriter.h.

Definition at line 101 of file vtkXMLPDataWriter.h.

Definition at line 104 of file vtkXMLPDataWriter.h.


The documentation for this class was generated from the following file:
