vtkXMLWriter Class Reference

#include <vtkXMLWriter.h>

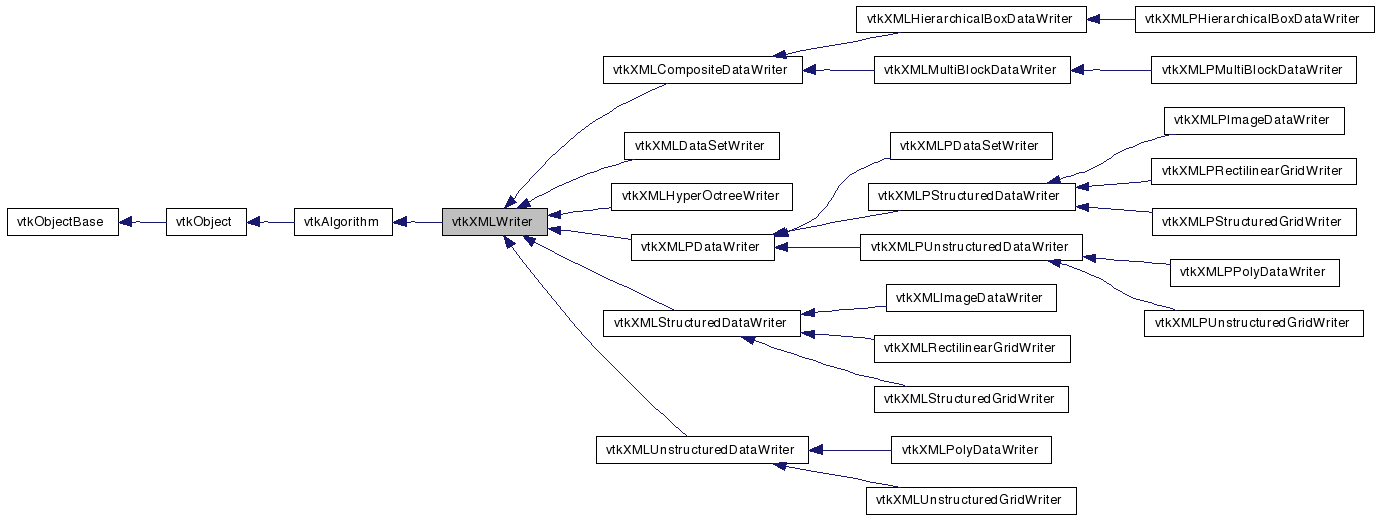

Inheritance diagram for vtkXMLWriter:

Inheritance graph
[legend]

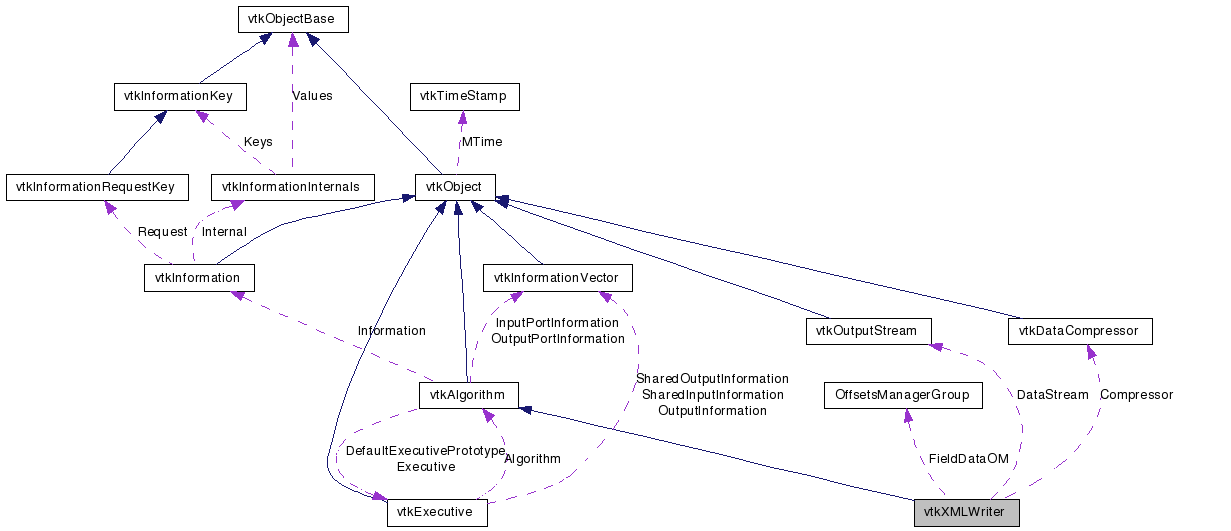

Collaboration diagram for vtkXMLWriter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Superclass for VTK's XML file writers.

vtkXMLWriter provides methods implementing most of the functionality needed to write VTK XML file formats. Concrete subclasses provide actual writer implementations calling upon this functionality.

Definition at line 50 of file vtkXMLWriter.h.


Public Types

typedef vtkAlgorithm Superclass
enum  { BigEndian, LittleEndian }
enum  { Ascii, Binary, Appended }
enum  { Int32 = 32, Int64 = 64 }
typedef vtkIdType OffsetType

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual const char * GetDefaultFileExtension ()=0
int Write ()
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual void SetByteOrder (int)
virtual int GetByteOrder ()
void SetByteOrderToBigEndian ()
void SetByteOrderToLittleEndian ()
virtual void SetIdType (int)
virtual int GetIdType ()
void SetIdTypeToInt32 ()
void SetIdTypeToInt64 ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetCompressor (vtkDataCompressor *)
virtual vtkDataCompressorGetCompressor ()
virtual void SetBlockSize (unsigned int blockSize)
virtual unsigned int GetBlockSize ()
virtual void SetDataMode (int)
virtual int GetDataMode ()
void SetDataModeToAscii ()
void SetDataModeToBinary ()
void SetDataModeToAppended ()
virtual void SetEncodeAppendedData (int)
virtual int GetEncodeAppendedData ()
virtual void EncodeAppendedDataOn ()
virtual void EncodeAppendedDataOff ()
void SetInput (vtkDataObject *)
void SetInput (int, vtkDataObject *)
vtkDataObjectGetInput (int port)
vtkDataObjectGetInput ()
virtual void SetTimeStep (int)
virtual int GetTimeStep ()
virtual int * GetTimeStepRange ()
virtual void GetTimeStepRange (int &, int &)
virtual void GetTimeStepRange (int[2])
virtual void SetTimeStepRange (int, int)
void SetTimeStepRange (int[2])
virtual int GetNumberOfTimeSteps ()
virtual void SetNumberOfTimeSteps (int)
void Start ()
void Stop ()
void WriteNextTime (double time)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkXMLWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMLWriter ()
 ~vtkXMLWriter ()
virtual int RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual void SetDataStream (vtkOutputStream *)
virtual vtkOutputStreamGetDataStream ()
virtual int WriteInternal ()
virtual int WriteData ()
virtual const char * GetDataSetName ()=0
virtual int GetDataSetMajorVersion ()
virtual int GetDataSetMinorVersion ()
vtkDataSetGetInputAsDataSet ()
int StartFile ()
virtual void WriteFileAttributes ()
int EndFile ()
void DeleteAFile ()
void DeleteAFile (const char *name)
virtual int WritePrimaryElement (ostream &os, vtkIndent indent)
virtual void WritePrimaryElementAttributes (ostream &os, vtkIndent indent)
void StartAppendedData ()
void EndAppendedData ()
OffsetType ReserveAttributeSpace (const char *attr, int length=20)
OffsetType GetAppendedDataOffset ()
OffsetType WriteAppendedDataOffset (OffsetType streamPos, OffsetType &lastoffset, const char *attr=0)
OffsetType ForwardAppendedDataOffset (OffsetType streamPos, OffsetType offset, const char *attr=0)
OffsetType ForwardAppendedDataDouble (OffsetType streamPos, double value, const char *attr)
int WriteScalarAttribute (const char *name, int data)
int WriteScalarAttribute (const char *name, float data)
int WriteScalarAttribute (const char *name, double data)
int WriteVectorAttribute (const char *name, int length, int *data)
int WriteVectorAttribute (const char *name, int length, float *data)
int WriteVectorAttribute (const char *name, int length, double *data)
int WriteDataModeAttribute (const char *name)
int WriteWordTypeAttribute (const char *name, int dataType)
int WriteStringAttribute (const char *name, const char *value)
void WriteArrayHeader (vtkAbstractArray *a, vtkIndent indent, const char *alternateName, int writeNumTuples, int timestep)
void WriteArrayFooter (ostream &os, vtkIndent indent)
void WriteArrayInline (vtkAbstractArray *a, vtkIndent indent, const char *alternateName=0, int writeNumTuples=0)
void WriteInlineData (vtkAbstractArray *a, vtkIndent indent)
void WriteArrayAppended (vtkAbstractArray *a, vtkIndent indent, OffsetsManager &offs, const char *alternateName=0, int writeNumTuples=0, int timestep=0)
int WriteAsciiData (vtkAbstractArray *a, vtkIndent indent)
int WriteBinaryData (vtkAbstractArray *a)
int WriteBinaryDataInternal (vtkAbstractArray *a, OffsetType data_size)
void WriteArrayAppendedData (vtkAbstractArray *a, OffsetType pos, OffsetType &lastoffset)
void WriteFieldData (vtkIndent indent)
void WriteFieldDataInline (vtkFieldData *fd, vtkIndent indent)
void WritePointDataInline (vtkPointData *pd, vtkIndent indent)
void WriteCellDataInline (vtkCellData *cd, vtkIndent indent)
void WriteFieldDataAppended (vtkFieldData *fd, vtkIndent indent, OffsetsManagerGroup *fdManager)
void WriteFieldDataAppendedData (vtkFieldData *fd, int timestep, OffsetsManagerGroup *fdManager)
void WritePointDataAppended (vtkPointData *pd, vtkIndent indent, OffsetsManagerGroup *pdManager)
void WritePointDataAppendedData (vtkPointData *pd, int timestep, OffsetsManagerGroup *pdManager)
void WriteCellDataAppended (vtkCellData *cd, vtkIndent indent, OffsetsManagerGroup *cdManager)
void WriteCellDataAppendedData (vtkCellData *cd, int timestep, OffsetsManagerGroup *cdManager)
void WriteAttributeIndices (vtkDataSetAttributes *dsa, char **names)
void WritePointsAppended (vtkPoints *points, vtkIndent indent, OffsetsManager *manager)
void WritePointsAppendedData (vtkPoints *points, int timestep, OffsetsManager *pdManager)
void WritePointsInline (vtkPoints *points, vtkIndent indent)
void WriteCoordinatesInline (vtkDataArray *xc, vtkDataArray *yc, vtkDataArray *zc, vtkIndent indent)
void WriteCoordinatesAppended (vtkDataArray *xc, vtkDataArray *yc, vtkDataArray *zc, vtkIndent indent, OffsetsManagerGroup *coordManager)
void WriteCoordinatesAppendedData (vtkDataArray *xc, vtkDataArray *yc, vtkDataArray *zc, int timestep, OffsetsManagerGroup *coordManager)
virtual vtkAbstractArrayCreateArrayForPoints (vtkAbstractArray *inArray)
virtual vtkAbstractArrayCreateArrayForCells (vtkAbstractArray *inArray)
virtual vtkDataArrayCreateExactCoordinates (vtkDataArray *inArray, int xyz)
void WritePPointData (vtkPointData *pd, vtkIndent indent)
void WritePCellData (vtkCellData *cd, vtkIndent indent)
void WritePPoints (vtkPoints *points, vtkIndent indent)
void WritePArray (vtkAbstractArray *a, vtkIndent indent, const char *alternateName=0)
void WritePCoordinates (vtkDataArray *xc, vtkDataArray *yc, vtkDataArray *zc, vtkIndent indent)
int WriteBinaryDataInternal (void *data, OffsetType numWords, int wordType)
int WriteBinaryDataBlock (unsigned char *in_data, OffsetType numWords, int wordType)
void PerformByteSwap (void *data, OffsetType numWords, int wordSize)
int CreateCompressionHeader (OffsetType size)
int WriteCompressionBlock (unsigned char *data, OffsetType size)
int WriteCompressionHeader ()
OffsetType GetWordTypeSize (int dataType)
const char * GetWordTypeName (int dataType)
OffsetType GetOutputWordTypeSize (int dataType)
char ** CreateStringArray (int numStrings)
void DestroyStringArray (int numStrings, char **strings)
virtual void GetProgressRange (float *range)
virtual void SetProgressRange (float *range, int curStep, int numSteps)
virtual void SetProgressRange (float *range, int curStep, float *fractions)
virtual void SetProgressPartial (float fraction)
virtual void UpdateProgressDiscrete (float progress)
int OpenFile ()
void CloseFile ()

Protected Attributes

char * FileName
ostream * Stream
int ByteOrder
int IdType
int DataMode
int EncodeAppendedData
OffsetType AppendedDataPosition
OffsetsManagerGroupFieldDataOM
Int32IdType * Int32IdTypeBuffer
unsigned char * ByteSwapBuffer
vtkDataCompressorCompressor
unsigned int BlockSize
OffsetType CompressionBlockNumber
HeaderType * CompressionHeader
unsigned int CompressionHeaderLength
OffsetType CompressionHeaderPosition
vtkOutputStreamDataStream
float ProgressRange [2]
ofstream * OutFile
int TimeStep
int CurrentTimeIndex
int NumberOfTimeSteps
int TimeStepRange [2]
int UserContinueExecuting
unsigned long * NumberOfTimeValues

Friends

class vtkXMLWriterHelper

Member Typedef Documentation

A type used for data sizes and offsets for stream i/o. Using vtkIdType should satisfy most users. This could be streamoff if it is deemed portable. It could also be split into OffsetType (streamoff) and PositionType (streampos).

Definition at line 69 of file vtkXMLWriter.h.


Member Enumeration Documentation

anonymous enum

Enumerate big and little endian byte order settings.

Enumerator:
BigEndian
LittleEndian

Definition at line 59 of file vtkXMLWriter.h.

anonymous enum

Enumerate the supported data modes. Ascii = Inline ascii data. Binary = Inline binary data (base64 encoded, possibly compressed). Appended = Appended binary data (possibly compressed and/or base64).

Enumerator:
Ascii
Binary
Appended

Definition at line 78 of file vtkXMLWriter.h.

anonymous enum

Enumerate the supported vtkIdType bit lengths. Int32 = File stores 32-bit values for vtkIdType. Int64 = File stores 64-bit values for vtkIdType.

Enumerator:
Int32
Int64

Definition at line 87 of file vtkXMLWriter.h.


Constructor & Destructor Documentation

vtkXMLWriter::vtkXMLWriter (  )  [protected]

vtkXMLWriter::~vtkXMLWriter (  )  [protected]


Member Function Documentation

virtual const char* vtkXMLWriter::GetClassName (  )  [virtual]

static int vtkXMLWriter::IsTypeOf ( const char *  name  )  [static]

virtual int vtkXMLWriter::IsA ( const char *  name  )  [virtual]

static vtkXMLWriter* vtkXMLWriter::SafeDownCast ( vtkObject o  )  [static]

void vtkXMLWriter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

virtual void vtkXMLWriter::SetByteOrder ( int   )  [virtual]

Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.

virtual int vtkXMLWriter::GetByteOrder (  )  [virtual]

Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.

void vtkXMLWriter::SetByteOrderToBigEndian (  )

Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.

void vtkXMLWriter::SetByteOrderToLittleEndian (  )

Get/Set the byte order of data written to the file. The default is the machine's hardware byte order.

virtual void vtkXMLWriter::SetIdType ( int   )  [virtual]

Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.

virtual int vtkXMLWriter::GetIdType (  )  [virtual]

Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.

void vtkXMLWriter::SetIdTypeToInt32 (  )

Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.

void vtkXMLWriter::SetIdTypeToInt64 (  )

Get/Set the size of the vtkIdType values stored in the file. The default is the real size of vtkIdType.

virtual void vtkXMLWriter::SetFileName ( const char *   )  [virtual]

Get/Set the name of the output file.

virtual char* vtkXMLWriter::GetFileName (  )  [virtual]

Get/Set the name of the output file.

virtual void vtkXMLWriter::SetCompressor ( vtkDataCompressor  )  [virtual]

Get/Set the compressor used to compress binary and appended data before writing to the file. Default is no compression.

virtual vtkDataCompressor* vtkXMLWriter::GetCompressor (  )  [virtual]

Get/Set the compressor used to compress binary and appended data before writing to the file. Default is no compression.

virtual void vtkXMLWriter::SetBlockSize ( unsigned int  blockSize  )  [virtual]

Get/Set the block size used in compression. When reading, this controls the granularity of how much extra information must be read when only part of the data are requested. The value should be a multiple of the largest scalar data type.

virtual unsigned int vtkXMLWriter::GetBlockSize (  )  [virtual]

Get/Set the block size used in compression. When reading, this controls the granularity of how much extra information must be read when only part of the data are requested. The value should be a multiple of the largest scalar data type.

virtual void vtkXMLWriter::SetDataMode ( int   )  [virtual]

Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.

virtual int vtkXMLWriter::GetDataMode (  )  [virtual]

Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.

void vtkXMLWriter::SetDataModeToAscii (  )

Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.

void vtkXMLWriter::SetDataModeToBinary (  )

Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.

void vtkXMLWriter::SetDataModeToAppended (  )

Get/Set the data mode used for the file's data. The options are vtkXMLWriter::Ascii, vtkXMLWriter::Binary, and vtkXMLWriter::Appended.

virtual void vtkXMLWriter::SetEncodeAppendedData ( int   )  [virtual]

Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.

virtual int vtkXMLWriter::GetEncodeAppendedData (  )  [virtual]

Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.

virtual void vtkXMLWriter::EncodeAppendedDataOn (  )  [virtual]

Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.

virtual void vtkXMLWriter::EncodeAppendedDataOff (  )  [virtual]

Get/Set whether the appended data section is base64 encoded. If encoded, reading and writing will be slower, but the file will be fully valid XML and text-only. If not encoded, the XML specification will be violated, but reading and writing will be fast. The default is to do the encoding.

void vtkXMLWriter::SetInput ( vtkDataObject  )

Set/Get an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline

void vtkXMLWriter::SetInput ( int  ,
vtkDataObject
)

Set/Get an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline

vtkDataObject* vtkXMLWriter::GetInput ( int  port  )

Set/Get an input of this algorithm. You should not override these methods because they are not the only way to connect a pipeline

vtkDataObject* vtkXMLWriter::GetInput (  )  [inline]

virtual const char* vtkXMLWriter::GetDefaultFileExtension (  )  [pure virtual]

int vtkXMLWriter::Write (  )

Invoke the writer. Returns 1 for success, 0 for failure.

virtual int vtkXMLWriter::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [virtual]

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkAlgorithm.

Reimplemented in vtkXMLCompositeDataWriter, vtkXMLPUnstructuredDataWriter, vtkXMLStructuredDataWriter, and vtkXMLUnstructuredDataWriter.

virtual void vtkXMLWriter::SetTimeStep ( int   )  [virtual]

Which TimeStep to write.

virtual int vtkXMLWriter::GetTimeStep (  )  [virtual]

Which TimeStep to write.

virtual int* vtkXMLWriter::GetTimeStepRange (  )  [virtual]

Which TimeStepRange to write.

virtual void vtkXMLWriter::GetTimeStepRange ( int &  ,
int &
) [virtual]

Which TimeStepRange to write.

virtual void vtkXMLWriter::GetTimeStepRange ( int  [2]  )  [virtual]

Which TimeStepRange to write.

virtual void vtkXMLWriter::SetTimeStepRange ( int  ,
int
) [virtual]

Which TimeStepRange to write.

void vtkXMLWriter::SetTimeStepRange ( int  [2]  )

Which TimeStepRange to write.

virtual int vtkXMLWriter::GetNumberOfTimeSteps (  )  [virtual]

Set the number of time steps

virtual void vtkXMLWriter::SetNumberOfTimeSteps ( int   )  [virtual]

Set the number of time steps

void vtkXMLWriter::Start (  )

API to interface an outside the VTK pipeline control

void vtkXMLWriter::Stop (  )

API to interface an outside the VTK pipeline control

void vtkXMLWriter::WriteNextTime ( double  time  )

API to interface an outside the VTK pipeline control

virtual int vtkXMLWriter::RequestInformation ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

virtual int vtkXMLWriter::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Reimplemented in vtkXMLCompositeDataWriter.

virtual void vtkXMLWriter::SetDataStream ( vtkOutputStream  )  [protected, virtual]

virtual vtkOutputStream* vtkXMLWriter::GetDataStream (  )  [protected, virtual]

virtual int vtkXMLWriter::WriteInternal (  )  [protected, virtual]

virtual int vtkXMLWriter::WriteData (  )  [inline, protected, virtual]

Reimplemented in vtkXMLCompositeDataWriter, vtkXMLHyperOctreeWriter, and vtkXMLPDataWriter.

Definition at line 292 of file vtkXMLWriter.h.

virtual const char* vtkXMLWriter::GetDataSetName (  )  [protected, pure virtual]

virtual int vtkXMLWriter::GetDataSetMajorVersion (  )  [protected, virtual]

Reimplemented in vtkXMLCompositeDataWriter.

virtual int vtkXMLWriter::GetDataSetMinorVersion (  )  [protected, virtual]

Reimplemented in vtkXMLCompositeDataWriter.

vtkDataSet* vtkXMLWriter::GetInputAsDataSet (  )  [protected]

int vtkXMLWriter::StartFile (  )  [protected]

virtual void vtkXMLWriter::WriteFileAttributes (  )  [protected, virtual]

int vtkXMLWriter::EndFile (  )  [protected]

void vtkXMLWriter::DeleteAFile (  )  [protected]

void vtkXMLWriter::DeleteAFile ( const char *  name  )  [protected]

virtual int vtkXMLWriter::WritePrimaryElement ( ostream &  os,
vtkIndent  indent
) [protected, virtual]

virtual void vtkXMLWriter::WritePrimaryElementAttributes ( ostream &  os,
vtkIndent  indent
) [protected, virtual]

void vtkXMLWriter::StartAppendedData (  )  [protected]

void vtkXMLWriter::EndAppendedData (  )  [protected]

OffsetType vtkXMLWriter::ReserveAttributeSpace ( const char *  attr,
int  length = 20
) [protected]

OffsetType vtkXMLWriter::GetAppendedDataOffset (  )  [protected]

OffsetType vtkXMLWriter::WriteAppendedDataOffset ( OffsetType  streamPos,
OffsetType lastoffset,
const char *  attr = 0
) [protected]

OffsetType vtkXMLWriter::ForwardAppendedDataOffset ( OffsetType  streamPos,
OffsetType  offset,
const char *  attr = 0
) [protected]

OffsetType vtkXMLWriter::ForwardAppendedDataDouble ( OffsetType  streamPos,
double  value,
const char *  attr
) [protected]

int vtkXMLWriter::WriteScalarAttribute ( const char *  name,
int  data
) [protected]

int vtkXMLWriter::WriteScalarAttribute ( const char *  name,
float  data
) [protected]

int vtkXMLWriter::WriteScalarAttribute ( const char *  name,
double  data
) [protected]

int vtkXMLWriter::WriteVectorAttribute ( const char *  name,
int  length,
int *  data
) [protected]

int vtkXMLWriter::WriteVectorAttribute ( const char *  name,
int  length,
float *  data
) [protected]

int vtkXMLWriter::WriteVectorAttribute ( const char *  name,
int  length,
double *  data
) [protected]

int vtkXMLWriter::WriteDataModeAttribute ( const char *  name  )  [protected]

int vtkXMLWriter::WriteWordTypeAttribute ( const char *  name,
int  dataType
) [protected]

int vtkXMLWriter::WriteStringAttribute ( const char *  name,
const char *  value
) [protected]

void vtkXMLWriter::WriteArrayHeader ( vtkAbstractArray a,
vtkIndent  indent,
const char *  alternateName,
int  writeNumTuples,
int  timestep
) [protected]

void vtkXMLWriter::WriteArrayFooter ( ostream &  os,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteArrayInline ( vtkAbstractArray a,
vtkIndent  indent,
const char *  alternateName = 0,
int  writeNumTuples = 0
) [protected]

void vtkXMLWriter::WriteInlineData ( vtkAbstractArray a,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteArrayAppended ( vtkAbstractArray a,
vtkIndent  indent,
OffsetsManager offs,
const char *  alternateName = 0,
int  writeNumTuples = 0,
int  timestep = 0
) [protected]

int vtkXMLWriter::WriteAsciiData ( vtkAbstractArray a,
vtkIndent  indent
) [protected]

int vtkXMLWriter::WriteBinaryData ( vtkAbstractArray a  )  [protected]

int vtkXMLWriter::WriteBinaryDataInternal ( vtkAbstractArray a,
OffsetType  data_size
) [protected]

void vtkXMLWriter::WriteArrayAppendedData ( vtkAbstractArray a,
OffsetType  pos,
OffsetType lastoffset
) [protected]

void vtkXMLWriter::WriteFieldData ( vtkIndent  indent  )  [protected]

void vtkXMLWriter::WriteFieldDataInline ( vtkFieldData fd,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WritePointDataInline ( vtkPointData pd,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteCellDataInline ( vtkCellData cd,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteFieldDataAppended ( vtkFieldData fd,
vtkIndent  indent,
OffsetsManagerGroup fdManager
) [protected]

void vtkXMLWriter::WriteFieldDataAppendedData ( vtkFieldData fd,
int  timestep,
OffsetsManagerGroup fdManager
) [protected]

void vtkXMLWriter::WritePointDataAppended ( vtkPointData pd,
vtkIndent  indent,
OffsetsManagerGroup pdManager
) [protected]

void vtkXMLWriter::WritePointDataAppendedData ( vtkPointData pd,
int  timestep,
OffsetsManagerGroup pdManager
) [protected]

void vtkXMLWriter::WriteCellDataAppended ( vtkCellData cd,
vtkIndent  indent,
OffsetsManagerGroup cdManager
) [protected]

void vtkXMLWriter::WriteCellDataAppendedData ( vtkCellData cd,
int  timestep,
OffsetsManagerGroup cdManager
) [protected]

void vtkXMLWriter::WriteAttributeIndices ( vtkDataSetAttributes dsa,
char **  names
) [protected]

void vtkXMLWriter::WritePointsAppended ( vtkPoints points,
vtkIndent  indent,
OffsetsManager manager
) [protected]

void vtkXMLWriter::WritePointsAppendedData ( vtkPoints points,
int  timestep,
OffsetsManager pdManager
) [protected]

void vtkXMLWriter::WritePointsInline ( vtkPoints points,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteCoordinatesInline ( vtkDataArray xc,
vtkDataArray yc,
vtkDataArray zc,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WriteCoordinatesAppended ( vtkDataArray xc,
vtkDataArray yc,
vtkDataArray zc,
vtkIndent  indent,
OffsetsManagerGroup coordManager
) [protected]

void vtkXMLWriter::WriteCoordinatesAppendedData ( vtkDataArray xc,
vtkDataArray yc,
vtkDataArray zc,
int  timestep,
OffsetsManagerGroup coordManager
) [protected]

virtual vtkAbstractArray* vtkXMLWriter::CreateArrayForPoints ( vtkAbstractArray inArray  )  [protected, virtual]

Reimplemented in vtkXMLStructuredDataWriter.

virtual vtkAbstractArray* vtkXMLWriter::CreateArrayForCells ( vtkAbstractArray inArray  )  [protected, virtual]

Reimplemented in vtkXMLStructuredDataWriter.

virtual vtkDataArray* vtkXMLWriter::CreateExactCoordinates ( vtkDataArray inArray,
int  xyz
) [protected, virtual]

Reimplemented in vtkXMLRectilinearGridWriter.

void vtkXMLWriter::WritePPointData ( vtkPointData pd,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WritePCellData ( vtkCellData cd,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WritePPoints ( vtkPoints points,
vtkIndent  indent
) [protected]

void vtkXMLWriter::WritePArray ( vtkAbstractArray a,
vtkIndent  indent,
const char *  alternateName = 0
) [protected]

void vtkXMLWriter::WritePCoordinates ( vtkDataArray xc,
vtkDataArray yc,
vtkDataArray zc,
vtkIndent  indent
) [protected]

int vtkXMLWriter::WriteBinaryDataInternal ( void *  data,
OffsetType  numWords,
int  wordType
) [protected]

int vtkXMLWriter::WriteBinaryDataBlock ( unsigned char *  in_data,
OffsetType  numWords,
int  wordType
) [protected]

void vtkXMLWriter::PerformByteSwap ( void *  data,
OffsetType  numWords,
int  wordSize
) [protected]

int vtkXMLWriter::CreateCompressionHeader ( OffsetType  size  )  [protected]

int vtkXMLWriter::WriteCompressionBlock ( unsigned char *  data,
OffsetType  size
) [protected]

int vtkXMLWriter::WriteCompressionHeader (  )  [protected]

OffsetType vtkXMLWriter::GetWordTypeSize ( int  dataType  )  [protected]

const char* vtkXMLWriter::GetWordTypeName ( int  dataType  )  [protected]

OffsetType vtkXMLWriter::GetOutputWordTypeSize ( int  dataType  )  [protected]

char** vtkXMLWriter::CreateStringArray ( int  numStrings  )  [protected]

void vtkXMLWriter::DestroyStringArray ( int  numStrings,
char **  strings
) [protected]

virtual void vtkXMLWriter::GetProgressRange ( float *  range  )  [protected, virtual]

virtual void vtkXMLWriter::SetProgressRange ( float *  range,
int  curStep,
int  numSteps
) [protected, virtual]

virtual void vtkXMLWriter::SetProgressRange ( float *  range,
int  curStep,
float *  fractions
) [protected, virtual]

virtual void vtkXMLWriter::SetProgressPartial ( float  fraction  )  [protected, virtual]

virtual void vtkXMLWriter::UpdateProgressDiscrete ( float  progress  )  [protected, virtual]

int vtkXMLWriter::OpenFile (  )  [protected]

void vtkXMLWriter::CloseFile (  )  [protected]


Friends And Related Function Documentation

friend class vtkXMLWriterHelper [friend]

Definition at line 449 of file vtkXMLWriter.h.


Member Data Documentation

char* vtkXMLWriter::FileName [protected]

Definition at line 211 of file vtkXMLWriter.h.

ostream* vtkXMLWriter::Stream [protected]

Definition at line 214 of file vtkXMLWriter.h.

int vtkXMLWriter::ByteOrder [protected]

Definition at line 217 of file vtkXMLWriter.h.

int vtkXMLWriter::IdType [protected]

Definition at line 220 of file vtkXMLWriter.h.

int vtkXMLWriter::DataMode [protected]

Definition at line 224 of file vtkXMLWriter.h.

Definition at line 227 of file vtkXMLWriter.h.

Definition at line 230 of file vtkXMLWriter.h.

Definition at line 233 of file vtkXMLWriter.h.

Int32IdType* vtkXMLWriter::Int32IdTypeBuffer [protected]

Definition at line 266 of file vtkXMLWriter.h.

unsigned char* vtkXMLWriter::ByteSwapBuffer [protected]

Definition at line 269 of file vtkXMLWriter.h.

Definition at line 272 of file vtkXMLWriter.h.

unsigned int vtkXMLWriter::BlockSize [protected]

Definition at line 273 of file vtkXMLWriter.h.

Definition at line 274 of file vtkXMLWriter.h.

HeaderType* vtkXMLWriter::CompressionHeader [protected]

Definition at line 275 of file vtkXMLWriter.h.

unsigned int vtkXMLWriter::CompressionHeaderLength [protected]

Definition at line 276 of file vtkXMLWriter.h.

Definition at line 277 of file vtkXMLWriter.h.

Definition at line 281 of file vtkXMLWriter.h.

float vtkXMLWriter::ProgressRange[2] [protected]

Definition at line 429 of file vtkXMLWriter.h.

ofstream* vtkXMLWriter::OutFile [protected]

Definition at line 431 of file vtkXMLWriter.h.

int vtkXMLWriter::TimeStep [protected]

Definition at line 437 of file vtkXMLWriter.h.

Definition at line 438 of file vtkXMLWriter.h.

Definition at line 439 of file vtkXMLWriter.h.

int vtkXMLWriter::TimeStepRange[2] [protected]

Definition at line 441 of file vtkXMLWriter.h.

Definition at line 445 of file vtkXMLWriter.h.

unsigned long* vtkXMLWriter::NumberOfTimeValues [protected]

Definition at line 447 of file vtkXMLWriter.h.


The documentation for this class was generated from the following file:

Generated on Sat Dec 27 14:02:11 2008 for VTK by  doxygen 1.5.6
