vtkXOpenGLRenderWindow Class Reference

#include <vtkXOpenGLRenderWindow.h>

Inheritance diagram for vtkXOpenGLRenderWindow:

[legend]

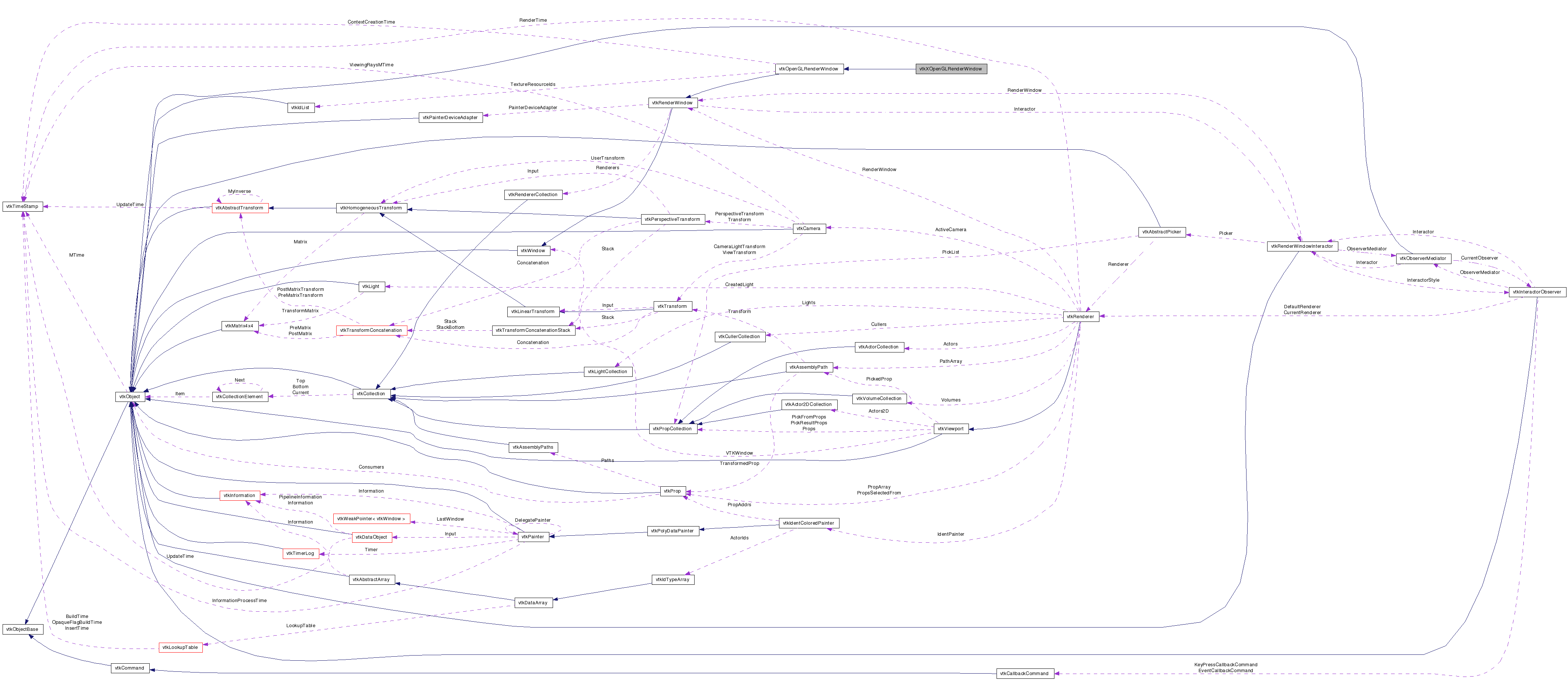

Collaboration diagram for vtkXOpenGLRenderWindow:

[legend]

List of all members.

Detailed Description

OpenGL rendering window.

vtkXOpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkOpenGLRenderer interfaces to the OpenGL graphics library. Application programmers should normally use vtkRenderWindow instead of the OpenGL specific version.

Events:: vtkCommand::CursorChangedEvent vtkCommand::ExitEvent

Examples:: vtkXOpenGLRenderWindow (Examples)

Tests:: vtkXOpenGLRenderWindow (Tests)

Definition at line 43 of file vtkXOpenGLRenderWindow.h.


Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start (void)
virtual void	Frame (void)
virtual void	WindowInitialize (void)
virtual void	Initialize (void)
virtual void	Finalize (void)
virtual void	SetFullScreen (int)
virtual void	WindowRemap (void)
virtual void	PrefFullScreen (void)
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
void	SetForceMakeCurrent ()
const char *	ReportCapabilities ()
int	SupportsOpenGL ()
int	IsDirect ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void *	GetGenericDrawable ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
Display *	GetDisplayId ()
Window	GetParentId ()
Window	GetWindowId ()
void	SetNextWindowId (Window)
void	SetNextWindowId (void *)
void	SetWindowName (const char *)
virtual void	SetCurrentCursor (int)
virtual int	GetEventPending ()
void	SetWindowInfo (char *info)
void	SetNextWindowInfo (char *info)
void	SetParentInfo (char *info)
void	Render ()
void	SetOffScreenRendering (int i)

virtual void	SetSize (int, int)
virtual void	SetSize (int a[2])

virtual Colormap	GetDesiredColormap ()
virtual Visual *	GetDesiredVisual ()
virtual XVisualInfo *	GetDesiredVisualInfo ()
virtual int	GetDesiredDepth ()

virtual void *	GetGenericDisplayId ()

void	SetDisplayId (Display *)
void	SetDisplayId (void *)

void	SetParentId (Window)
void	SetParentId (void *)

void	SetWindowId (Window)
void	SetWindowId (void *)

void	SetPosition (int, int)
void	SetPosition (int a[2])

void	HideCursor ()
void	ShowCursor ()
Static Public Member Functions
static vtkXOpenGLRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkXOpenGLRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXOpenGLRenderWindow ()
	~vtkXOpenGLRenderWindow ()
void	CreateAWindow ()
void	DestroyWindow ()
void	CreateOffScreenWindow (int width, int height)
void	DestroyOffScreenWindow ()
void	ResizeOffScreenWindow (int width, int height)
Protected Attributes
vtkXOpenGLRenderWindowInternal *	Internal
Window	ParentId
Window	WindowId
Window	NextWindowId
Display *	DisplayId
Colormap	ColorMap
int	OwnWindow
int	OwnDisplay
int	ScreenSize [2]
int	CursorHidden
int	ForceMakeCurrent
int	UsingHardware
char *	Capabilities
Cursor	XCArrow
Cursor	XCSizeAll
Cursor	XCSizeNS
Cursor	XCSizeWE
Cursor	XCSizeNE
Cursor	XCSizeNW
Cursor	XCSizeSE
Cursor	XCSizeSW
Cursor	XCHand

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkXOpenGLRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.

Definition at line 47 of file vtkXOpenGLRenderWindow.h.

Constructor & Destructor Documentation

vtkXOpenGLRenderWindow::vtkXOpenGLRenderWindow ( ) [protected]

vtkXOpenGLRenderWindow::~vtkXOpenGLRenderWindow ( ) [protected]

Member Function Documentation

static vtkXOpenGLRenderWindow* vtkXOpenGLRenderWindow::New ( ) [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkXOpenGLRenderWindow::GetClassName ( ) [virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkXOpenGLRenderWindow::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkXOpenGLRenderWindow::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

static vtkXOpenGLRenderWindow* vtkXOpenGLRenderWindow::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkXOpenGLRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkXOpenGLRenderWindow::Start ( void ) [virtual]

Begin the rendering process.

virtual void vtkXOpenGLRenderWindow::SetSize	(	int	,
		int
	)			`[virtual]`

void vtkXOpenGLRenderWindow::SetPosition	(	int	,
		int
	)			`[virtual]`

void vtkXOpenGLRenderWindow::CreateOffScreenWindow	(	int	width,
		int	height
	)			`[protected]`

void vtkXOpenGLRenderWindow::ResizeOffScreenWindow	(	int	width,
		int	height
	)			`[protected]`
