vtkHardwareSelector Class Reference

#include <vtkHardwareSelector.h>

Inheritance diagram for vtkHardwareSelector:

Inheritance graph
[legend]

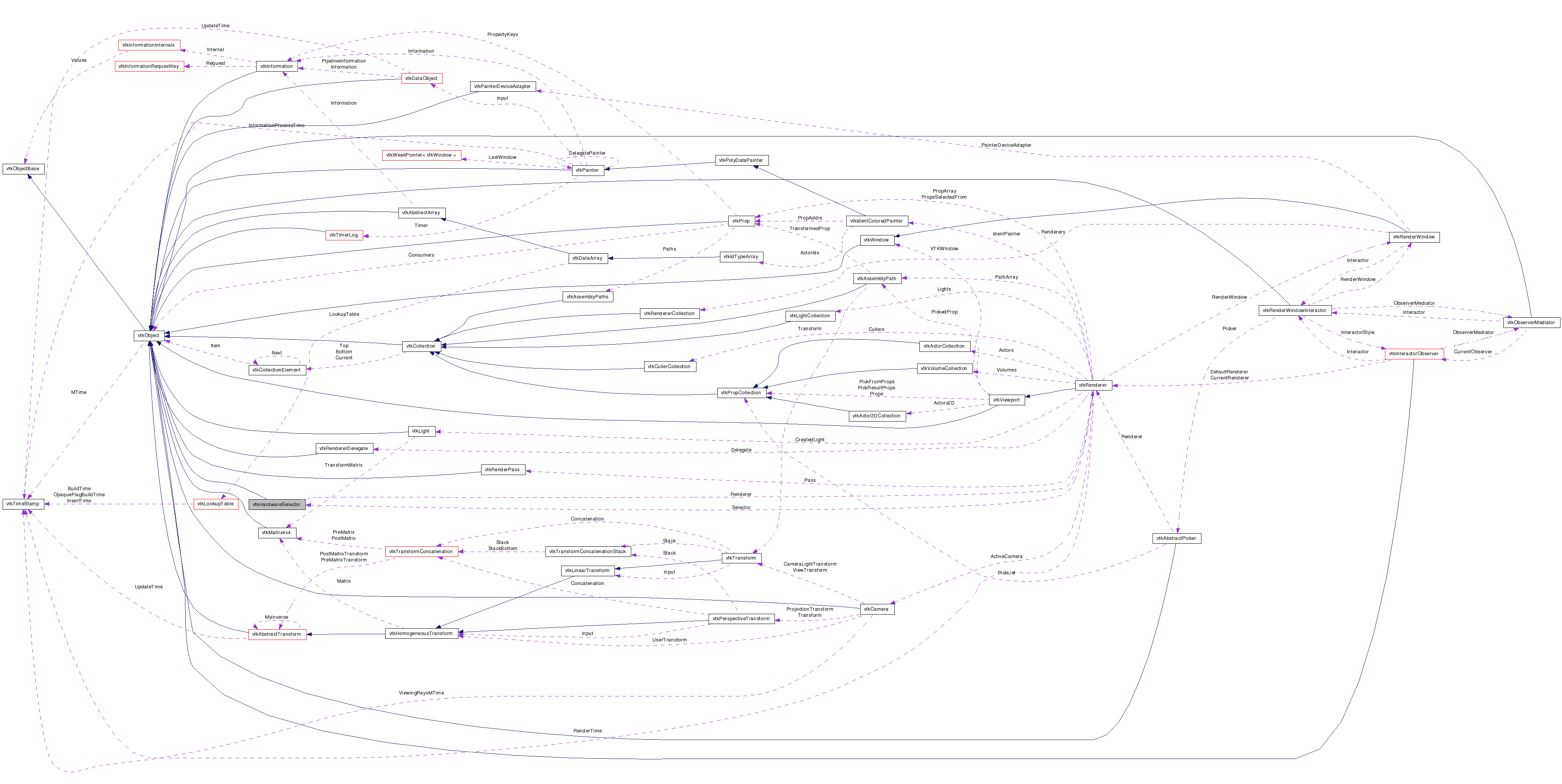

Collaboration diagram for vtkHardwareSelector:

Collaboration graph
[legend]

List of all members.


Detailed Description

manager for OpenGL-based selection.

vtkHardwareSelector is a helper that orchestrates color buffer based selection. This relies on OpenGL. vtkHardwareSelector can be used to select visible cells or points within a given rectangle of the RenderWindow. To use it, call in order:

Limitations: Antialiasing will break this class. If your graphics card settings force their use this class will return invalid results.

Currently only cells from PolyDataMappers can be selected from. When vtkRenderer::Selector is non-null vtkPainterPolyDataMapper uses the vtkHardwareSelectionPolyDataPainter which make appropriate calls to BeginRenderProp(), EndRenderProp(), RenderAttributeId() to render colors correctly. Until alternatives to vtkHardwareSelectionPolyDataPainter exist that can do a similar coloration of other vtkDataSet types, only polygonal data can be selected. If you need to select other data types, consider using vtkDataSetMapper and turning on it's PassThroughCellIds feature, or using vtkFrustumExtractor.

Only Opaque geometry in Actors is selected from. Assemblies and LODMappers are not currently supported.

During selection, visible datasets that can not be selected from are temporarily hidden so as not to produce invalid indices from their colors.

See also:
vtkIdentColoredPainter
Tests:
vtkHardwareSelector (Tests)

Definition at line 72 of file vtkHardwareSelector.h.

vtkRendererRenderer
unsigned int Area [4]
int FieldAssociation
vtkIdType MaxAttributeId
void ReleasePixBuffers ()

Public Types

enum  PassTypes {
  PROCESS_PASS, ACTOR_PASS, ID_LOW24, ID_MID24,
  ID_HIGH16, MAX_KNOWN_PASS = ID_HIGH16, MIN_KNOWN_PASS = PROCESS_PASS
}
typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkSelectionSelect ()
void RenderAttributeId (vtkIdType attribid)
int Render (vtkRenderer *renderer, vtkProp **propArray, int propArrayCount)
void SetRenderer (vtkRenderer *)
virtual vtkRendererGetRenderer ()
virtual void SetArea (unsigned int, unsigned int, unsigned int, unsigned int)
virtual void SetArea (unsigned int[4])
virtual unsigned int * GetArea ()
virtual void GetArea (unsigned int &, unsigned int &, unsigned int &, unsigned int &)
virtual void GetArea (unsigned int[4])
virtual void SetFieldAssociation (int)
virtual int GetFieldAssociation ()
bool CaptureBuffers ()
bool GetPixelInformation (unsigned int display_position[2], int &processId, vtkIdType &attrId, vtkProp *&prop)
void ClearBuffers ()
void BeginRenderProp ()
void EndRenderProp ()
virtual void SetProcessID (int)
virtual int GetProcessID ()
virtual int GetCurrentPass ()

Static Public Member Functions

static vtkHardwareSelectorNew ()
static int IsTypeOf (const char *type)
static vtkHardwareSelectorSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkHardwareSelector ()
 ~vtkHardwareSelector ()
int Convert (unsigned long offset, unsigned char *pb)
int Convert (int xx, int yy, unsigned char *pb)
vtkIdType GetID (int low24, int mid24, int high16)
virtual bool PassRequired (int pass)
bool IsPropHit (int propid)
virtual vtkSelectionGenerateSelection ()
virtual void BeginSelection ()
virtual void EndSelection ()
void SavePixelBuffer (int passNo)
void BuildPropHitList (unsigned char *rgbData)
virtual int GetPropID (int idx, vtkProp *vtkNotUsed(prop))

Static Protected Member Functions

static void Convert (int id, float tcoord[3])

Protected Attributes

unsigned char * PixBuffer [10]
int ProcessID
int CurrentPass

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 76 of file vtkHardwareSelector.h.


Member Enumeration Documentation

Enumerator:
PROCESS_PASS
ACTOR_PASS
ID_LOW24
ID_MID24
ID_HIGH16
MAX_KNOWN_PASS
MIN_KNOWN_PASS

Definition at line 149 of file vtkHardwareSelector.h.


Constructor & Destructor Documentation

vtkHardwareSelector::vtkHardwareSelector (  )  [protected]

vtkHardwareSelector::~vtkHardwareSelector (  )  [protected]


Member Function Documentation

static vtkHardwareSelector* vtkHardwareSelector::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkHardwareSelector::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkHardwareSelector::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkHardwareSelector::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkHardwareSelector* vtkHardwareSelector::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkHardwareSelector::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkHardwareSelector::SetRenderer ( vtkRenderer  )

Get/Set the renderer to perform the selection on.

virtual vtkRenderer* vtkHardwareSelector::GetRenderer (  )  [virtual]

Get/Set the renderer to perform the selection on.

virtual void vtkHardwareSelector::SetArea ( unsigned  int,
unsigned  int,
unsigned  int,
unsigned  int
) [virtual]

Get/Set the area to select as (xmin, ymin, xmax, ymax).

virtual void vtkHardwareSelector::SetArea ( unsigned  int[4]  )  [virtual]

Get/Set the area to select as (xmin, ymin, xmax, ymax).

virtual unsigned int* vtkHardwareSelector::GetArea (  )  [virtual]

Get/Set the area to select as (xmin, ymin, xmax, ymax).

virtual void vtkHardwareSelector::GetArea ( unsigned int &  ,
unsigned int &  ,
unsigned int &  ,
unsigned int &
) [virtual]

Get/Set the area to select as (xmin, ymin, xmax, ymax).

virtual void vtkHardwareSelector::GetArea ( unsigned  int[4]  )  [virtual]

Get/Set the area to select as (xmin, ymin, xmax, ymax).

virtual void vtkHardwareSelector::SetFieldAssociation ( int   )  [virtual]

Set the field type to select. Valid values are

virtual int vtkHardwareSelector::GetFieldAssociation (  )  [virtual]

Set the field type to select. Valid values are

vtkSelection* vtkHardwareSelector::Select (  )

Perform the selection. Returns a new instance of vtkSelection containing the selection on success.

bool vtkHardwareSelector::CaptureBuffers (  )

It is possible to use the vtkHardwareSelector for a custom picking. (Look at vtkScenePicker). In that case instead of Select() on can use CaptureBuffers() to render the selection buffers and then get information about pixel locations suing GetPixelInformation(). Use ClearBuffers() to clear buffers after one's done with the scene.

bool vtkHardwareSelector::GetPixelInformation ( unsigned int  display_position[2],
int &  processId,
vtkIdType attrId,
vtkProp *&  prop
)

It is possible to use the vtkHardwareSelector for a custom picking. (Look at vtkScenePicker). In that case instead of Select() on can use CaptureBuffers() to render the selection buffers and then get information about pixel locations suing GetPixelInformation(). Use ClearBuffers() to clear buffers after one's done with the scene.

void vtkHardwareSelector::ClearBuffers (  )  [inline]

It is possible to use the vtkHardwareSelector for a custom picking. (Look at vtkScenePicker). In that case instead of Select() on can use CaptureBuffers() to render the selection buffers and then get information about pixel locations suing GetPixelInformation(). Use ClearBuffers() to clear buffers after one's done with the scene.

Definition at line 117 of file vtkHardwareSelector.h.

void vtkHardwareSelector::RenderAttributeId ( vtkIdType  attribid  )

Called by any vtkMapper or vtkProp subclass to render an attribute's id.

int vtkHardwareSelector::Render ( vtkRenderer renderer,
vtkProp **  propArray,
int  propArrayCount
)

Called by vtkRenderer to render the selection pass. Returns the number of props rendered.

void vtkHardwareSelector::BeginRenderProp (  )

Called by the mapper (vtkHardwareSelectionPolyDataPainter) before and after rendering each prop.

void vtkHardwareSelector::EndRenderProp (  )

Called by the mapper (vtkHardwareSelectionPolyDataPainter) before and after rendering each prop.

virtual void vtkHardwareSelector::SetProcessID ( int   )  [virtual]

Get/Set the process id. If process id < 0 (default -1), then the PROCESS_PASS is not rendered.

virtual int vtkHardwareSelector::GetProcessID (  )  [virtual]

Get/Set the process id. If process id < 0 (default -1), then the PROCESS_PASS is not rendered.

virtual int vtkHardwareSelector::GetCurrentPass (  )  [virtual]

Get the current pass number.

static void vtkHardwareSelector::Convert ( int  id,
float  tcoord[3]
) [inline, static, protected]

Definition at line 163 of file vtkHardwareSelector.h.

int vtkHardwareSelector::Convert ( unsigned long  offset,
unsigned char *  pb
) [inline, protected]

Definition at line 170 of file vtkHardwareSelector.h.

int vtkHardwareSelector::Convert ( int  xx,
int  yy,
unsigned char *  pb
) [inline, protected]

Definition at line 191 of file vtkHardwareSelector.h.

vtkIdType vtkHardwareSelector::GetID ( int  low24,
int  mid24,
int  high16
) [inline, protected]

Definition at line 211 of file vtkHardwareSelector.h.

virtual bool vtkHardwareSelector::PassRequired ( int  pass  )  [protected, virtual]

Returns is the pass indicated is needed.

bool vtkHardwareSelector::IsPropHit ( int  propid  )  [protected]

After the ACTOR_PASS this return true or false depending upon whether the prop was hit in the ACTOR_PASS. This makes it possible to skip props that are not involved in the selection after the first pass.

virtual vtkSelection* vtkHardwareSelector::GenerateSelection (  )  [protected, virtual]

Internal method that generates the vtkSelection from pixel buffers.

virtual int vtkHardwareSelector::GetPropID ( int  idx,
vtkProp vtkNotUsedprop
) [inline, protected, virtual]

Return a unique ID for the prop.

Definition at line 235 of file vtkHardwareSelector.h.

virtual void vtkHardwareSelector::BeginSelection (  )  [protected, virtual]

virtual void vtkHardwareSelector::EndSelection (  )  [protected, virtual]

void vtkHardwareSelector::SavePixelBuffer ( int  passNo  )  [protected]

void vtkHardwareSelector::BuildPropHitList ( unsigned char *  rgbData  )  [protected]

void vtkHardwareSelector::ReleasePixBuffers (  )  [protected]

Clears all pixel buffers.


Member Data Documentation

Clears all pixel buffers.

Definition at line 248 of file vtkHardwareSelector.h.

unsigned int vtkHardwareSelector::Area[4] [protected]

Clears all pixel buffers.

Definition at line 249 of file vtkHardwareSelector.h.

Clears all pixel buffers.

Definition at line 250 of file vtkHardwareSelector.h.

Clears all pixel buffers.

Definition at line 251 of file vtkHardwareSelector.h.

unsigned char* vtkHardwareSelector::PixBuffer[10] [protected]

Definition at line 255 of file vtkHardwareSelector.h.

Definition at line 256 of file vtkHardwareSelector.h.

Definition at line 257 of file vtkHardwareSelector.h.


The documentation for this class was generated from the following file:
