vtkScalarTree Class Reference

#include <vtkScalarTree.h>

Inheritance diagram for vtkScalarTree:

Inheritance graph
[legend]

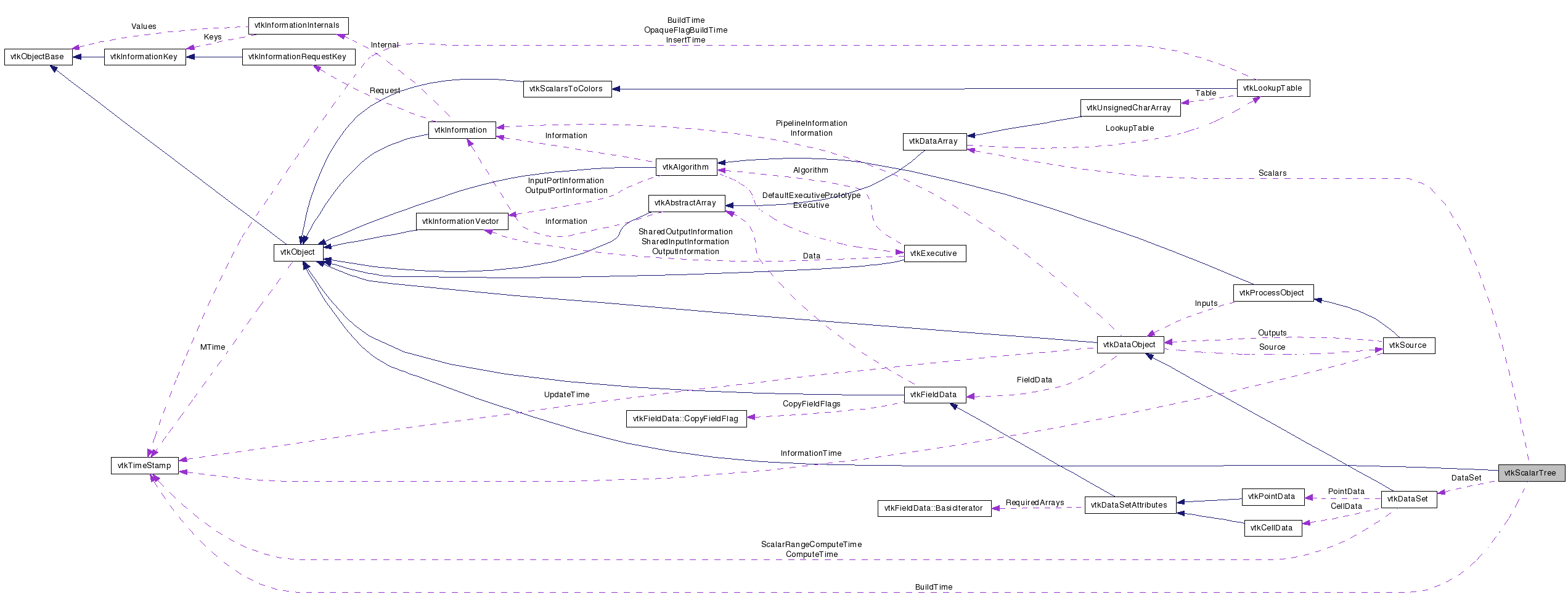

Collaboration diagram for vtkScalarTree:

Collaboration graph
[legend]

List of all members.


Detailed Description

organize data according to scalar values (used to accelerate contouring operations)

vtkScalarTree is an abstract class that defines the API to concrete scalar tree subclasses. A scalar tree is a data structure that organizes data according to its scalar value. This allows rapid access to data for those algorithms that access the data based on scalar value. For example, isocontouring operates on cells based on the scalar (isocontour) value.

To use subclasses of this class, you must specify a dataset to operate on, and then specify a scalar value in the InitTraversal() method. Then calls to GetNextCell() return cells whose scalar data contains the scalar value specified.

See also:
vtkSimpleScalarTree

Definition at line 45 of file vtkScalarTree.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void BuildTree ()=0
virtual void Initialize ()=0
virtual void InitTraversal (double scalarValue)=0
virtual void SetDataSet (vtkDataSet *)
virtual vtkDataSetGetDataSet ()
virtual vtkCellGetNextCell (vtkIdType &cellId, vtkIdList *&ptIds, vtkDataArray *cellScalars)=0

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkScalarTreeSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkScalarTree ()
 ~vtkScalarTree ()
virtual void ReportReferences (vtkGarbageCollector *)

Protected Attributes

vtkDataSetDataSet
vtkDataArrayScalars
vtkTimeStamp BuildTime
double ScalarValue

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

Definition at line 48 of file vtkScalarTree.h.


Constructor & Destructor Documentation

vtkScalarTree::vtkScalarTree (  )  [protected]

vtkScalarTree::~vtkScalarTree (  )  [protected]


Member Function Documentation

virtual const char* vtkScalarTree::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

static int vtkScalarTree::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

virtual int vtkScalarTree::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

static vtkScalarTree* vtkScalarTree::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

void vtkScalarTree::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkSimpleScalarTree.

virtual void vtkScalarTree::SetDataSet ( vtkDataSet  )  [virtual]

Build the tree from the points/cells defining this dataset.

virtual vtkDataSet* vtkScalarTree::GetDataSet (  )  [virtual]

Build the tree from the points/cells defining this dataset.

virtual void vtkScalarTree::BuildTree (  )  [pure virtual]

Construct the scalar tree from the dataset provided. Checks build times and modified time from input and reconstructs the tree if necessary.

Implemented in vtkSimpleScalarTree.

virtual void vtkScalarTree::Initialize (  )  [pure virtual]

Initialize locator. Frees memory and resets object as appropriate.

Implemented in vtkSimpleScalarTree.

virtual void vtkScalarTree::InitTraversal ( double  scalarValue  )  [pure virtual]

Begin to traverse the cells based on a scalar value. Returned cells will have scalar values that span the scalar value specified.

Implemented in vtkSimpleScalarTree.

virtual vtkCell* vtkScalarTree::GetNextCell ( vtkIdType cellId,
vtkIdList *&  ptIds,
vtkDataArray cellScalars
) [pure virtual]

Return the next cell that may contain scalar value specified to initialize traversal. The value NULL is returned if the list is exhausted. Make sure that InitTraversal() has been invoked first or you'll get erratic behavior.

Implemented in vtkSimpleScalarTree.

virtual void vtkScalarTree::ReportReferences ( vtkGarbageCollector  )  [protected, virtual]

Reimplemented from vtkObjectBase.


Member Data Documentation

Definition at line 82 of file vtkScalarTree.h.

Reimplemented in vtkSimpleScalarTree.

Definition at line 83 of file vtkScalarTree.h.

Definition at line 85 of file vtkScalarTree.h.

double vtkScalarTree::ScalarValue [protected]

Definition at line 86 of file vtkScalarTree.h.


The documentation for this class was generated from the following file:
